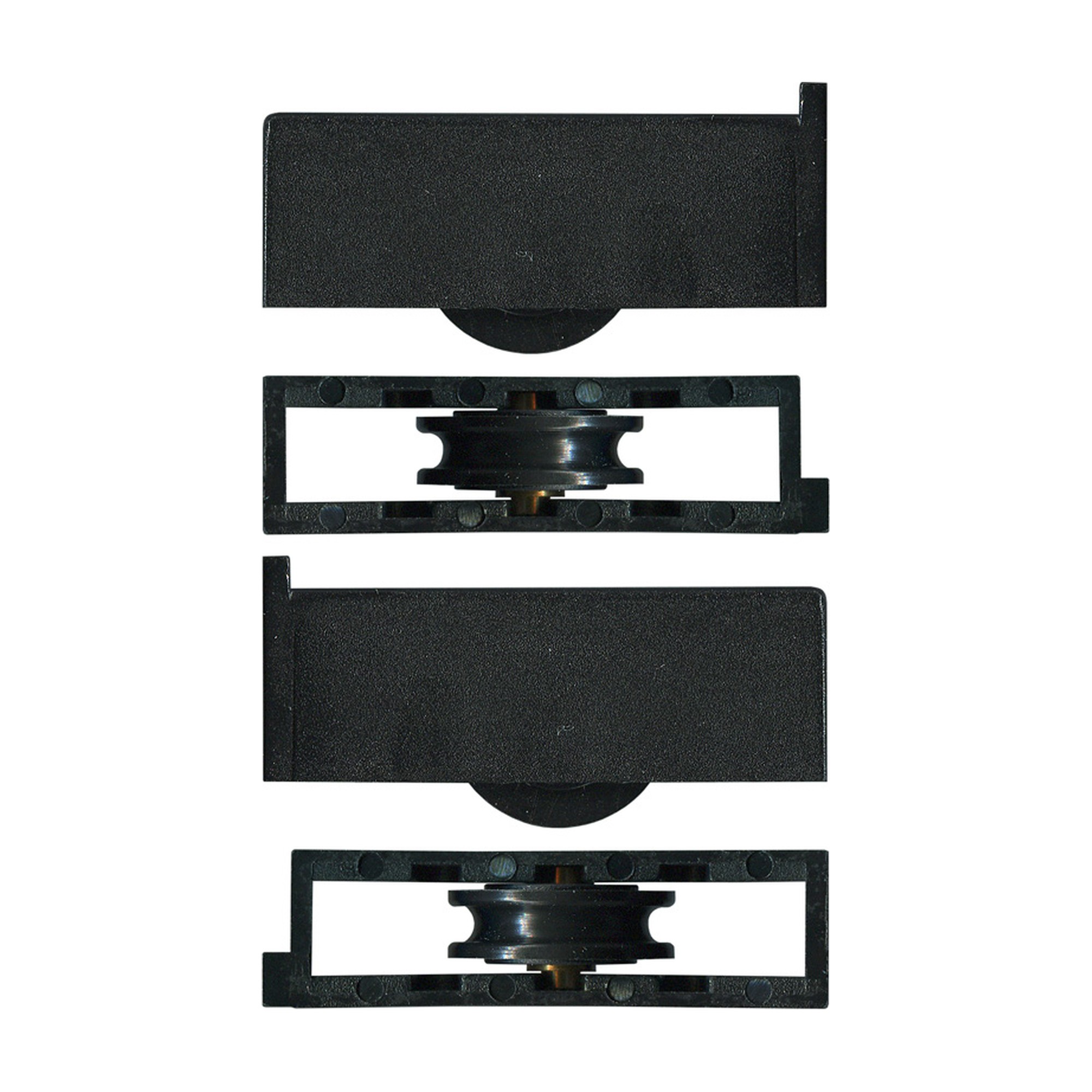

12kg Adjustable Window Carriage & Roller Left & Right – Suits Old Trend®

Key Features

• Adjustable window carriage and roller rated to 12kg
• Acetal concave rollers with brass axle pins for smooth, quiet travel
• Three adjustment heights to re-level dropped sashes
• Suits both left and right
• Suits old Trend® aluminium sliding windows

Ideal For

Replacing worn carriages in older Trend® aluminium sliding windows.

Pack Contents

1 x adjustable window carriage & roller

Compatibility

• Replaces and suits Trend®
• Fits sliding aluminium windows

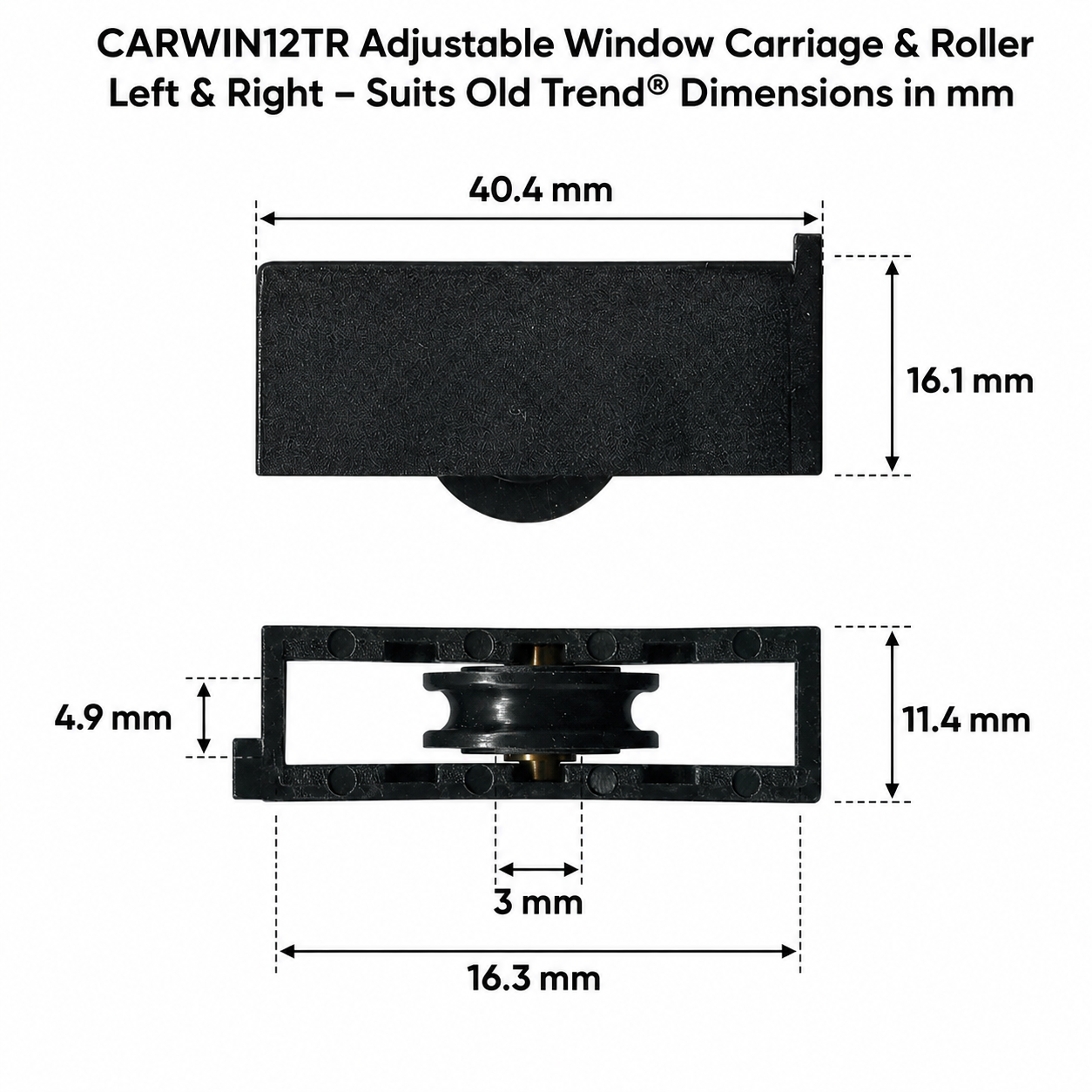

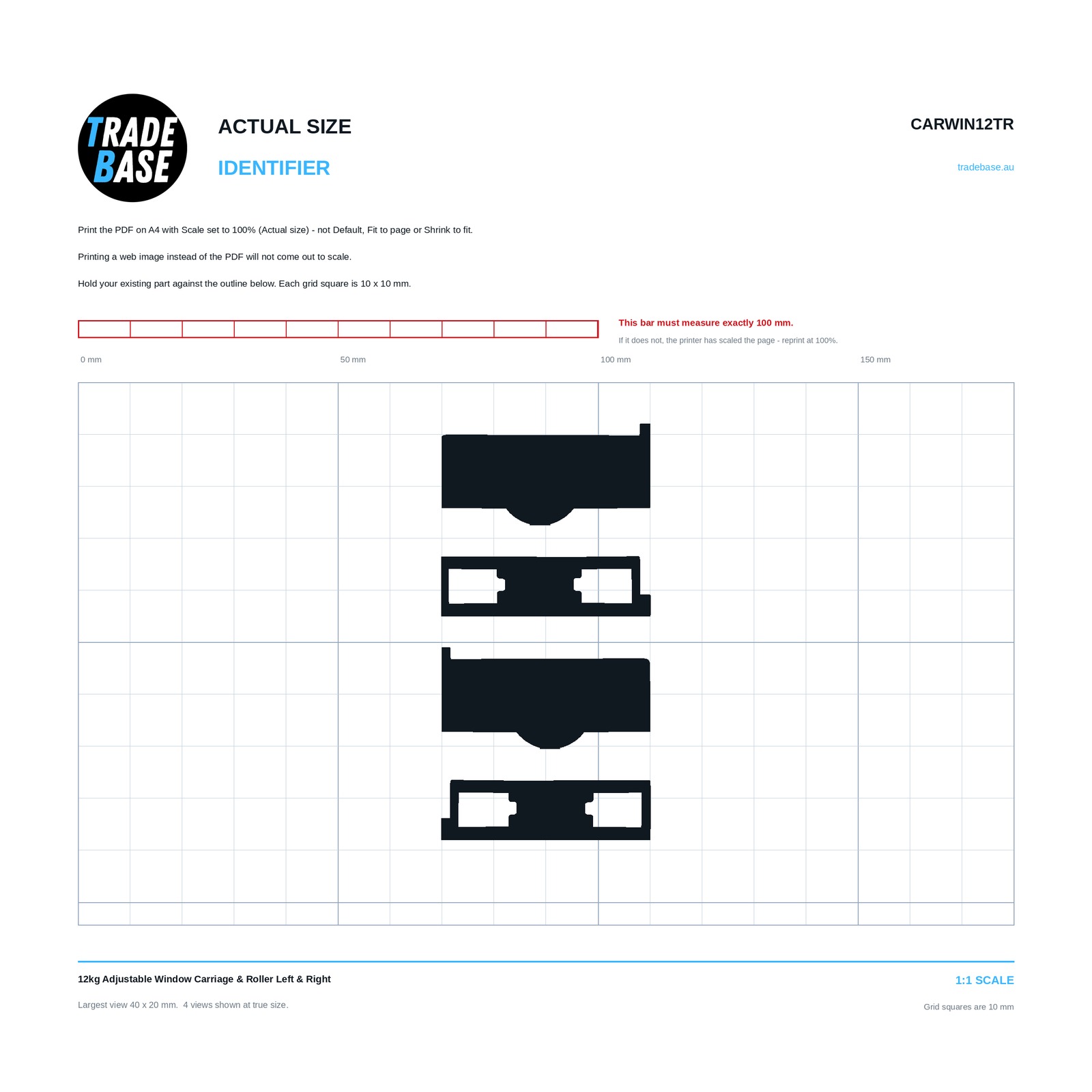

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: CARWIN12TR
• Load rating: 12kg
• Wheel: acetal concave roller
• Axle: brass pin
• Adjustment: three heights
• Suits: old Trend® sliding windows (left & right)

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the sash parallel with the frame, working from the lock side.
• Slide the sash through its full travel before refitting stops or flyscreens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

10-year TradeBase warranty plus your rights under the Australian Consumer Law.
