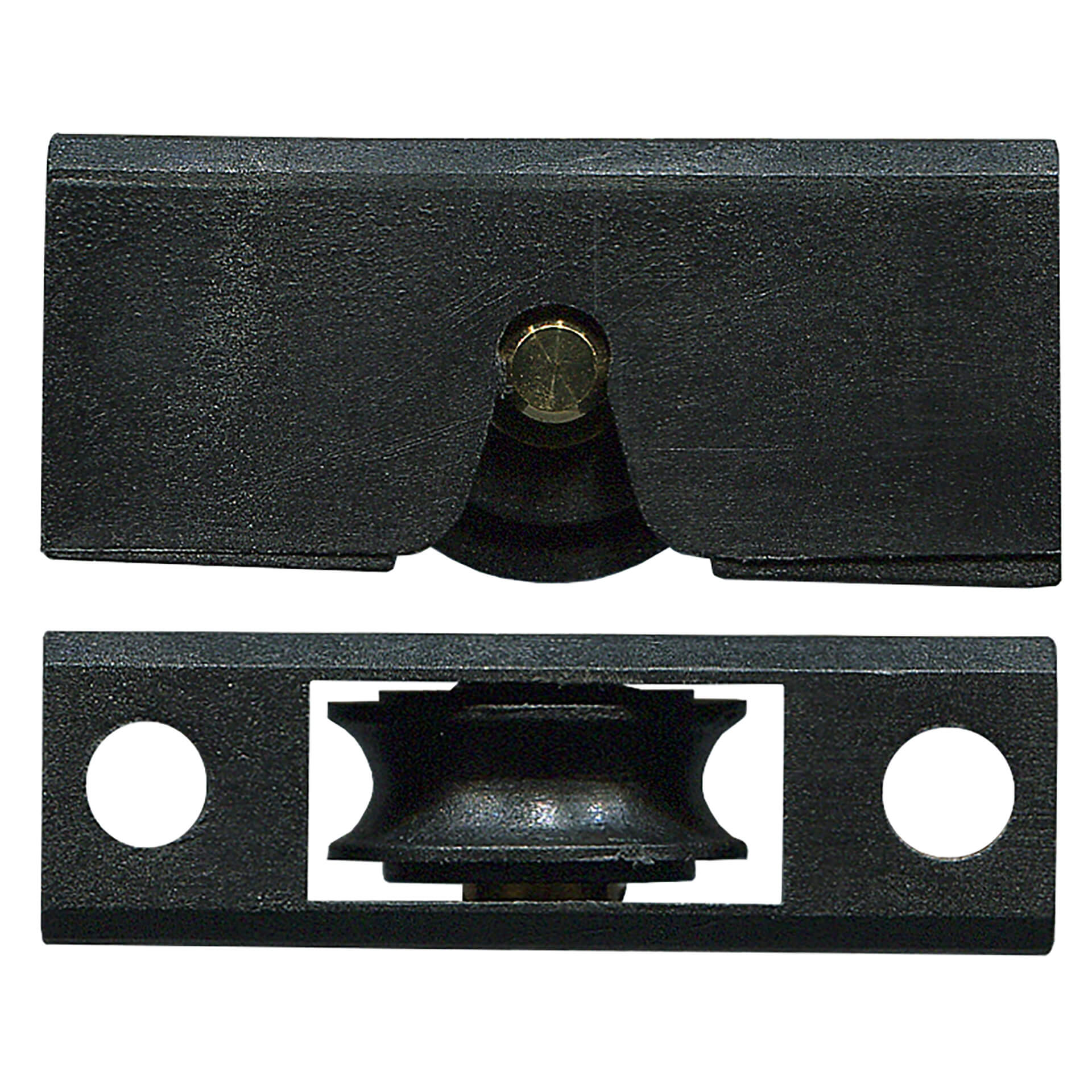

13mm Sliding Door Carriage & Acetal Roller – Plastic 2 Pack

The 13mm Sliding Door Carriage & Acetal Roller – Plastic 2 Pack is a replacement sliding door carriage for aluminium and timber sliding doors, screens and wardrobes. It runs on a 13mm acetal roller and measures 30 x 13 x 9 mm overall.

Key Features

• Plastic body for long service life
• Acetal roller runs quietly under load
• Overall size 30 x 13 x 9 mm
• Supplied 2 per pack

Ideal For

• Aluminium and timber sliding doors
• Sliding screen and security doors
• Replacing hardware that drags, sticks or jumps the track

Compatibility

• Fits sliding aluminium windows

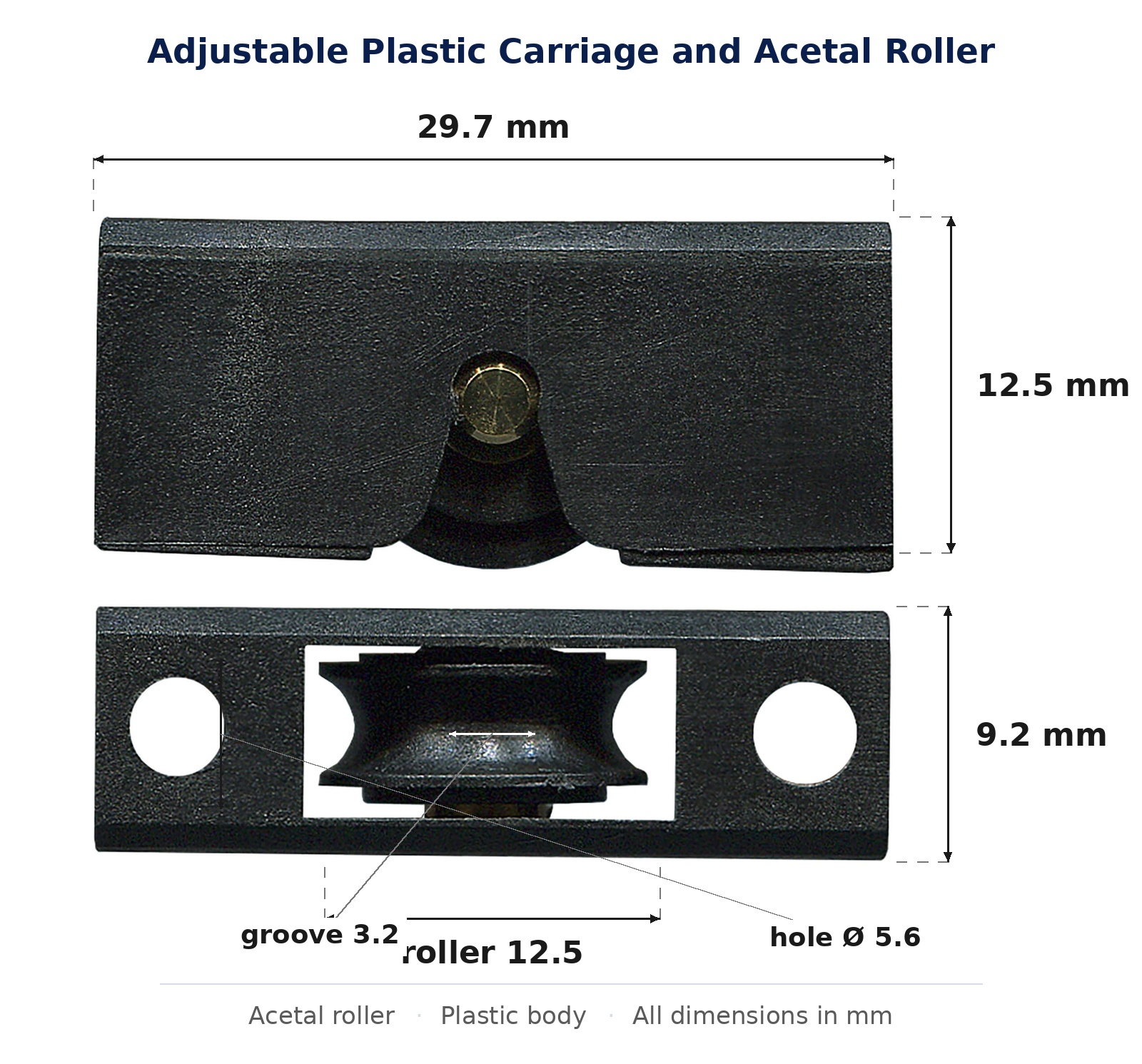

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: CAR13PLA30
• Roller diameter: 13 mm
• Overall width: 30 mm
• Overall height: 13 mm
• Overall depth: 9 mm
• Body material: Plastic
• Roller material: Acetal
• Pack: 2 per pack

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the sash parallel with the frame, working from the lock side.
• Slide the sash through its full travel before refitting stops or flyscreens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.

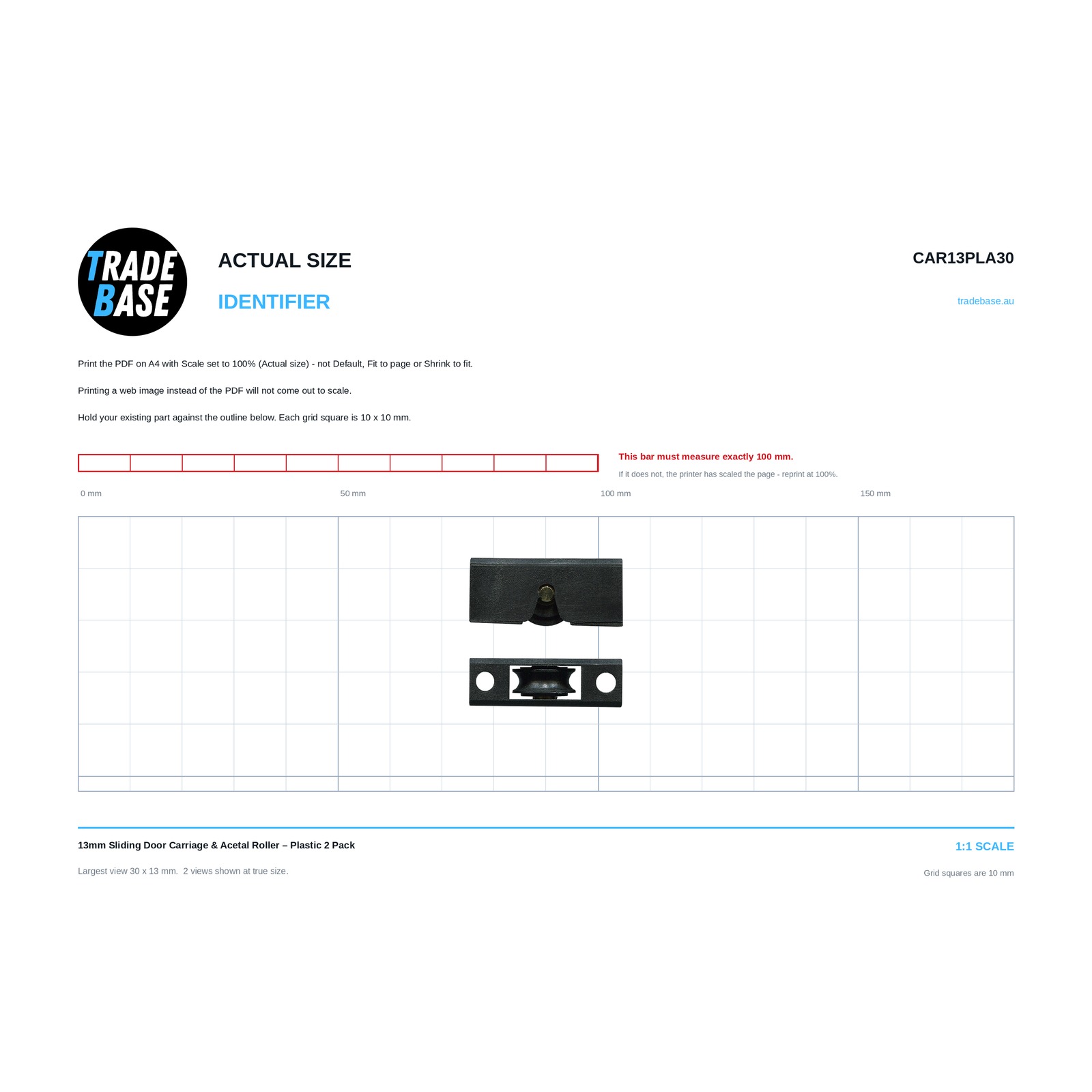

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 29.6 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
