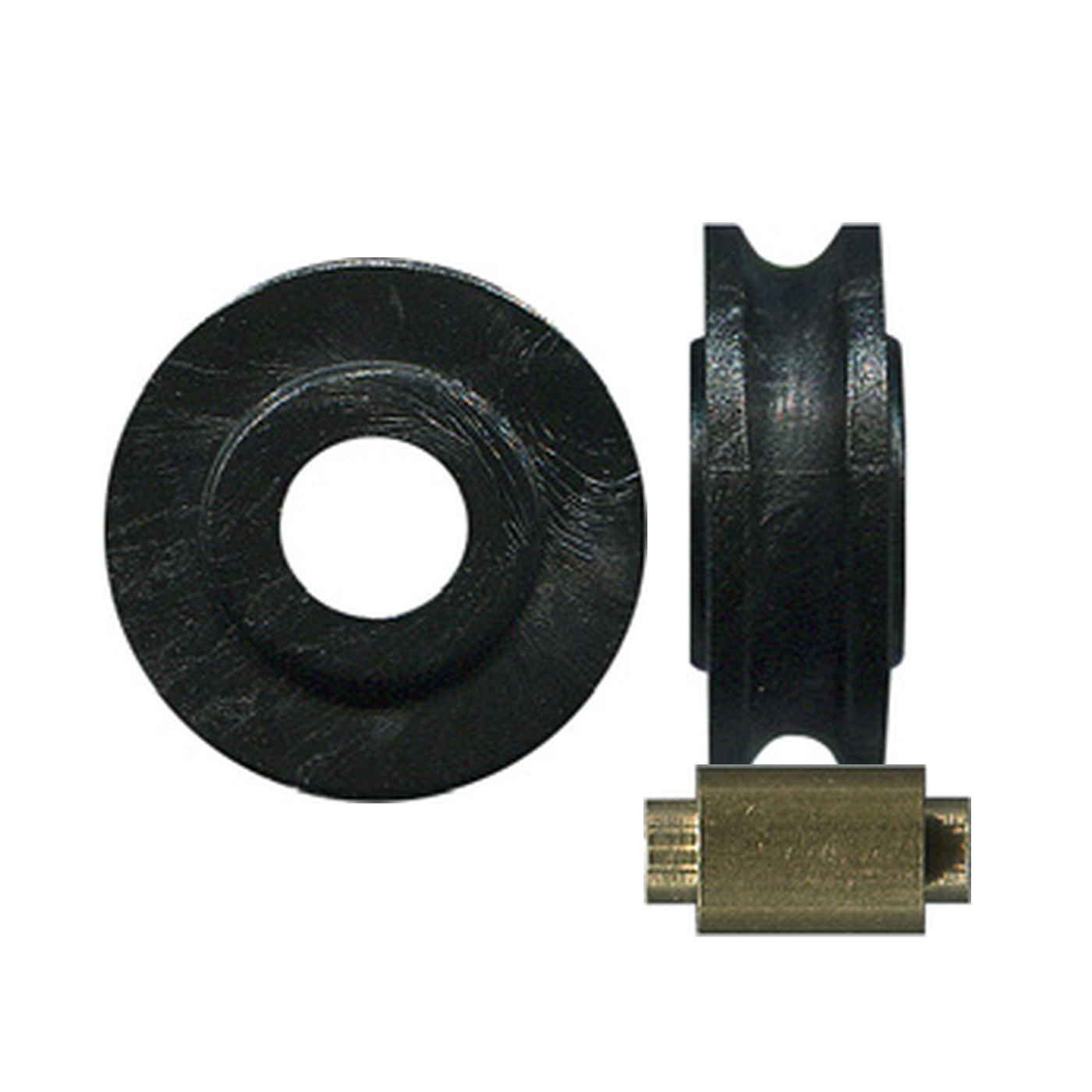

14.5mm Concave Window Roller – Suits Trimview® 10kg

Compact 14.5mm acetal concave roller with a brass axle pin, rated to 10kg — a direct-replacement wheel for sliding windows. Suits Trimview® and similar systems.

Key Features

• 14.5mm concave-profile acetal wheel (see the Roller Types chart)
• Brass axle pin for smooth, durable running
• Compact size for sliding window sashes

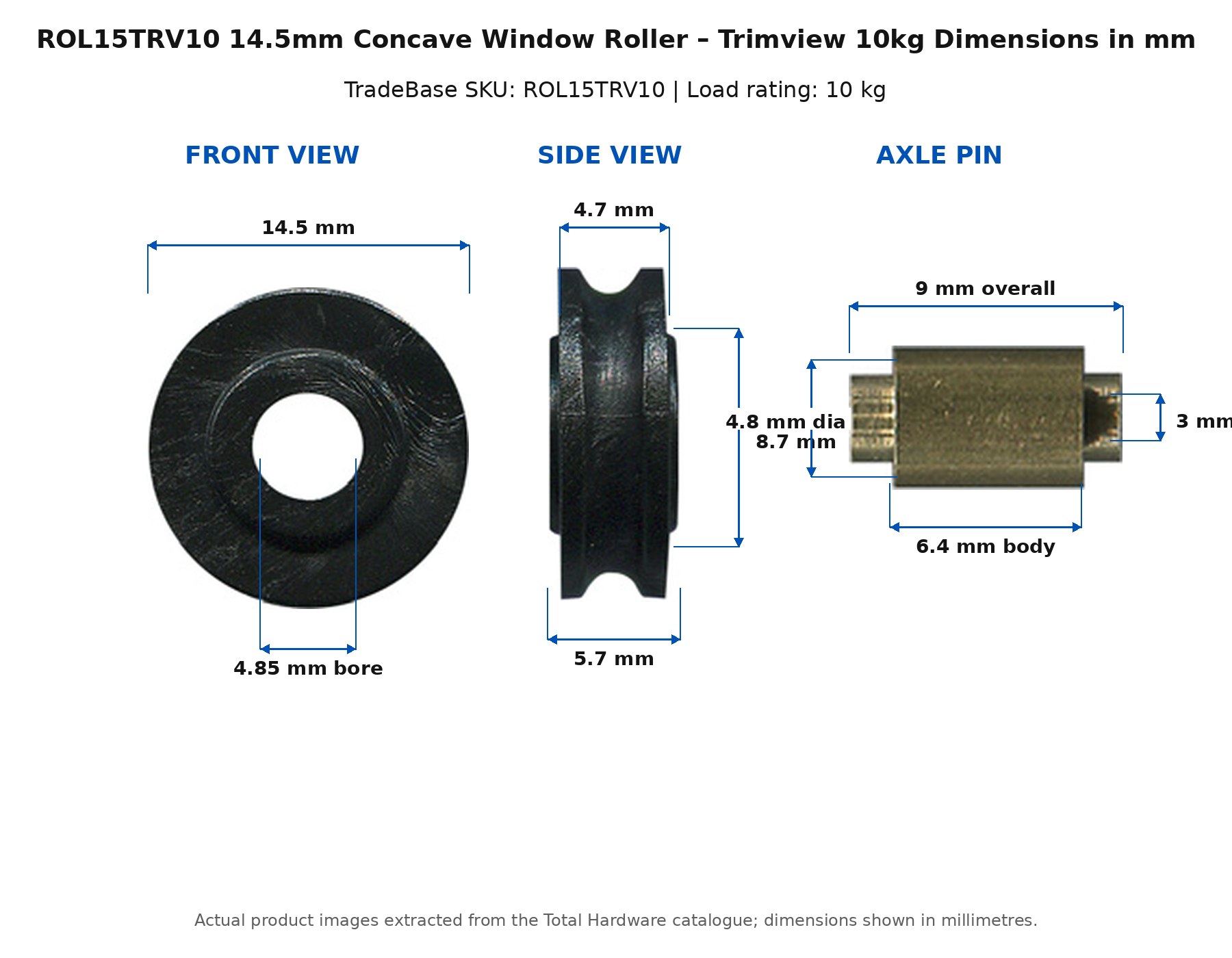

• Dimensioned drawing included to confirm fit

Specifications

• TradeBase SKU: ROL15TRV10
• Roller diameter: 14.5mm
• Groove: 4.7mm
• Width: 8.7mm
• Profile: Concave
• Load rating: 10kg
• Material: Acetal with brass axle pin

Compatibility

• Replaces and suits Trimview®
• Fits sliding aluminium windows
• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Match the new roller to the old one for wheel diameter and profile — concave, convex, V-groove or flat.
• Check the axle pin matches too — same diameter, same length and the same fixing type as the roller you removed.
• Slide the sash through its full travel before refitting stops or flyscreens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 5.8 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
