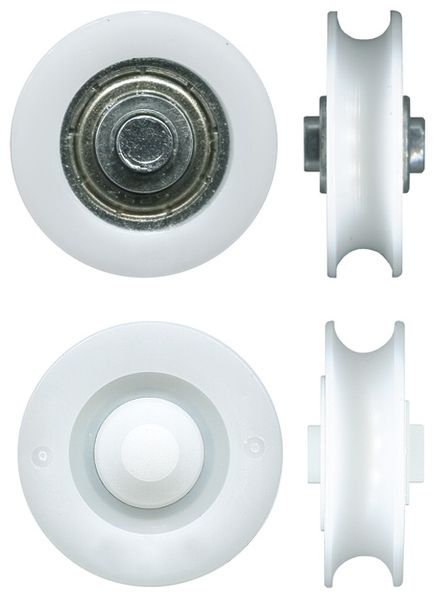

23.6mm Concave Screen Door Roller – Steel Axle 12kg

Hard-wearing 23.6mm acetal concave roller with a steel axle and upgraded sealed bearing — a direct-replacement wheel for sliding screen doors that runs true on round tracks.

Key Features

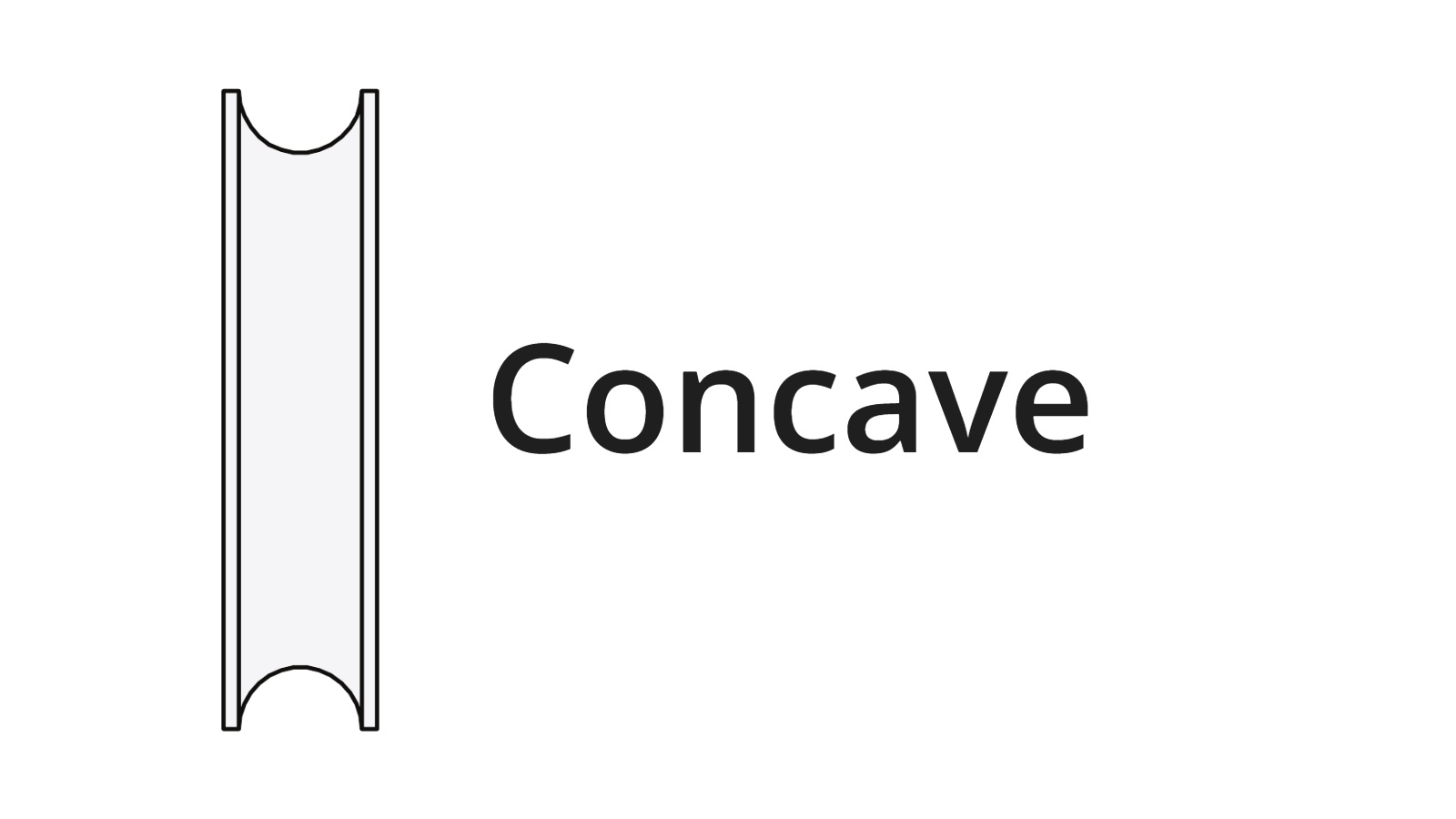

• 23.6mm concave-profile acetal wheel (see the Roller Types chart)
• Steel axle with upgraded bearing for longer life
• Smooth, quiet running under load
• Suits standard screen-door tracks

Specifications

• TradeBase SKU: ROL24CNC12
• Roller diameter: 23.6mm
• Axle: 5.0mm
• Profile: Concave
• Load rating: 12kg
• Material: Acetal with metal axle and bearing

Compatibility

• Fits sliding screen doors

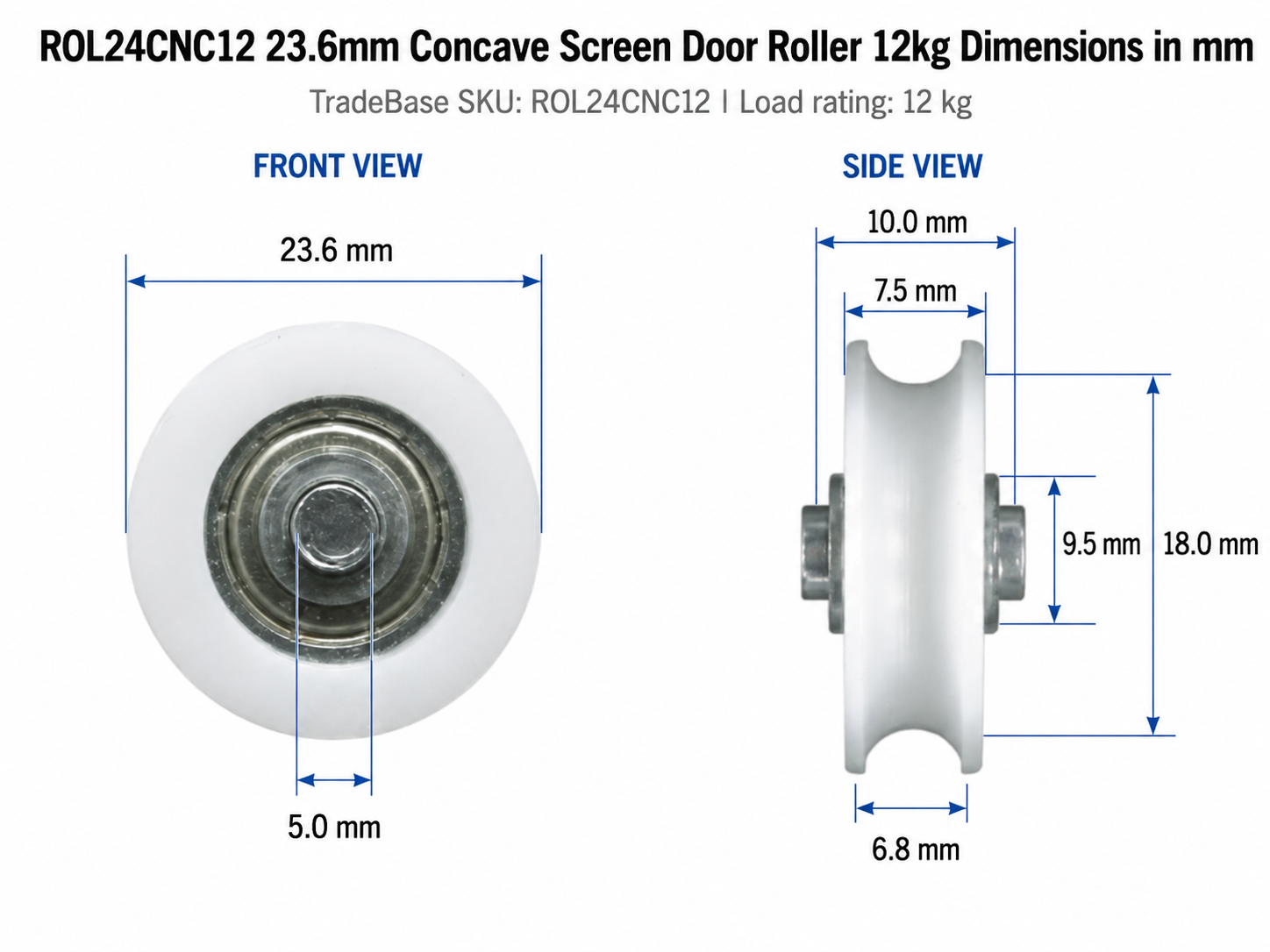

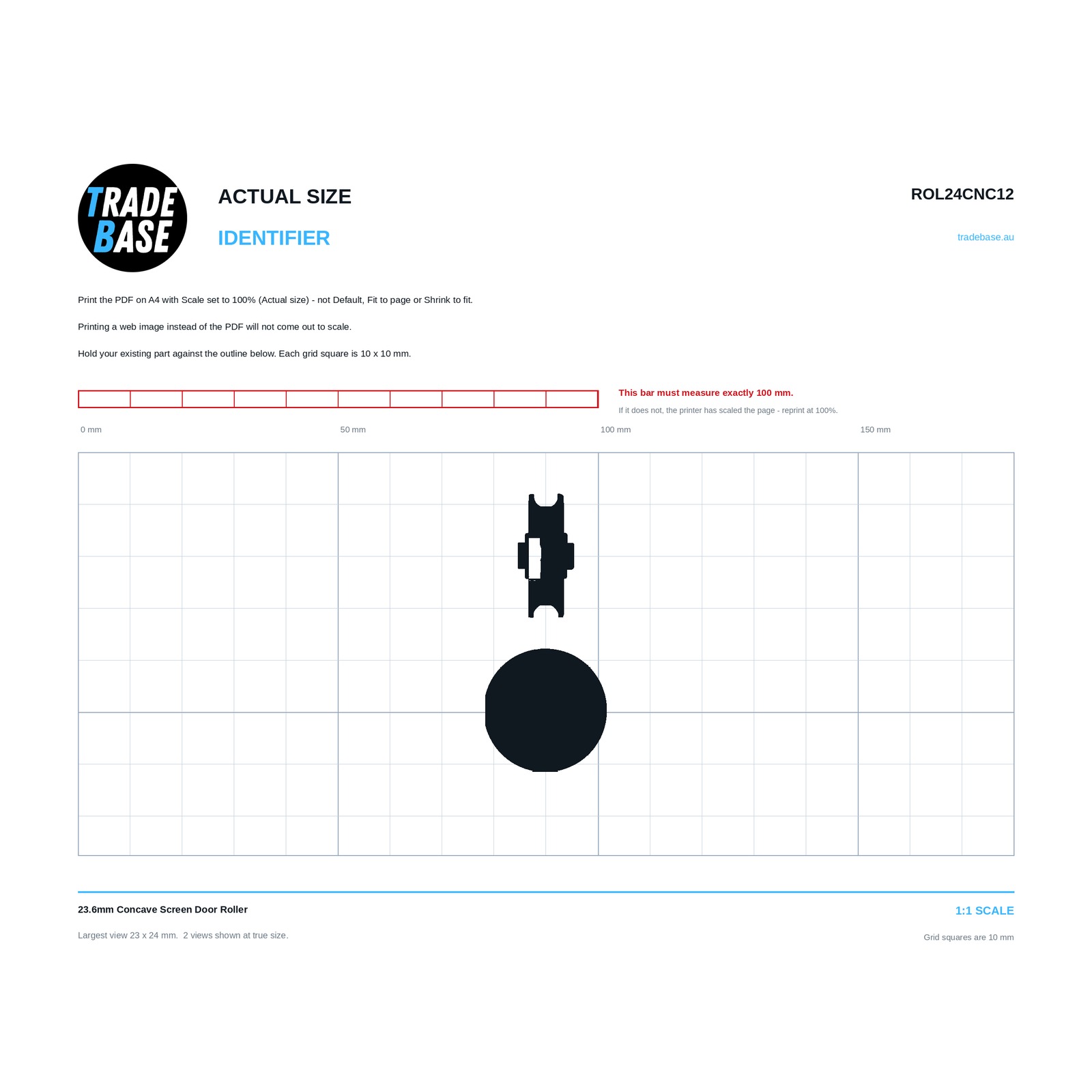

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Match the new roller to the old one for wheel diameter and profile — concave, convex, V-groove or flat.
• Check the axle matches too — same diameter, same length and the same fixing type as the roller you removed.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
