TRADEBASE · SKU CAR24ALU25

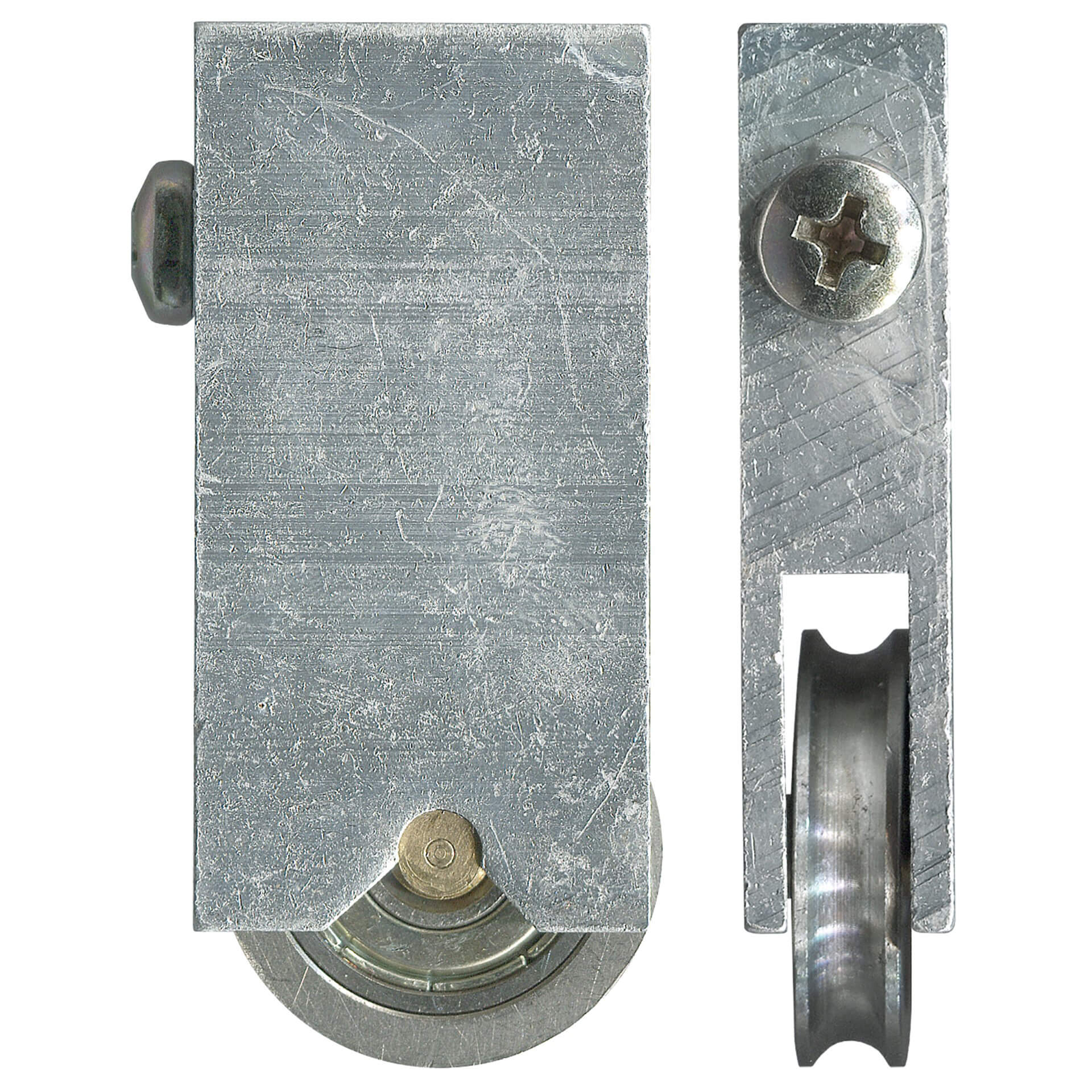

24.9mm Sliding Door Carriage & Stainless Steel Roller – Adjustable Aluminium – Replaces Jason™ (pre-1982) Rollers
An adjustable sliding door carriage with a 24.9mm stainless steel roller, measuring 25.4 x 49.8 x 11.7 mm.
Out of stock
Out of stock
- Secure payment
- Returns policy
- Australian support
Business customer? Log in or open a business account.
Specifications
| SKU | CAR24ALU25 |
|---|---|
| Door Type | Sliding Door |
| Material | Aluminium |
| Roller Carriage and Guides | Carriage and Roller |
| Composition | Roller: Stainless Steel |
| Suits Brand | Jason™ |
| Roller Profile | Concave |
| Wheel Diameter | 25mm |
Product details
The 24.9mm Sliding Door Carriage & Stainless Steel Roller – Adjustable Aluminium is a replacement sliding door carriage for aluminium and timber sliding doors, screens and wardrobes. It runs on a 24.9mm stainless steel roller and measures 25.4 x 49.8 x 11.7 mm overall.
Key Features
- Height adjustable, so the door can be levelled after fitting
- Aluminium body for long service life
- Stainless steel roller runs quietly under load
- Overall size 25.4 x 49.8 x 11.7 mm
- Supplied 1 per pack
Ideal For
- Aluminium and timber sliding doors
- Sliding screen and security doors
- Replacing hardware that drags, sticks or jumps the track
Compatibility
- Replaces and suits Jason™ (pre-1982)
- Fits aluminium patio doors

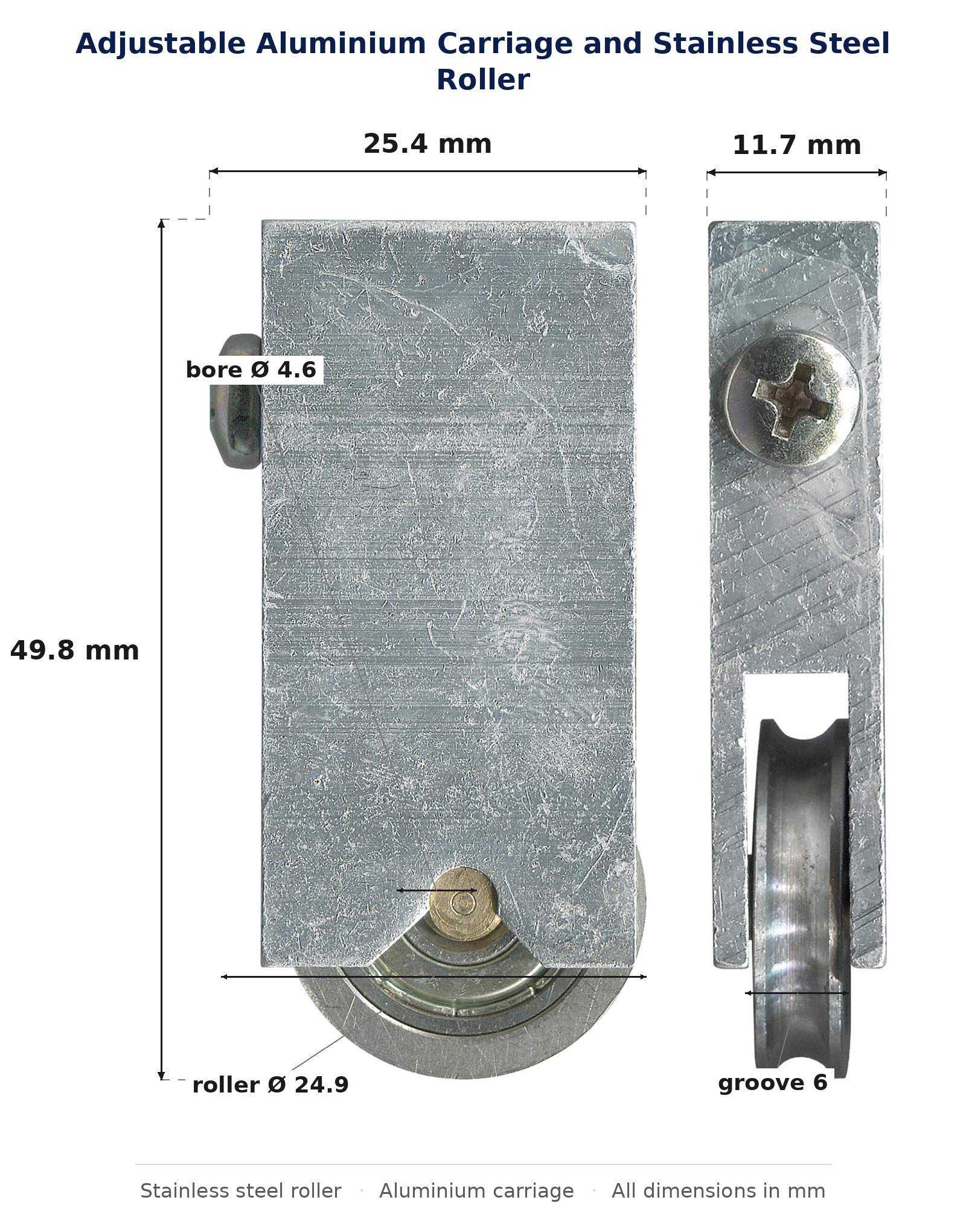

- Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series
Specifications
- TradeBase SKU: CAR24ALU25
- Roller diameter: 24.9 mm
- Overall width: 25.4 mm
- Overall height: 49.8 mm
- Overall depth: 11.7 mm
- Body material: Aluminium
- Roller material: Stainless steel
- Pack: 1 per pack
Installation Tips
- Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
- Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
- Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
- Fit the rear carriage first, then set the front carriage to get your clearance.
- Adjust last to bring the door parallel with the jamb, working from the handle side.
- Slide the door through its full travel before refitting stops or screens.
Care & Maintenance
- Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
- Sweep the track out every few months, more often in coastal or dusty areas.
Warranty
10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.
Check the fit before you buy
Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 29.3 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
