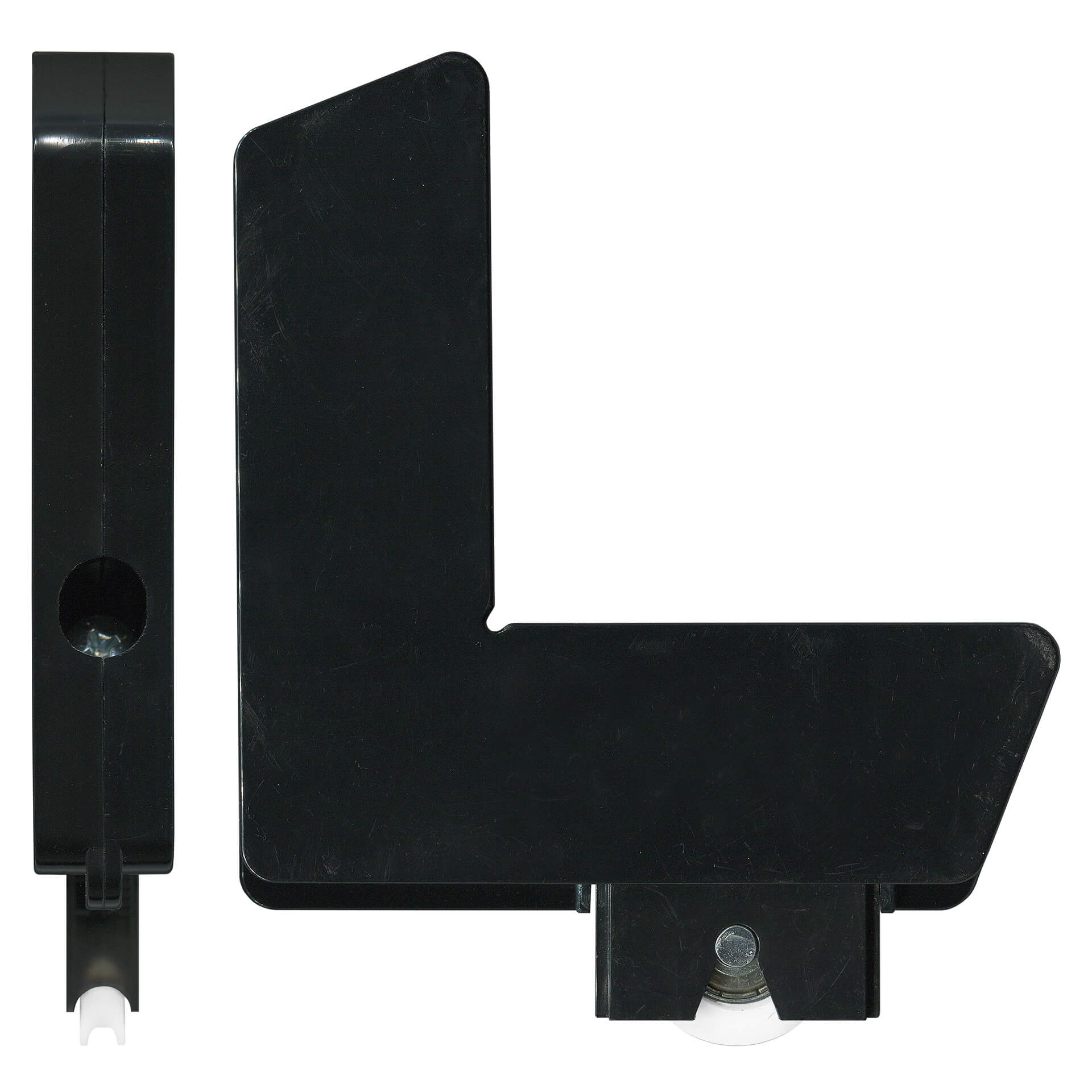

24mm Screen Door Corner Stake & Acetal Roller – Adjustable Plastic

The 24mm Screen Door Corner Stake & Acetal Roller – Adjustable Plastic is a replacement screen door corner stake for aluminium and timber sliding doors, screens and wardrobes. It runs on a 24mm acetal roller and measures 96 x 117 x 17 mm overall.

Key Features

• Height adjustable, so the door can be levelled after fitting
• Plastic body for long service life
• Acetal roller runs quietly under load
• Overall size 96 x 117 x 17 mm
• Supplied 1 per pack

Ideal For

• Aluminium and timber sliding doors
• Sliding screen and security doors
• Replacing hardware that drags, sticks or jumps the track

Compatibility

• Fits sliding screen doors
• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• Roller diameter: 24 mm
• Overall width: 96 mm
• Overall height: 117 mm
• Overall depth: 17 mm
• Body material: Plastic
• Roller material: Acetal
• Pack: 1 per pack

Warranty

10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.

Check the fit before you buy

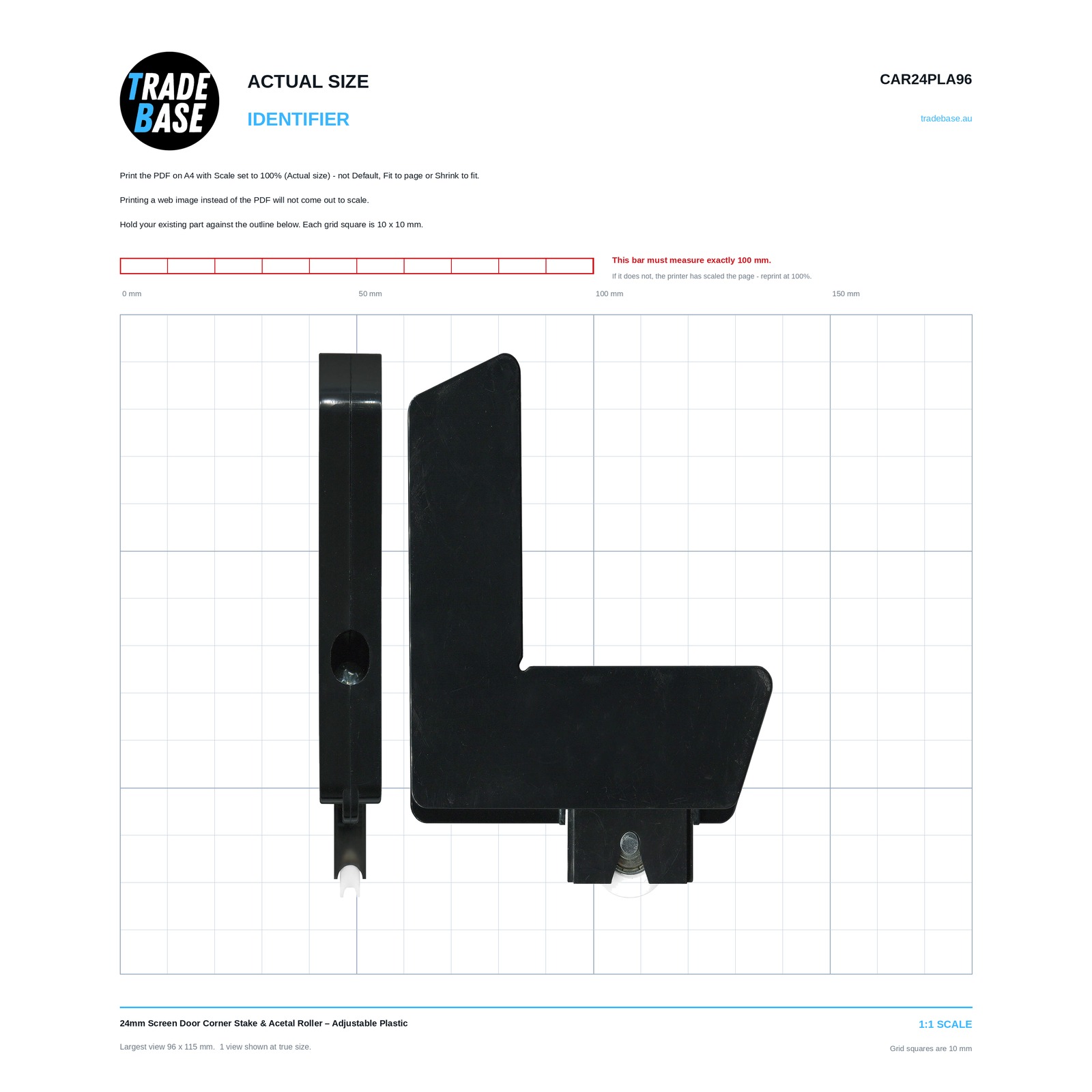

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 96.1 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
