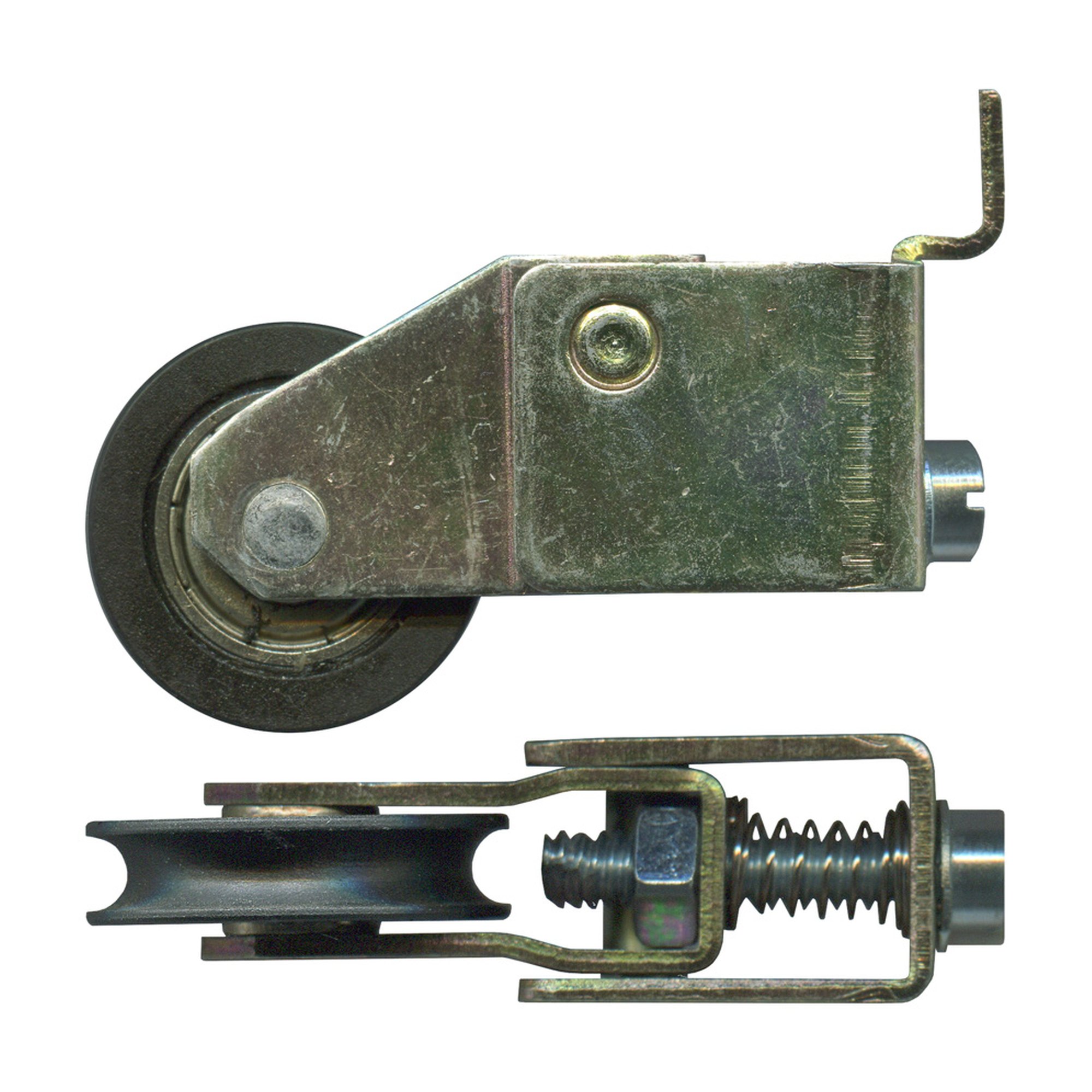

25kg Adjustable Patio Door Carriage & Roller

Key Features

• Adjustable carriage and roller rated to 25kg
• Metal carriage with acetal bearing roller
• Current replacement for older patio door carriages

Ideal For

Replacing older patio door carriages with a current equivalent.

Compatibility

• Fits aluminium patio and sliding doors
• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: CARPAT25R
• Load rating: 25kg
• Material: metal carriage; acetal roller

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

10-year TradeBase warranty plus your rights under the Australian Consumer Law.
