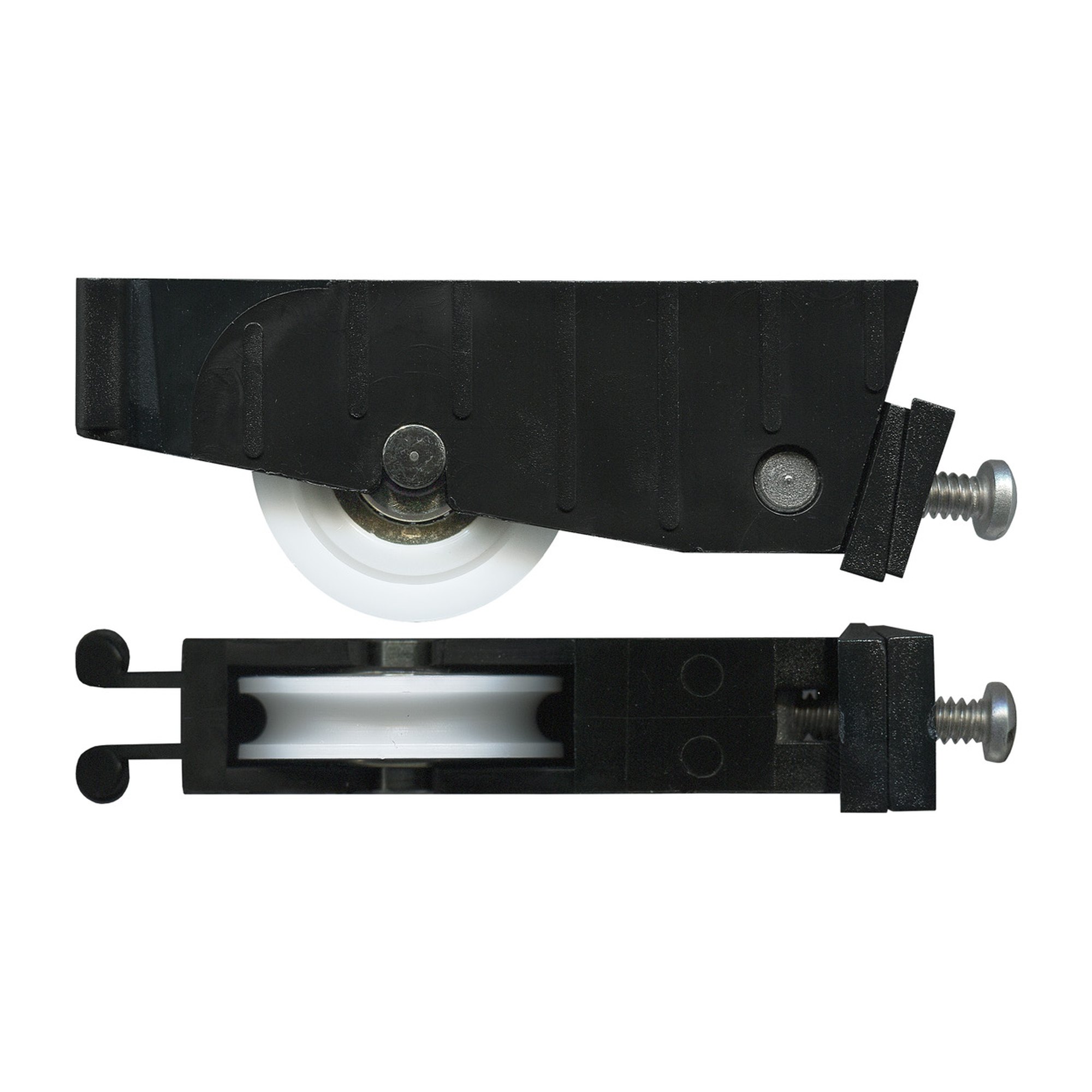

25kg Adjustable Patio Door Carriage & Roller – Suits Boral® & Dowell® Mk5C, Wintec® and A&L®

Key Features

• Adjustable carriage and roller rated to 25kg
• Suits Boral® and Dowell® Mk5C , Wintec® and A&L® Windows patio sliding doors
• Plastic carriage with acetal bearing roller

Ideal For

Replacing worn rollers in Boral® and Dowell® Mk5C , Wintec® and A&L®  aluminium sliding doors.

Compatibility

• Replaces and suits Boral®, Dowell®
• Fits aluminium patio and sliding doors

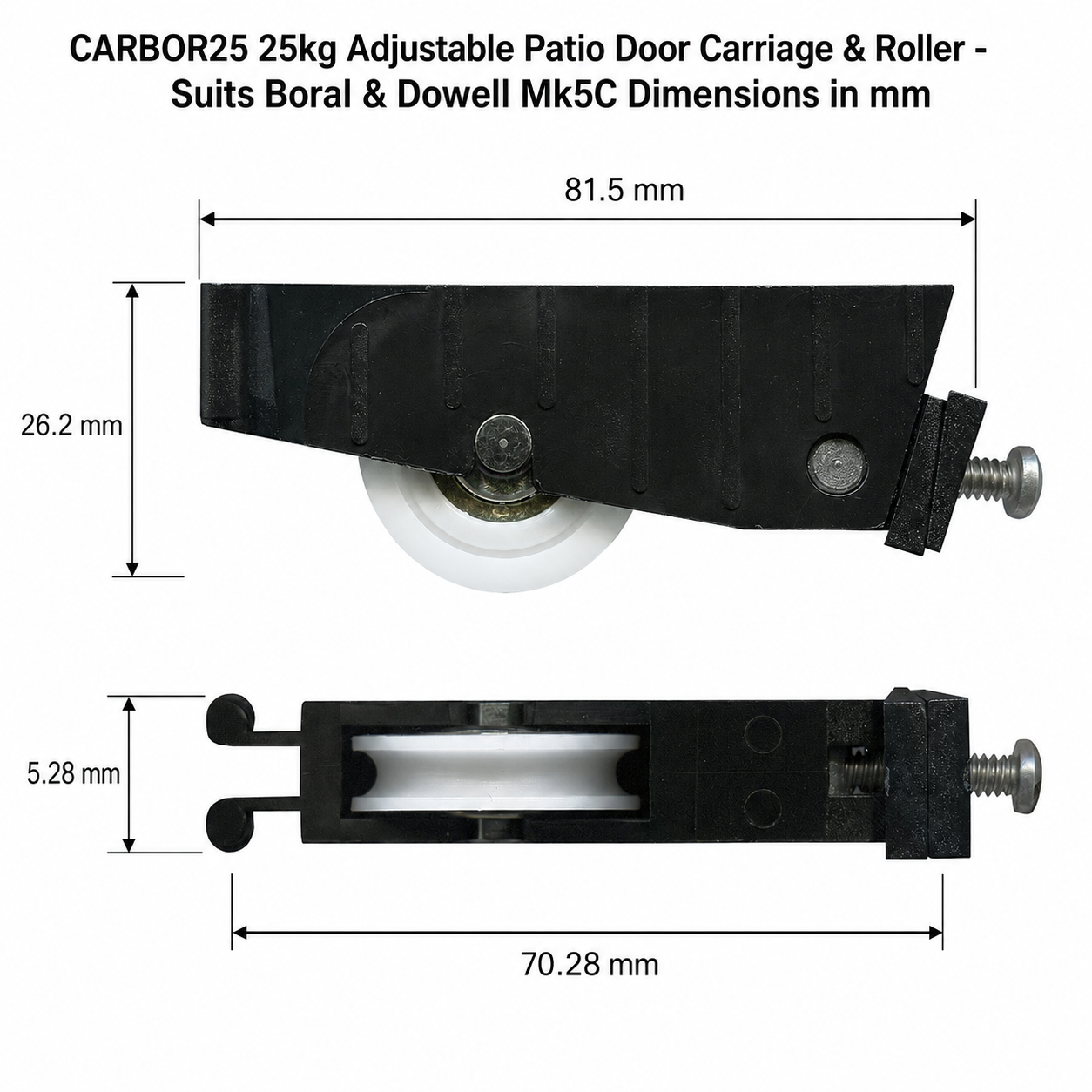

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: CARBOR25
• Load rating: 25kg
• Material: plastic carriage; acetal roller
• Suits: Boral®, Dowell® Mk5C

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

10-year TradeBase warranty plus your rights under the Australian Consumer Law.

Check the fit before you buy

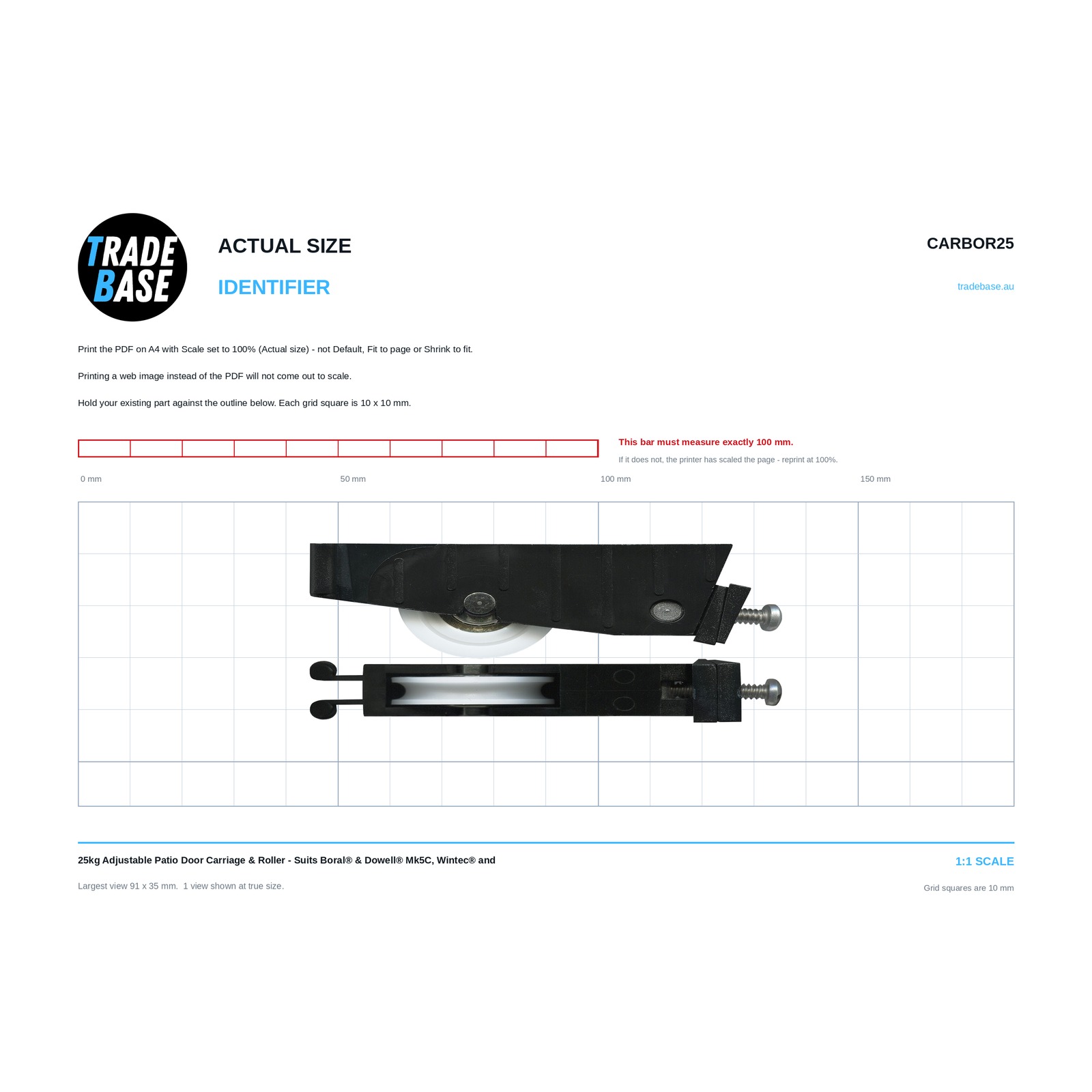

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 91 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
