TRADEBASE · SKU CAR27PLA72

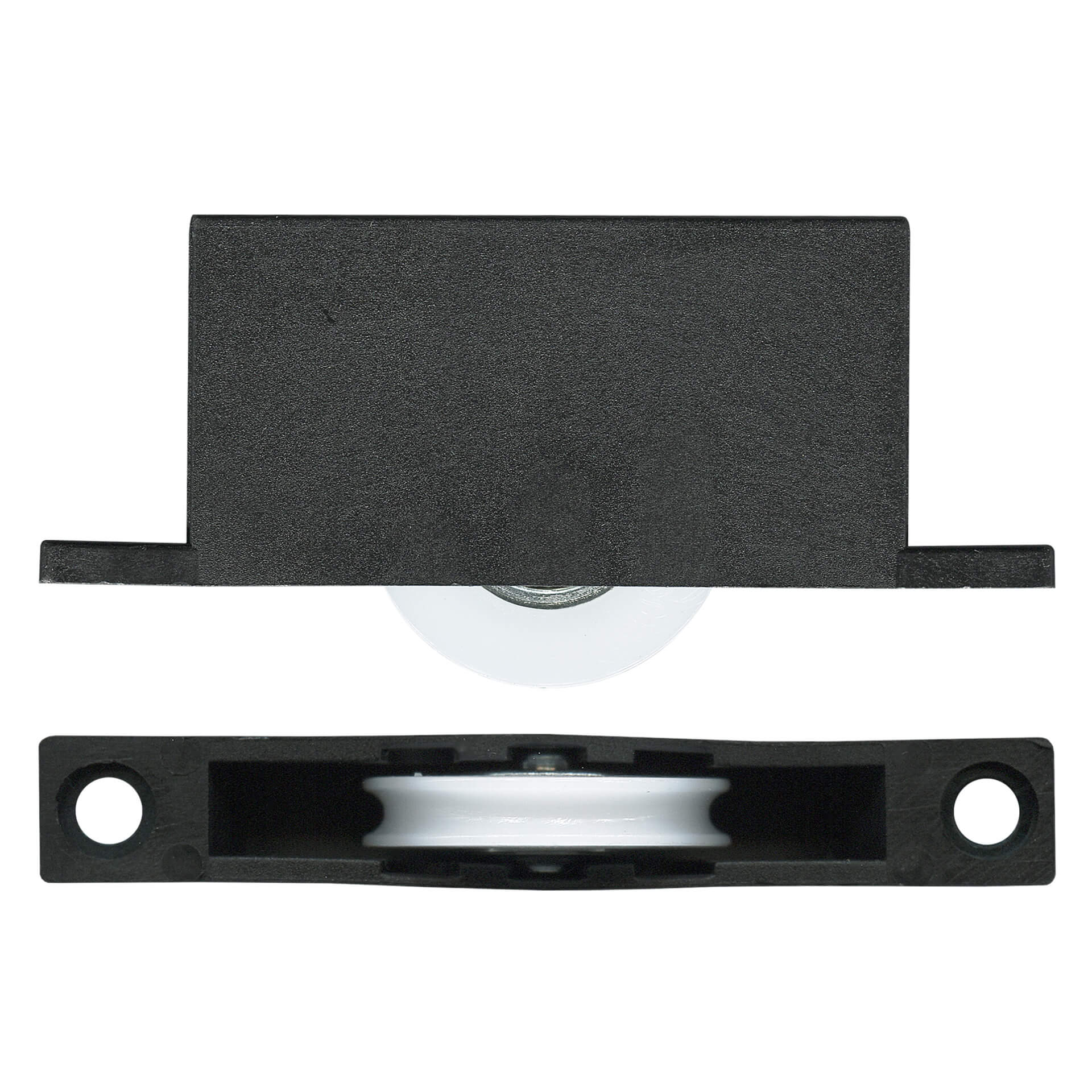

27mm Sliding Door Carriage & Acetal Roller – Adjustable Plastic
An adjustable sliding door carriage with a 27mm acetal roller, measuring 72 x 34 x 11 mm.
Out of stock
Out of stock
- Secure payment
- Returns policy
- Australian support
Business customer? Log in or open a business account.
Specifications
| SKU | CAR27PLA72 |
|---|---|
| Door Type | Sliding Door |
| Roller Carriage and Guides | Carriage and Roller |
| Material | Acetal |
| Roller Profile | Concave |
| Wheel Diameter | 27mm |
Product details
The 27mm Sliding Door Carriage & Acetal Roller – Adjustable Plastic is a replacement sliding door carriage for aluminium and timber sliding doors, screens and wardrobes. It runs on a 27mm acetal roller and measures 72 x 34 x 11 mm overall.
Key Features
- Height adjustable, so the door can be levelled after fitting
- Plastic body for long service life
- Acetal roller runs quietly under load
- Overall size 72 x 34 x 11 mm
- Supplied 1 per pack
Ideal For
- Aluminium and timber sliding doors
- Sliding screen and security doors
- Replacing hardware that drags, sticks or jumps the track
Compatibility
- Fits sliding screen doors

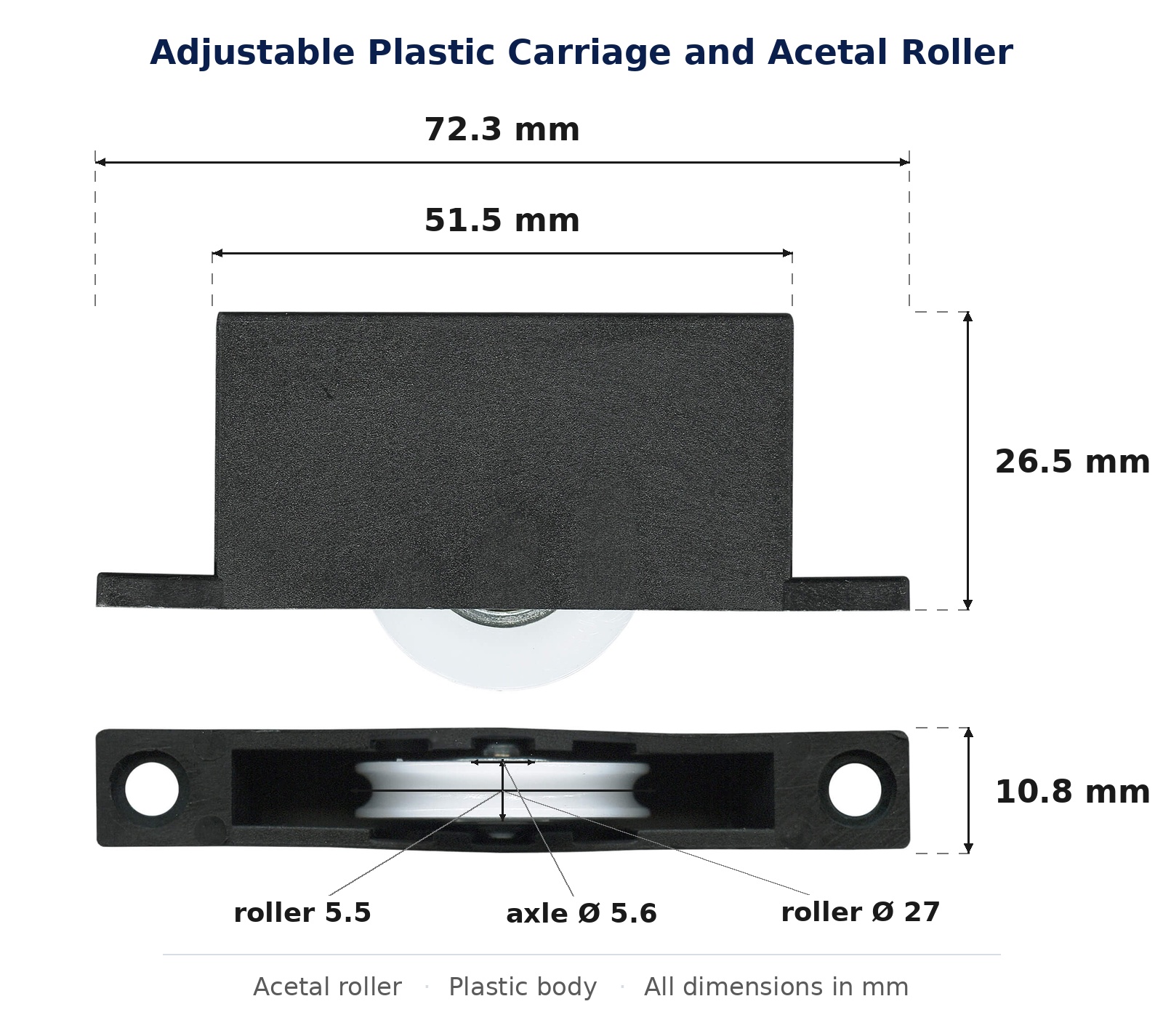

- Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series
Specifications
- TradeBase SKU: CAR27PLA72
- Roller diameter: 27 mm
- Overall width: 72 mm
- Overall height: 34 mm
- Overall depth: 11 mm
- Body material: Plastic
- Roller material: Acetal
- Pack: 1 per pack
Installation Tips
- Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
- Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
- Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
- Fit the rear carriage first, then set the front carriage to get your clearance.
- Adjust last to bring the door parallel with the jamb, working from the handle side.
- Slide the door through its full travel before refitting stops or screens.
Care & Maintenance
- Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
- Sweep the track out every few months, more often in coastal or dusty areas.
Warranty
10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.
Check the fit before you buy

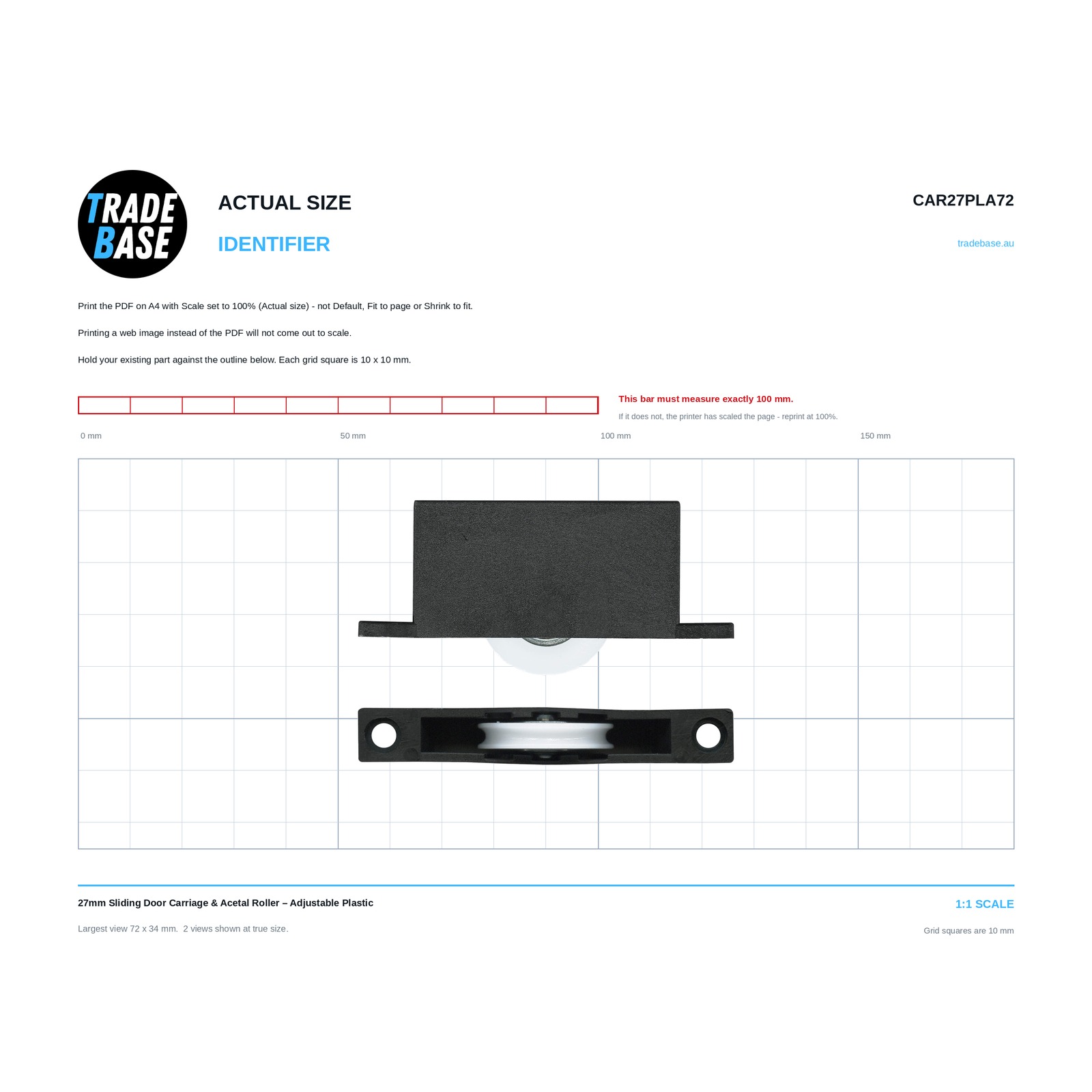

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 72.5 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
