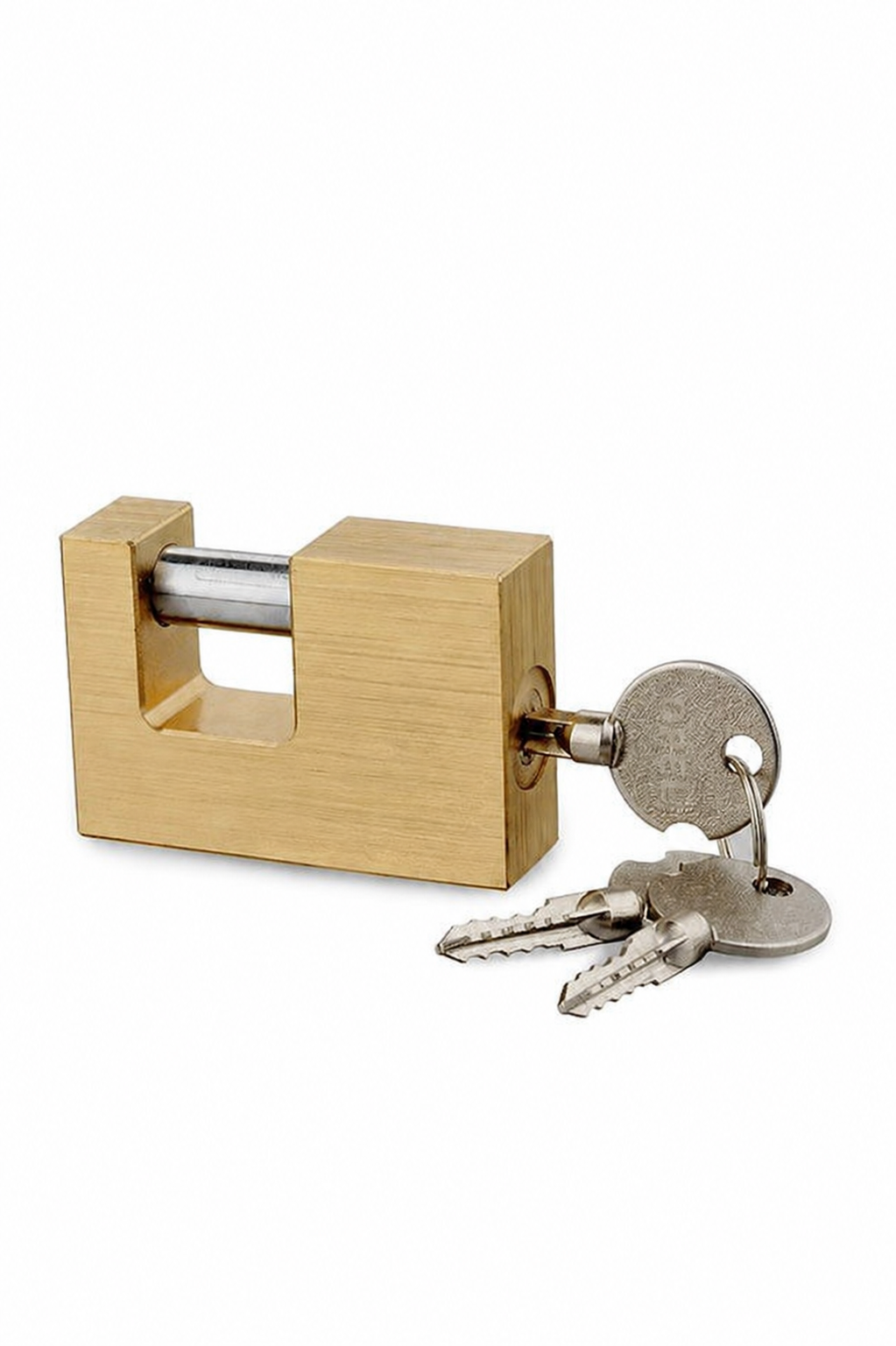

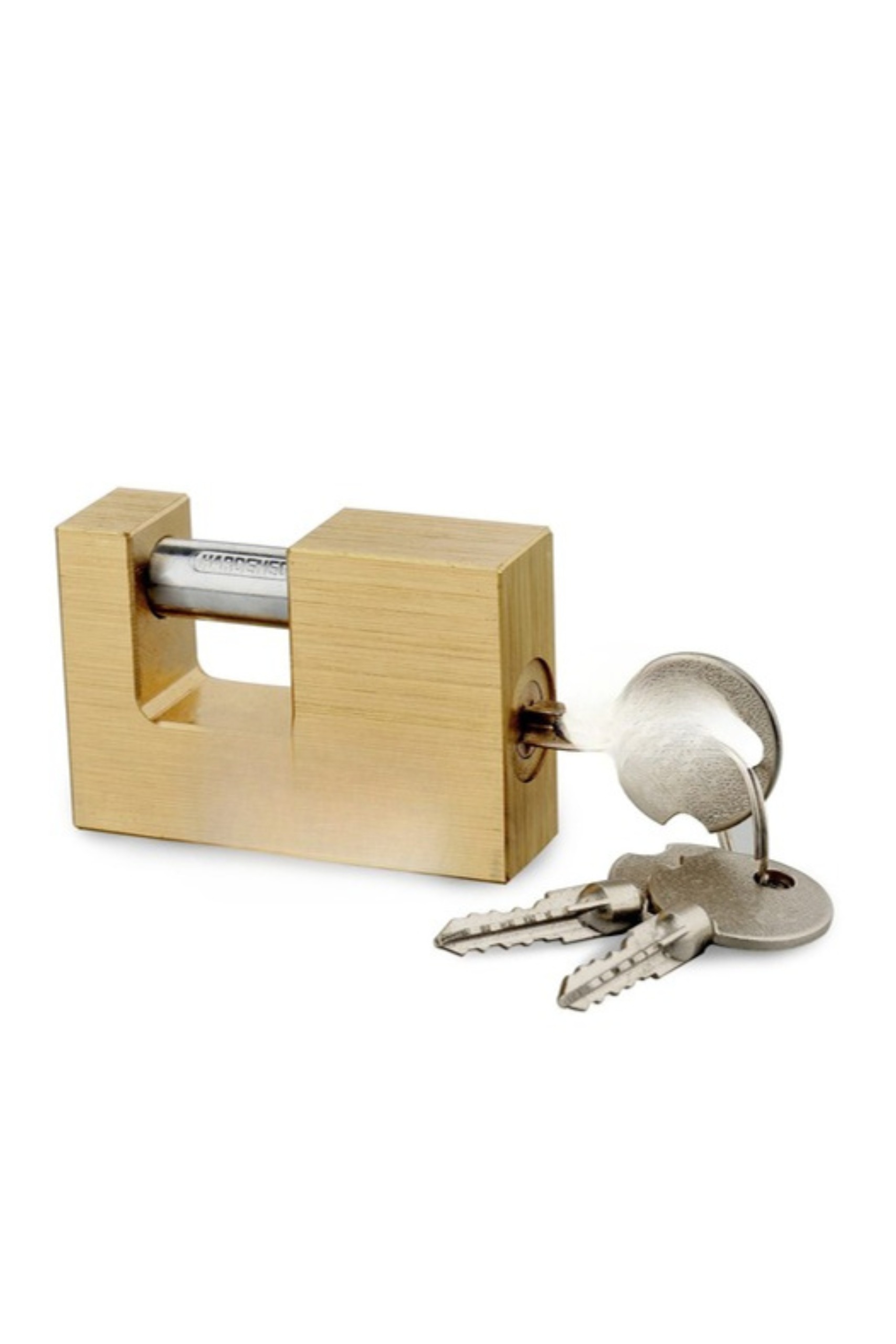

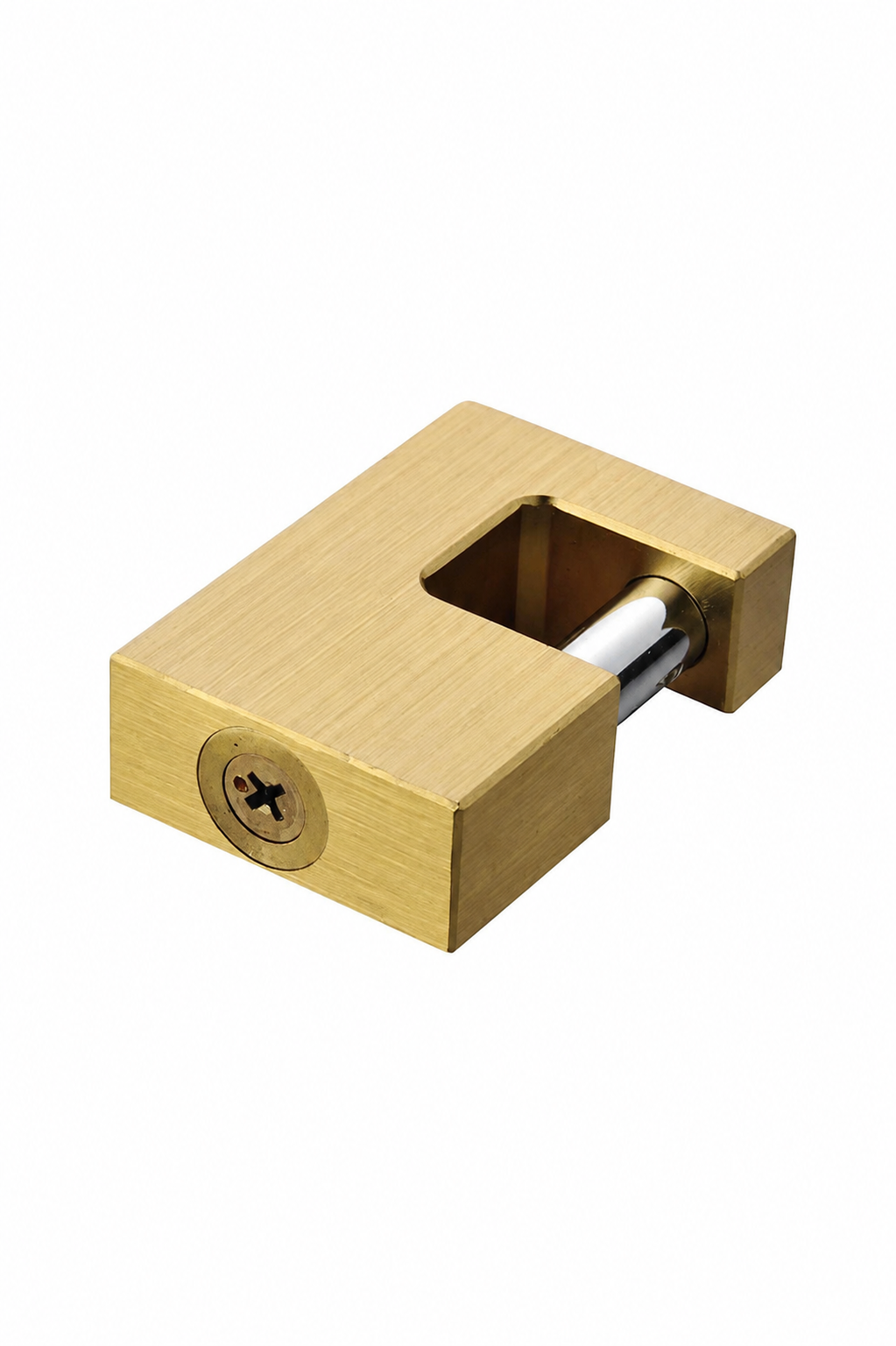

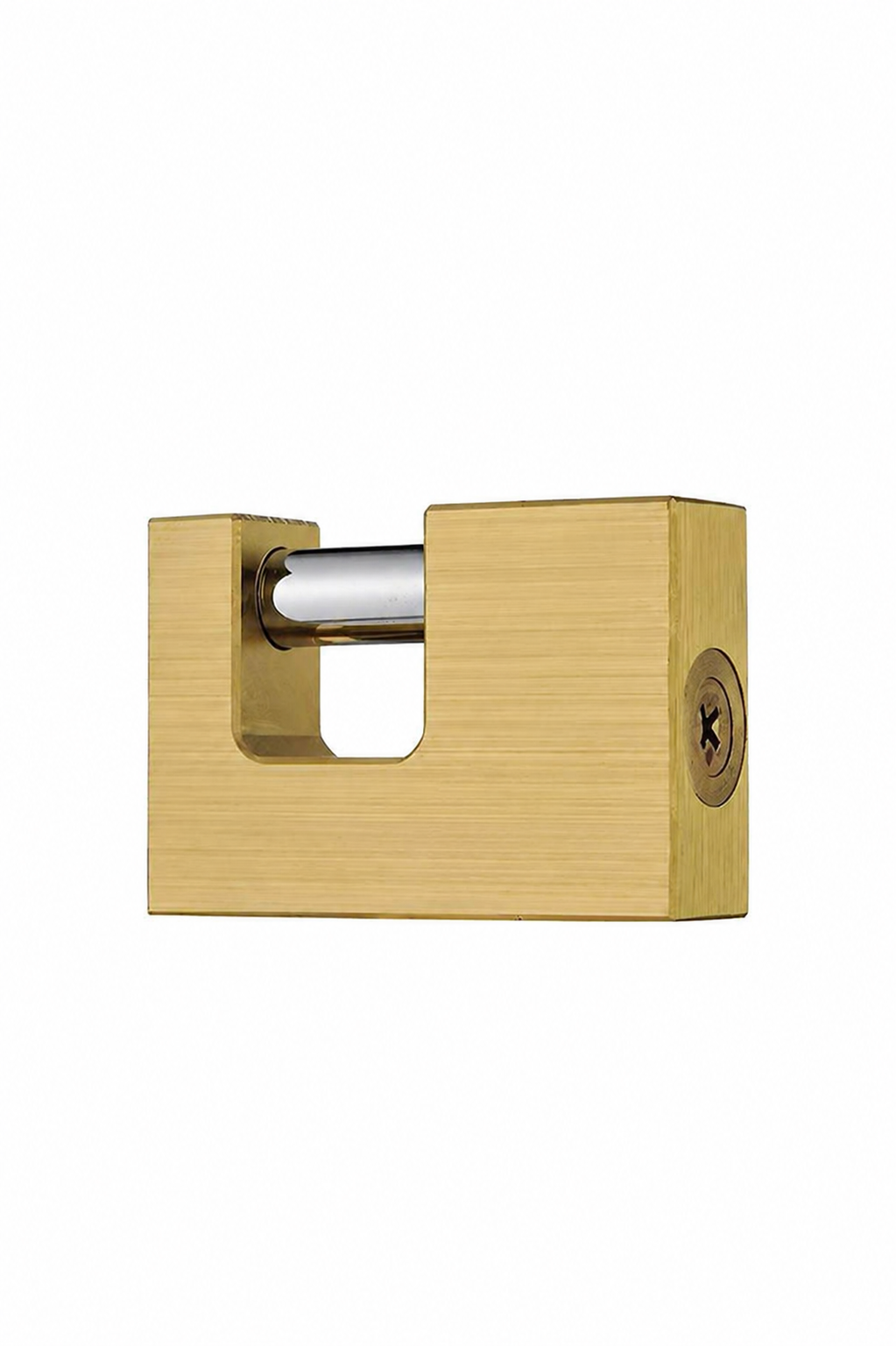

90mm Cross-Key Solid Brass Block Padlock – Prying-Resistant Shutter, Container & Truck Box Lock

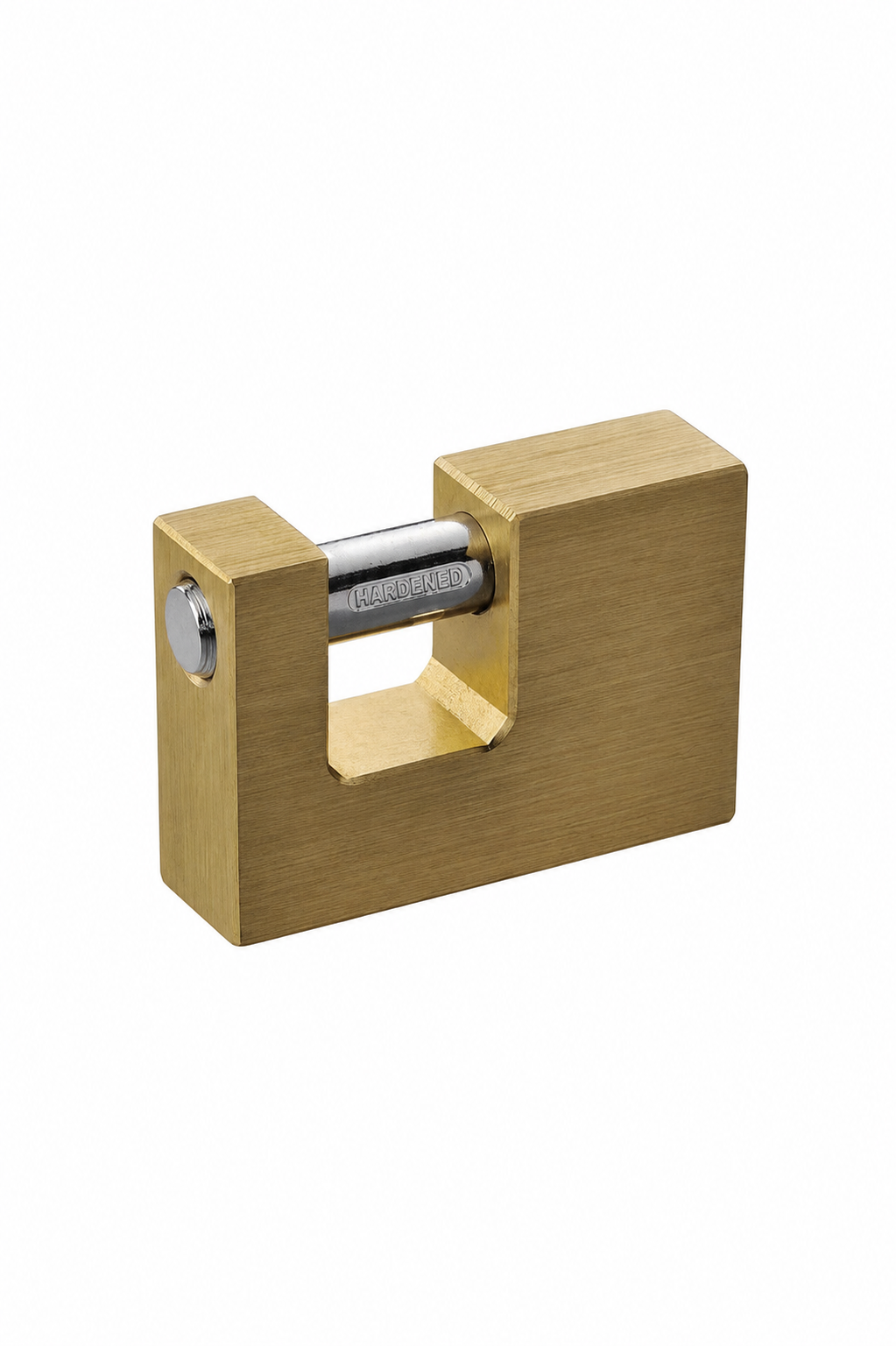

The 90mm Cross-Key Solid Brass Block Padlock is the top of the brass range and a block, not a conventional padlock. There is no U-shackle: a Ø12mm hardened steel bolt slides across a slot cut into a solid brass body, so an attacker has almost no exposed metal to get a bar behind or a bolt cutter around. That is why this style is the usual choice for roller shutters and container doors.

Two things separate it from the standard 90mm brass block. The cylinder uses a cross (cruciform) keyway — four rows of brass pins instead of one, which is a great deal harder to pick or rake than a standard flat key. And the bolt is held by stainless steel ball locking rather than brass bolts. It also has a deeper body and a taller slot, so it takes a chunkier hasp. The solid brass body will not rust or streak, so it can live outside permanently.

Check your fitting first: the slot opening is 36mm wide by 24mm high — your hasp or shutter latch has to pass through it, so measure before ordering. This style cannot be used with a chain.

• 90mm solid brass body — anti-rust, will not streak
• Cross (cruciform) keyway — four rows of pins, high pick resistance
• Hardened steel sliding bolt, Ø12mm — anti-cut and anti-saw
• Prying-resistant: no exposed shackle to lever against
• Stainless steel ball locking
• Solid brass cylinder, brass pins, 304 stainless steel spring
• 3 cross keys supplied
• Slot opening 36 x 24 mm — takes a deeper hasp than the standard 90mm block

Security features

Specifications

• Body material: Solid brass, brushed finish
• Cylinder: Solid brass, cross (cruciform) keyway — brass pins, 304 stainless steel spring
• Bolt / shackle: Hardened steel sliding bolt, Ø12 mm
• Locking system: Stainless steel ball locking
• Keys supplied: 3 x cross keys
• Body size: 90 x 60 x 21 mm (L x H x D)
• Slot opening: 36 mm wide x 24 mm high
• Weight: 728 g
• Packaging: Double blister
• Country of origin: China
