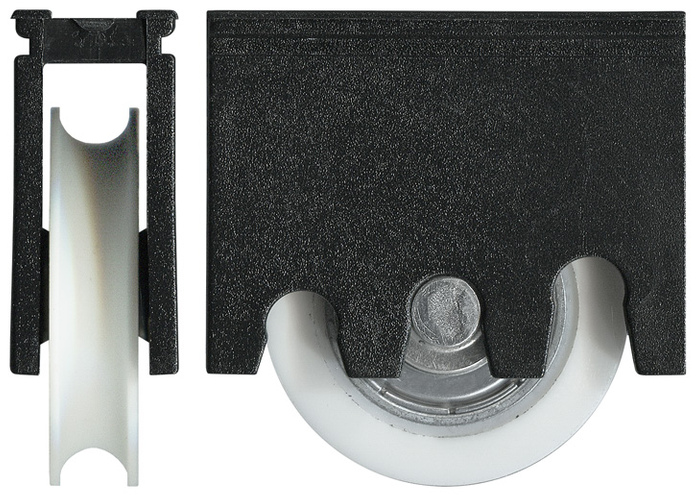

Adjustable Carriage & Roller Heavy Duty 35kg – Replaces Dowell® & AMP™ Rollers

Heavy-duty plastic carriage with 3-slot height adjustment and a 32mm acetal roller with sealed bearing. Suits Dowell® and AMP™ sliding doors. A replacement roller is available separately.

Specifications

• TradeBase SKU: CAR32DOW35
• Carriage: plastic, 3-slot height adjustment
• Roller: 32mm acetal with sealed bearing
• Load rating: 35kg

Check the fit before you buy

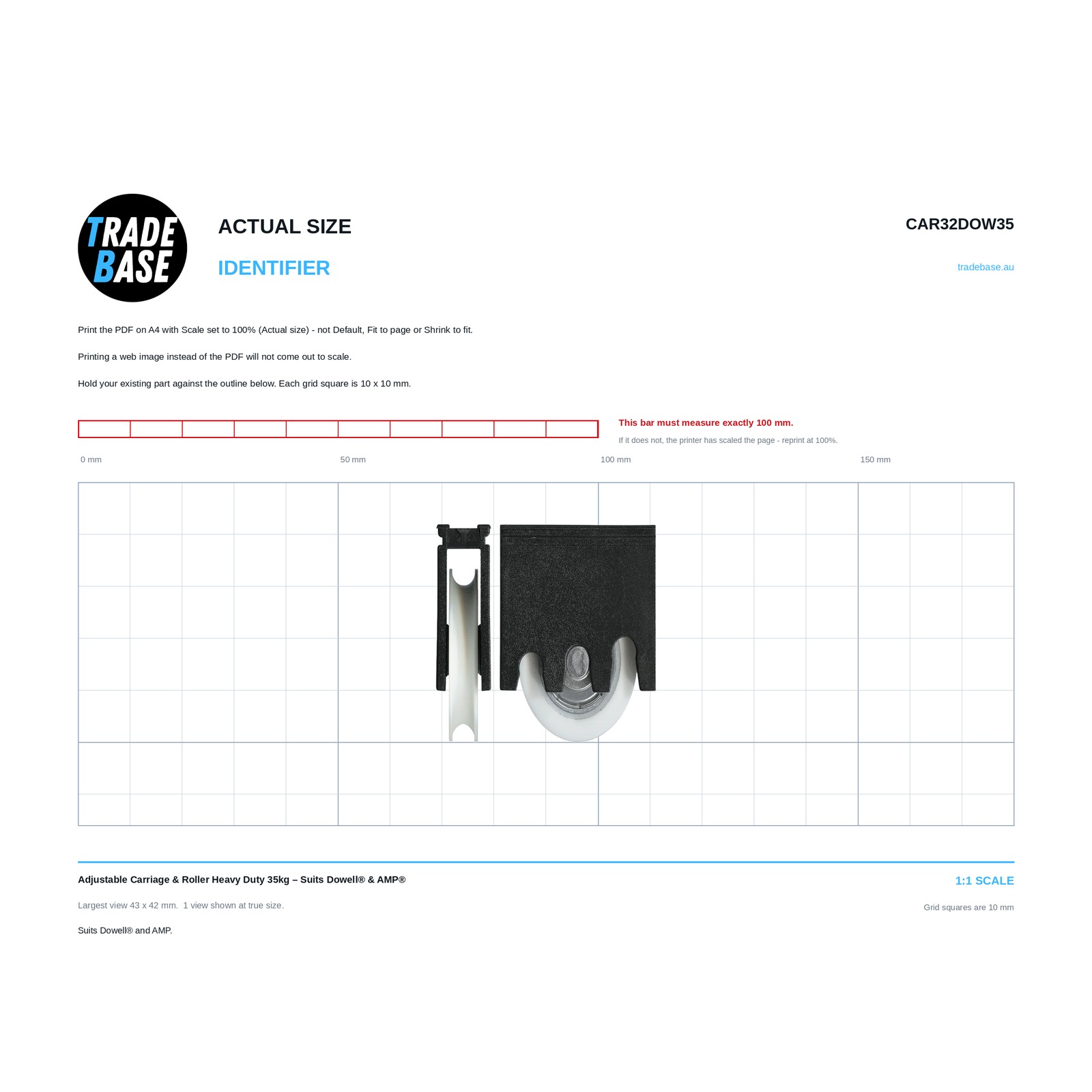

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 42.5 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.

Compatibility

• Replaces and suits Dowell®, AMP™
• Fits aluminium patio and sliding doors

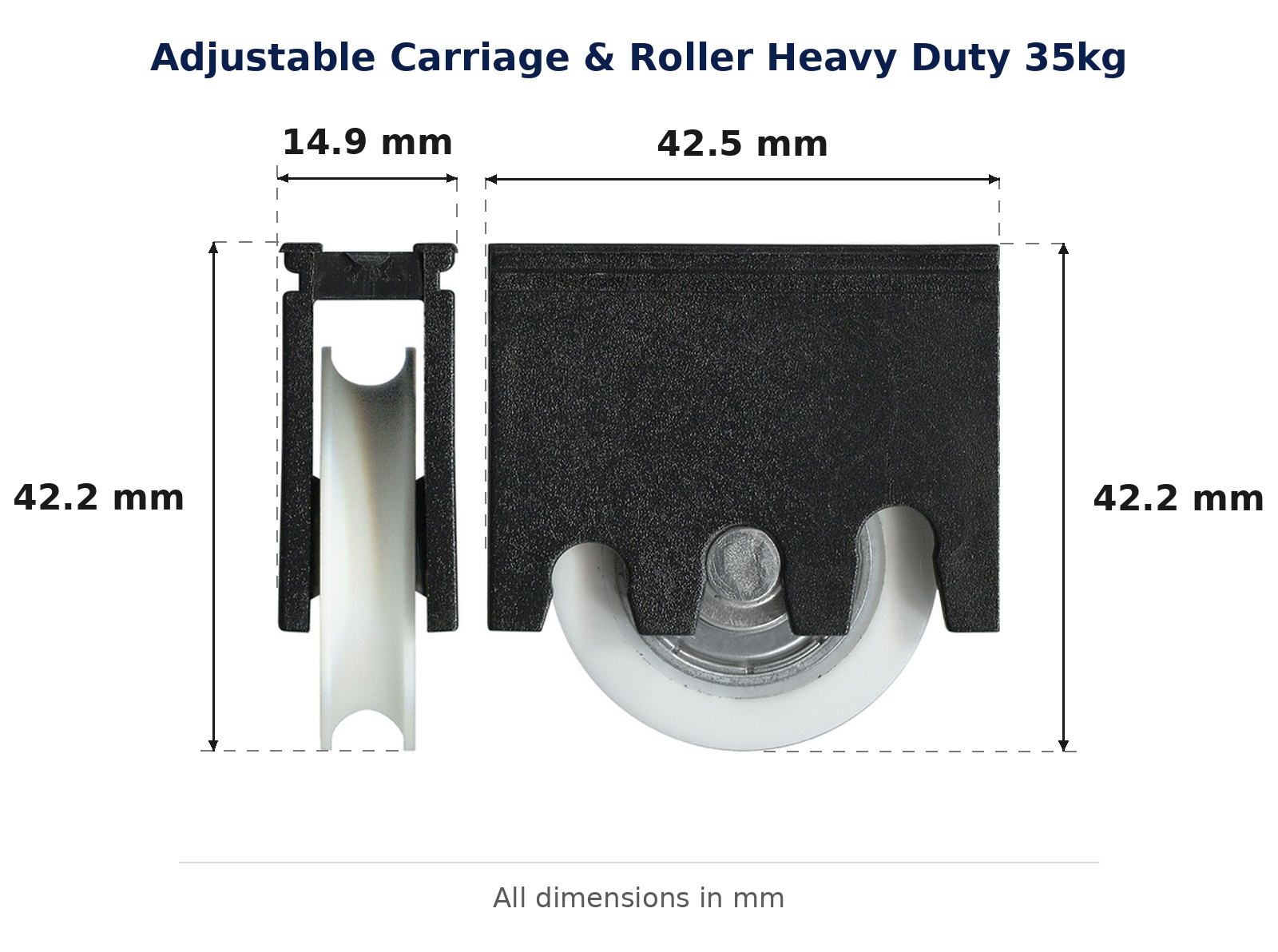

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.
