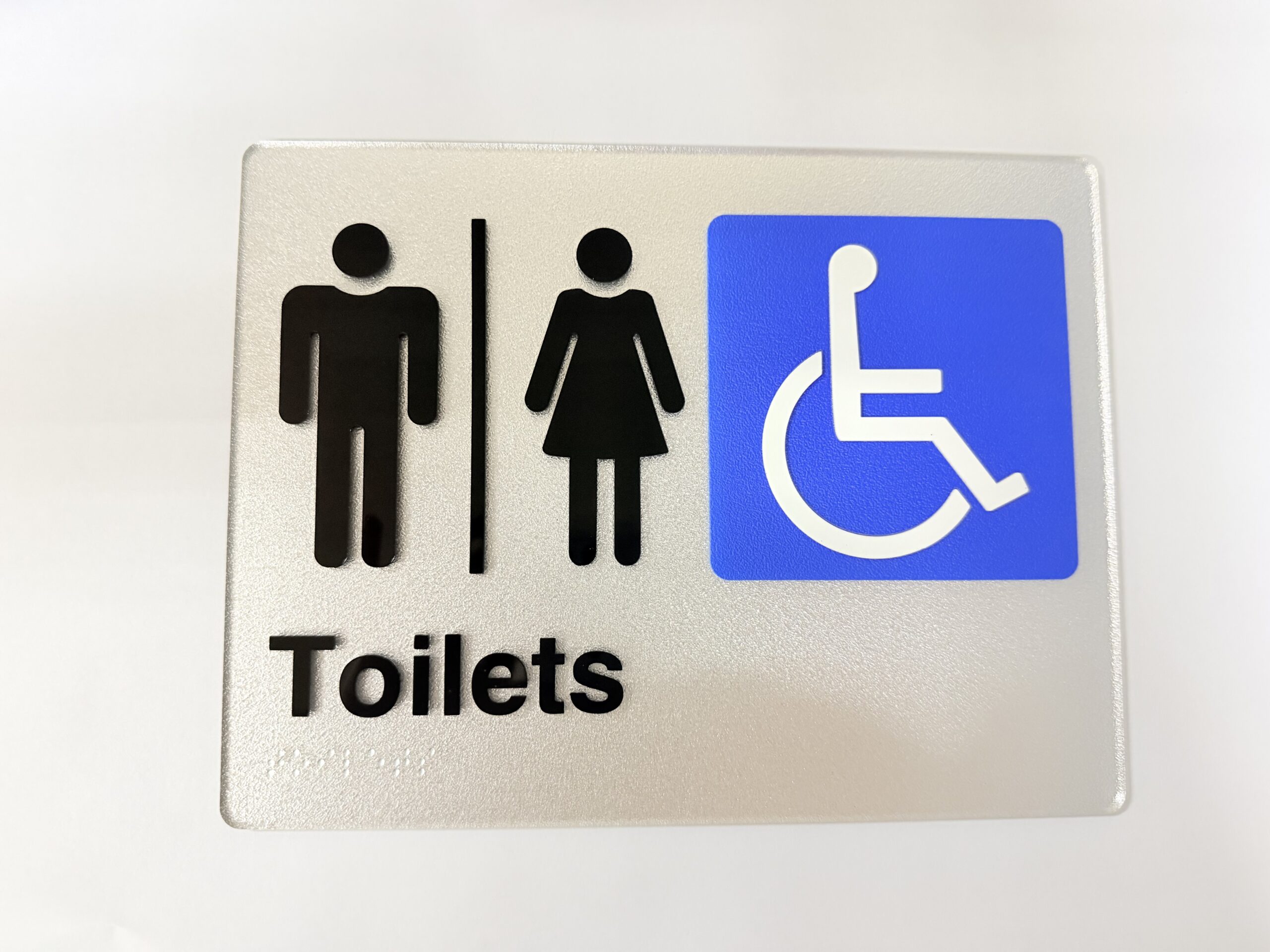

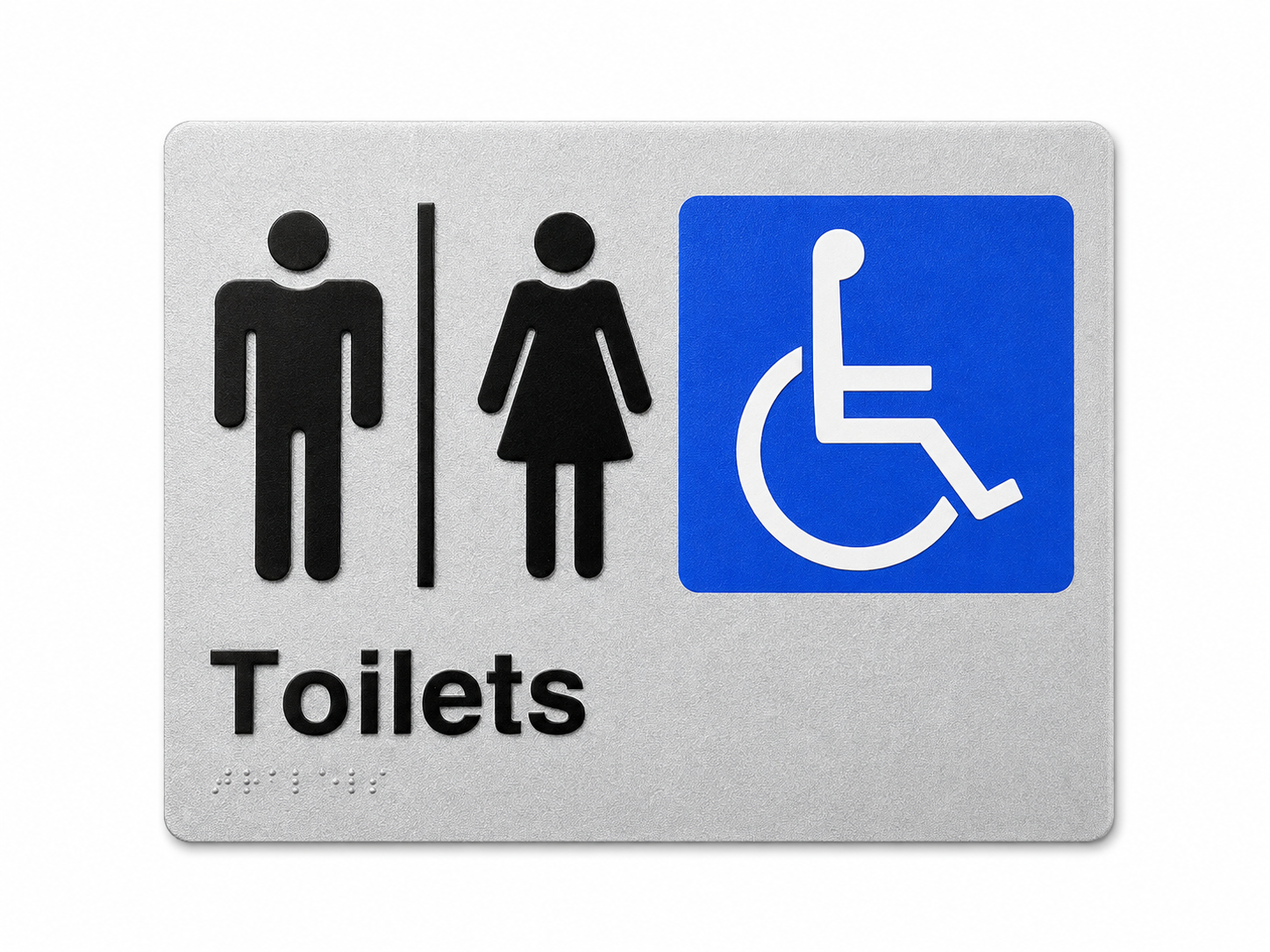

Braille & Tactile Toilet Sign – Male, Female & Accessible – Silver 235 x 180mm – AS 1428.1 Compliant

Key Features

• Premium Braille and tactile sign — Male, Female and Accessible (wheelchair pictogram) toilets
• Compliant with the National Construction Code (NCC) / BCA 2011 Volume One, Specification D3.6, and Australian Standard AS 1428.1
• Grade 1 (uncontracted) raised and domed Braille
• Minimum 30% luminance contrast between characters and background per AS 1428.1
• Suitable for indoor and outdoor use

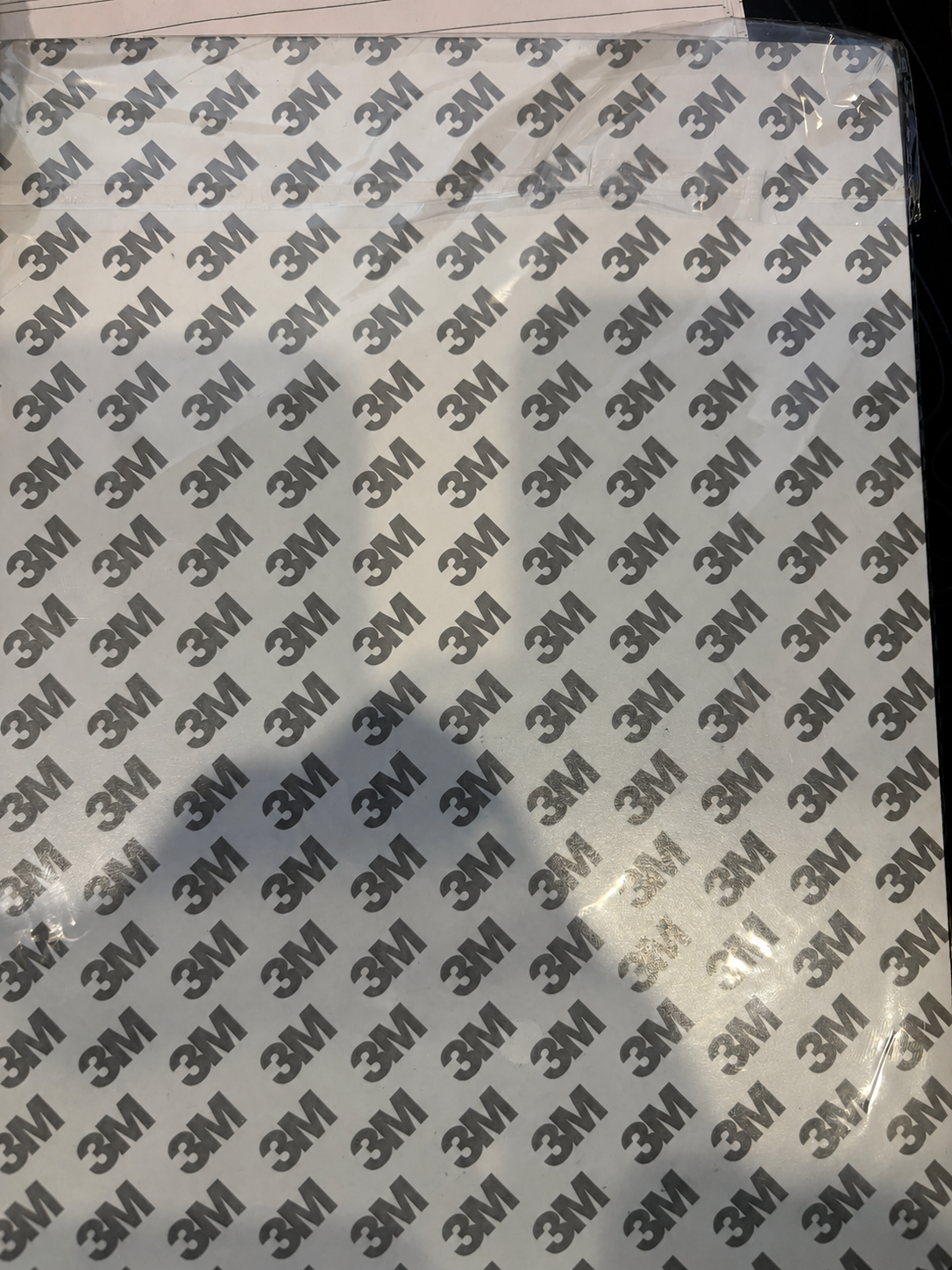

• Pre-fitted genuine 3M™ adhesive backing for fast, secure installation

Compliance

Manufactured to comply with BCA 2011 Volume One, Specification D3.6 of the Building Code of Australia and Australian Standard AS 1428.1. Braille and tactile characters are designed for wall mounting between 1200mm and 1600mm above finished floor level.

Important — building approval date

This sign displays the international symbol of access without a left-hand (LH) or right-hand (RH) transfer indicator. It is intended for buildings approved before 1 May 2011. Buildings approved on or after 1 May 2011 must display a sign indicating either a left-hand or right-hand transfer.

Ideal For

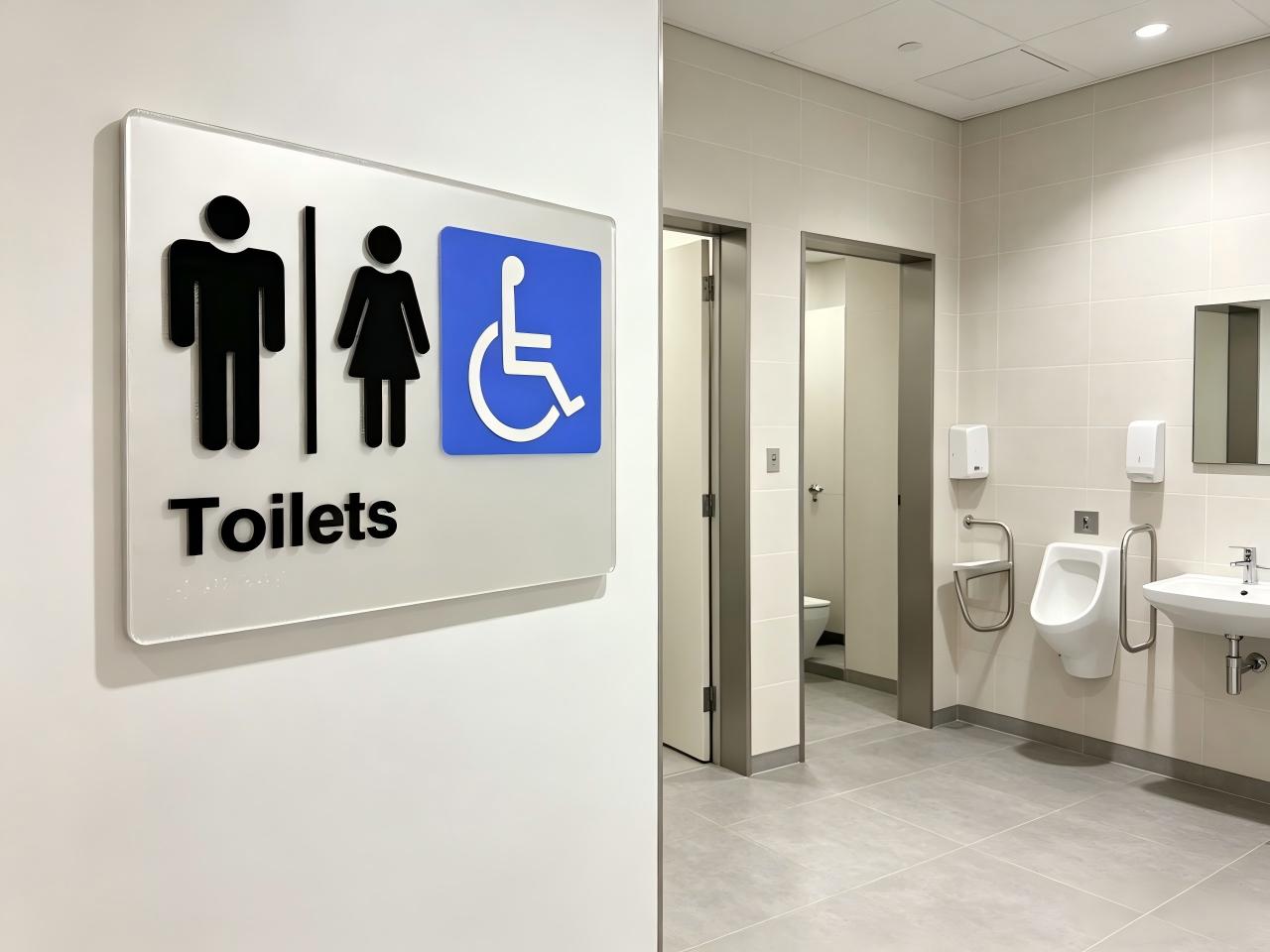

Offices, retail, hospitality, healthcare and public buildings that require compliant amenity signage, for both internal and external mounting positions.

What’s Included

• 1 × Braille & tactile toilet sign (235 × 180mm)
• Pre-fitted genuine 3M™ adhesive backing

Specifications

• Size: 235mm wide × 180mm high
• Material: plastic laminate
• Finish: silver face with black pictograms and blue international symbol of access
• Braille: Grade 1, raised and domed
• Mounting: pre-fitted genuine 3M™ adhesive backing
• Use: suitable for indoor and outdoor use

Warranty

Backed by a TradeBase 10-year workmanship warranty, in addition to your rights under the Australian Consumer Law.
