Cavity Door Floor Guide Butterfly – Plastic

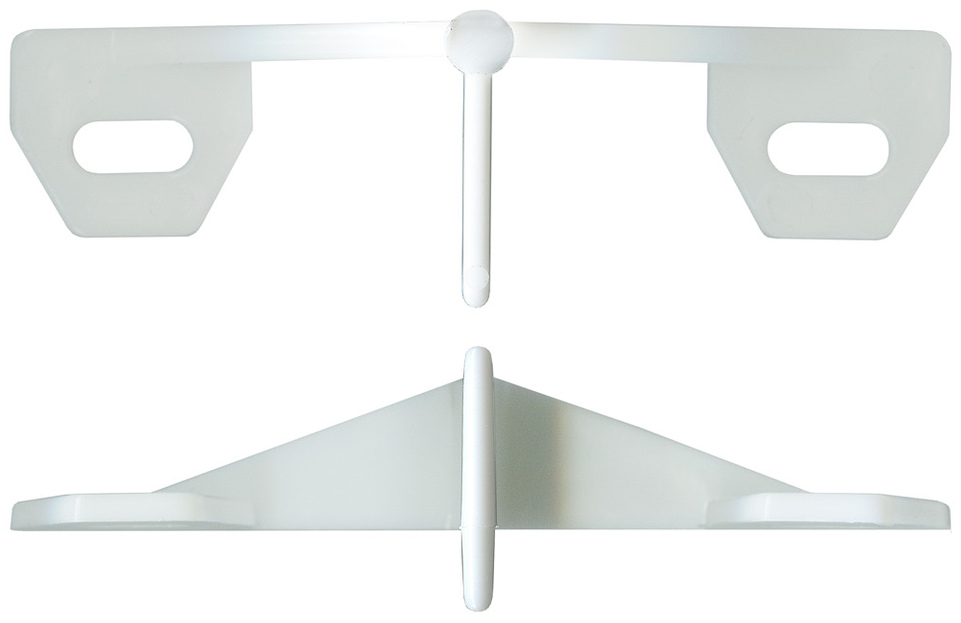

Butterfly floor-mount plastic guide to suit cavity sliding doors.

Specifications

• TradeBase SKU: GUICAVBFY
• Butterfly, floor mount
• Plastic
• Colour: White

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 83.1 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.

Compatibility

• Fits cavity sliding doors

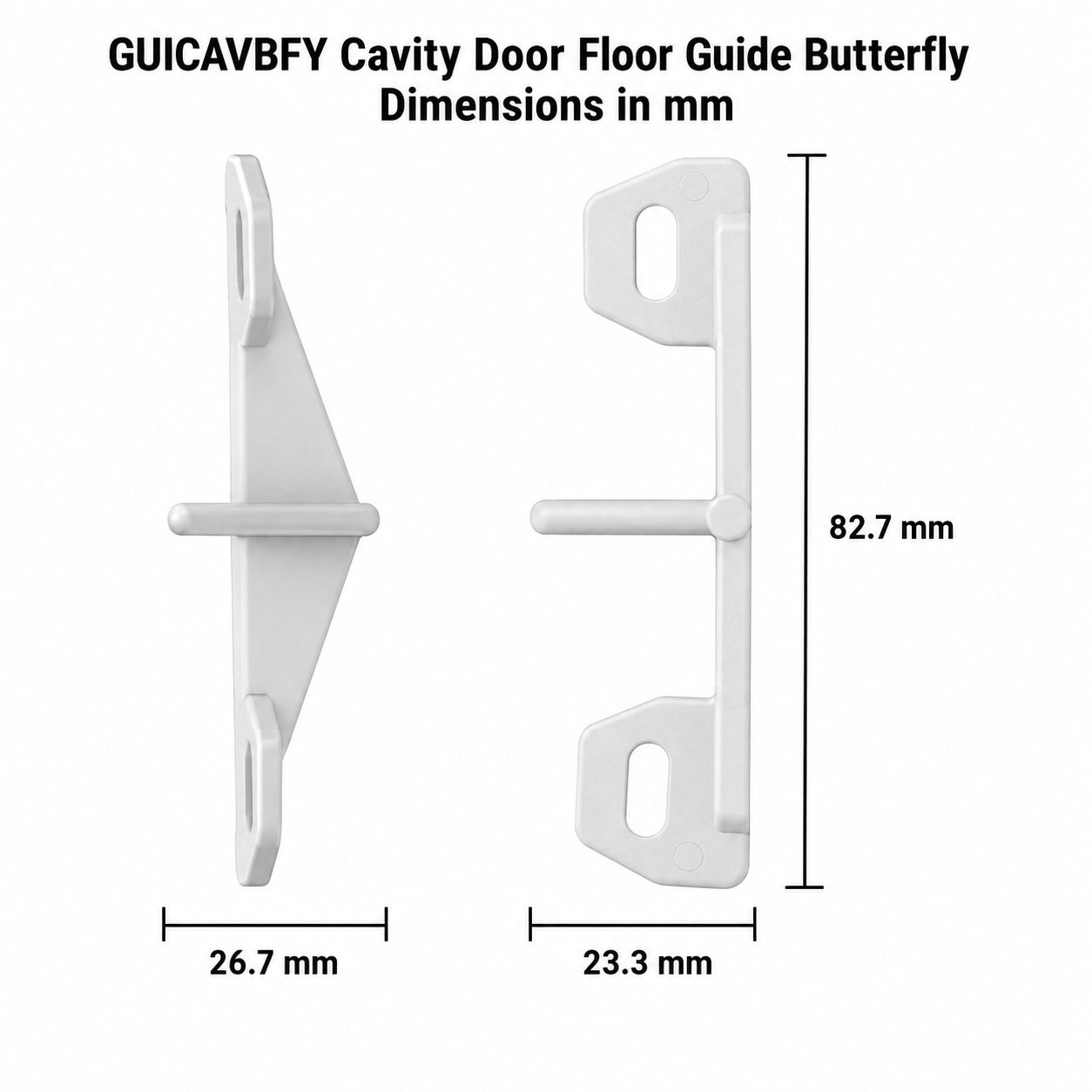

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Installation Tips

• Mark the guide position with the door closed and plumb, so it holds the bottom edge central in the cavity opening.
• Set the wings so they steady the door without pinching it — too tight and the door will drag.
• Pilot-drill and fix into solid floor or a packer so the plastic body does not split as you screw it down.

Care & Maintenance

• Vacuum dust and grit from between the wings every few months — a packed guide is what makes a door bind.
