Flyscreen Port Access Set – Oz-Port Swivel Style – 155 x 105mm – Black

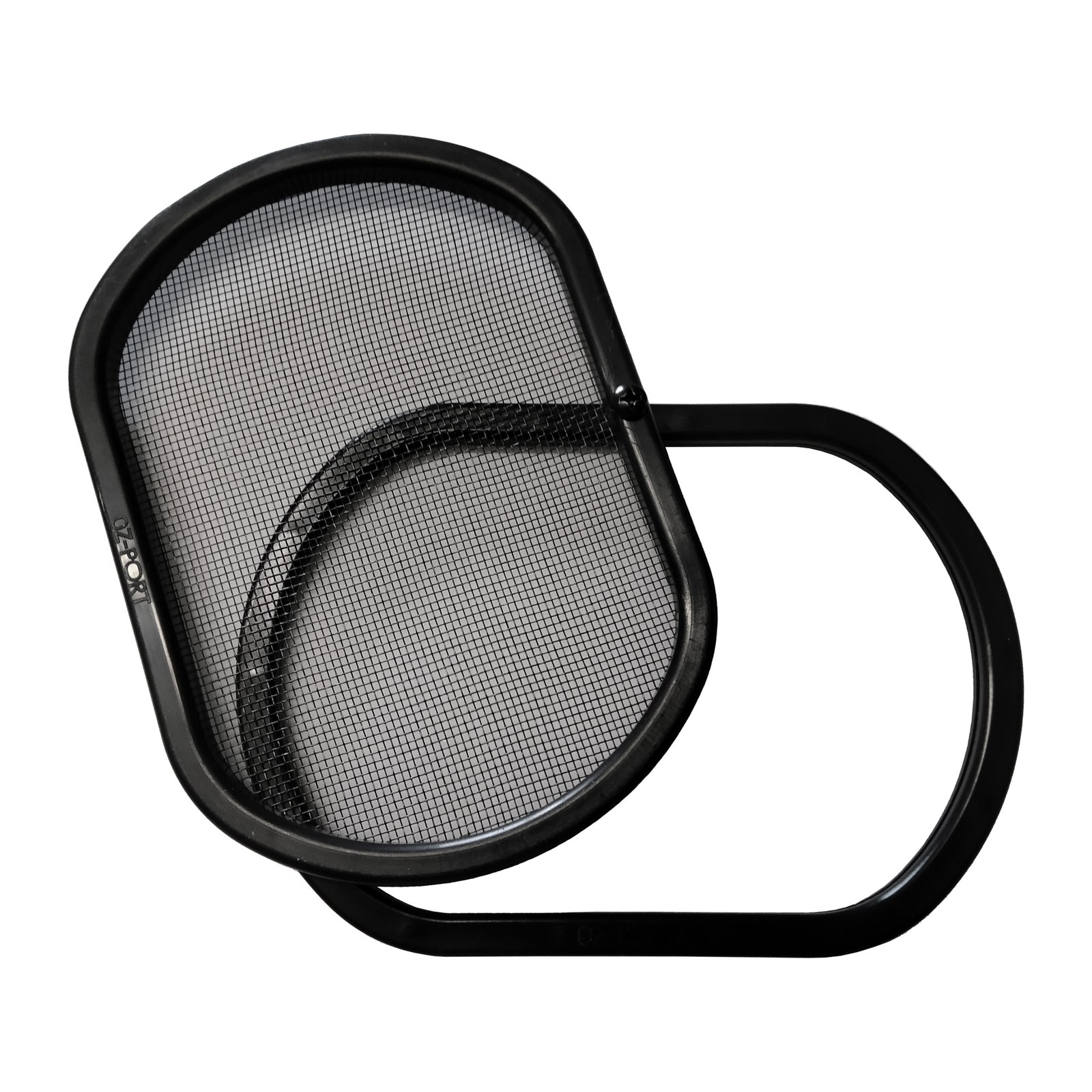

Need to reach a window winder, lock or latch behind a fixed flyscreen? This access port fits into the screen you already have. Two rings clamp onto the mesh from either side, you cut the mesh out of the middle, and a meshed swivel cover screws on over the top. Swing the cover aside to reach through, then swing it back to keep the insects out.

Key Features

• 155 x 105 mm hand-access opening: room to reach a winder handle, window lock, snib or latch
• Swivel cover with its own mesh: pivots on a single top screw, so the screen stays insect-proof when closed
• Clamps onto existing mesh: no spline, no glue and no need to take the screen out of the frame
• Black UV-stabilised plastic: blends in with black and charcoal flyscreen mesh
• Held in Australian stock and dispatched within 5 business days

Where to Use It

• Fixed flyscreens over awning and casement windows: get to the winder without removing the screen
• Screens in front of window locks and keyed latches
• Screen doors where you need to reach an inside snib or bolt

What’s in the Set

• 1 x inner clamp ring (with locating pins)
• 1 x outer clamp ring
• 1 x swivel cover, pre-meshed
• 1 x black fixing screw

How to Fit

1. Mark the spot. Choose where you need access and keep the outside of the ring at least 10 mm in from the screen frame.
2. Clamp through the mesh. Hold the inner ring behind the screen with the pins facing the mesh and the screw hole at the top. Line up the outer ring on the front and press the two together until they sit flat.
3. Trim the mesh out. Run a sharp blade around the inside edge of the ring and remove the cut-out.
4. Screw the cover on. Fit the swivel cover over the ring using the screw supplied. Tighten firmly, but don’t over-tighten or the cover won’t swing freely.

To use it, swing the cover around on its screw to open the port, then swing it back until it lines up with the ring to close.

Specifications

• Part type: Flyscreen access port set
• Style: Swivel cover
• Inner opening: 155 x 105 mm
• Overall size: approx. 174 x 124 mm
• Minimum clear mesh area needed: approx. 194 x 144 mm (allows 10 mm clearance to the frame all round)
• Material: UV-stabilised plastic
• Colour: Black
• Pack quantity: 1 set

Warranty

Backed by a 10-year TradeBase Australia warranty and your rights under Australian Consumer Law.

Check the fit before you buy

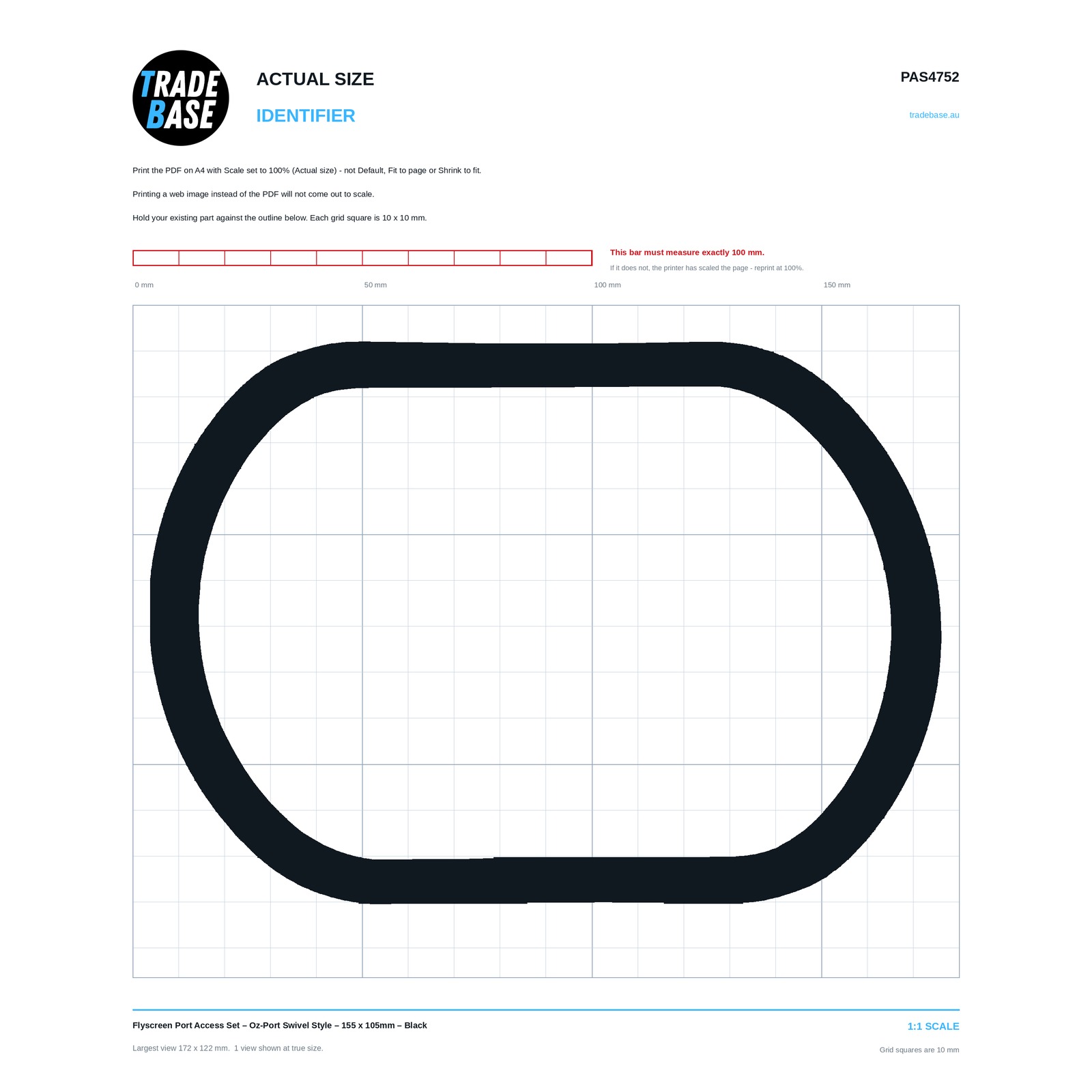

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size, not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid. Hold the sheet up against your screen to check the port fits the space you have, with 10 mm clear of the frame. A calibration bar on the sheet lets you check the printer has not scaled the page.
