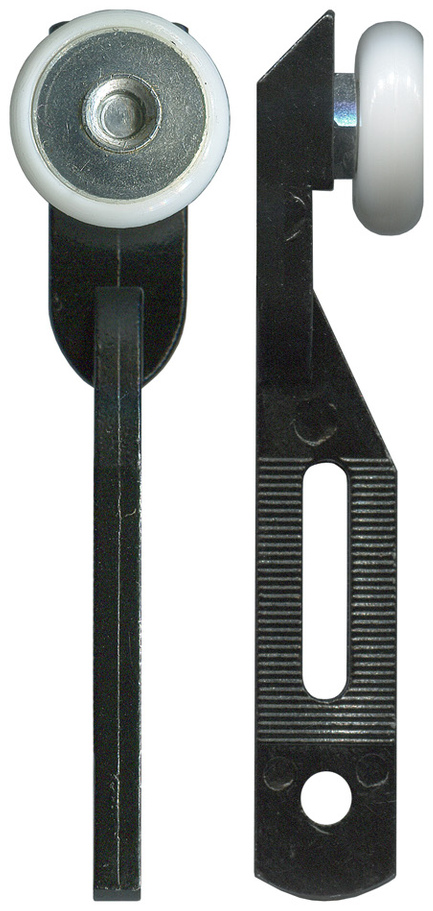

Screen Door Top Hanger & Roller Twin Pack 12kg – Jason™ & Wunderlich™ 2V

Die-cast adjustable top hanger fitted with a 19mm convex acetal roller and sealed bearing, rated to 12kg — built for top-hung aluminium-framed flyscreen and security screen doors. Suits modern Jason™ and Wunderlich™ 2V series flydoors (1980 onwards) and is a direct replacement for most Cowdroy™ top-hung screen-door race assemblies. Supplied as a twin pack with screws. Use with our matching screen door bottom guide.

Key Features

• Die-cast adjustable top hanger with 19mm convex acetal roller
• Sealed bearing for smooth, quiet running
• For top-hung aluminium-framed flyscreen & security screens
• Twin pack — screws included
• Load rating: 12kg

Specifications

• TradeBase SKU: CARSCRT12
• Type: Adjustable die-cast top hanger with 19mm convex acetal roller
• Roller diameter: 19mm
• Profile: Convex
• Load rating: 12kg
• Pack: Twin pack, screws included

Compatibility

• Replaces and suits Jason™, Wunderlich™ 2V series, Cowdroy™
• Fits sliding screen doors

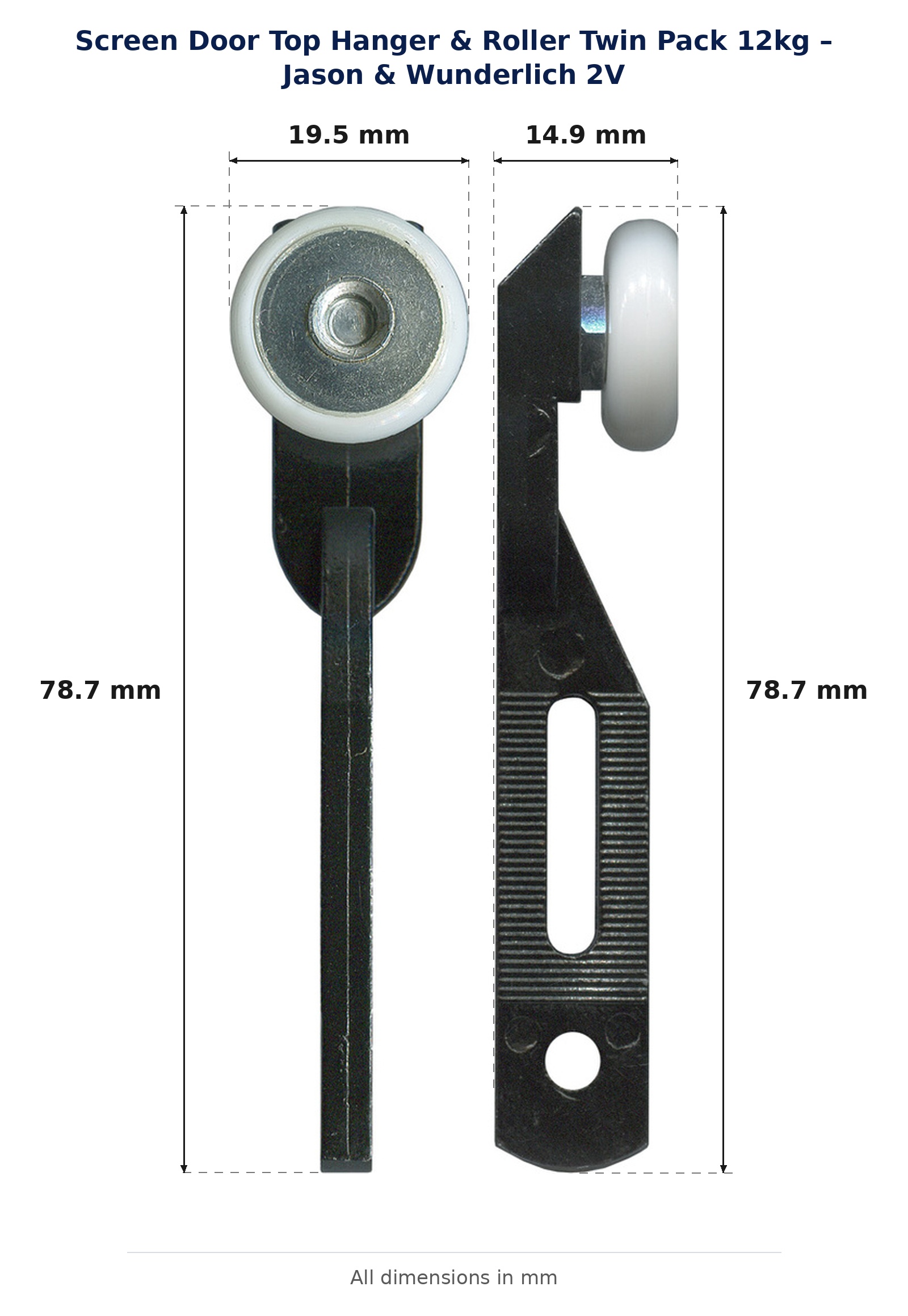

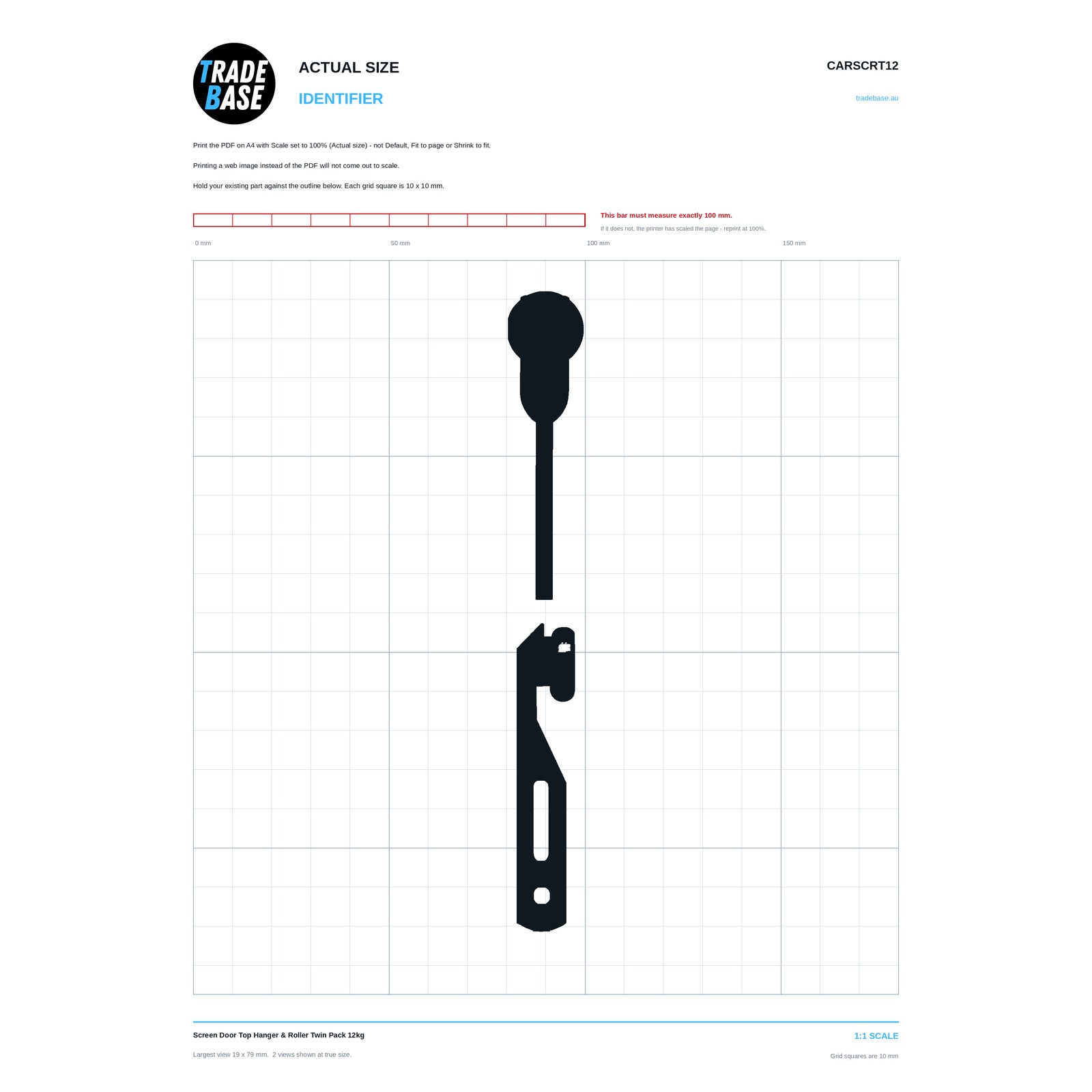

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
