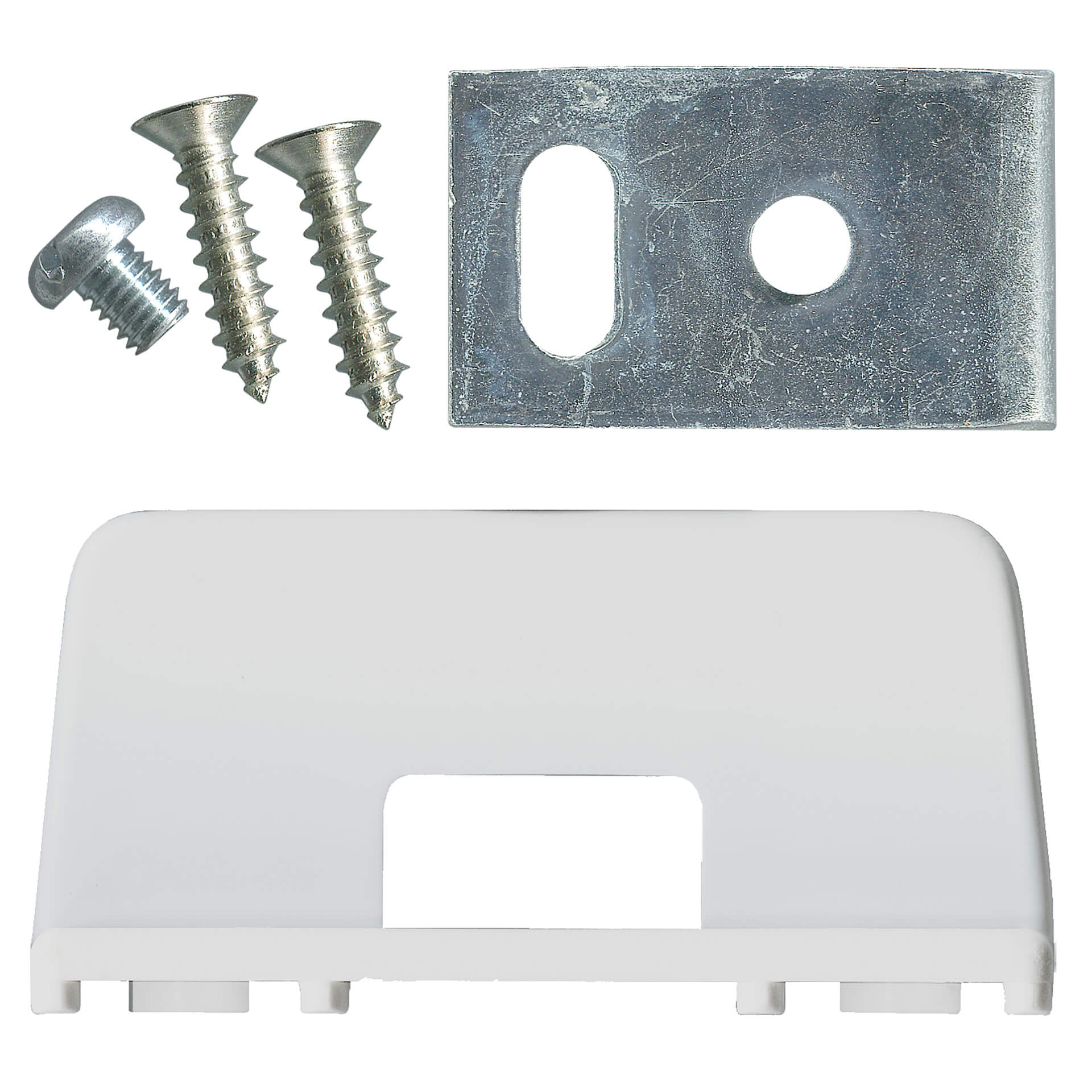

Sliding Door Floor and Architrave Guide – Kit Plastic – Replaces Manhattan™ & Arrow™ Guides

The Sliding Door Floor and Architrave Guide – Kit Plastic is a replacement sliding door floor and architrave guide for aluminium and timber sliding doors, screens and wardrobes. It measures 63.4 x 31.3 x 25 mm overall.

Key Features

• Plastic body for long service life
• Overall size 63.4 x 31.3 x 25 mm
• Supplied 1 per pack

Ideal For

• Aluminium and timber sliding doors
• Sliding screen and security doors
• Replacing hardware that drags, sticks or jumps the track

Compatibility

• Replaces and suits Manhattan™, Arrow™, Triumph
• Fits timber sliding doors, floor and architrave mounted
• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: GDECMB63
• Overall width: 63.4 mm
• Overall height: 31.3 mm
• Overall depth: 25 mm
• Body material: Plastic
• Pack: 1 per pack

Installation Tips

• Lay the kit out and identify the floor and architrave parts before you start.
• Set the parts against the closed door so they line up, then mark and pilot-drill the fixings.
• Leave a little side play either side of the door so it does not bind as it slides.

Care & Maintenance

• Sweep grit out from around the guide every few months, more often in coastal or dusty areas.

Warranty

10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.

Check the fit before you buy

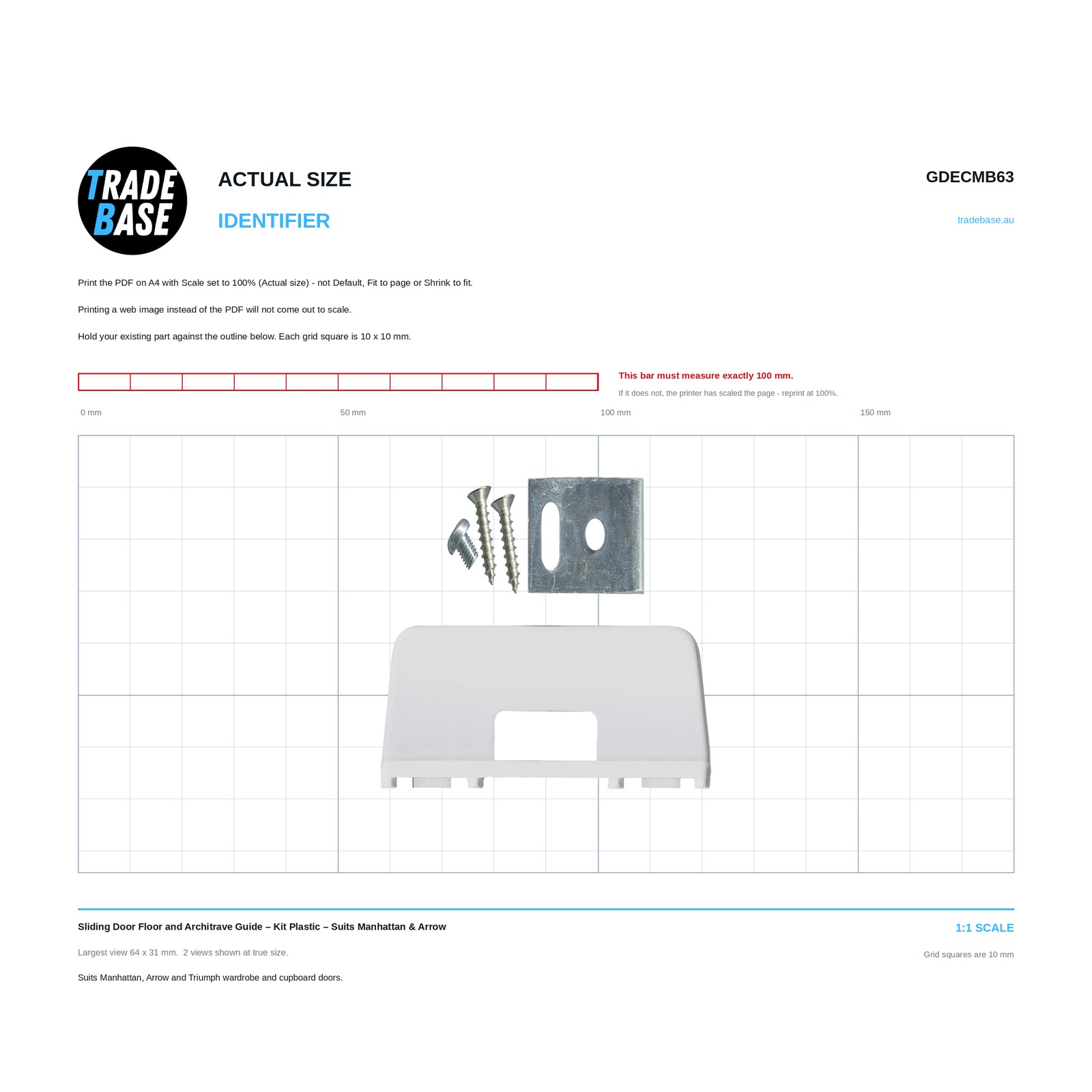

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 63.7 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
