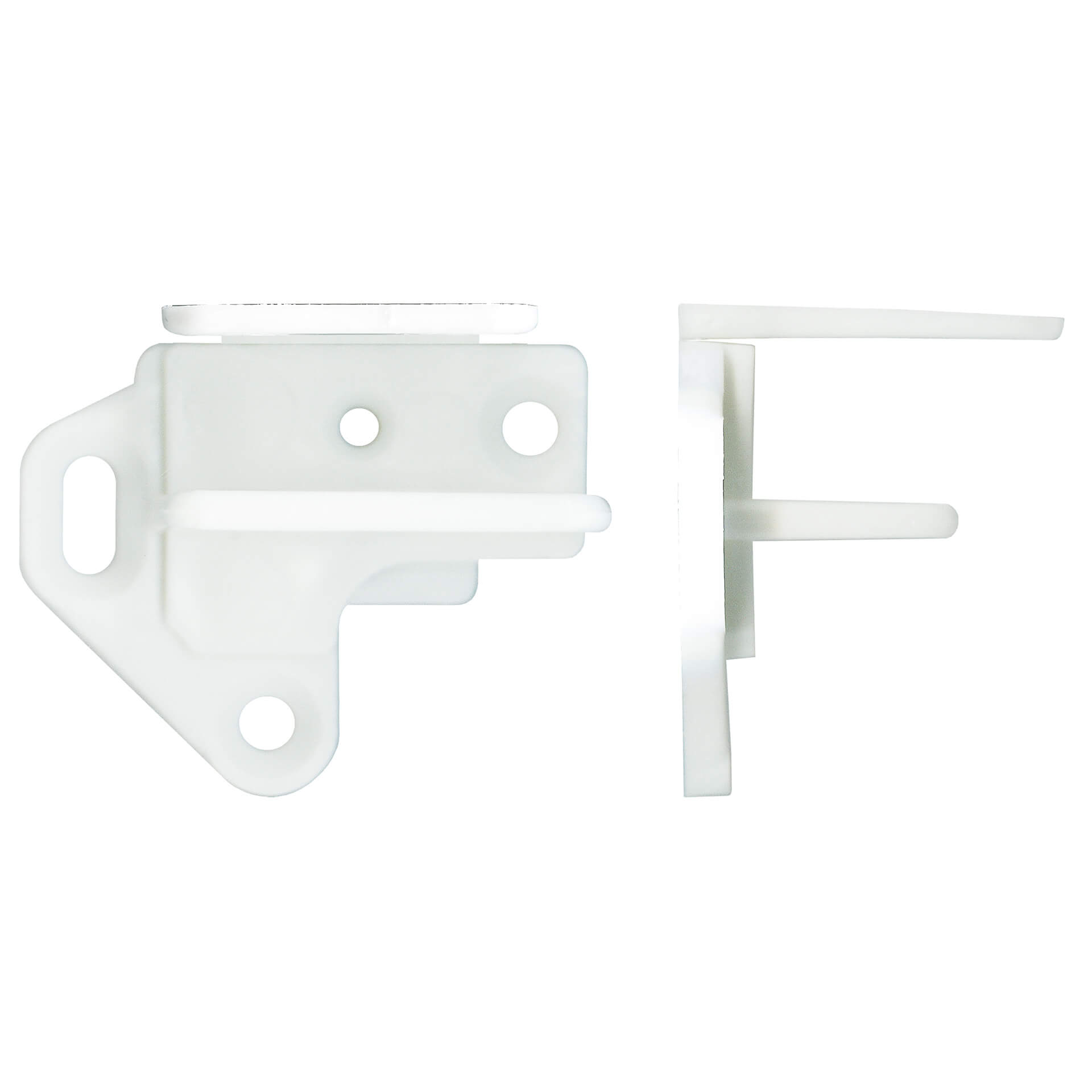

Sliding Door Floor and Architrave Guide – Plastic

The Sliding Door Floor and Architrave Guide – Plastic is a replacement sliding door floor and architrave guide for aluminium and timber sliding doors, screens and wardrobes. It measures 52 x 24 x 40 mm overall.

Key Features

• Plastic body for long service life
• Overall size 52 x 24 x 40 mm
• Supplied 1 per pack

Ideal For

• Aluminium and timber sliding doors
• Sliding screen and security doors
• Replacing hardware that drags, sticks or jumps the track

Compatibility

• Fits timber sliding doors, floor and architrave mounted
• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: GDECMB52
• Overall width: 52 mm
• Overall height: 24 mm
• Overall depth: 40 mm
• Body material: Plastic
• Pack: 1 per pack

Installation Tips

• Hold the guide against the closed door, mark the fixing holes, then pilot-drill before screwing it off.
• Leave a little side play either side of the door so it does not bind as it slides.
• Fix into solid timber — a screw into plaster or unsupported lining will pull out.

Care & Maintenance

• Sweep grit out from around the guide every few months, more often in coastal or dusty areas.

Warranty

10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.
