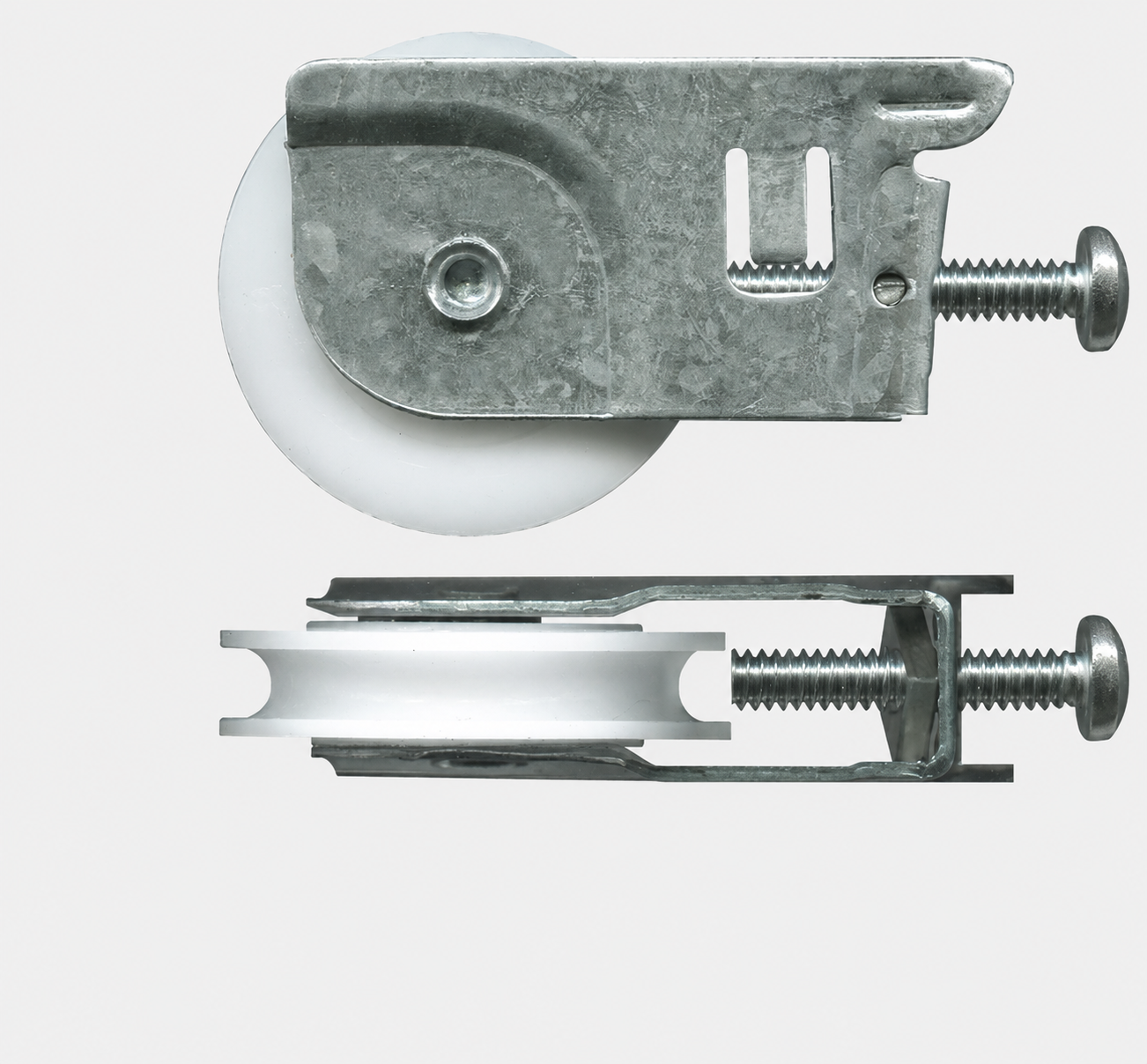

Sliding Wardrobe Door Carriage & Roller – Adjustable Concave Nylon Wheel

Galvanised steel sliding-door carriage fitted with a concave nylon roller and a screw adjuster for height and tension, rated to 20kg. A direct-replacement carriage assembly for sliding wardrobe and cupboard doors.

Key Features

• Concave nylon roller with screw adjuster
• Galvanised steel carriage
• Height/tension adjustment

Compatibility

• Fits wardrobe and cupboard doors

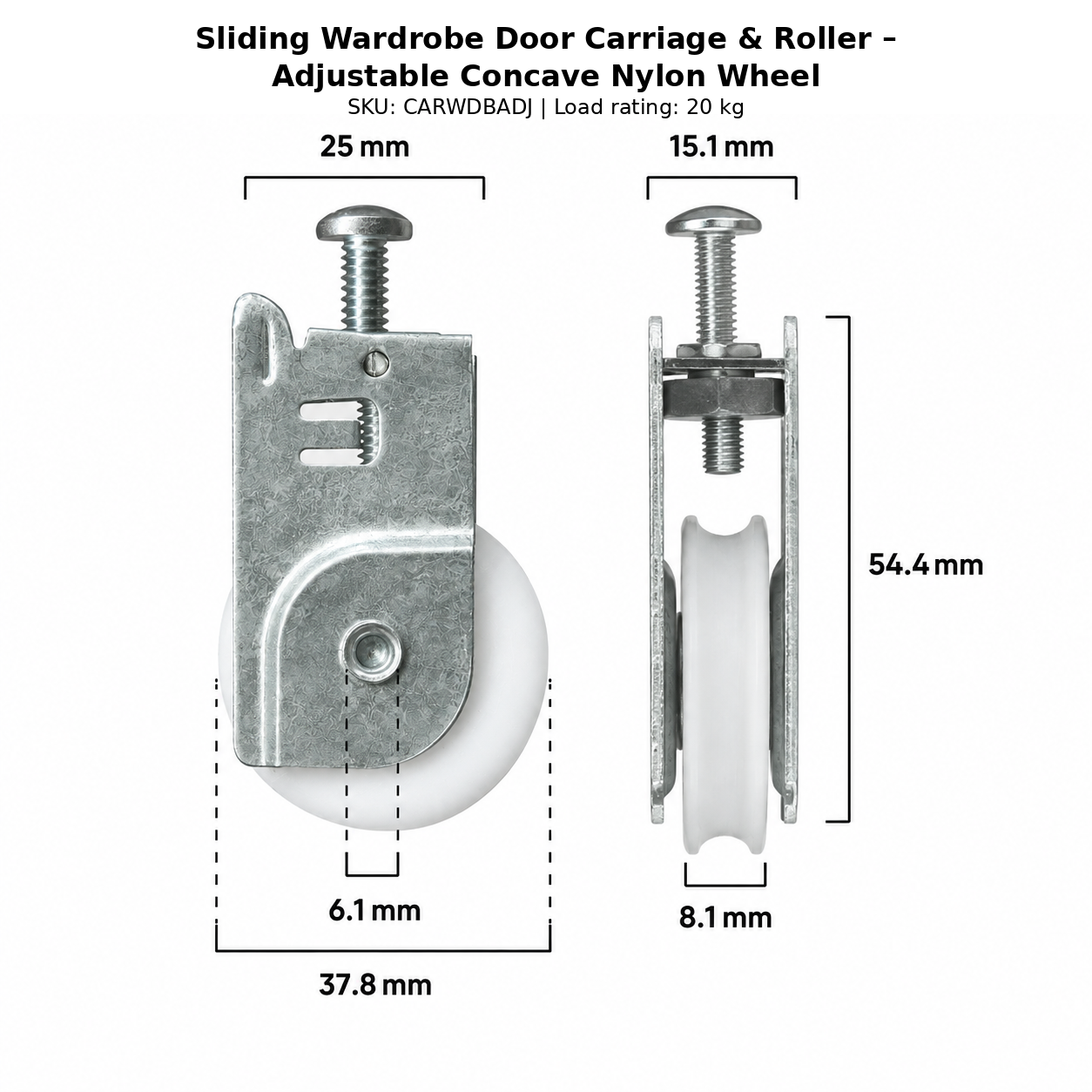

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: CARWDBADJ
• Wheel diameter: 37.8mm
• Wheel width: 8.1mm
• Axle bore: 6.1mm
• Overall height: 54.4mm
• Load rating: 20kg

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

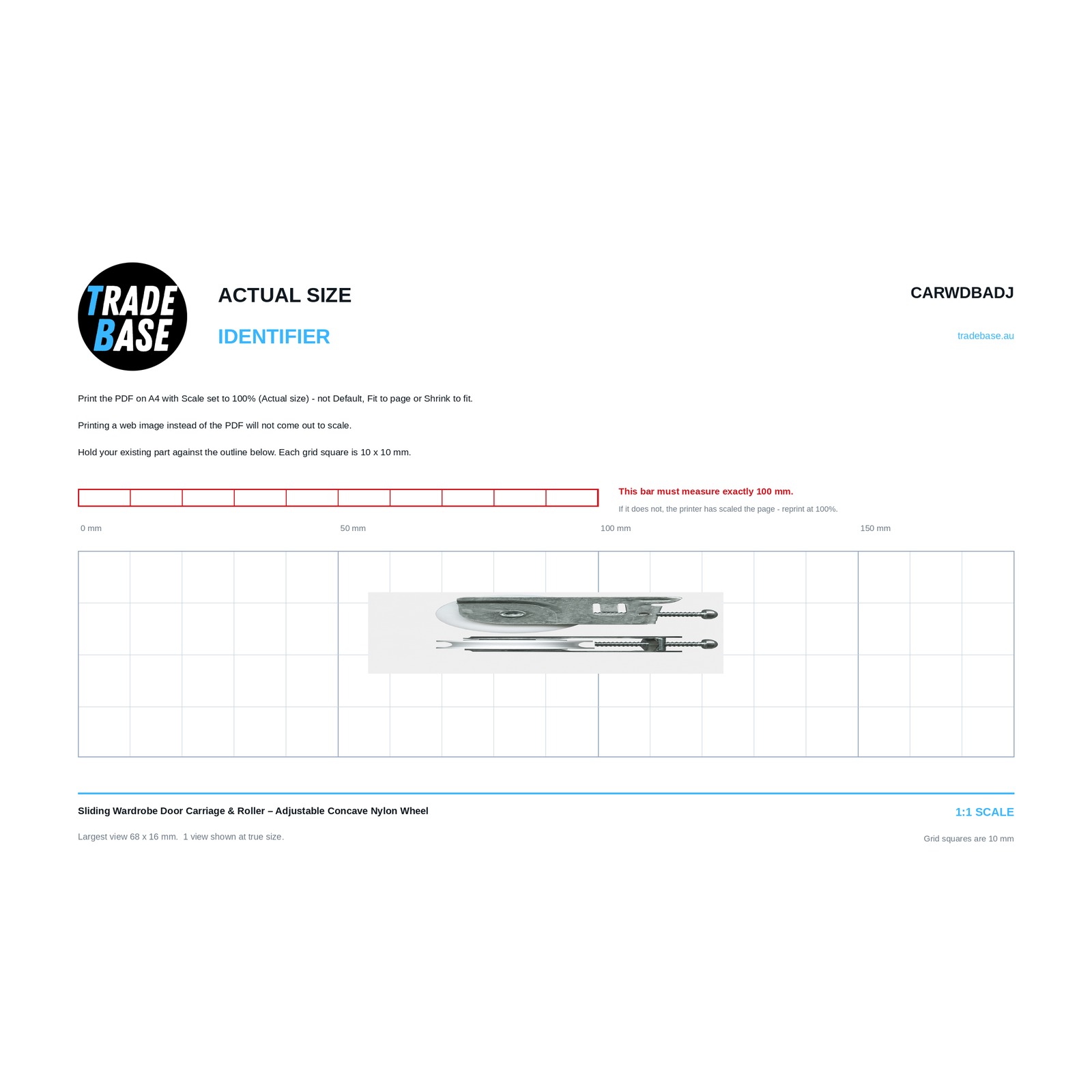

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 68.3 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
