Sliding Wardrobe Door Carriage & Roller – Adjustable Convex Nylon Wheel 20kg

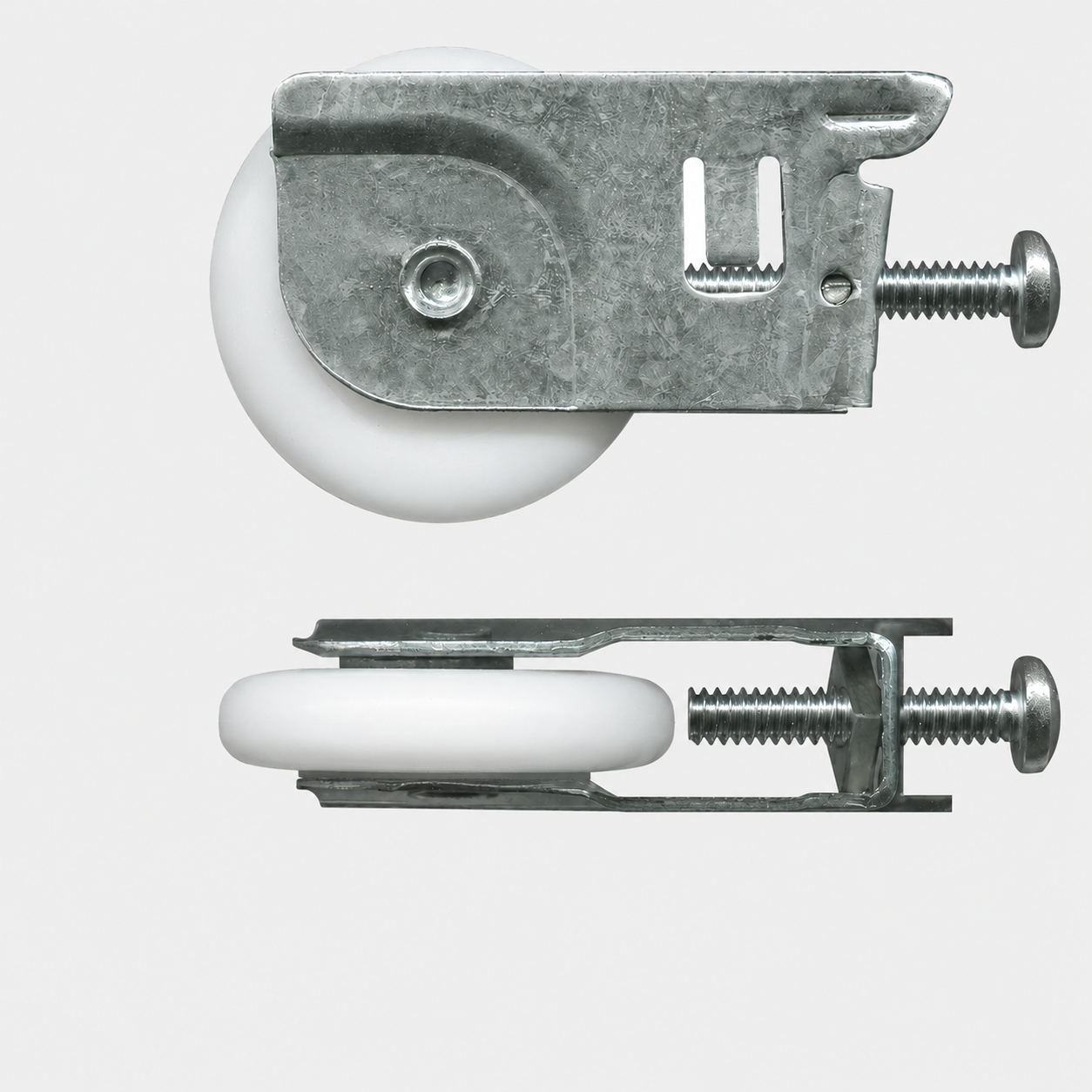

Galvanised steel sliding-door carriage fitted with a smooth-running convex nylon roller and an adjuster screw for precise height and tension. A direct-replacement carriage assembly for sliding wardrobe and cupboard doors.

Key Features

• 41mm flared convex nylon roller for quiet, smooth travel
• Heavy Duty — rated to 20kg each
• Galvanised steel body for strength and corrosion resistance
• Screw adjuster to fine-tune door height and tension
• Direct-fit replacement carriage

Fits & Replaces

• Direct replacement for most Australian sliding wardrobe and cupboard door carriages.
• Suits sliding wardrobe and robe doors, cupboard and cabinet sliding doors
• Match the roller diameter (41mm), the roller profile (convex) and the carriage flare (14–15mm) against your existing part — if those three match, it fits

Specifications

• Roller: convex nylon, 41mm diameter, flared
• Carriage: galvanised steel, flared 14–15mm
• Adjustment: screw adjuster
• Load capacity: 20kg each
• Duty rating: Heavy Duty (15–30kg)
• Weight: 45g

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a nylon roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your floor clearance.
• Adjust the rear carriage last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or guides.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
