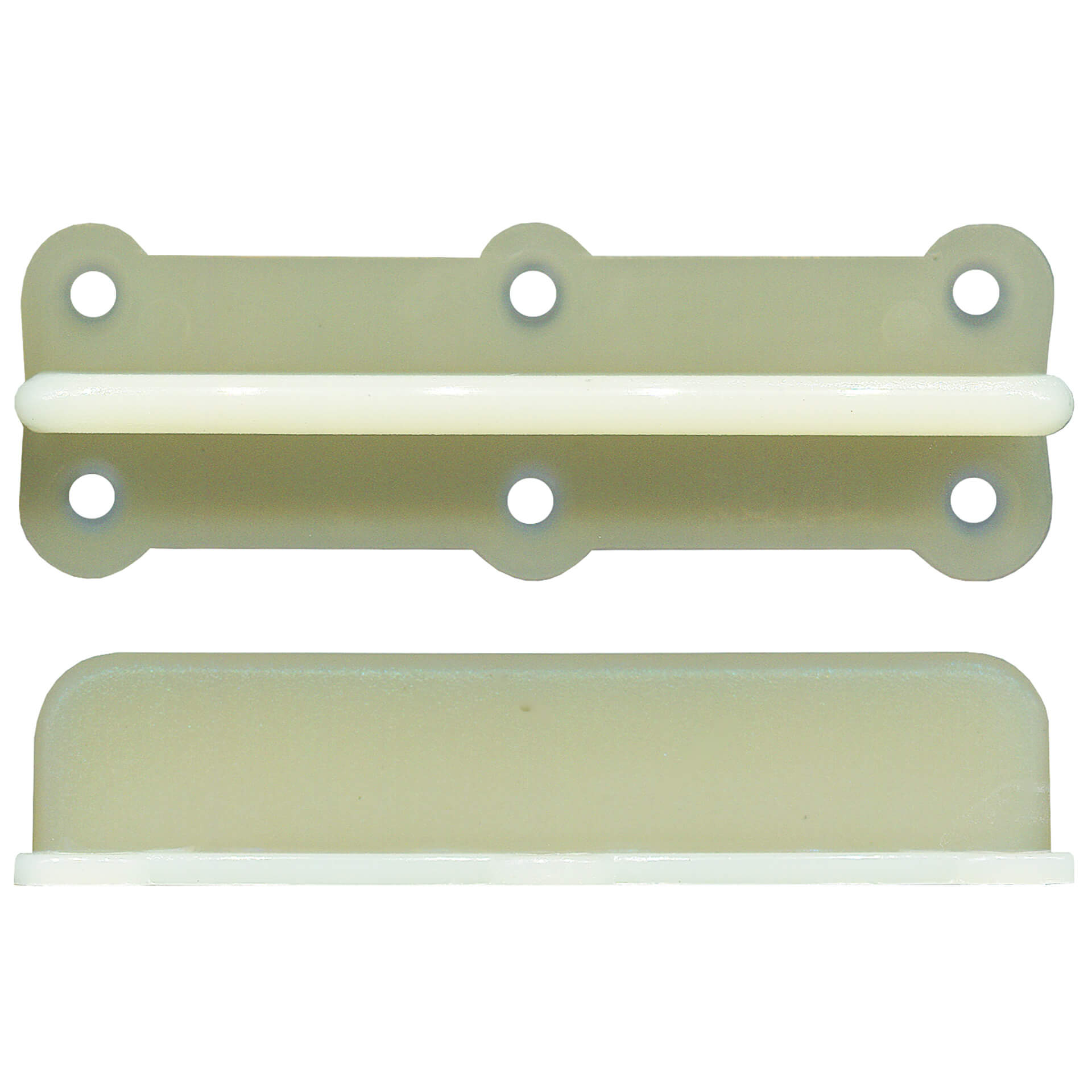

Timber Door Floor Guide – 60mm Plastic – Replaces Robe Runner™ & Tudor™ Guides

The Timber Door Floor Guide – 60mm Plastic is a replacement timber door floor guide for aluminium and timber sliding doors, screens and wardrobes. It measures 63 x 13 x 21 mm overall.

Key Features

• Plastic body for long service life
• Overall size 63 x 13 x 21 mm
• Supplied 1 per pack

Ideal For

• Aluminium and timber sliding doors
• Sliding screen and security doors
• Replacing hardware that drags, sticks or jumps the track

Compatibility

• Replaces and suits Robe Runner, Tudor
• Fits timber wardrobe and cupboard doors

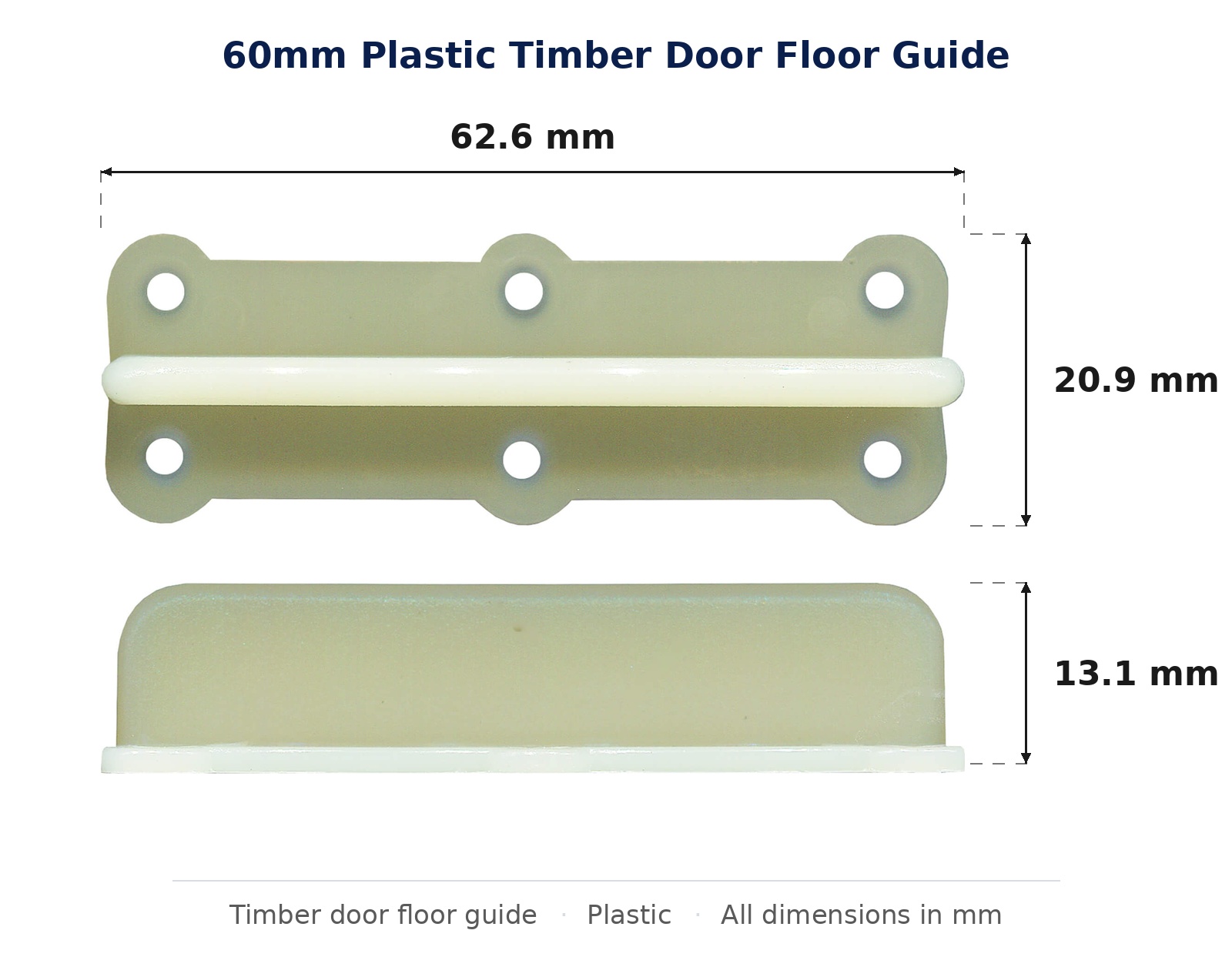

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: GDEFLR63
• Overall width: 63 mm
• Overall height: 13 mm
• Overall depth: 21 mm
• Body material: Plastic
• Pack: 1 per pack

Installation Tips

• Set the guide so it sits under the closed door, then mark and pilot-drill before you fix it down.
• Leave a little side play against the door edge — a guide clamped hard against the door will make it stiff to slide.
• Fix into solid floor or the existing track; a screw into carpet or underlay alone will pull out.

Care & Maintenance

• Sweep grit out from around the guide every few months, more often in coastal or dusty areas.

Warranty

10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.

Check the fit before you buy

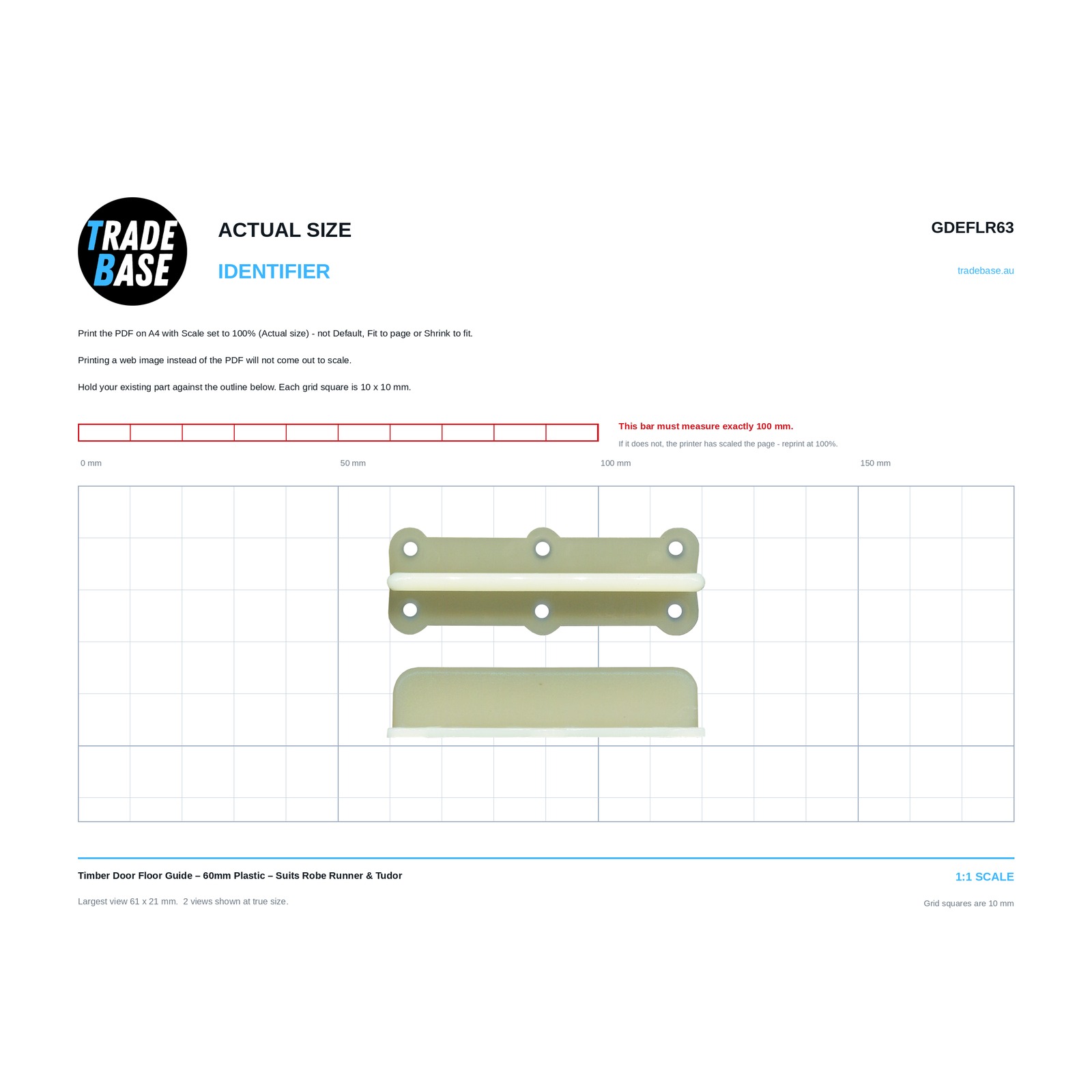

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 61.3 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
