TRADEBASE · SKU CRAC25

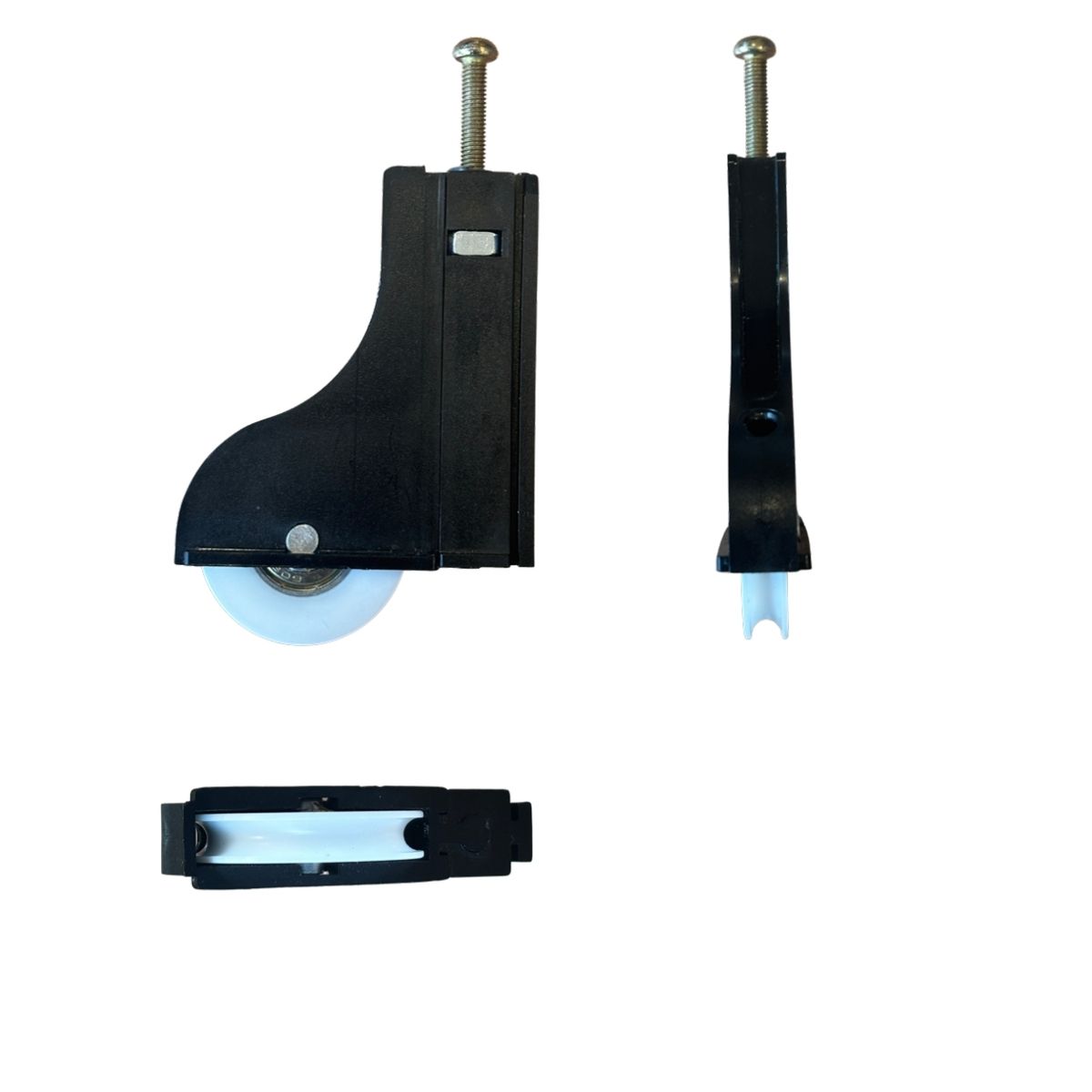

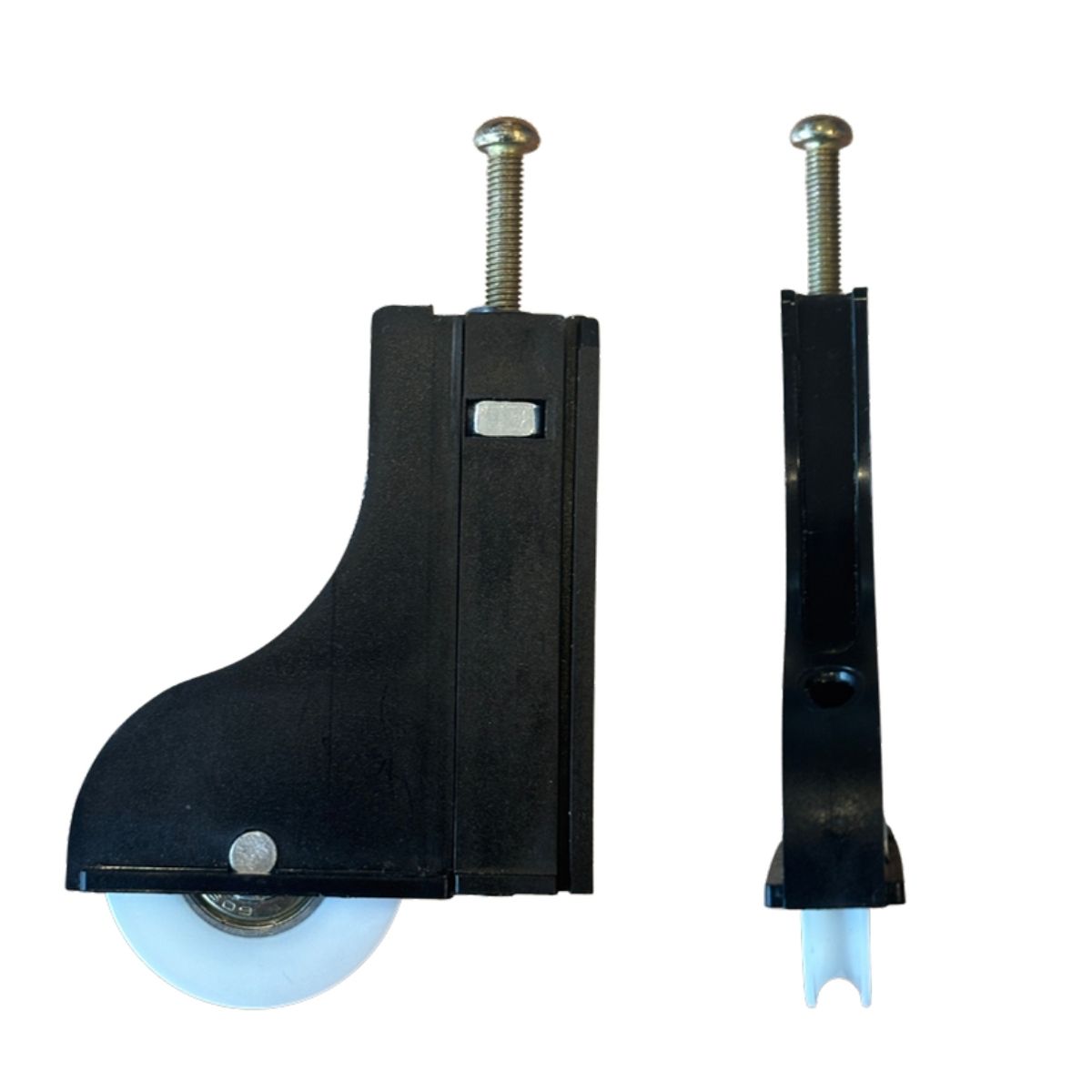

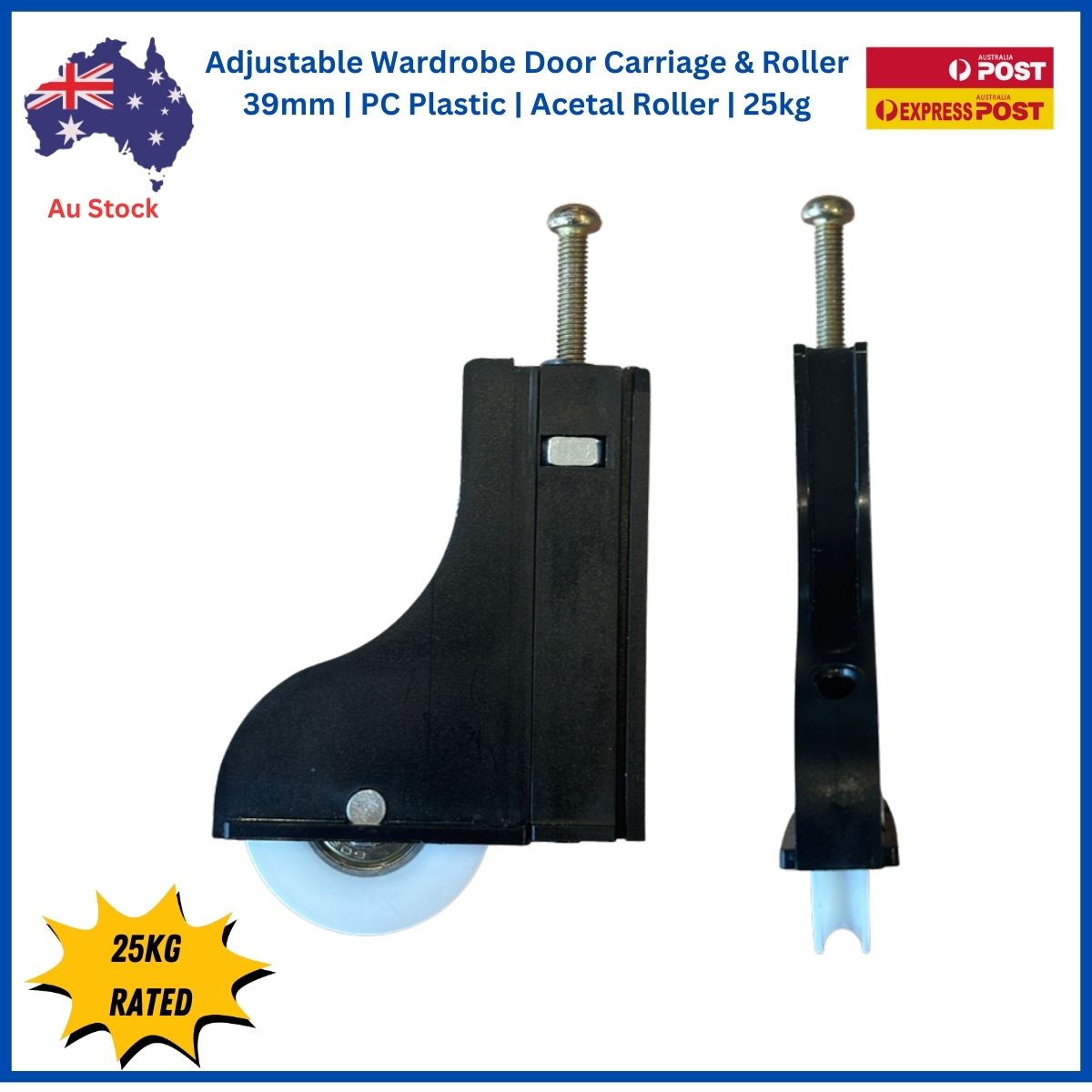

Adjustable Wardrobe Door Carriage 39mm 25kg – Replaces Stegbar® Carriages
Adjustable plastic carriage and acetal roller suits sliding top hung wooden doors.
In stock
In stock
Dispatched within 5 business days of ordering.
Quantity pricing Up to 20% off
| Qty | Price each | Save |
|---|---|---|
| 1 | $15.99 | |
| 2–3 | $14.39 | 10% |
| 4–9 | $13.59 | 15% |
| 10+ | $12.79 | 20% |
- Secure payment
- Returns policy
- Australian support
Business customer? Log in or open a business account.
Specifications
| SKU | CRAC25 |
|---|---|
| Roller Carriage and Guides | Carriage and Roller |
| Door Type | Wardrobe Door |
| Material | Acetal |
| Composition | Carriage: Polycarbonate · Roller: Acetal · Bearing: Steel |
| Suits Brand | Stegbar® |
| Roller Profile | Concave |
| Roller Mounting | Bore |
| Wheel Diameter | 39mm |
Product details
This adjustable wardrobe door roller and carriage suits sliding top hung wooden doors. A direct replacement for worn or damaged wardrobe door rollers — restores smooth, quiet sliding operation without professional help. The PC plastic carriage houses a precision 39mm acetal roller running on a 608zz steel bearing for low friction, quiet operation and long service life. The adjustable screw mechanism allows precise height adjustment for door alignment after installation. Sold singularly — add the number required to your cart.
Key Features
- Adjustable wardrobe door carriage and roller assembly
- Heavy Duty — rated to 25kg each
- 39mm acetal roller on a 608zz steel bearing
- PC plastic carriage with screw height adjustment
- Sold singularly
Fits & Replaces
- Direct replacement for Stegbar®, Aki™ and other major Australian wardrobe door systems.
- Suits sliding top hung wooden wardrobe doors and built-in robe panel doors
- Three measurements decide the fit — roller diameter (39mm), axle bore diameter (6mm) and bore depth (13mm). Match those and it fits.

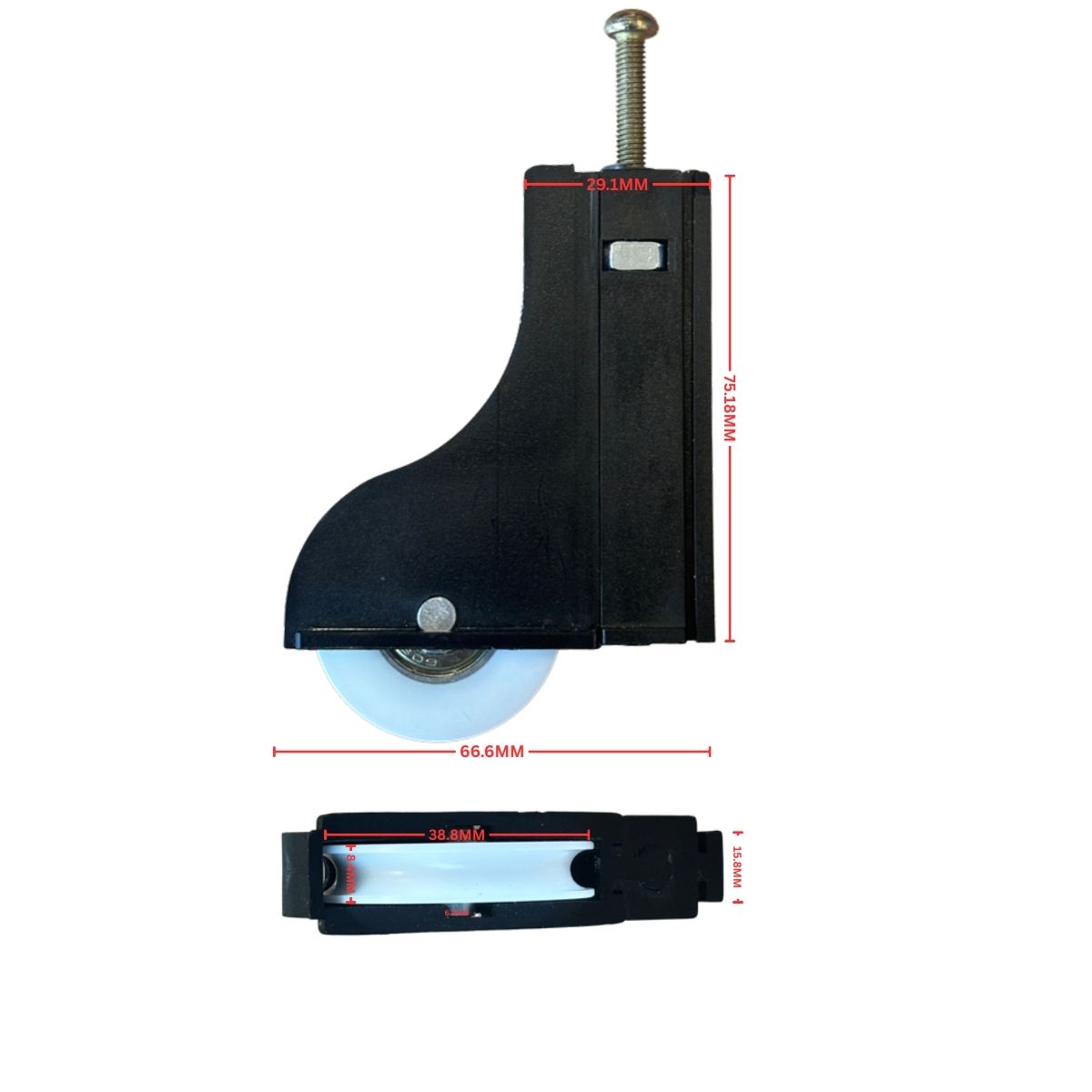

Specifications
- SKU: CRAC25
- Carriage size: 67W × 75H × 16L mm
- Carriage material: PC plastic
- Roller size: 39W × 39H × 8L mm
- Roller material: Acetal
- Axle bore diameter: 6mm
- Axle bore depth: 13mm
- Bearing: 608zz steel
- Load capacity: 25kg each
- Duty rating: Heavy Duty (15–30kg)
- Suits: sliding top hung wooden doors
Installation Tips
- Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
- Clean all grit and old grease out of the track. Grit is what kills an acetal roller, not load.
- Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
- Fit the rear carriage first, then set the front carriage to get your floor clearance.
- Adjust the rear carriage last to bring the door parallel with the jamb, working from the handle side.
- Slide the door through its full travel before refitting stops or guides.
Care & Maintenance
- Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller and the bearing.
- Sweep the track out every few months, more often in coastal or dusty areas.
What’s Included
- 1 × adjustable wardrobe door carriage with 39mm acetal roller
Warranty
Covered by our 12-month warranty and your rights under the Australian Consumer Law.
