1520mm 316 SS Marine Grade Mesh 30m BAL40

TRADEBASE · SKU FSS152030

1520mm 316 SS Marine Grade Mesh 30m BAL40

316 marine-grade stainless steel insect mesh, 1520mm x 30m.

$455.00 inc GST

In stock

In stock

Quantity pricing Up to 5% off

Qty Price each Save
1 $455.00
2–3 $450.00 1%
4–9 $445.00 2%
10+ $430.00 5%

Business customer? Log in or open a business account.

Specifications

SKUFSS152030
Stainless Flyscreen Mesh316 Marine Grade SS Commercial Grade BAL Rated
Width1520mm
Length30m
Material316 Marine Grade Stainless Steel

Product details

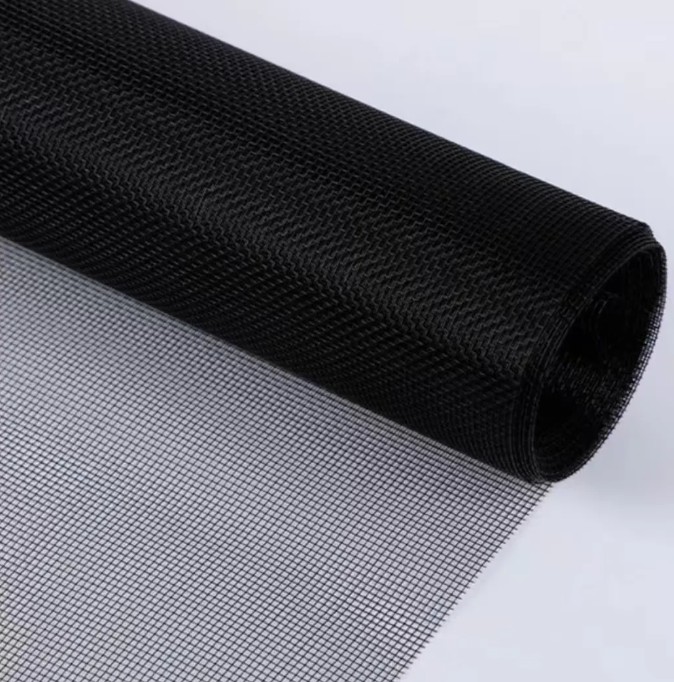

TradeBase 316 Marine-Grade Stainless Steel Insect Mesh – 1520mm x 30m

Premium 316 marine-grade stainless steel insect screen for coastal and bushfire-prone areas. Corrosion resistant, high strength, with a black powder-coat finish for clear views and reduced glare.

Specifications

  • Material: AISI 316 marine-grade stainless steel
  • Weave: 18 x 16 strands per inch
  • Strand diameter: 0.25 mm
  • Aperture: ~1.16 mm x 1.34 mm (max 1.34 mm – under the 2 mm bushfire limit)
  • Weight: 318 GSM
  • Finish: Black epoxy / powder coat
  • Roll size: 1520 mm wide x 30 m

Bushfire & Standards Compliance

Manufactured to AS 3959:2018. With corrosion-resistant 316 stainless construction and a maximum aperture of 1.34 mm (below the 2 mm limit), this mesh meets the deemed-to-satisfy screening requirements for BAL-12.5, BAL-19, BAL-29 and BAL-40 bushfire attack levels.

Installation for BAL-40: fit externally in a metal frame using metal fixings; at BAL-40 both the openable sash and fixed glass panels must be screened. Not suitable for BAL-FZ (Flame Zone), which requires a fully fire-tested window/door system.

Download: Product Specification & AS 3959:2018 Compliance Sheet (PDF)

Which BAL level do you need? See the bushfire mesh selector chart in our Flyscreen Mesh Buying Guide.

Applications

  • Bushfire-prone zones – ember protection to BAL-40
  • Coastal areas with high salt exposure
  • Residential, commercial and industrial insect screening
