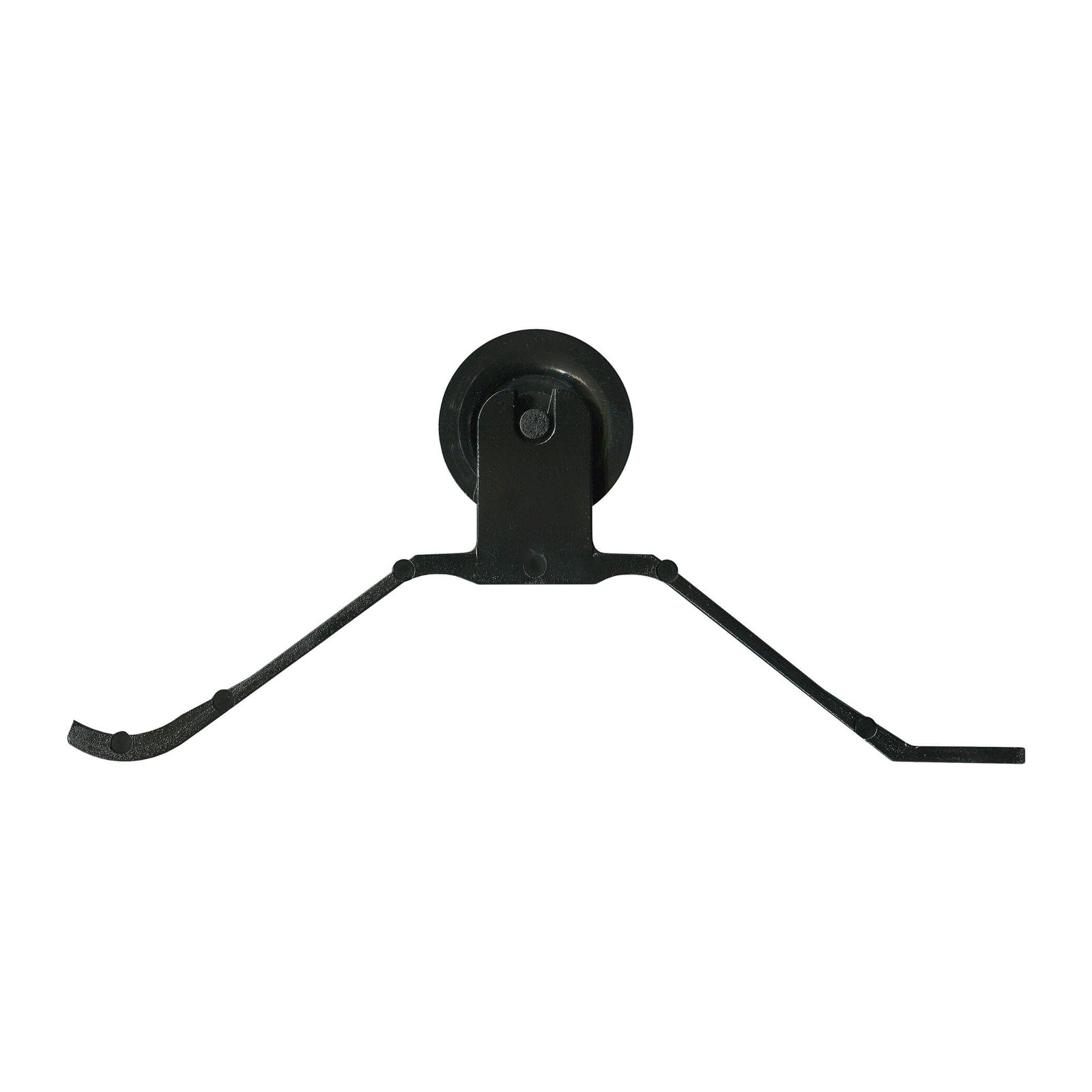

125.7mm Spring & Roller Assembly – Concave Roller – Suits Screen Doors

A direct replacement spring & roller assembly for screen doors. Concave roller on a top tension spring. Acetal roller, no bearing.

Key Features

• Concave acetal roller
• Top tension spring

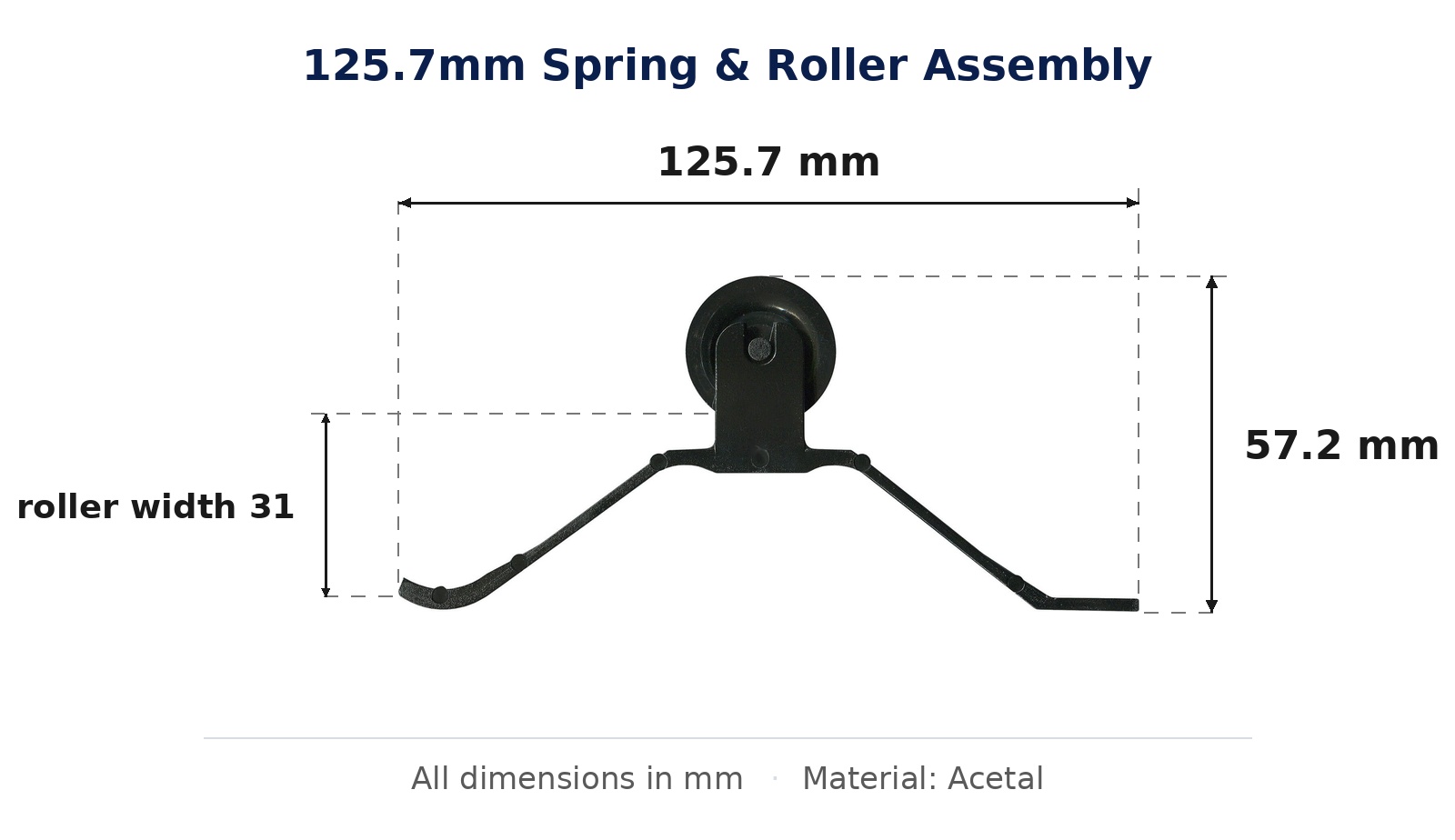

• Overall 125.7 x 57.2mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for most Australian aluminium screen door top spring and roller assemblies of this pattern.
• Match the overall length (125.7mm), the body width (57.2mm) and the concave roller profile against your existing assembly — if those three match, it fits
• Concave suits a round or beaded track. If your track is flat, use the flat-roller version instead

Specifications

• TradeBase SKU: ASMSPR126
• Material: Acetal
• Roller profile: concave
• Bearing: none
• Spring: top tension
• Overall size: 125.7 x 57.2mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills an acetal roller, not load.
• Replace both assemblies together. A new roller running against a worn one carries uneven load and both wear out early.
• Compress the spring to seat the assembly into the top channel, then let it take up against the track.
• Check the door hangs parallel with the jamb before you let the spring settle.
• Slide the door through its full travel before refitting stops or the closer.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
