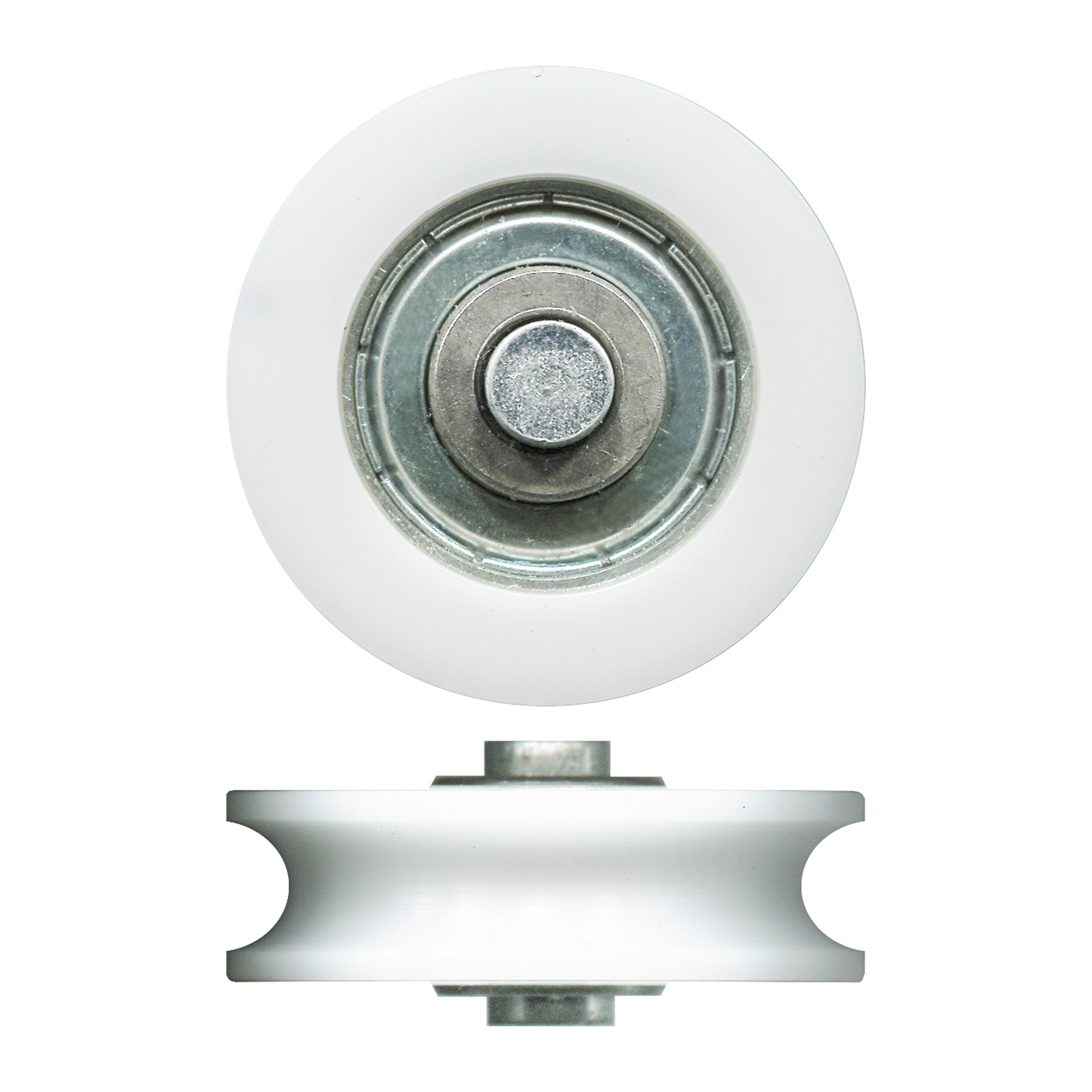

32.2mm Sliding Door Roller – Suits Patio and Screen Doors

A direct replacement sliding door roller for patio and screen doors. Acetal concave roller with bearing. Roller only — carriage not included. Suits our 65.4mm Adjustable Sliding Door Carriage & Roller (CAR65ACE).

Key Features

• Acetal construction
• Acetal concave roller with bearing

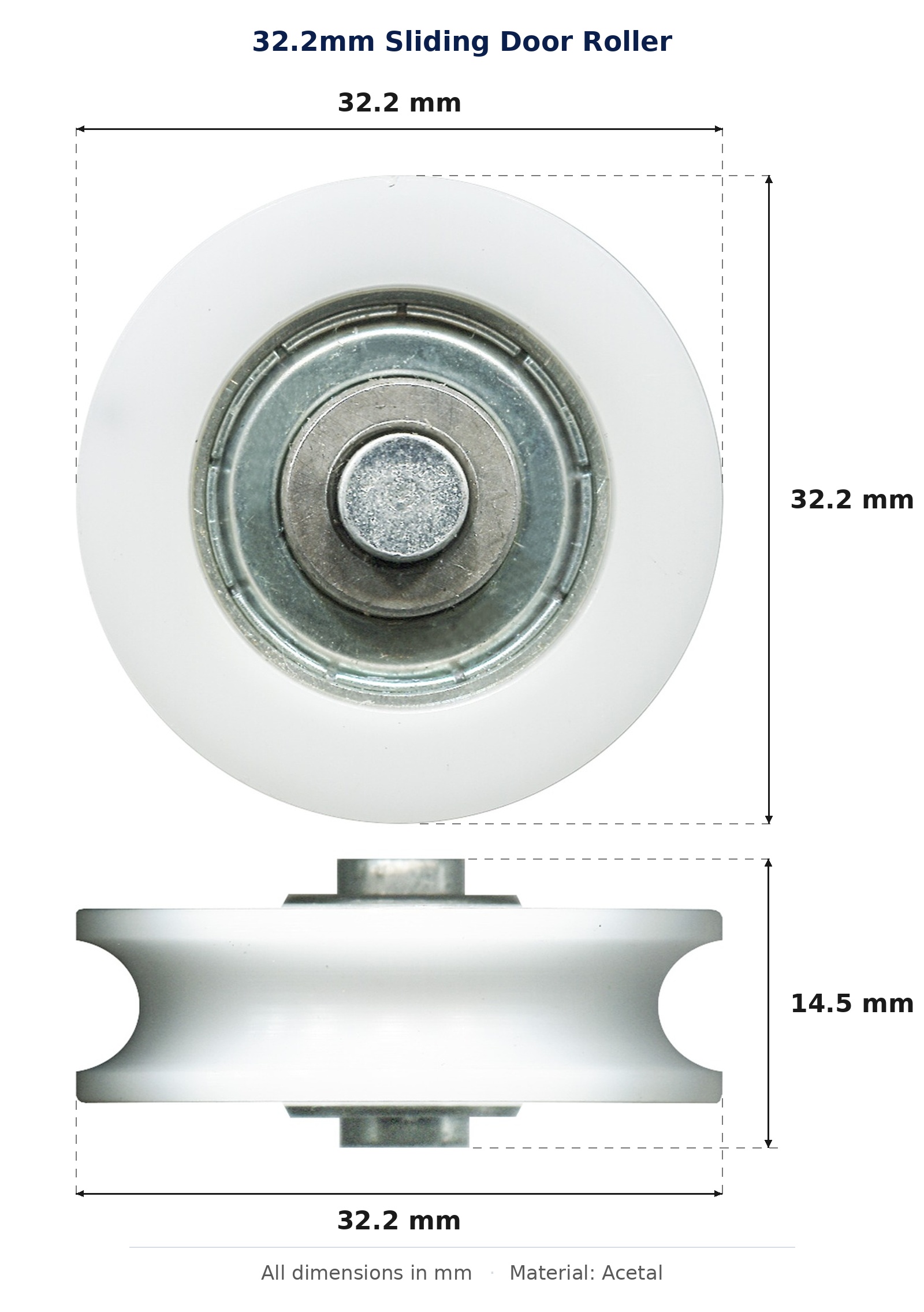

• Overall 32.2 x 32.2mm
• Roller only — carriage not included
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for most Australian aluminium sliding door rollers.
• Match the 32.2mm roller diameter, the concave profile and the axle against your existing roller — if those match, it fits
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: ROL32CNC
• Material: Acetal
• Roller profile: concave, on bearing
• Overall size: 32.2 x 32.2mm

Installation Tips

• Match the new roller to the old one on diameter, profile (concave, convex, flat or V-groove) and axle before you fit it.
• Check the track for burrs and flat spots and file them smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace rollers in pairs. A new roller running against a worn one carries uneven load and both wear out early.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

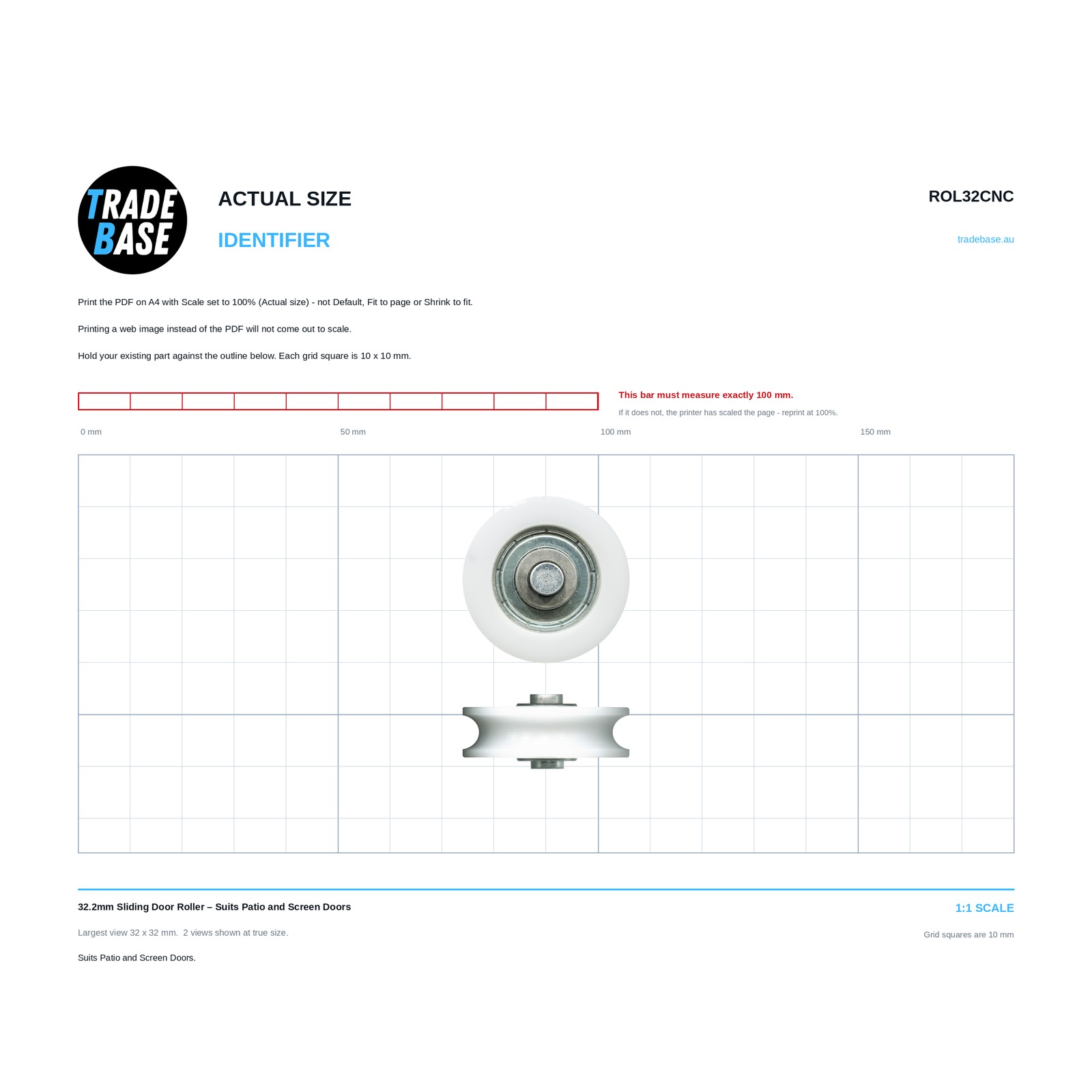

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 32.2 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
