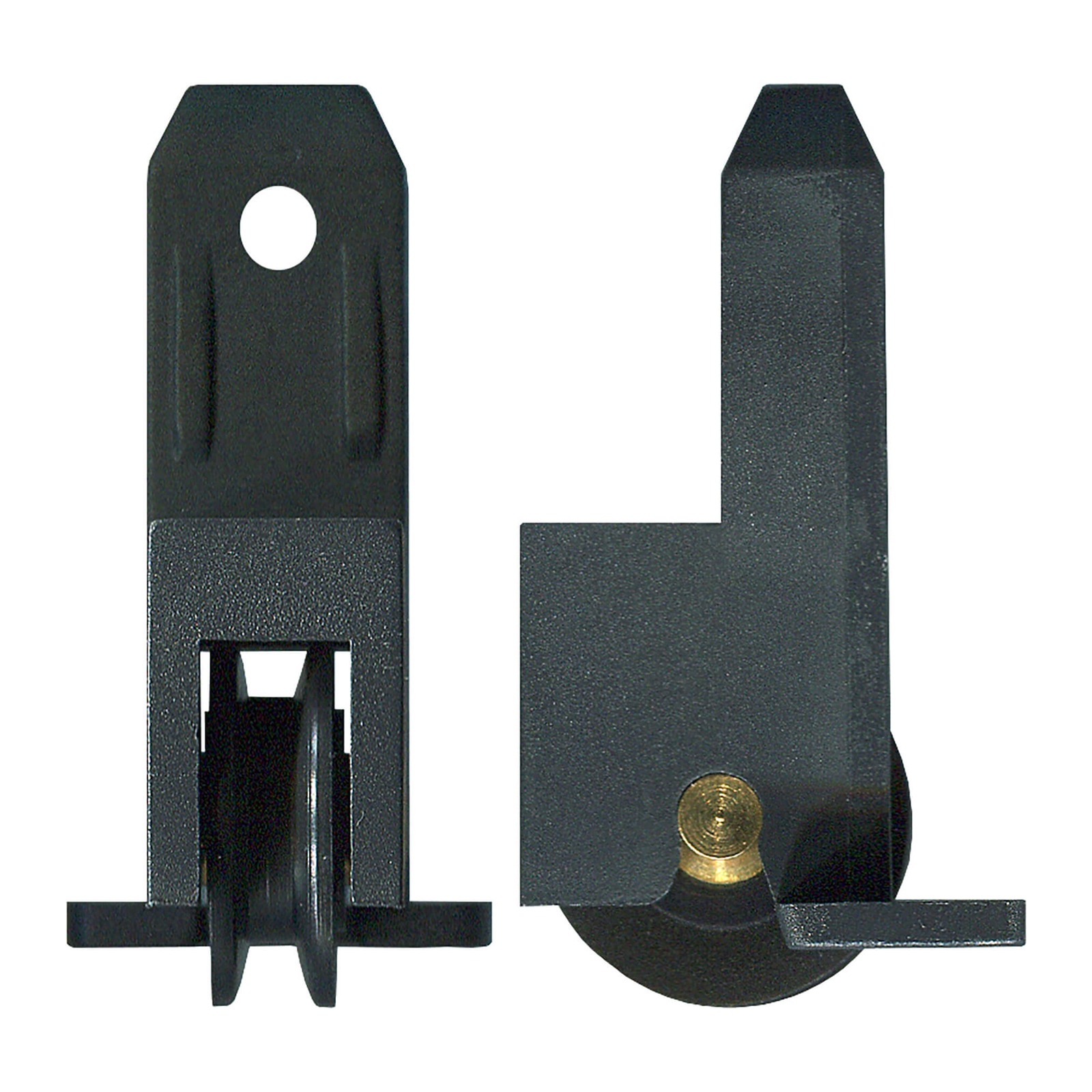

32.5mm Adjustable Sliding Door Carriage & Roller – Suits Bradnams® Windows

A direct replacement adjustable sliding door carriage & roller for windows. Acetal concave roller and brass axle pin. Adjustable vertically. Suits old Bradnams®.

Key Features

• Brass construction
• Overall 17.8 x 32.5mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for old Bradnams® and most other Australian aluminium sliding window carriages of this pattern.
• Fit is decided by the 32.5mm carriage length and the 17.8mm body width, and by the concave roller profile — measure your old carriage across both before ordering

Specifications

• TradeBase SKU: CAR32BR
• Material: Brass
• Overall size: 17.8 x 32.5mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the sash parallel with the frame, working from the lock side.
• Slide the sash through its full travel before refitting stops or flyscreens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
