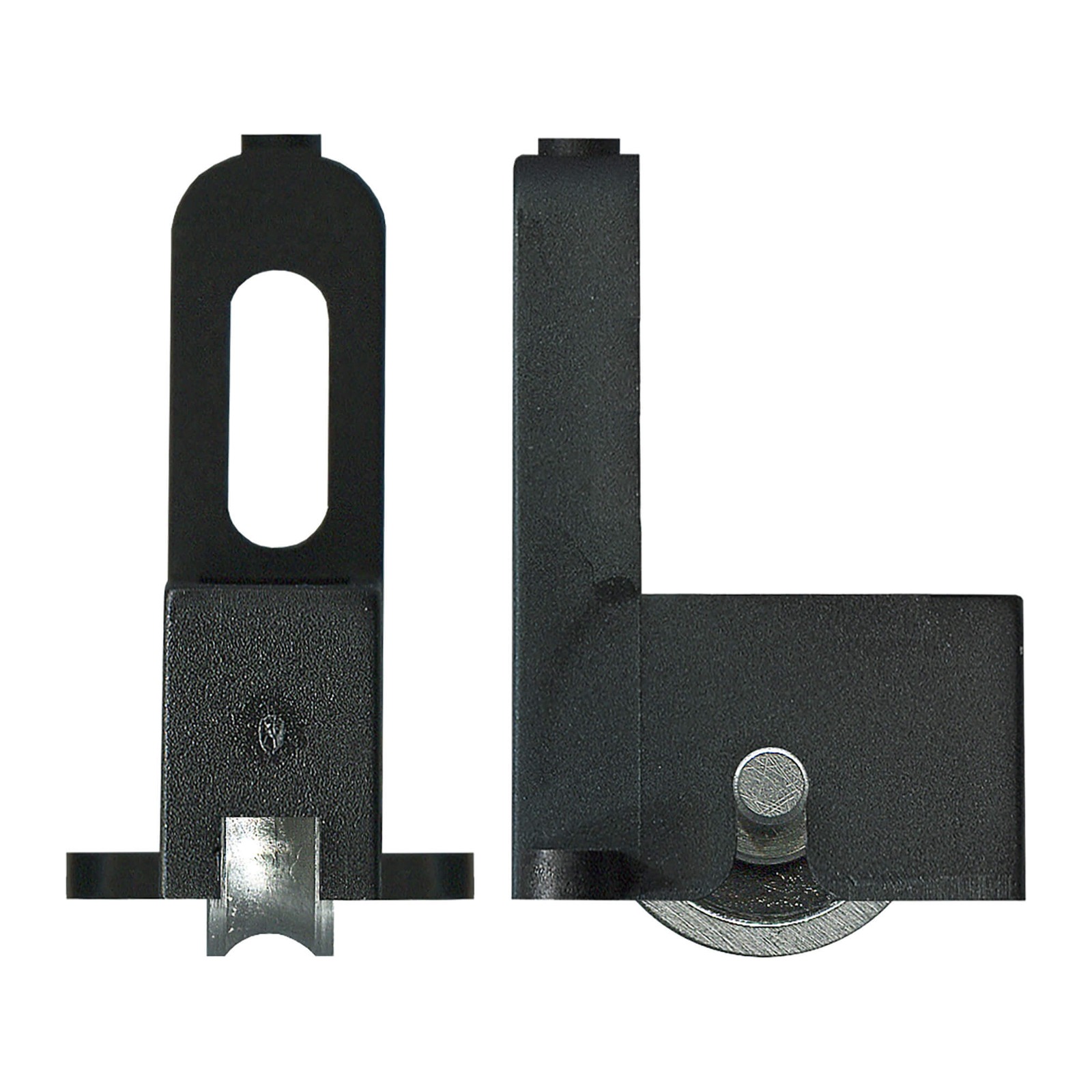

32.9 x 20.7mm Adjustable Sliding Door Carriage & Roller – Stainless – Suits Windows

A direct replacement adjustable sliding door carriage & roller for windows. Stainless steel concave roller with bearing.

Key Features

• Stainless Steel construction
• Overall 20.7 x 32.9mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for most Australian aluminium sliding window carriages of this pattern.
• Fit is decided by the 32.9mm carriage length and the 20.7mm body width, and by the concave roller profile — measure your old carriage across both before ordering

Specifications

• TradeBase SKU: CAR33SS
• Material: Stainless Steel
• Overall size: 20.7 x 32.9mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the sash parallel with the frame, working from the lock side.
• Slide the sash through its full travel before refitting stops or flyscreens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
