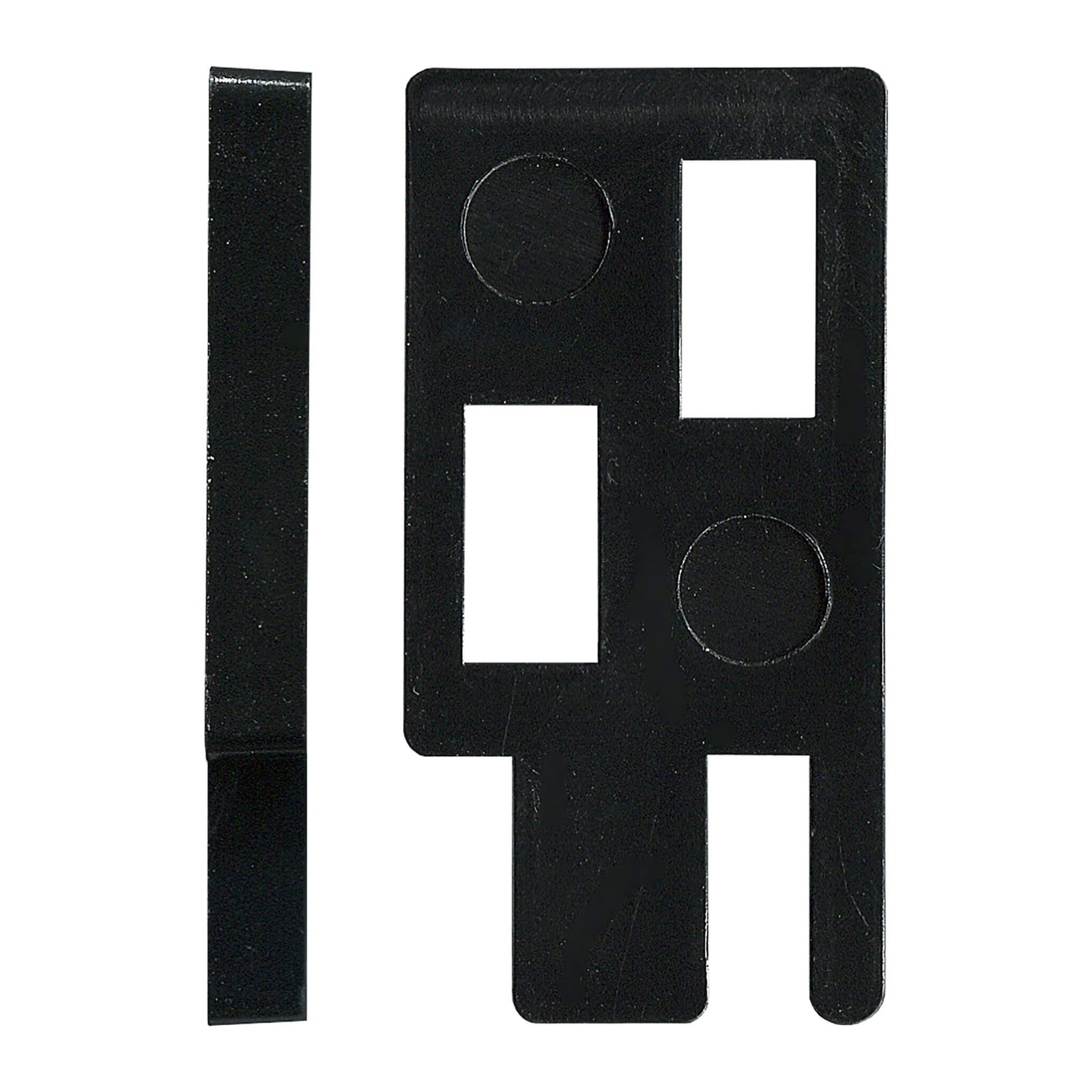

38.6mm Adjustable Sliding Door Guide – Suits Bradnams® Screen Doors

A direct replacement adjustable sliding door guide for screen doors. Fits at the bottom of the door. Suits Bradnams®. For the matching top roller, see our 20mm Sliding Door Top Hanger – Adjustable Zinc (HNG20ZNC27).

Key Features

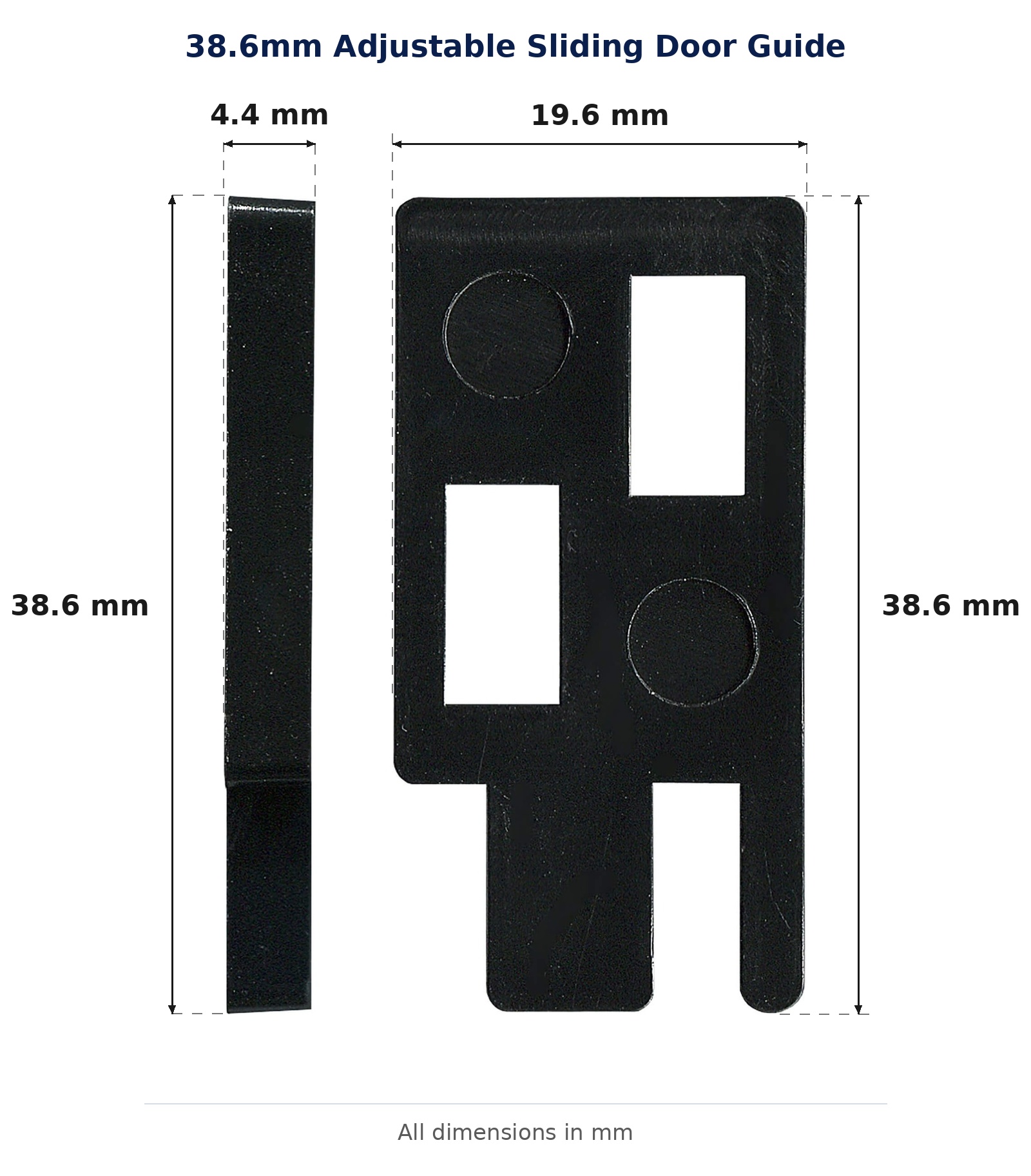

• Overall 19.6 x 38.6mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Bradnams® sliding screen door bottom guides.
• The 38.6mm overall length and the 19.6mm width decide the fit — measure your old guide across both before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: GDEADJ39
• Position: bottom of door
• Adjustable
• Overall size: 19.6 x 38.6mm

Installation Tips

• Clean all grit and old grease out of the bottom track before fitting — a guide binds on debris long before it wears out.
• Sit the guide in the track and run the door through its full travel before you tighten the fixings.
• Set the adjustment so the door sits parallel in the frame, then lock the guide off.

Care & Maintenance

• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 4.4 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
