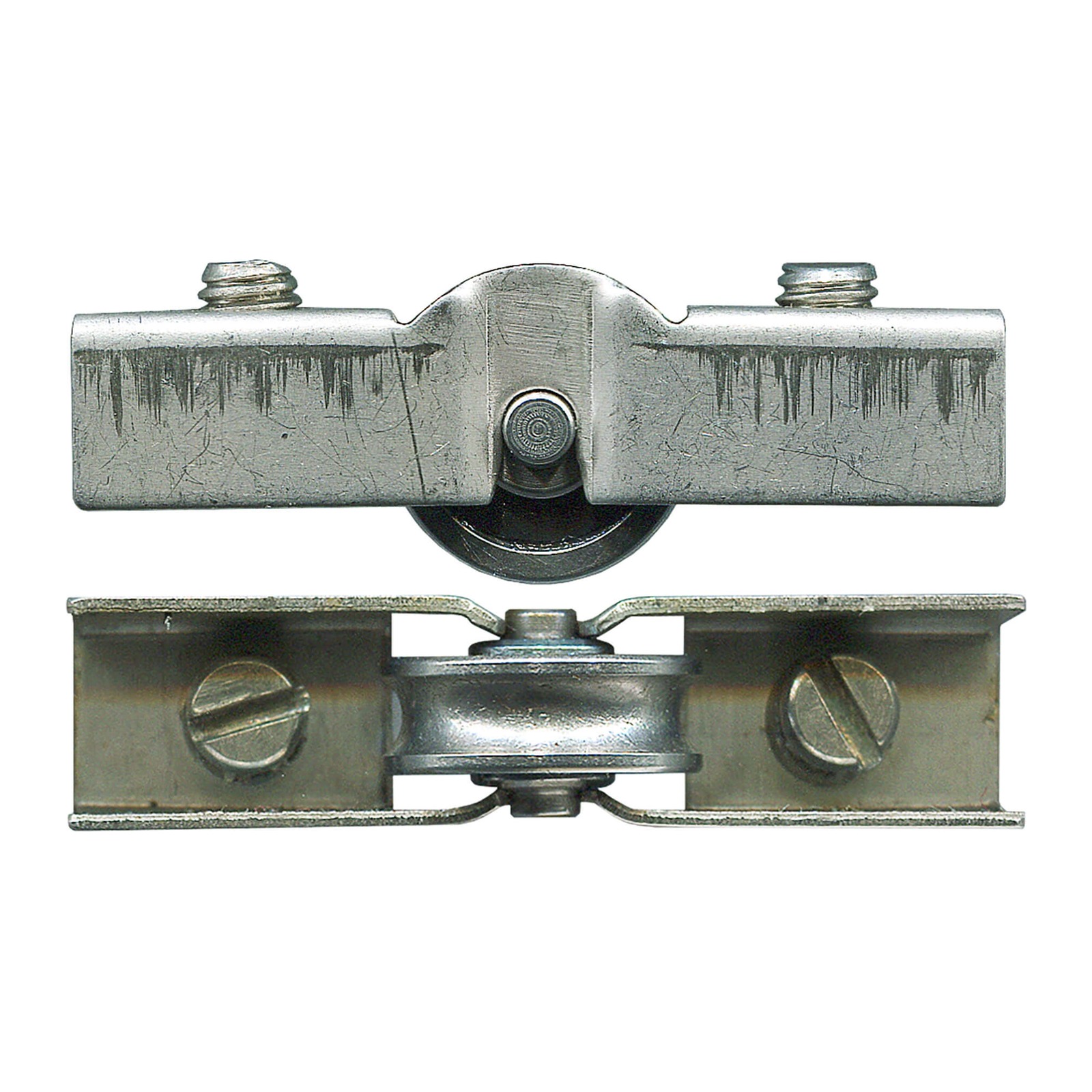

42.8mm Adjustable Sliding Door Carriage & Roller – Suits Lidco® Door and Windows

A direct replacement adjustable sliding door carriage & roller for doors and windows. Stainless steel carriage and roller, with the roller running on a bearing. 9.5mm carriage. Suits Lidco® Showcase.

Key Features

• Stainless Steel construction
• Overall 42.8 x 15.1mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Lidco® Showcase and most other Australian aluminium sliding window carriages of this pattern.
• Fit is decided by the 9.5mm carriage width, which must drop into your sash channel, and by the 42.8 x 15.1mm overall size — measure the channel and your old carriage before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: CAR43SS
• Material: Stainless Steel
• Overall size: 42.8 x 15.1mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the sash parallel with the frame, working from the lock side.
• Slide the sash through its full travel before refitting stops or flyscreens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

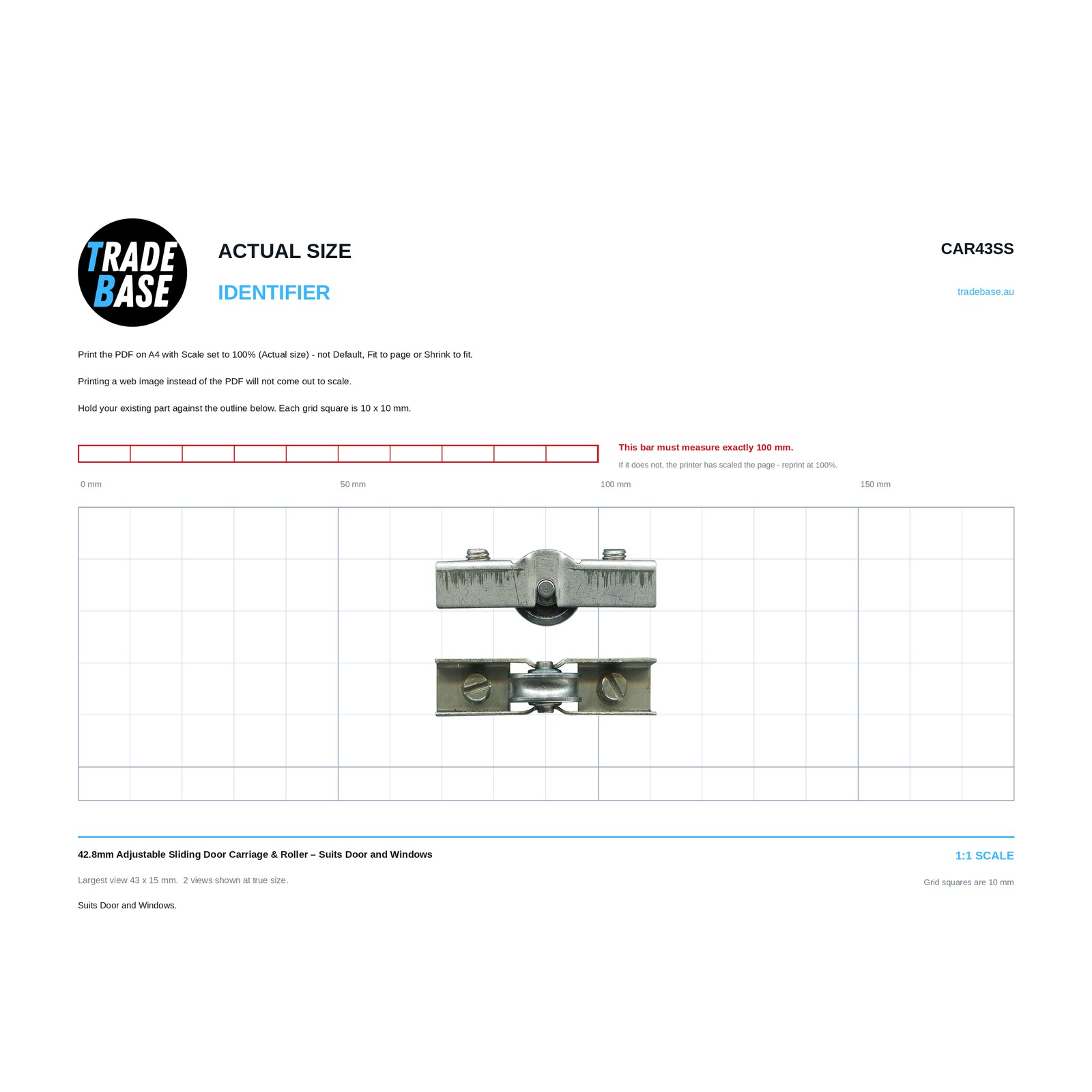

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 42.8 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
