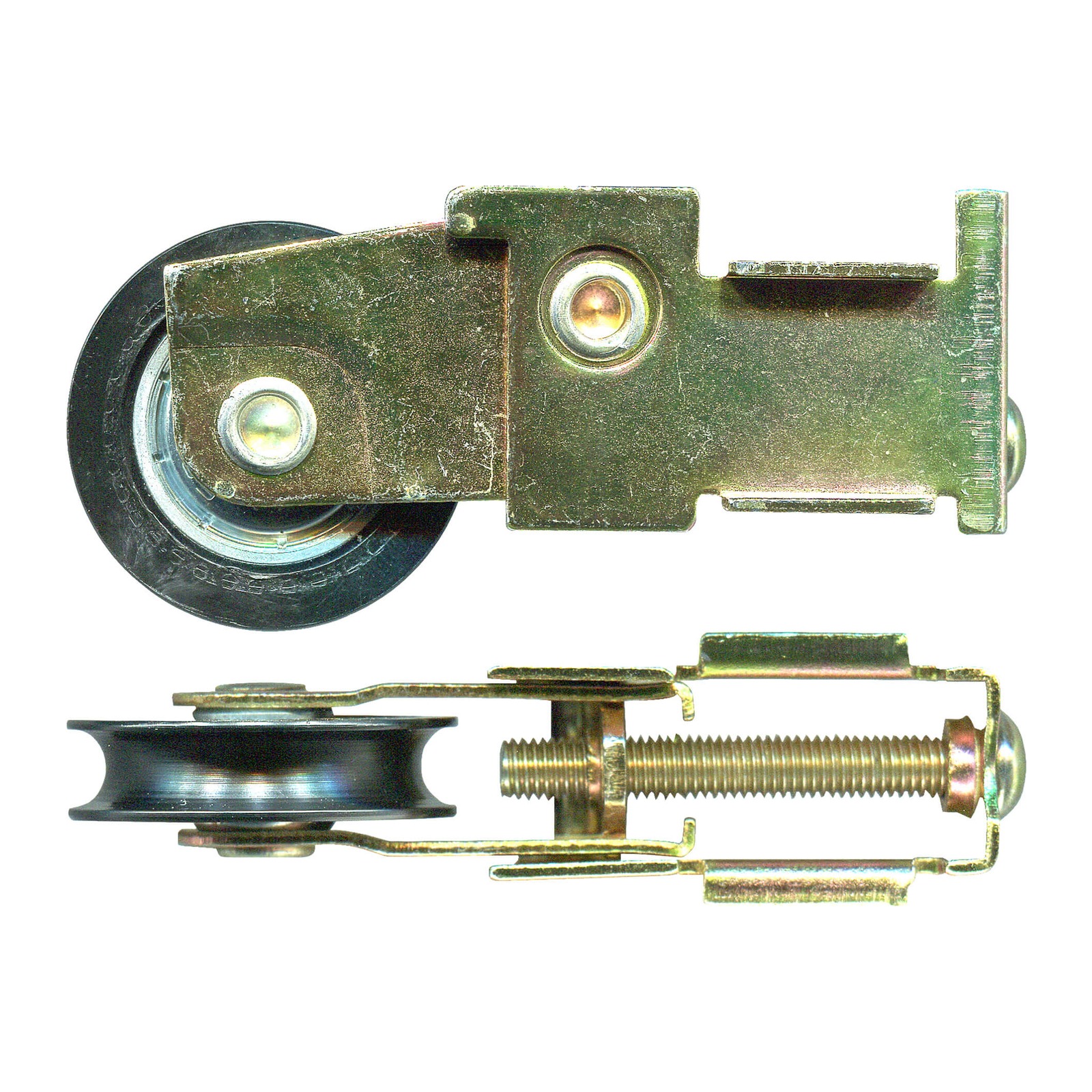

75.4mm Adjustable Sliding Door Carriage & Roller – Suits Patio Doors

A direct replacement adjustable sliding door carriage & roller for patio doors. 90 degree fins, with an acetal roller on a bearing.

Key Features

• Acetal construction
• Acetal roller with bearing
• 90 degree fins
• Overall 75.4 x 37.5mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Trimview®, Alcan®, Olympic, Spacemaster, Old Crane, Versalite, Clearview and Airlie patio door carriages, and others of this pattern.
• The carriage body size and the 90 degree fins decide the fit — 75.4mm long by 37.5mm, measured across the body.

Specifications

• TradeBase SKU: CAR75ACE
• Material: Acetal
• Overall size: 75.4 x 37.5mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
