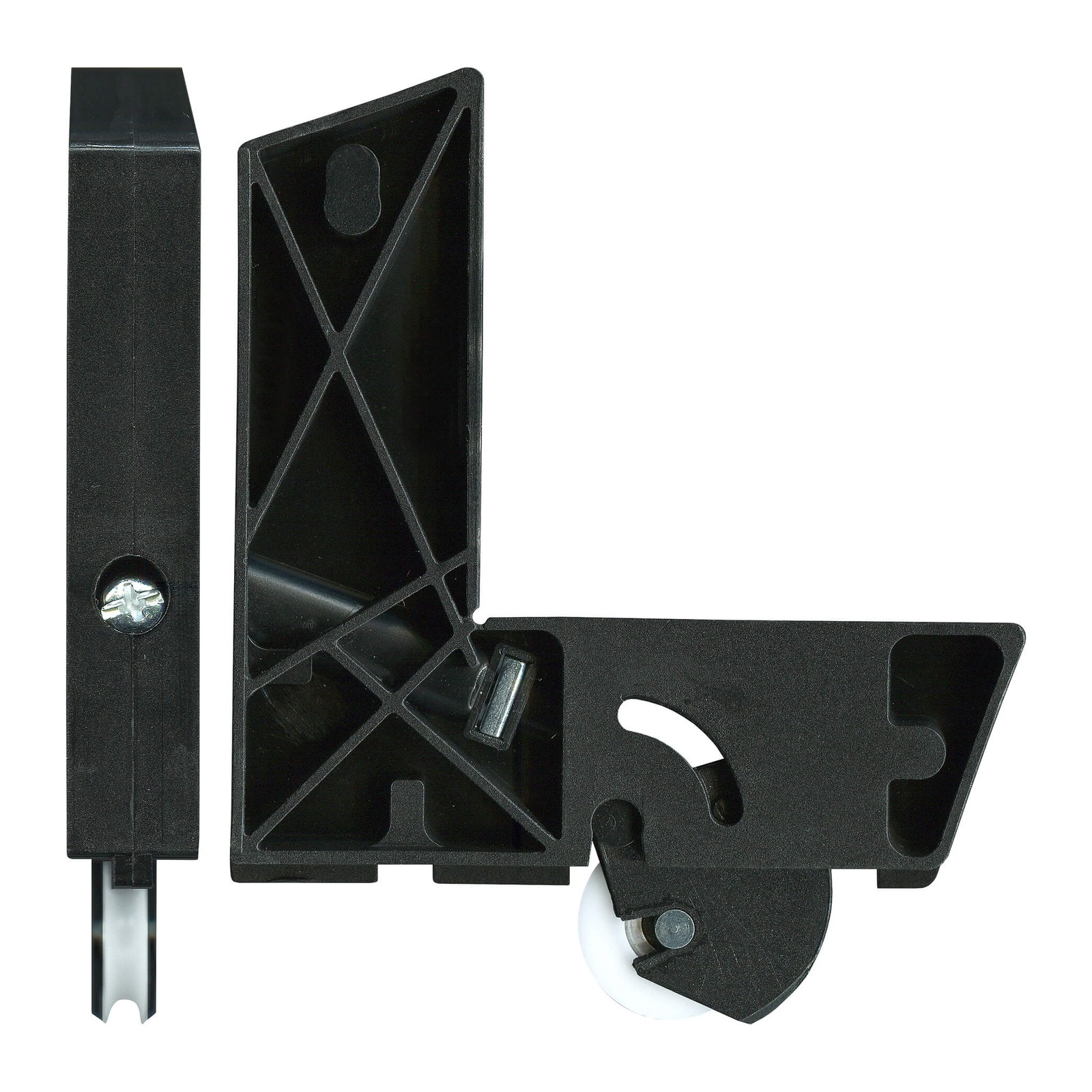

116.2mm Adjustable Sliding Door Carriage & Roller – Suits Screen Doors

A direct replacement adjustable sliding door carriage and roller for screen doors. Corner stake and roller combo. Acetal roller with bearing. Suits BGC® / Affinity.

Key Features

• Acetal construction
• Corner stake and roller combo
• Acetal roller with bearing

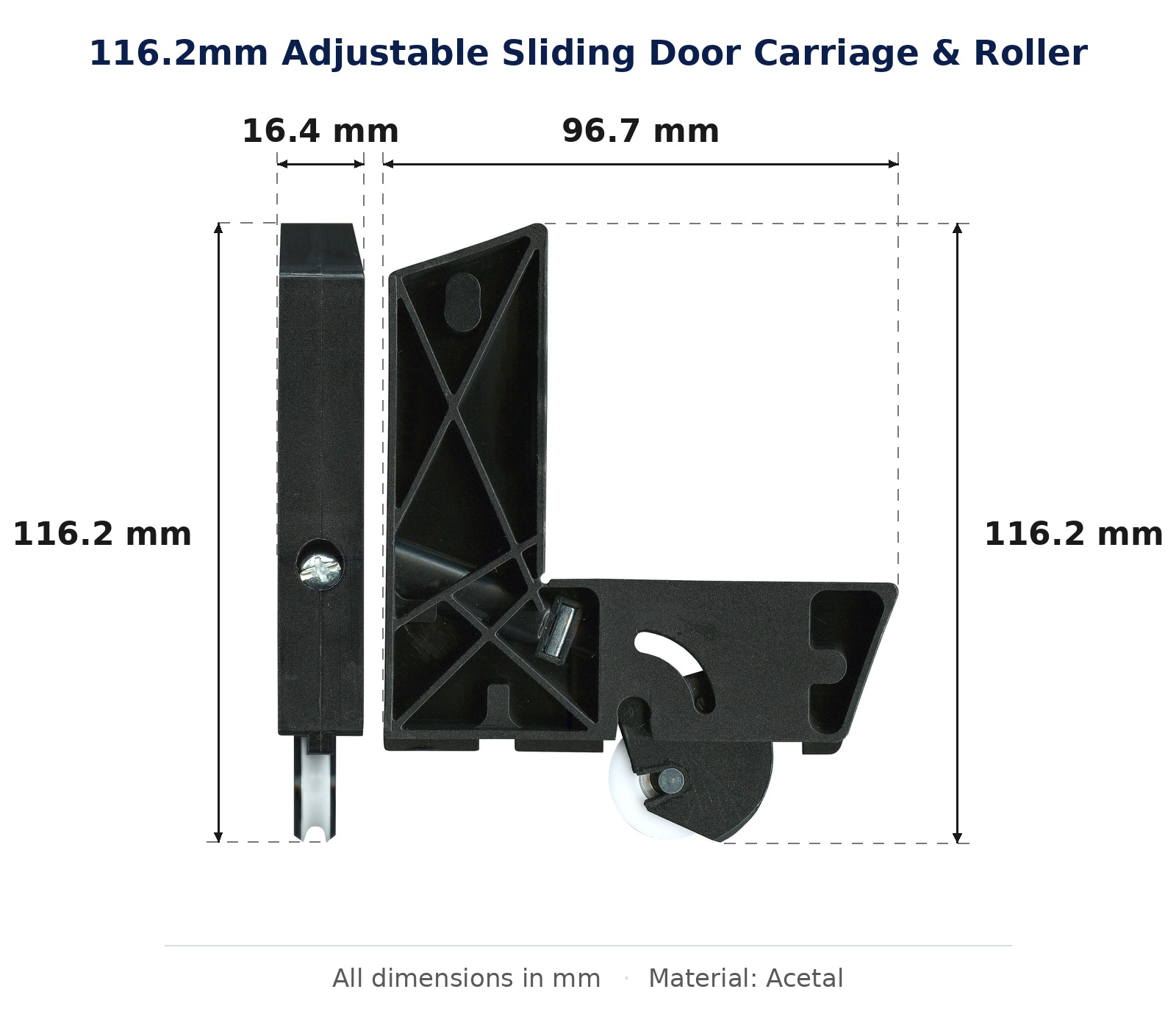

• Overall 96.7 x 116.2mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for BGC® / Affinity sliding screen door corner stake and roller assemblies.
• Fit is decided by the overall assembly size of 96.7 x 116.2mm — measure your old stake over its full length and height before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: CAR116ACE
• Material: Acetal
• Overall size: 96.7 x 116.2mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting the stops.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

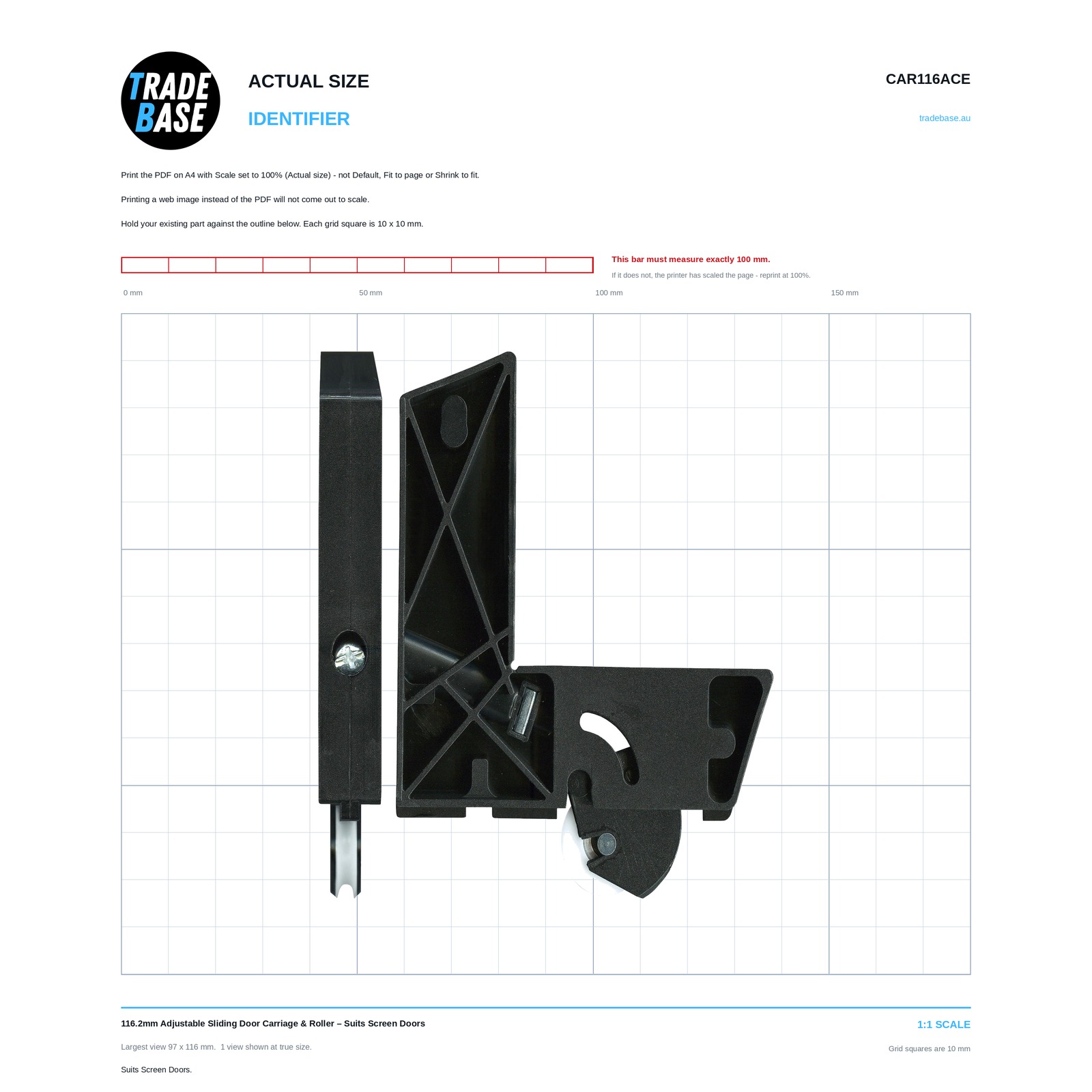

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 96.7 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
