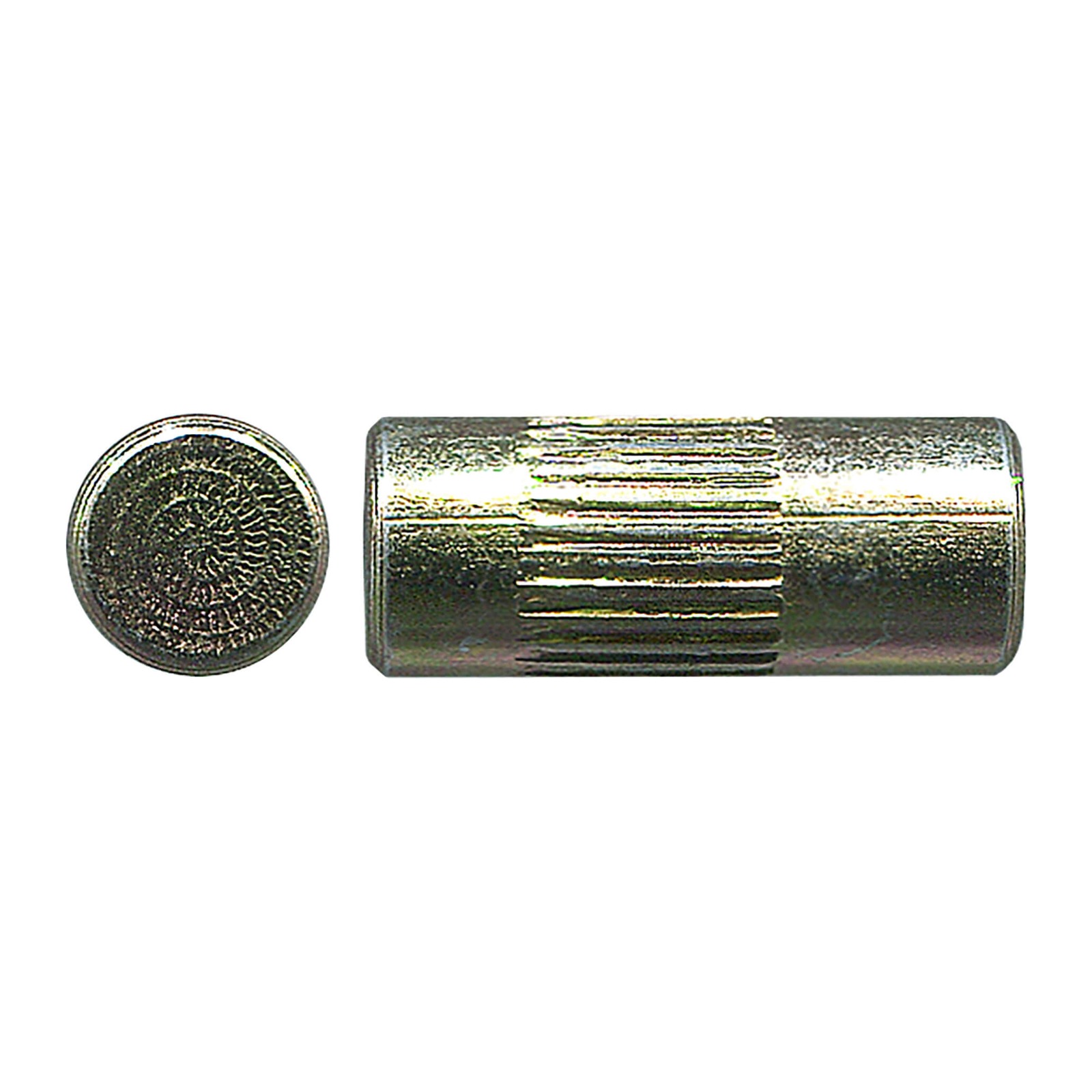

16.1mm Roller Axle Rivet – Suits Roller

A direct replacement roller axle rivet. Centre knurled. Steel.

Key Features

• Steel construction
• Centre knurled

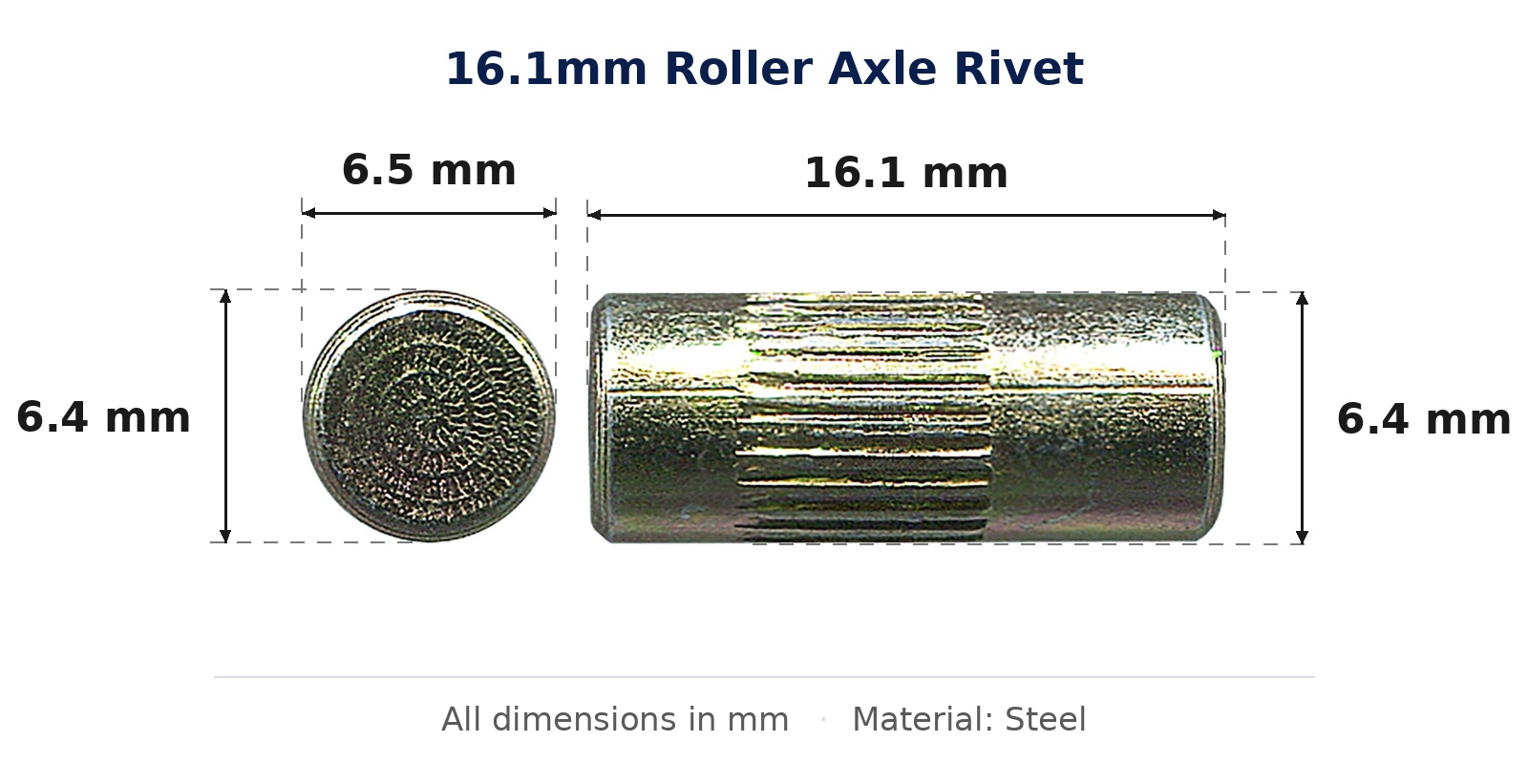

• Overall 16.1 x 6.4mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement axle rivet for most Australian aluminium sliding window and door rollers.
• The 16.1mm length, the 6.4mm shank width and the centre knurl decide the fit — measure your old rivet across both dimensions before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: RIVAXL16
• Material: Steel
• Knurl: centre
• Overall size: 16.1 x 6.4mm

Installation Tips

• Punch or drill the old rivet out rather than levering it — twisting the carriage plate throws the roller out of line.
• Set the rivet so the centre knurl sits in the carriage plate, and support the plate on a solid backing while you do it.
• Check the roller spins freely on the new axle before you refit the sash or door.

Care & Maintenance

• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

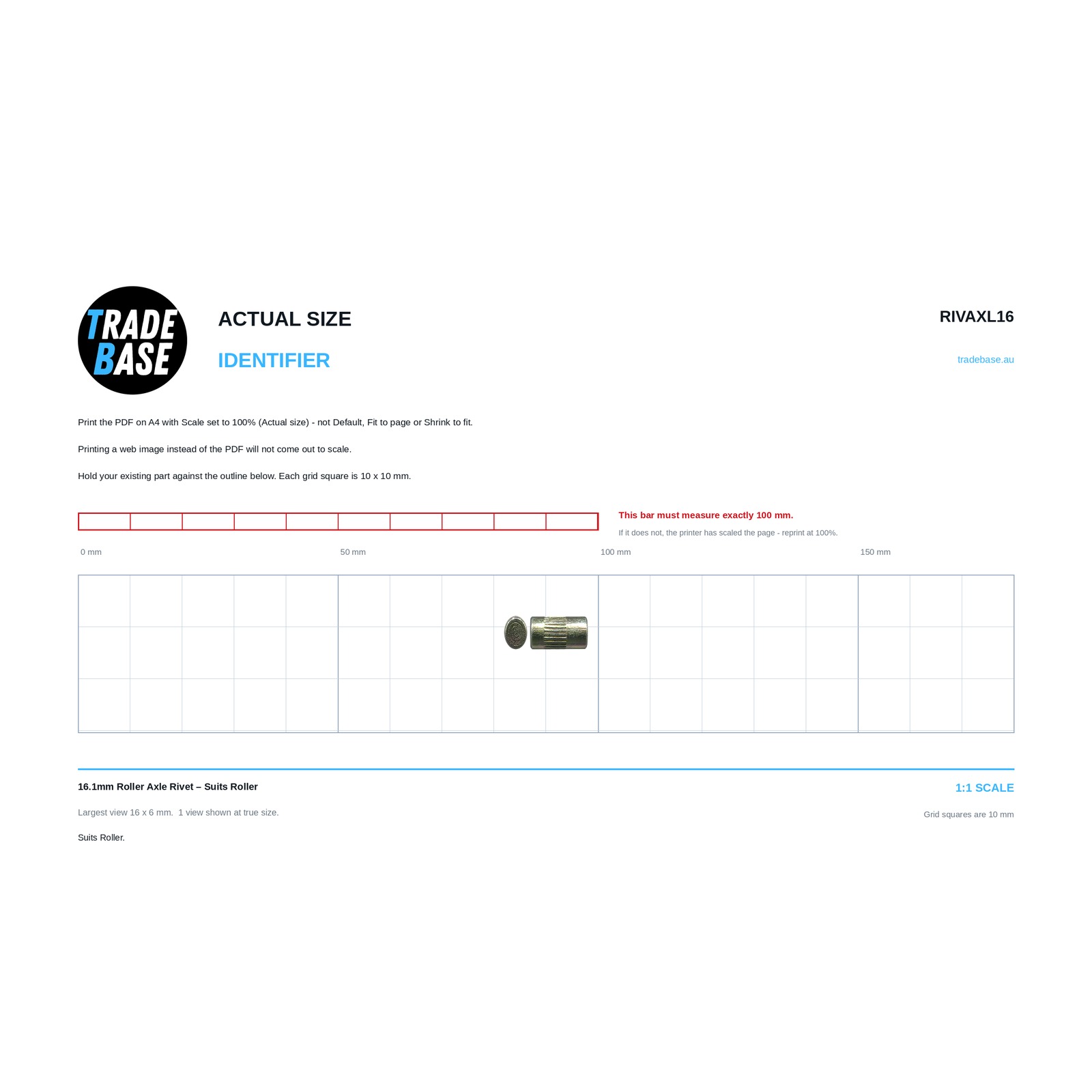

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 16.1 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
