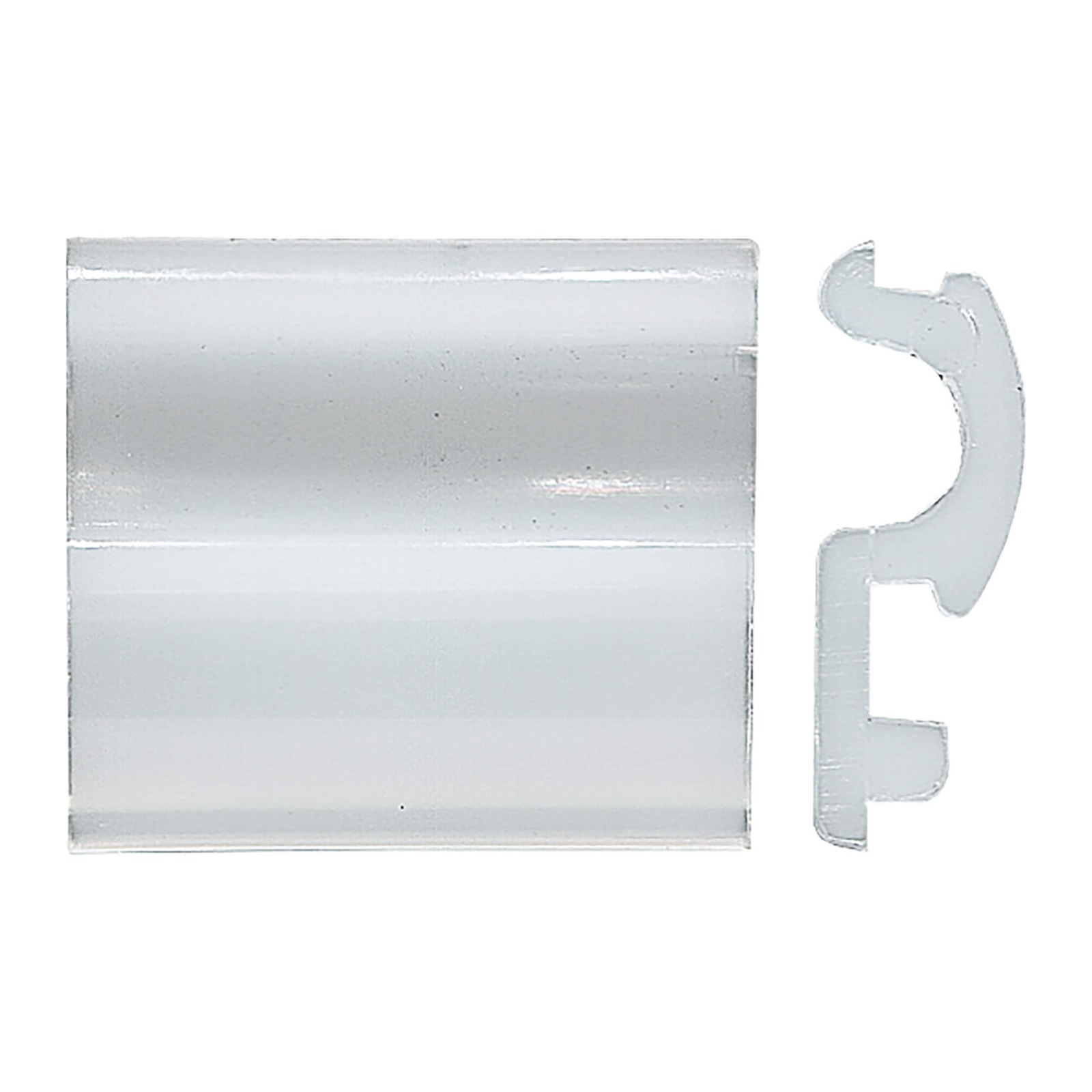

16.1mm Sliding Door Guide – Suits Sliding Windows

A direct replacement guide for sliding windows. Bottom guide. Suits Trimview®. Rare part – call for availability.

Key Features

• Overall 16.1 x 14.3mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Trimview® sliding window bottom guides.
• The fit is decided by the 16.1 x 14.3mm overall size and the width of your sill channel — measure both before ordering.
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: GDE16

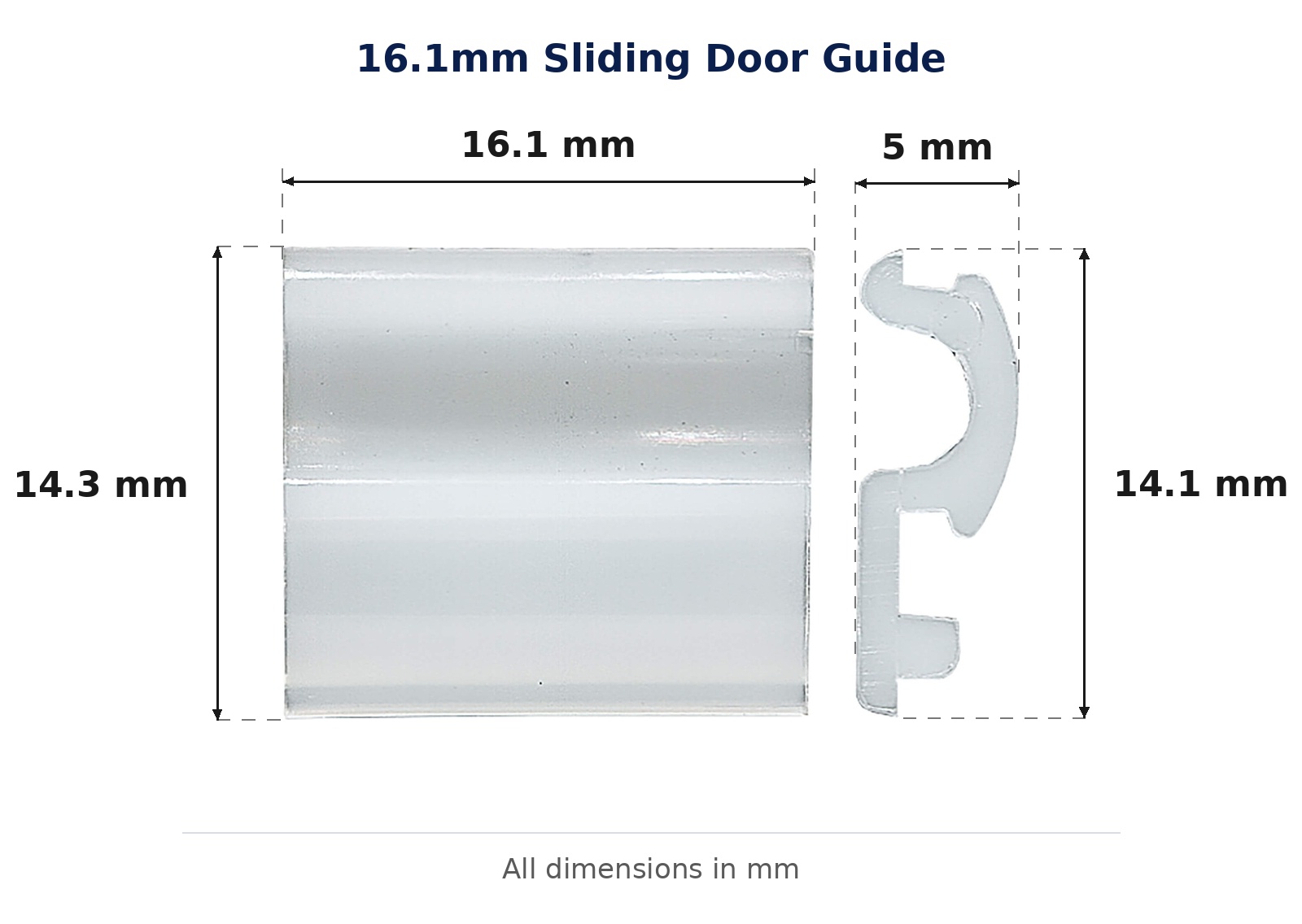

• Overall size: 16.1 x 14.3mm

Installation Tips

• Clear the sill channel of grit and old sealant so the guide seats flat.
• Fit the guide with the sash in place and plumb, then slide the sash its full travel to check it stays centred in the channel.
• Pull the fixings up firm but do not overtighten — the moulding will distort and bind the sash.

Care & Maintenance

• Sweep the sill channel out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

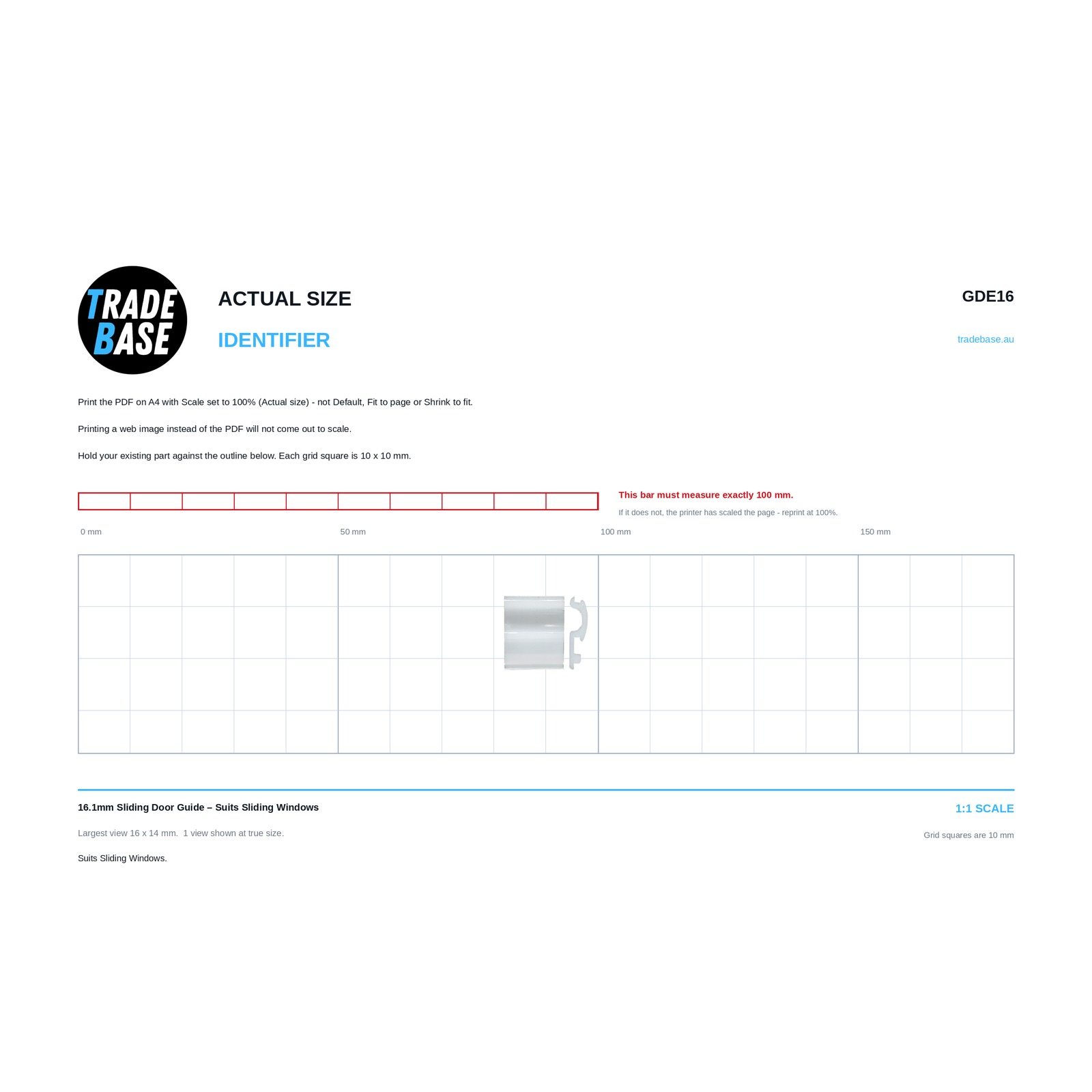

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 16.1 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
