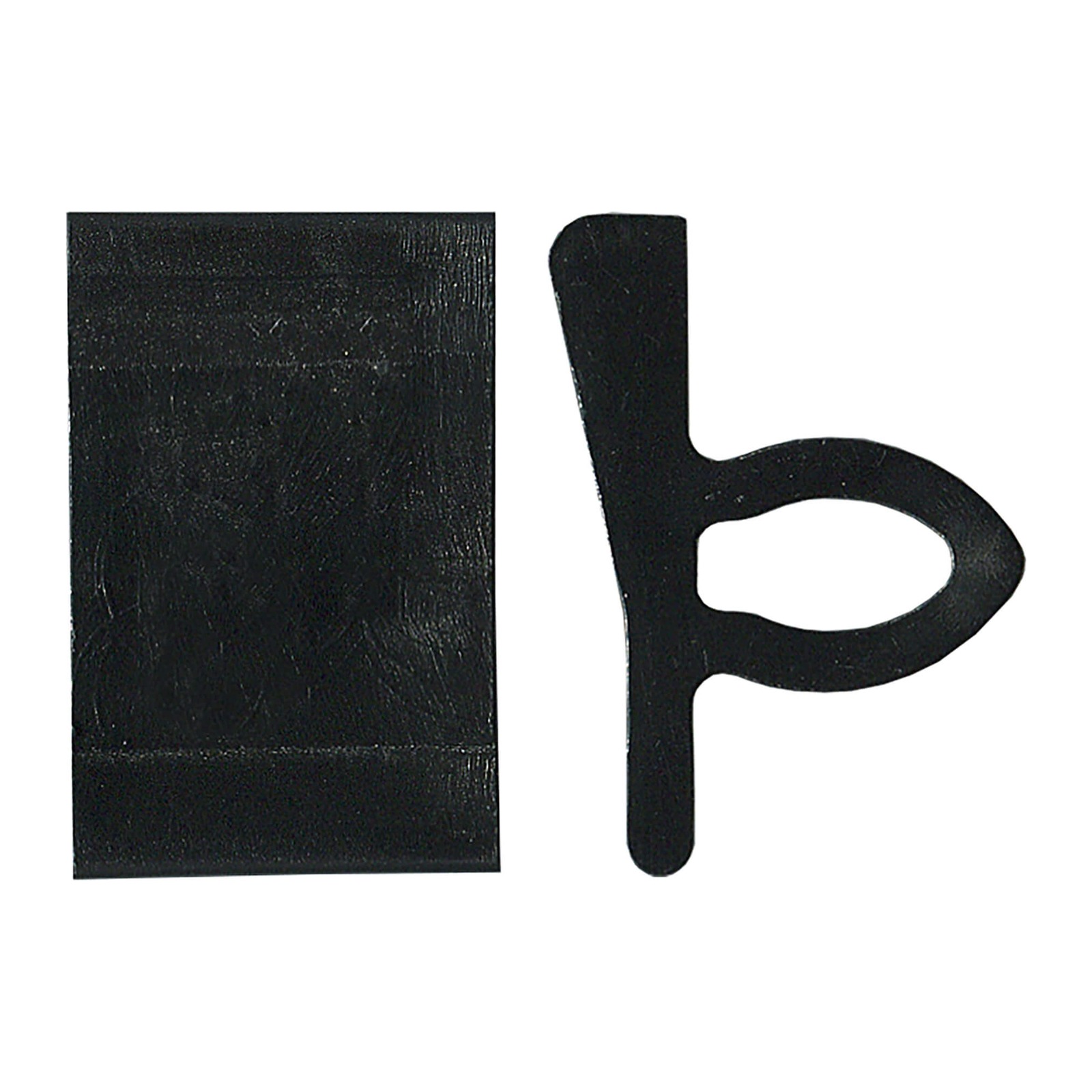

20.2mm Sliding Door Guide – Suits Sliding Windows

A direct replacement guide for sliding windows. Top guide. Suits Trimview®.

Key Features

• Overall 14.4 x 20.2mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Trimview® sliding window top guides.
• The fit is decided by the 14.4 x 20.2mm overall size and the width of your head channel — measure both before ordering.
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: GDE20

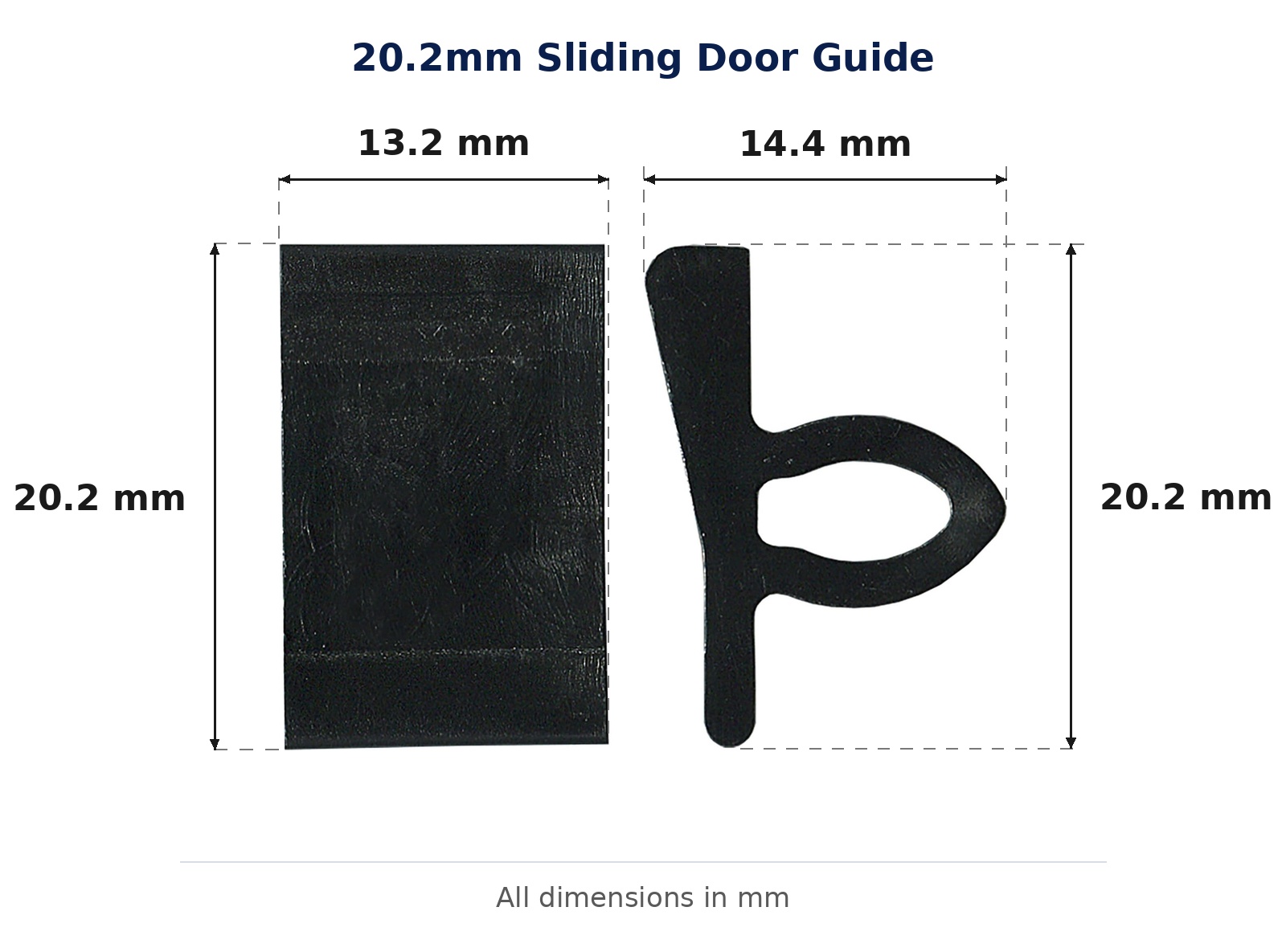

• Overall size: 14.4 x 20.2mm

Installation Tips

• Clean the head channel out before fitting so the guide runs its full travel without picking up grit.
• Fit the guide with the sash held plumb, then run the sash the full width of the opening to check the guide stays in the channel.
• The guide only steers the sash — it should not carry weight. If the sash is dragging on it, set the bottom carriages first.

Care & Maintenance

• Sweep the head channel out every few months and check the guide fixings are still tight.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

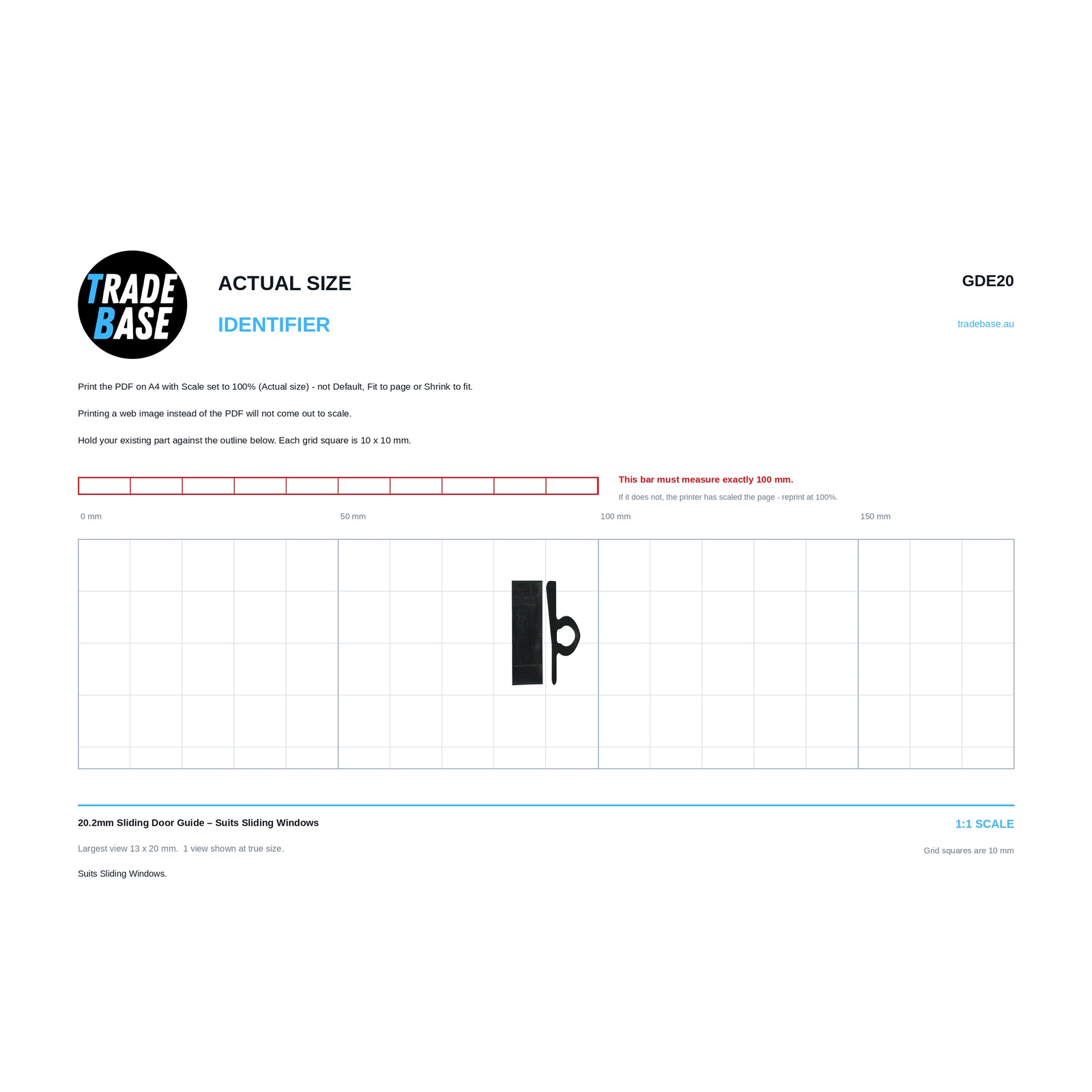

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 13.2 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
