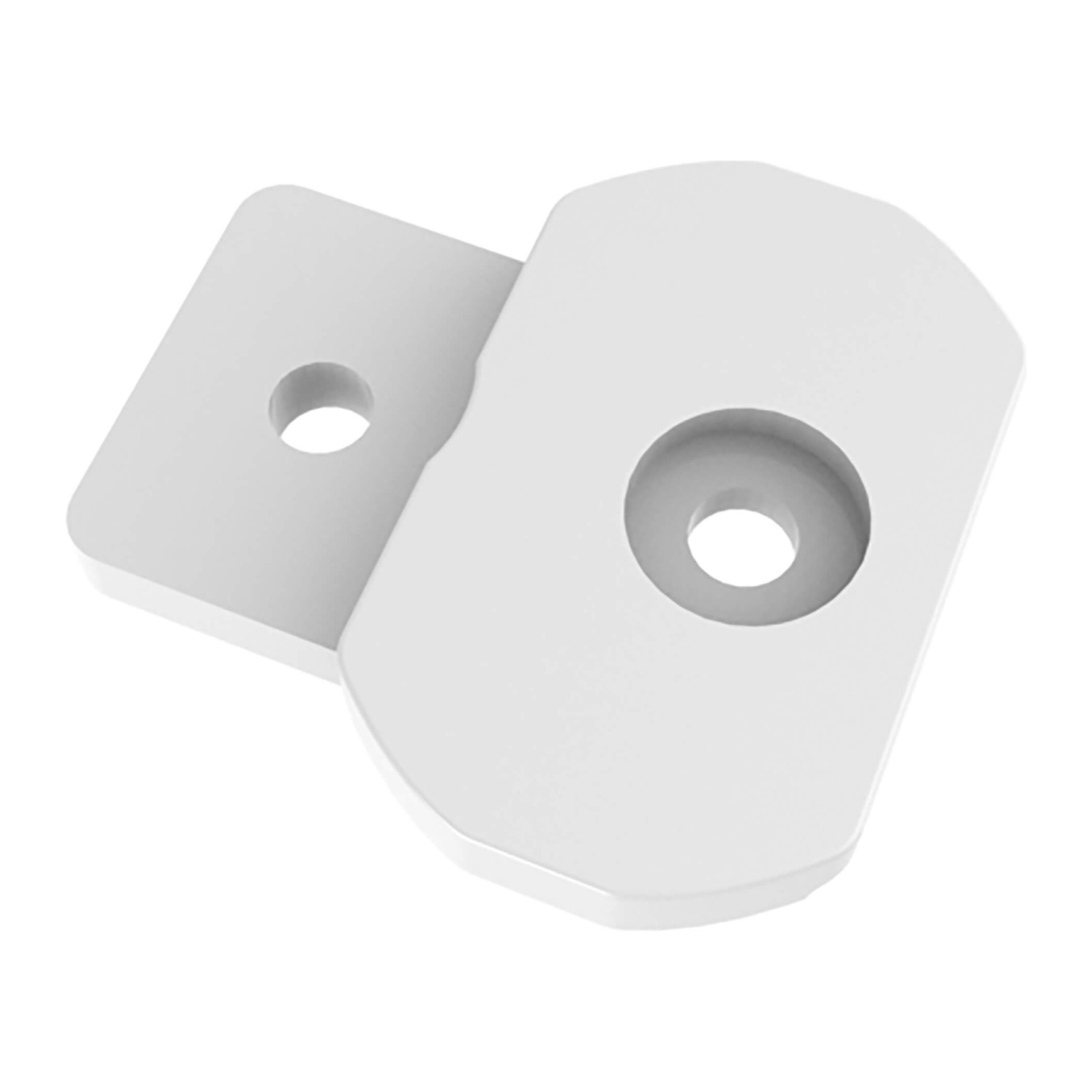

25.8mm Sliding Door Guide – White – Suits Security, Barrier and Screen Doors

A direct replacement sliding door guide for security, barrier and screen doors. Plastic. Mounted on the top rail.

Key Features

• Plastic construction
• White finish
• Overall 26 x 27.4mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for most Australian aluminium sliding door guides of this pattern, on security, barrier and screen doors.
• The overall body size decides the fit — 26mm wide by 27.4mm, measured across the guide body.
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: GDE26WH
• Material: Plastic
• Overall size: 26 x 27.4mm

Installation Tips

• Clear the top rail cutout of dirt and file back any burred edge before fitting — the guide will not seat flat on a damaged rail.
• Seat the guide fully into the rail so the body sits flush with the top of the door, then fix it off.
• Slide the door through its full travel and check the guide holds the top of the door without binding.

Care & Maintenance

• Wipe the guide and the channel it runs in clean every few months — grit packed into the channel is what wears a guide out.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

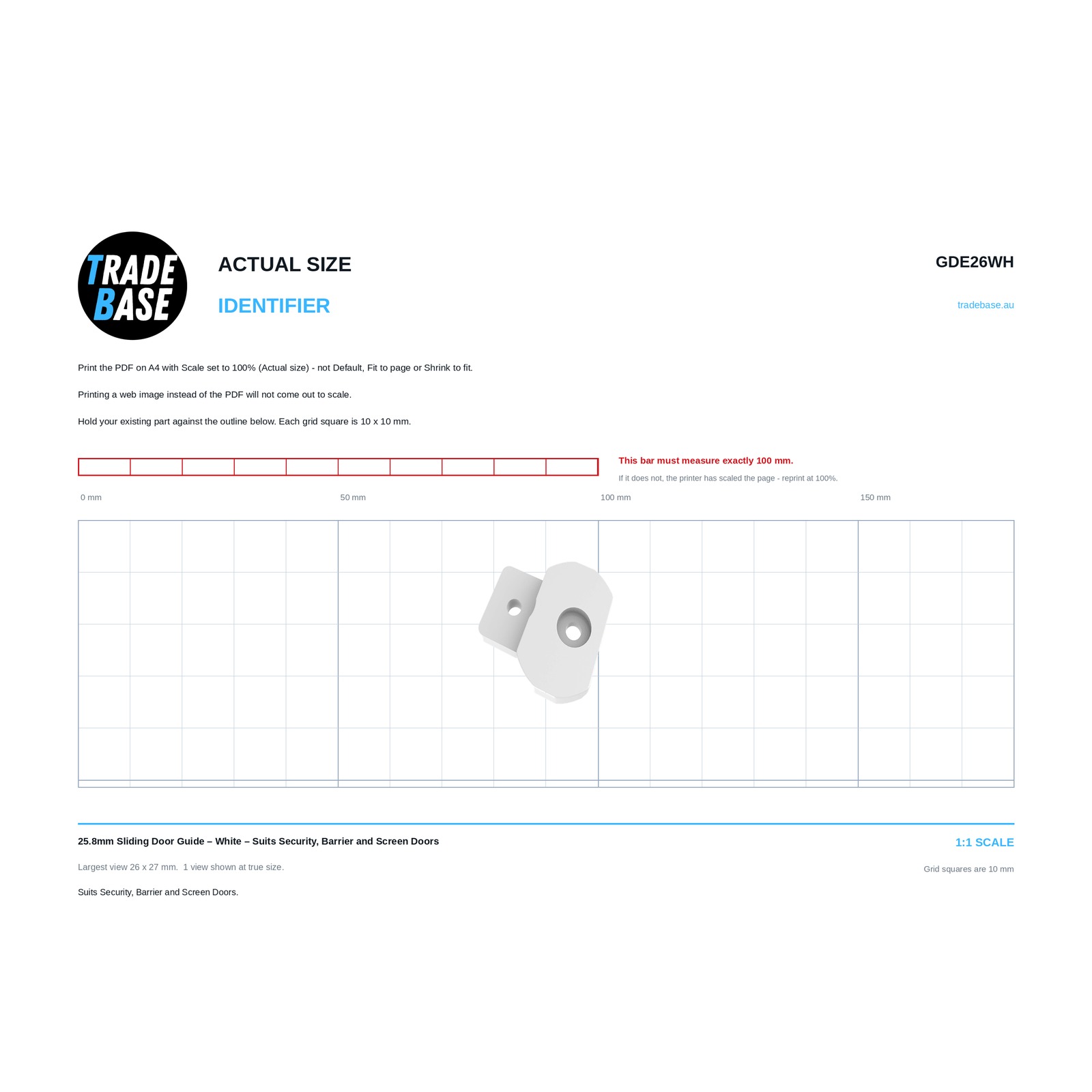

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 26 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
