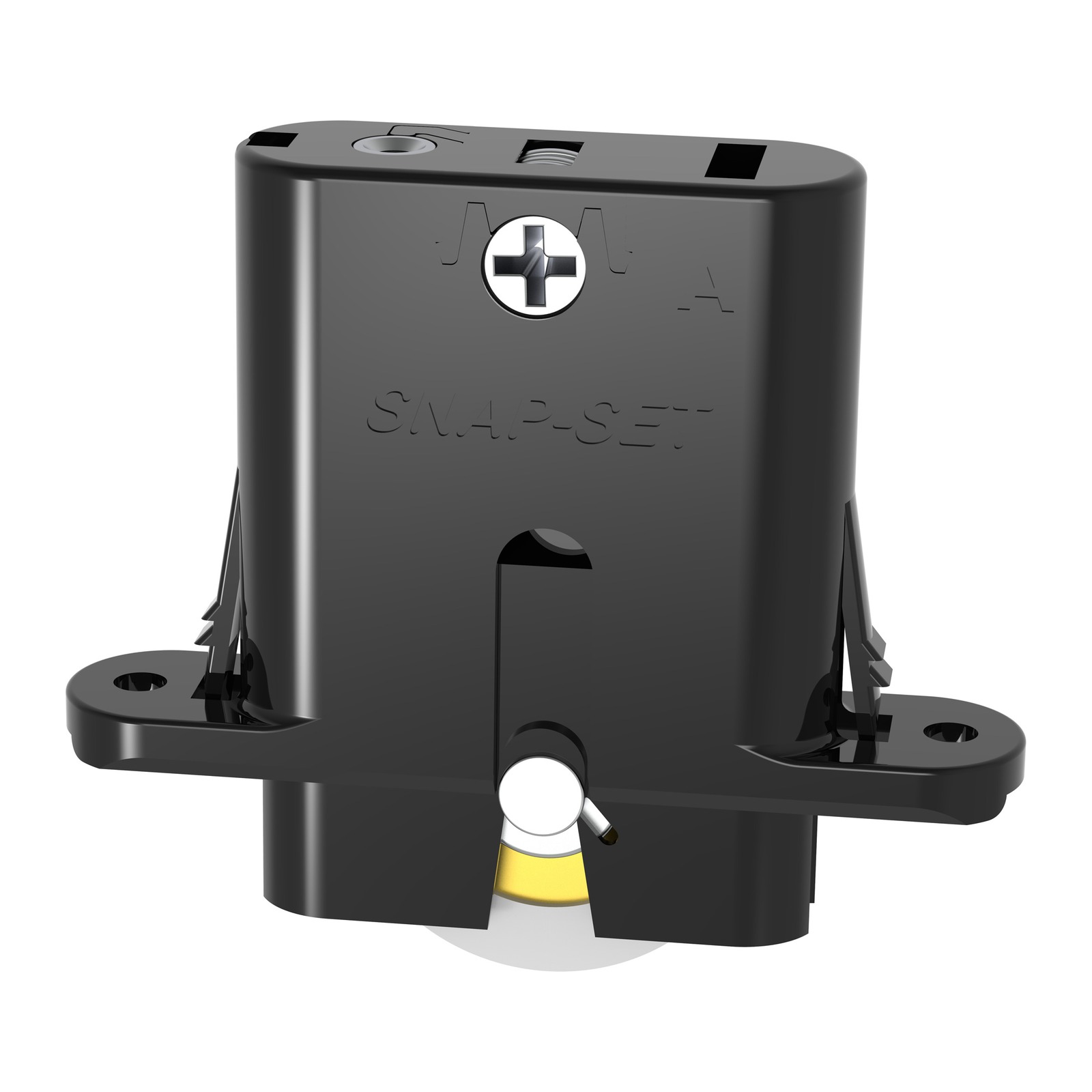

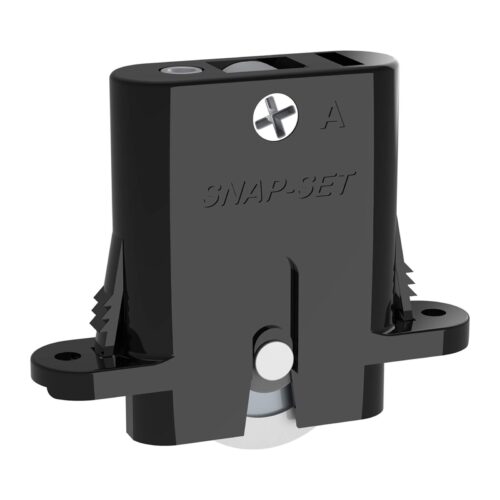

25kg Security Screen Door Roller – Standard Weight Screen Doors

A direct replacement security screen door roller for standard weight screen doors, or mild to moderate metro, regional and rural areas. Tested to more than 50,000 cycles at 25kg.

Key Features

• Precision 25kg bearing
• Rated to 25kg per pair
• Fits standard cutouts
• 14mm adjustment
• Fully retractable roller
• Offset roller function
• Double sided adjustment
• Audible/tactile adjustment indicator
• Extended tabs for easy removal
• Tested to more than 50,000 cycles at 25kg
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for most Australian aluminium security screen door rollers of this pattern.
• The cutout decides the fit — this roller drops into a standard screen door cutout, and the 14mm of adjustment then covers your floor clearance.

Specifications

• TradeBase SKU: ROLSEC3035S25
• Load rating: 25kg per pair
• Adjustment range: 14mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
