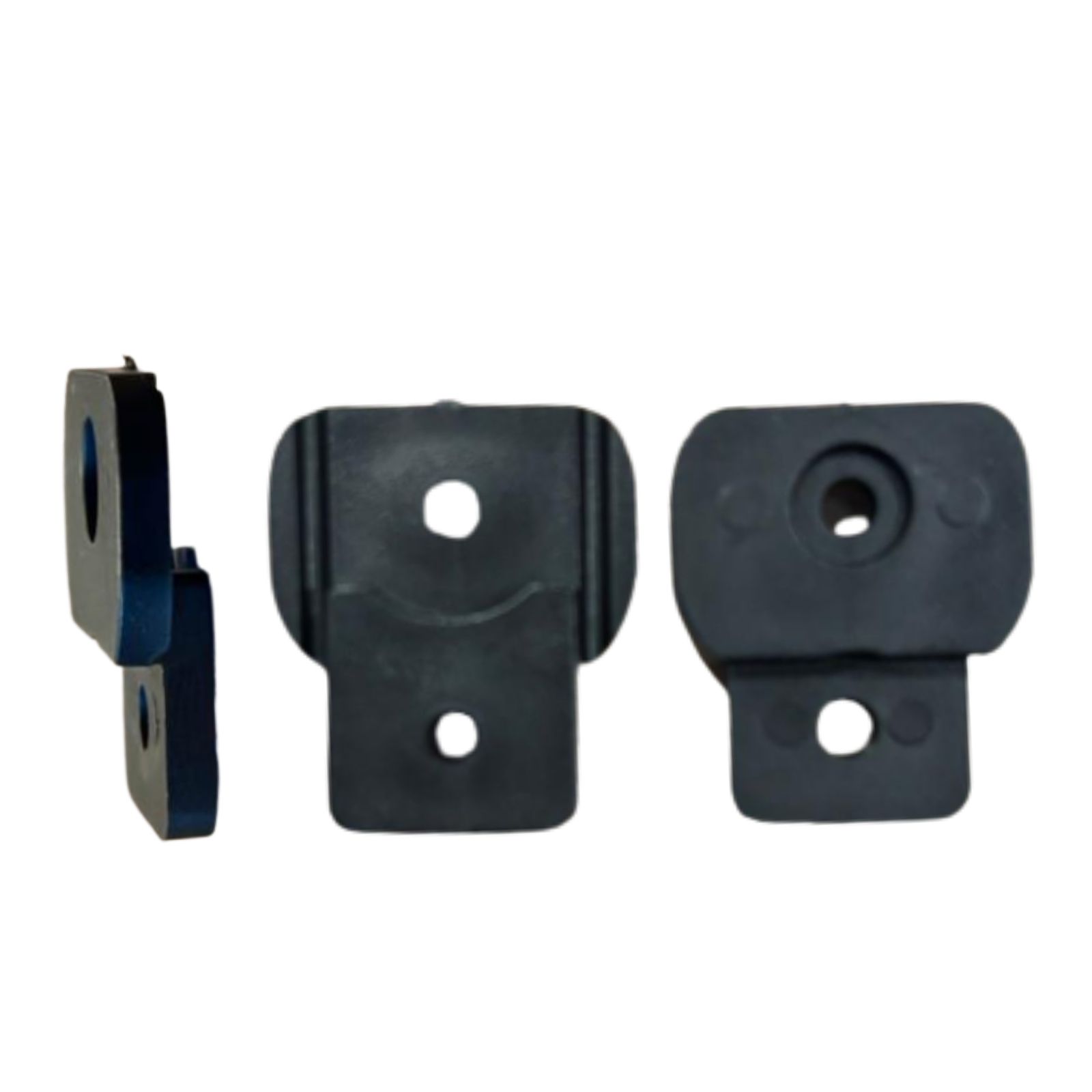

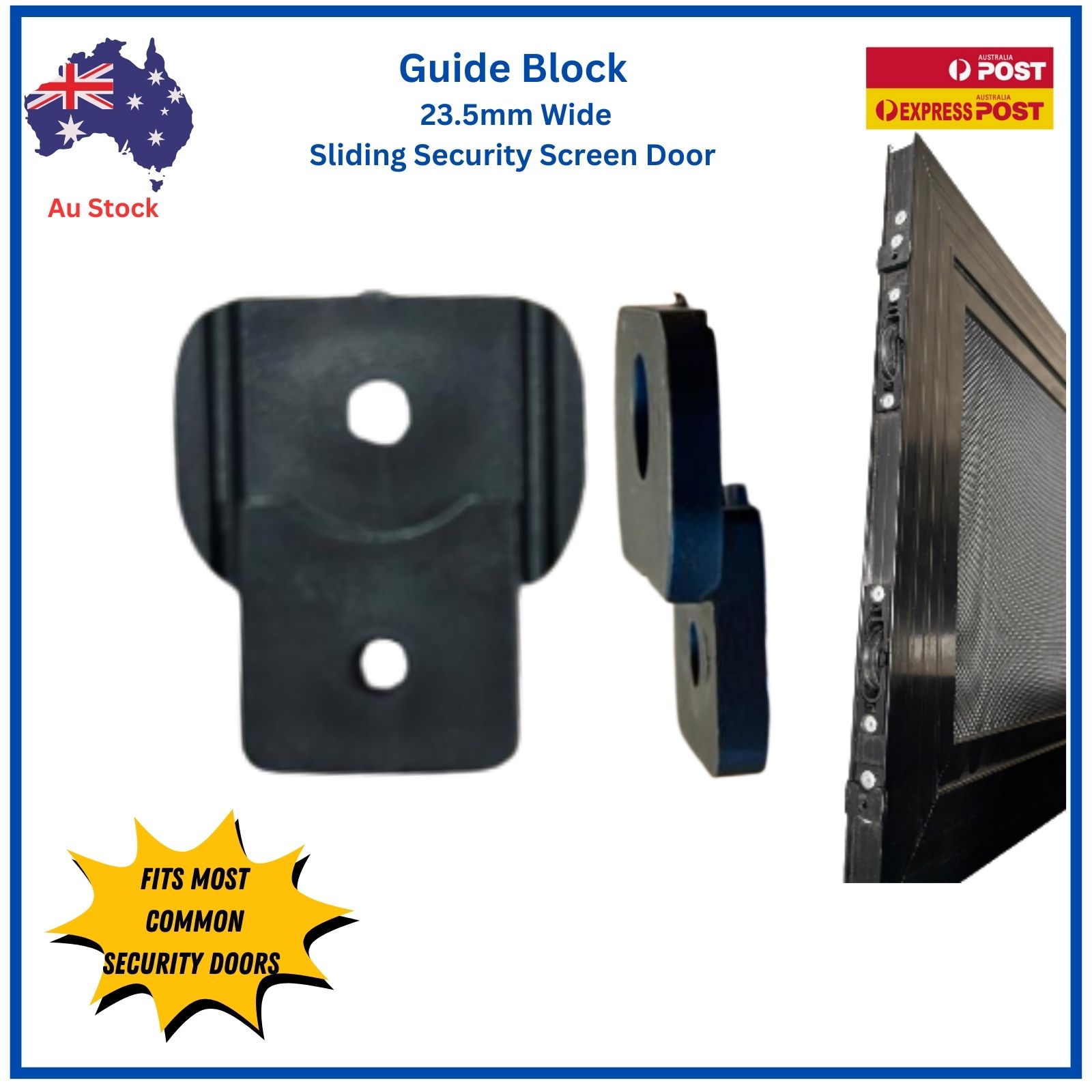

Sliding Screen Door Guide Block Universal Black 23.5mm

Stop your sliding screen or security door rattling, dragging and rubbing with the TradeBase Universal Sliding Screen Door Guide Block. Mounted at the top of the door frame, it keeps the door panel centred in the head track for smooth, quiet, stable operation.

By holding the door square in the channel, the guide block prevents the panel rubbing against the frame, reduces side-to-side movement, and cuts down rattling and vibration — a simple, low-cost fix for one of the most common sliding door annoyances.

With a universal 23.5mm-wide fit, it suits a wide range of aluminium sliding screen and security doors — including Crimsafe® and Prowler Proof® — making it ideal for replacements, repairs or new installations.

Note: This listing is for the guide block only. The roller is sold separately and can be ordered below.

Key Features & Benefits

• Keeps the door centred in the head track
• Reduces rubbing against the channel
• Minimises rattling, vibration and side-to-side movement
• Improves smooth, quiet sliding performance
• Universal 23.5mm fit for most common sliding screen & security doors
• Easy DIY installation — fixes with two screws
• Discreet black finish to suit modern door frames

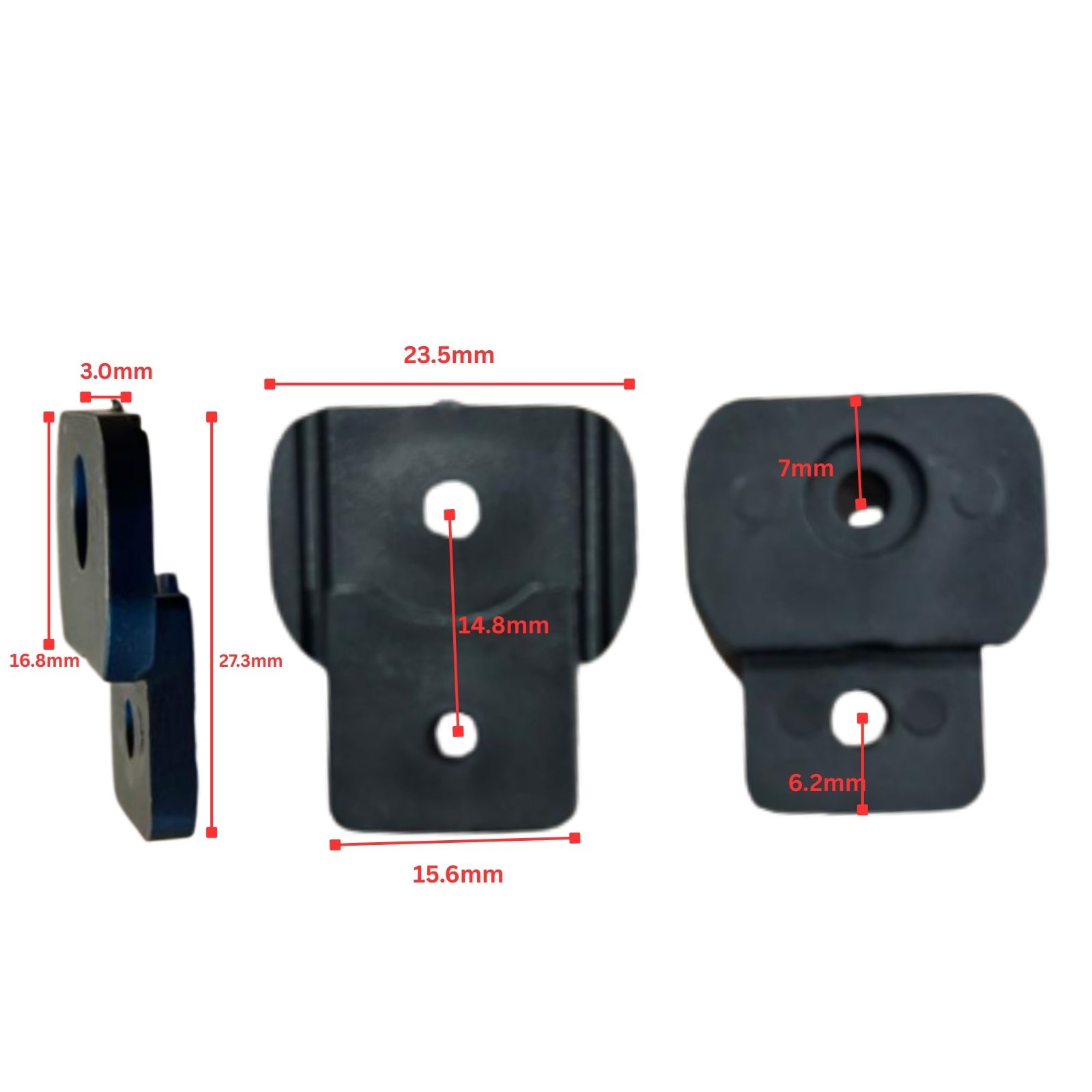

Specifications

• TradeBase SKU: GB23.5
• Application: Sliding screen & security doors
• Mounting position: Top of door
• Width: 23.5mm
• Overall height: 27.3mm (approx.)
• Fixing hole centres: 14.8mm
• Fixing hole sizes: 7mm (upper), 6.2mm (lower)
• Colour: Black
• Material: Durable HDPE plastic

Bulk buy & save: Sold individually, with automatic quantity discounts applied at checkout — the more you buy, the lower the price per unit. Ideal for installers, repairers and trade customers fitting out multiple doors.

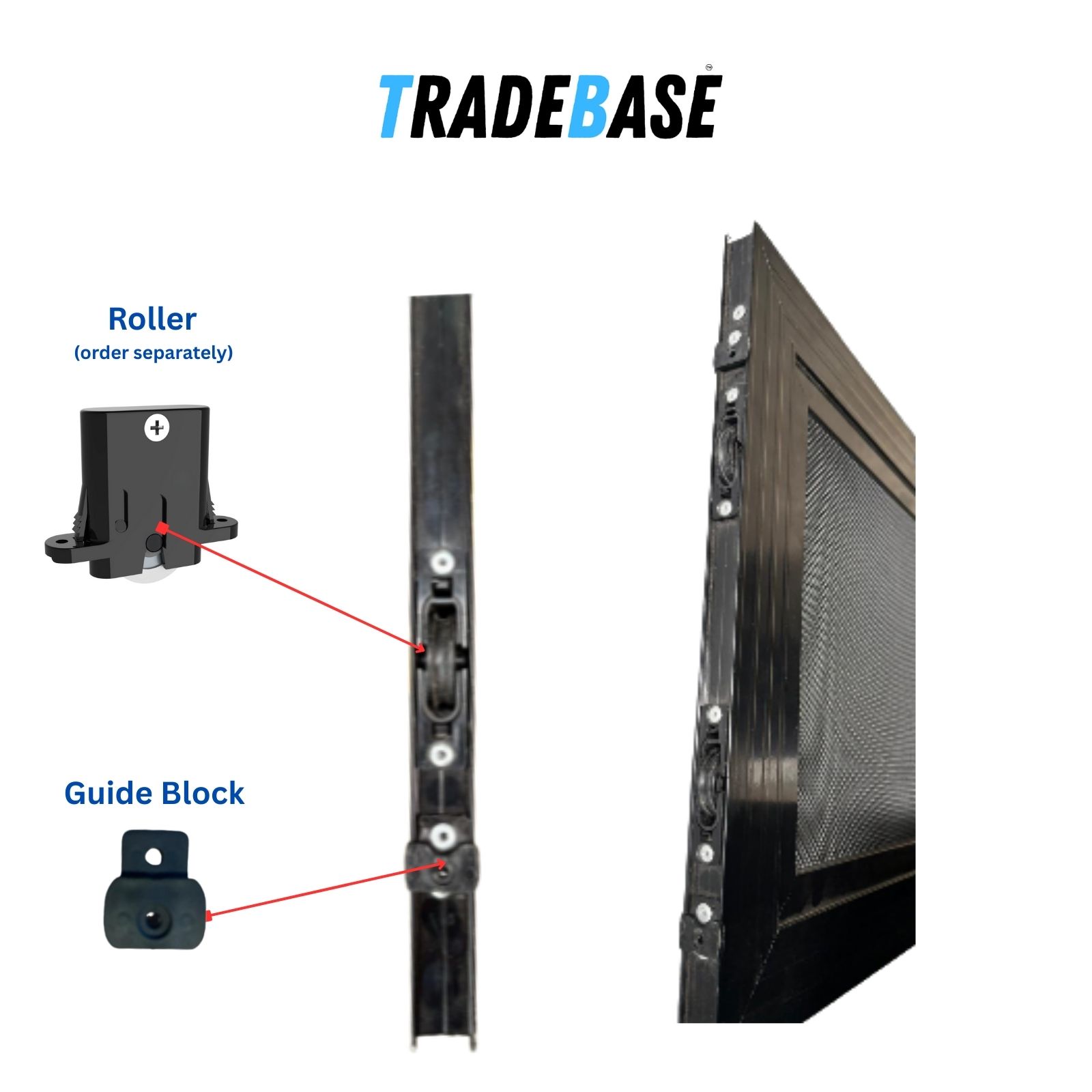

Complete your setup: Pair this guide block with the matching Sliding Security Screen Door Roller (sold separately) for smooth, quiet sliding operation — available as a Single Roller or a handy 4 Pack for multiple doors.

Installation Tips

• Check the width of the old block before you order — this one is 23.5mm, and a block that is too wide or too narrow will not hold the door square.
• Clear the head track of grit and debris first. A blocked or bent channel will still let the door wander no matter how well the block is fitted.
• Fix with two screws through the existing holes (14.8mm centres) and check the door slides its full travel without binding before you tighten fully.

Care & Maintenance

• Sweep the head track out every few months and wipe the block clean — built-up grit is what makes the door drag and the block wear.
