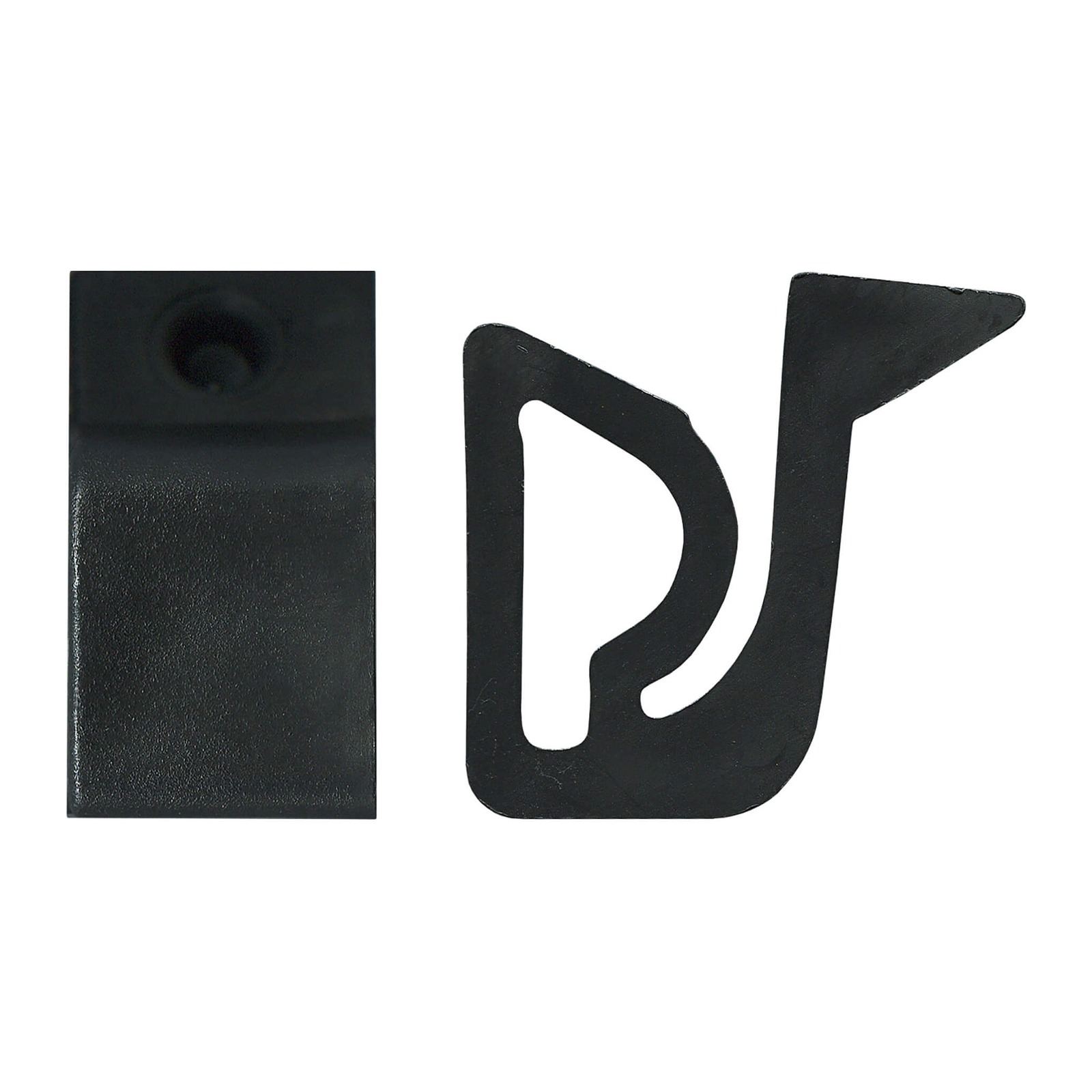

36.8mm Sliding Door Stop – Suits Sliding Doors

A direct replacement sliding door stop for sliding doors. Plastic. Suits top track.

Key Features

• Plastic construction

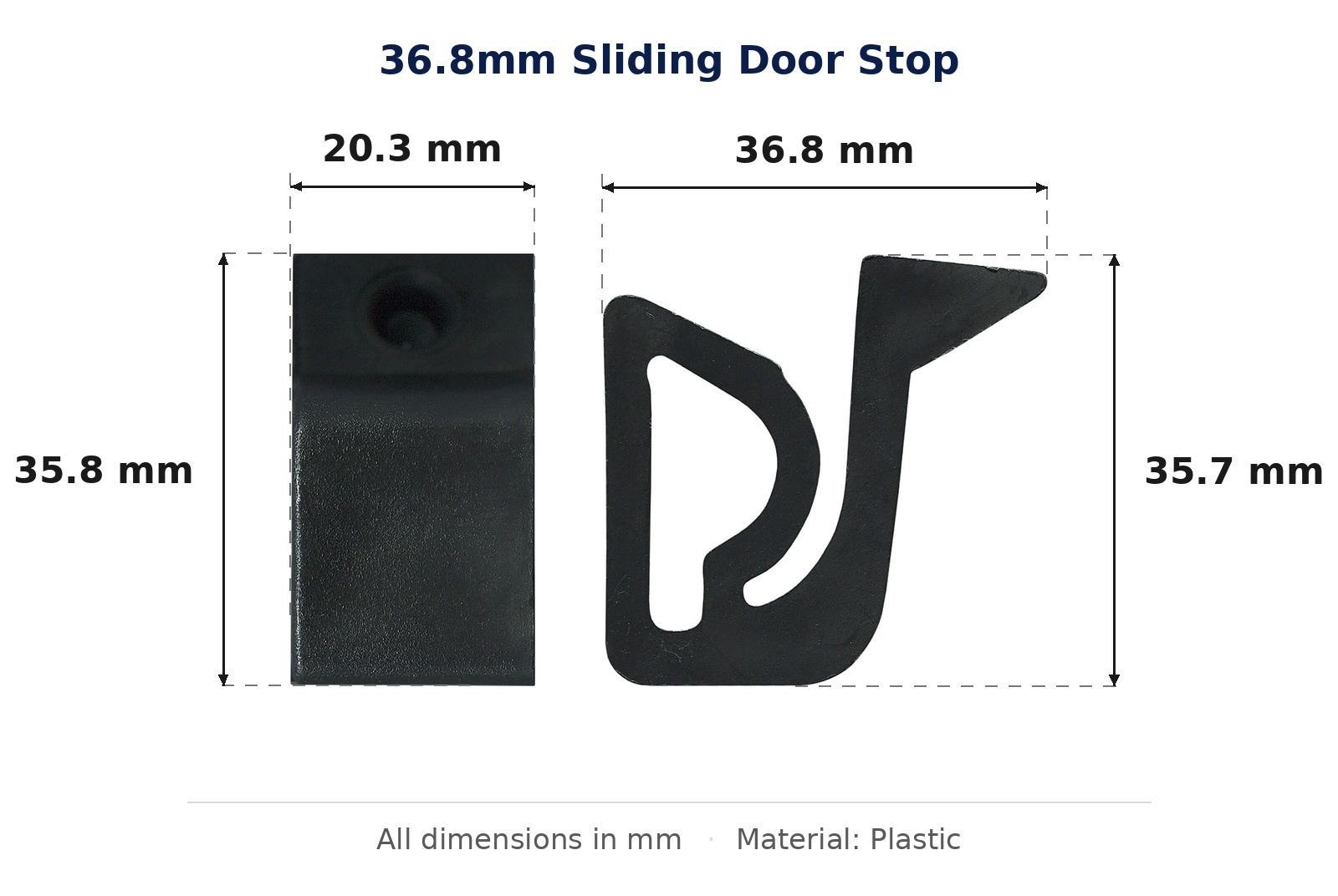

• Overall 36.8 x 35.8mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for most Australian aluminium top-track sliding door stops of this pattern.
• The fit is decided by the 36.8 x 35.8mm overall size and the width of your top track — measure both before ordering.
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: STP37
• Material: Plastic
• Overall size: 36.8 x 35.8mm

Installation Tips

• Set the stop in the top track with the door held at the open position you want, allowing clearance before the door reaches the frame.
• Fix into solid material in the track. A stop that pulls out under load is worse than no stop at all.
• Run the door up to the stop by hand before you rely on it — check it seats square in the track and does not twist.

Care & Maintenance

• Check the fixings every few months and re-tighten if the stop has worked loose.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 20.3 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
