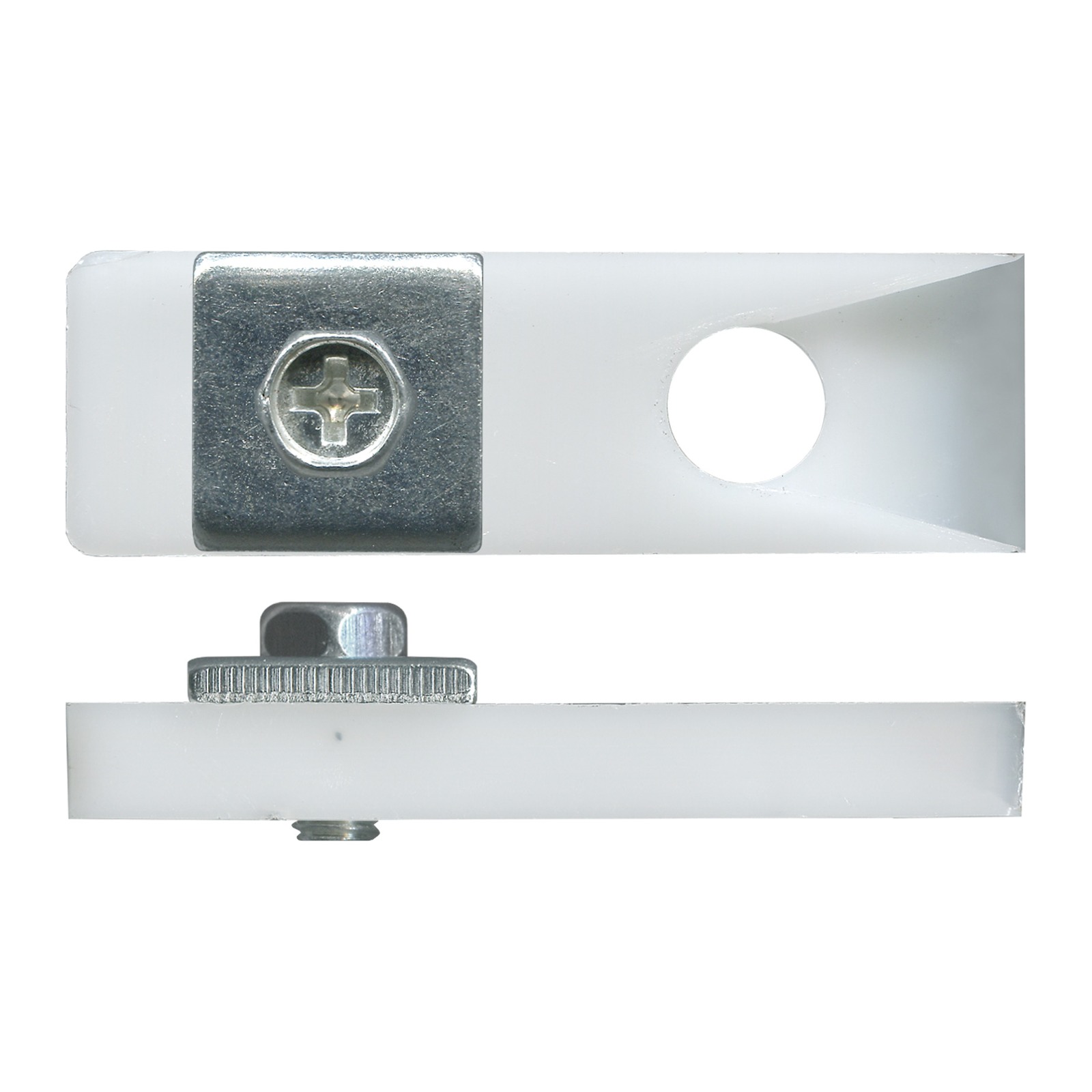

51.3mm Shower Screen Pivot Socket – Suits Bi-fold Doors

A direct replacement shower screen pivot socket for bi-fold doors. Top. 8mm hole — the previous model had a 5mm hole. Suits Barracuda.

Key Features

• Top pivot socket
• 8mm hole
• Overall 51.3 x 16.5mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Barracuda bi-fold shower screen top pivot sockets.
• Fit is decided by the 51.3 x 16.5mm body and the 8mm pivot hole — the earlier model used a 5mm hole, so check yours before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: SHPVTS51

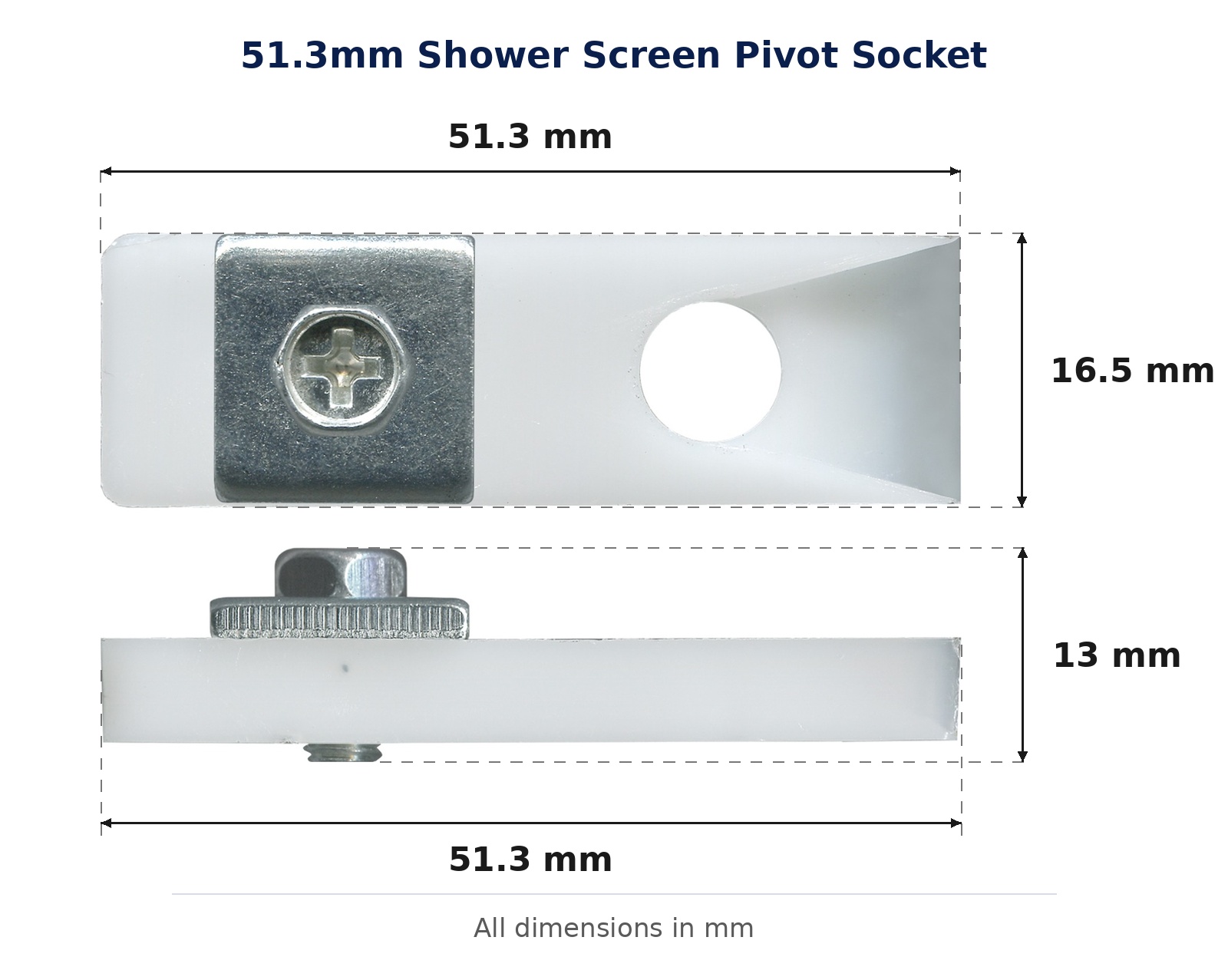

• Overall size: 51.3 x 16.5mm
• Pivot hole: 8mm

Installation Tips

• Support the panel before you release the old socket — a bi-fold panel drops as soon as the top pivot lets go.
• Check your pivot pin against the hole. This socket takes an 8mm pin, not the 5mm of the earlier model.
• Seat the socket fully home before you load the panel back on, then swing the door through its full arc to check it does not bind on the jamb.

Care & Maintenance

• Rinse soap scum out of the pivot every few months — build-up in the socket is what makes a shower screen panel stiff.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

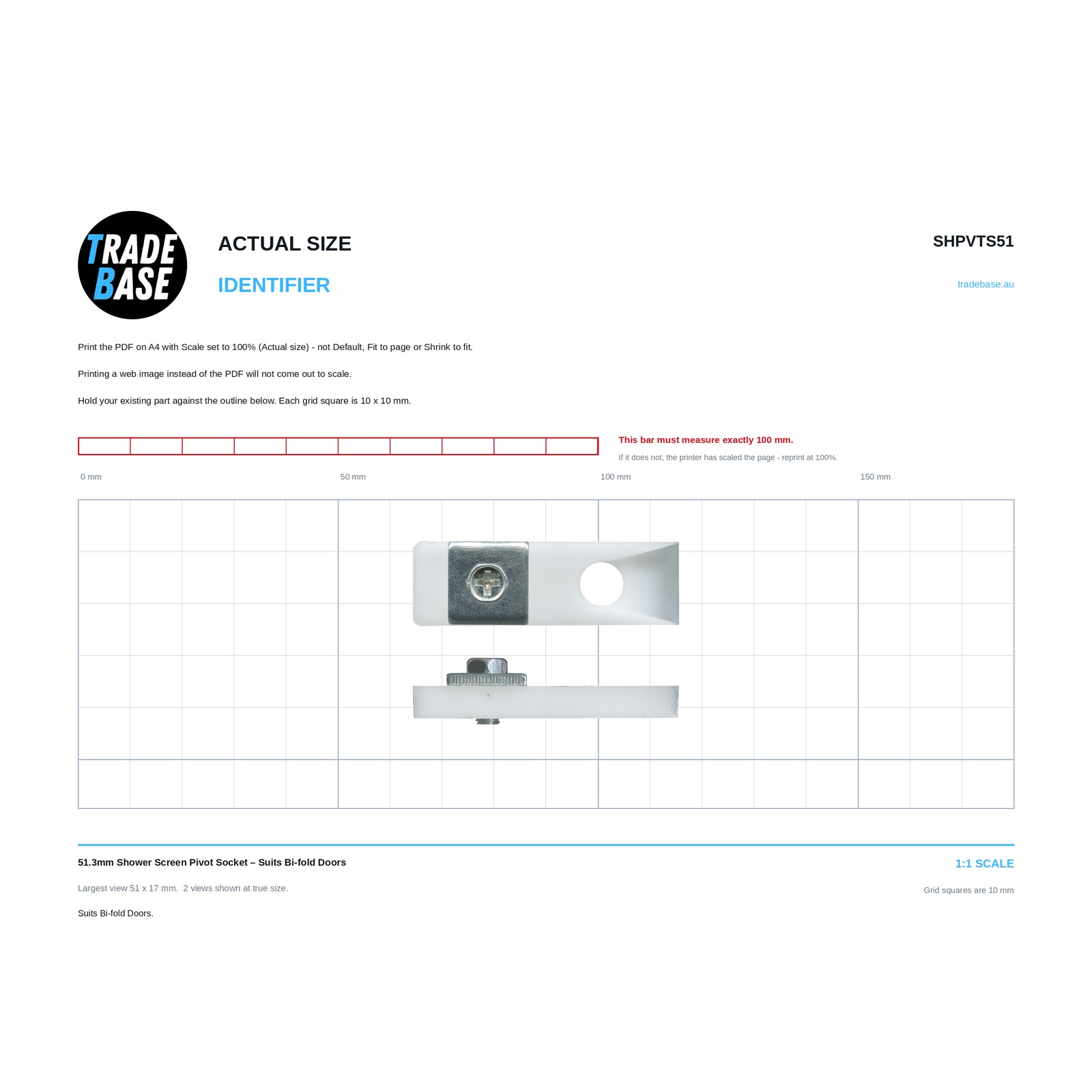

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 51.3 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
