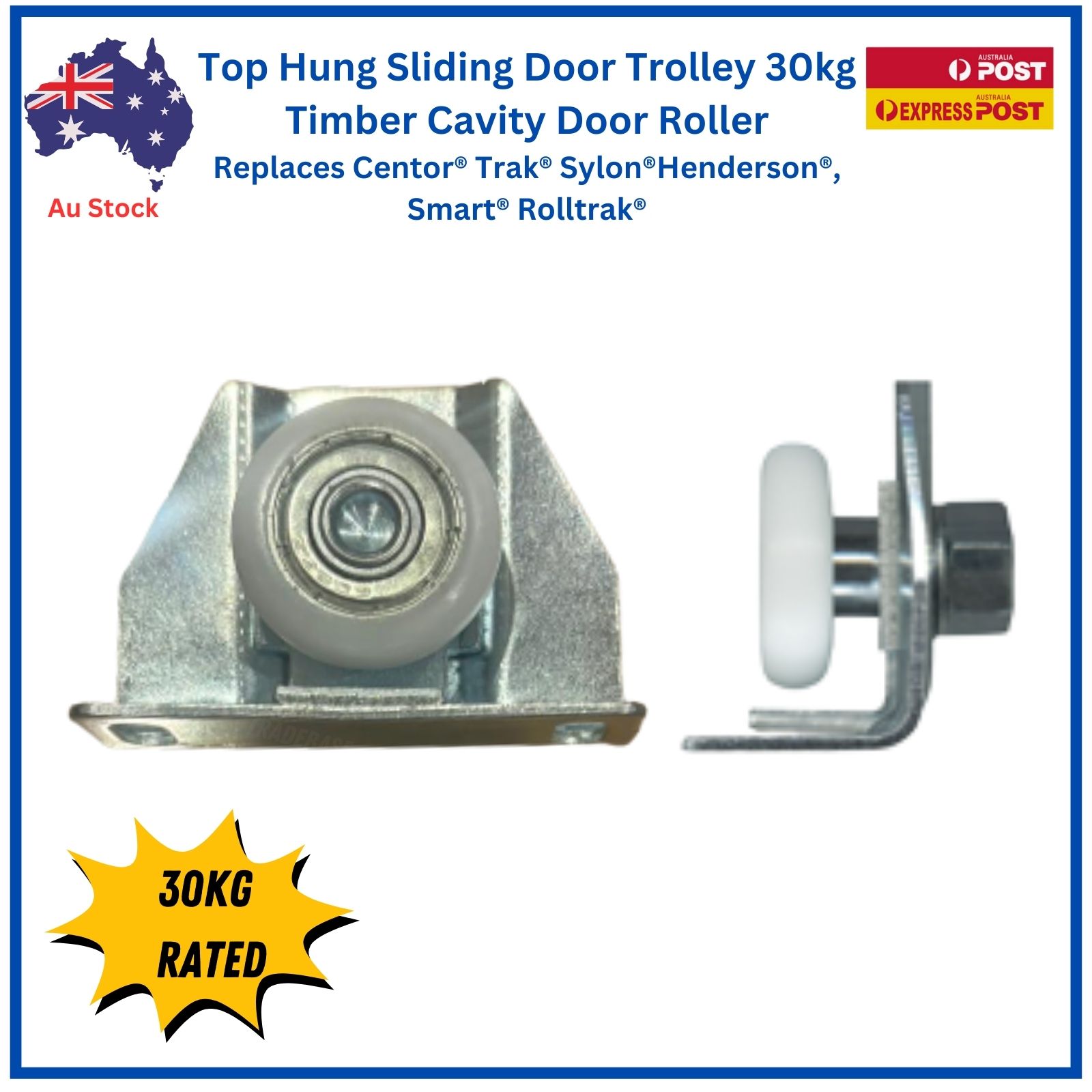

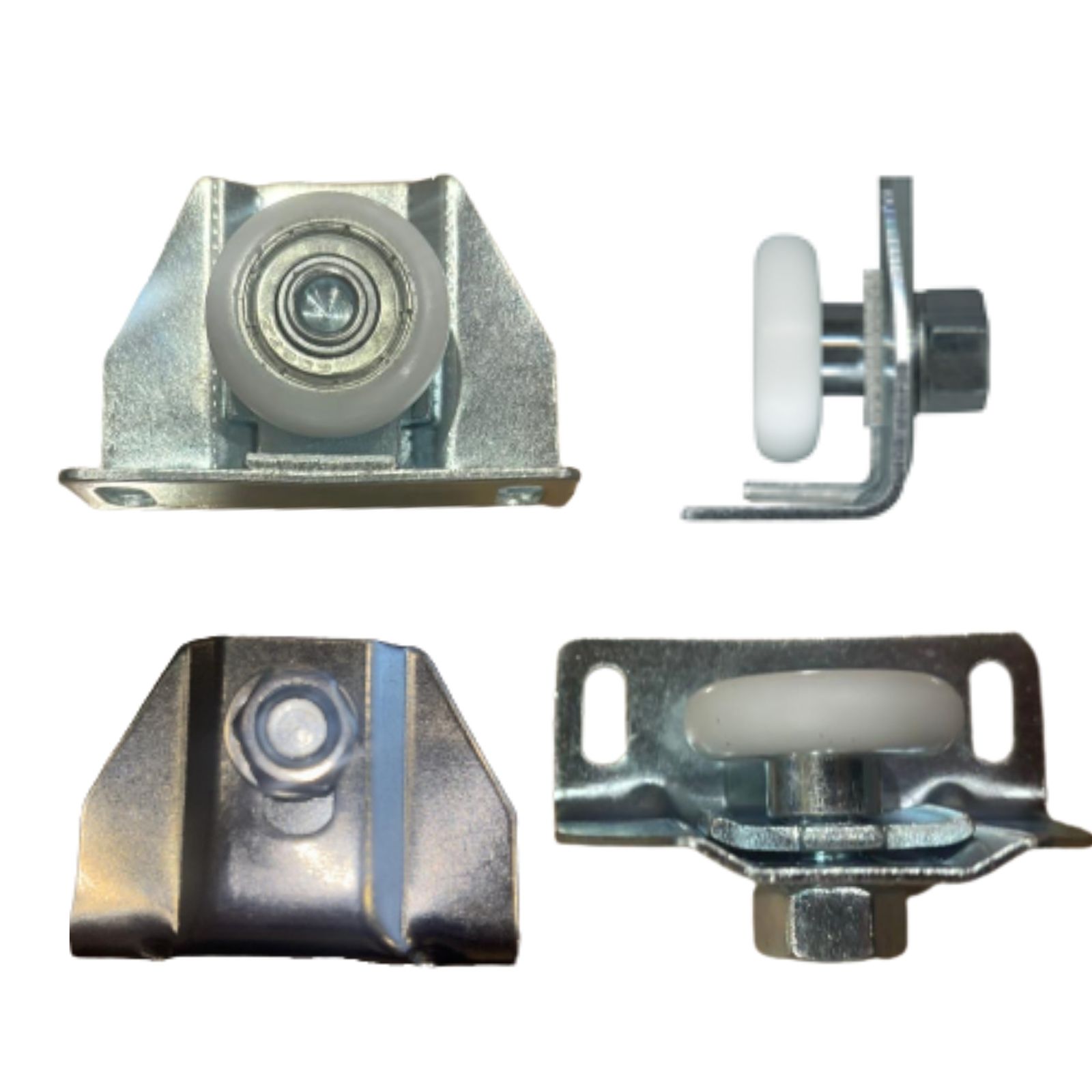

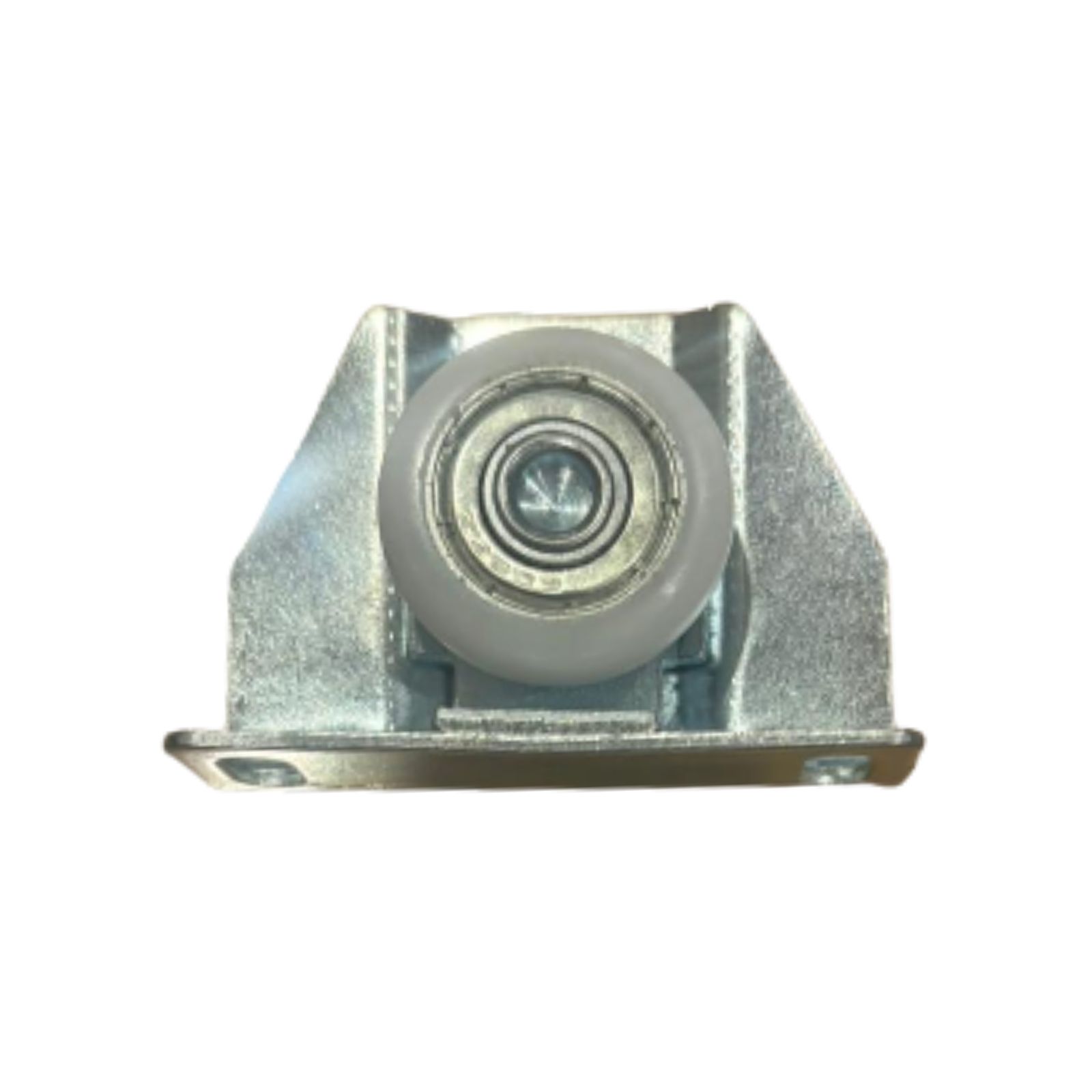

Top Hung Sliding Door Trolley Timber Cavity

This Top Hung Sliding Door Trolley is a quality Australian-made adjustable roller assembly designed for top hung timber cavity doors and hanging sliding doors.

The trolley features a steel carriage combined with a convex acetal roller with integrated bearing, delivering smooth, quiet operation and reliable performance in residential applications. The adjustable height mechanism allows precise door alignment during installation or replacement.

An anti-bounce guide is included to help stabilise the door during operation and reduce lift or chatter when opening and closing. Rated to 30 kg, this Top Hung Sliding Door Trolley is suitable for light to medium duty hanging timber door systems.

Sold singly.

Features

• Top hung trolley for hanging timber doors
• Adjustable steel carriage for accurate door alignment
• Convex acetal roller with bearing
• Smooth, quiet rolling action
• Includes anti-bounce guide
• Australian made quality
• 30 kg load rating

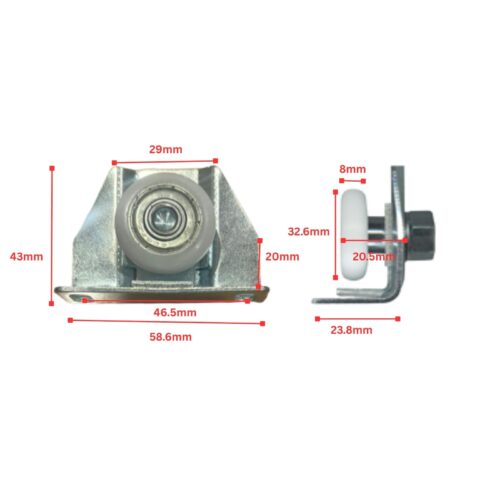

Specifications

TradeBase SKU: CRCAVTIM
Type: Top hung sliding door trolley
Door type: Timber cavity and hanging sliding doors
Carriage material: Steel
Roller material: Acetal with bearing
Roller profile: Convex
Adjustment: Height adjustable
Load rating: 30 kg

Compatibility

Designed for use with top hung timber door systems commonly found in track ranges by:
Centor®, Trak®, Sylon®, Henderson®, Smart®
and other compatible top hung sliding door tracks.

Compatibility is based on door system type and track profile. Always confirm door weight and track compatibility before purchase.

Applications

• Top hung timber cavity doors
• Hanging sliding timber doors
• Replacement door trolleys
• New installations and refurbishments

What’s Included

• 1 × Top Hung Sliding Door Trolley
• Anti-bounce guide

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.
