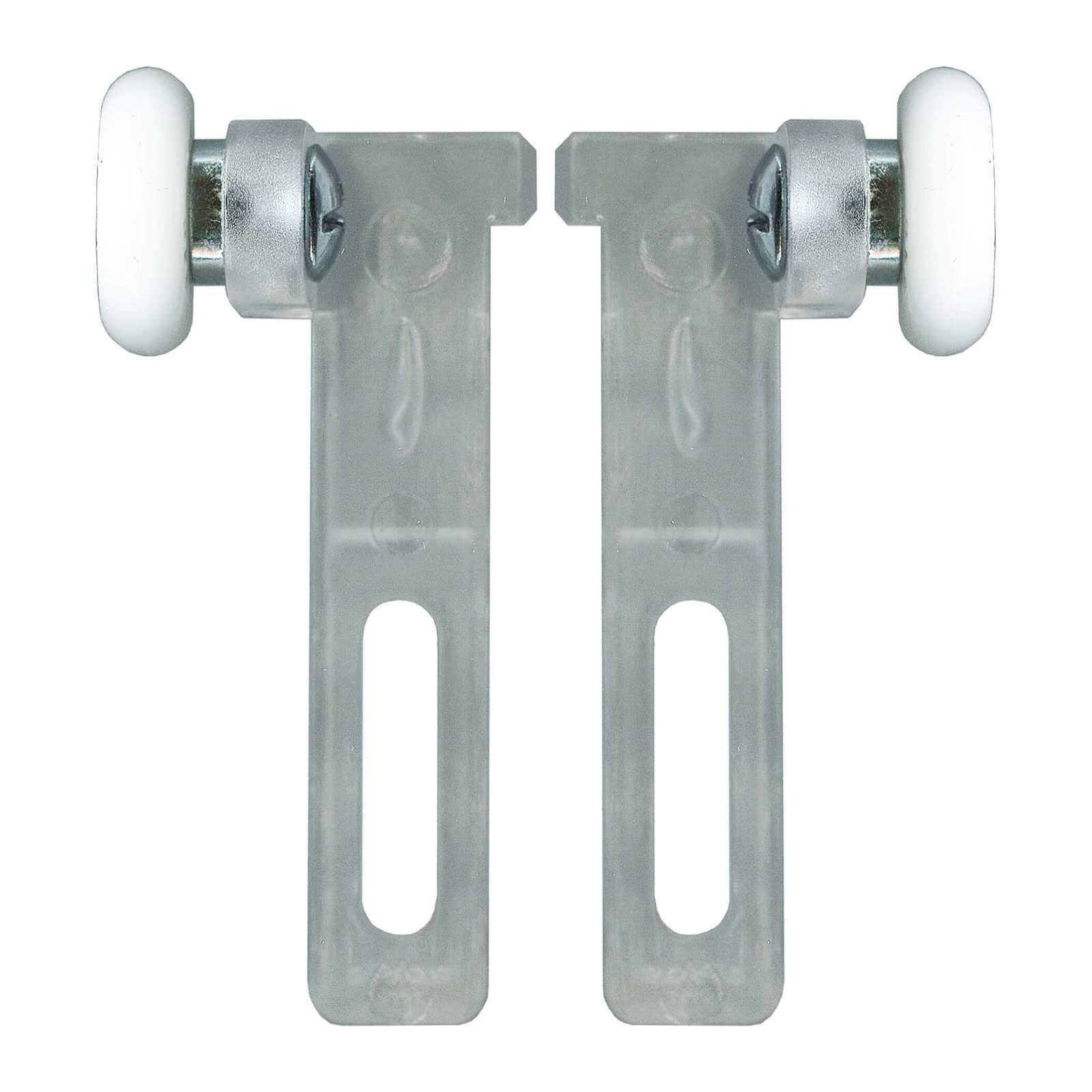

65.1mm Adjustable Sliding Door Top Hanger & Roller – Suits Screen Doors

A direct replacement adjustable sliding door top hanger and roller for screen doors. Top. Left and right hand. Polycarbonate hanger with an acetal convex roller, no bearing. No separate replacement roller is available.

Key Features

• Left and right hand
• Polycarbonate hanger
• Acetal convex roller, no bearing
• Overall 30 x 65.1mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for most Australian aluminium sliding screen door top hangers of this pattern.
• Fit is decided by the overall hanger size of 30 x 65.1mm and by the convex roller face — a convex roller runs in a hollow top track, so check your old roller profile before ordering

Specifications

• TradeBase SKU: HNG65
• Material: Acetal
• Overall size: 30 x 65.1mm
• Left and right hand

Installation Tips

• Check the top track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace hangers in pairs. A new roller running against a worn one carries uneven load and both wear out early — and this roller cannot be renewed on its own.
• Support the door while both hangers are out, then set them to the same height so the door hangs square.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting the stops.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
