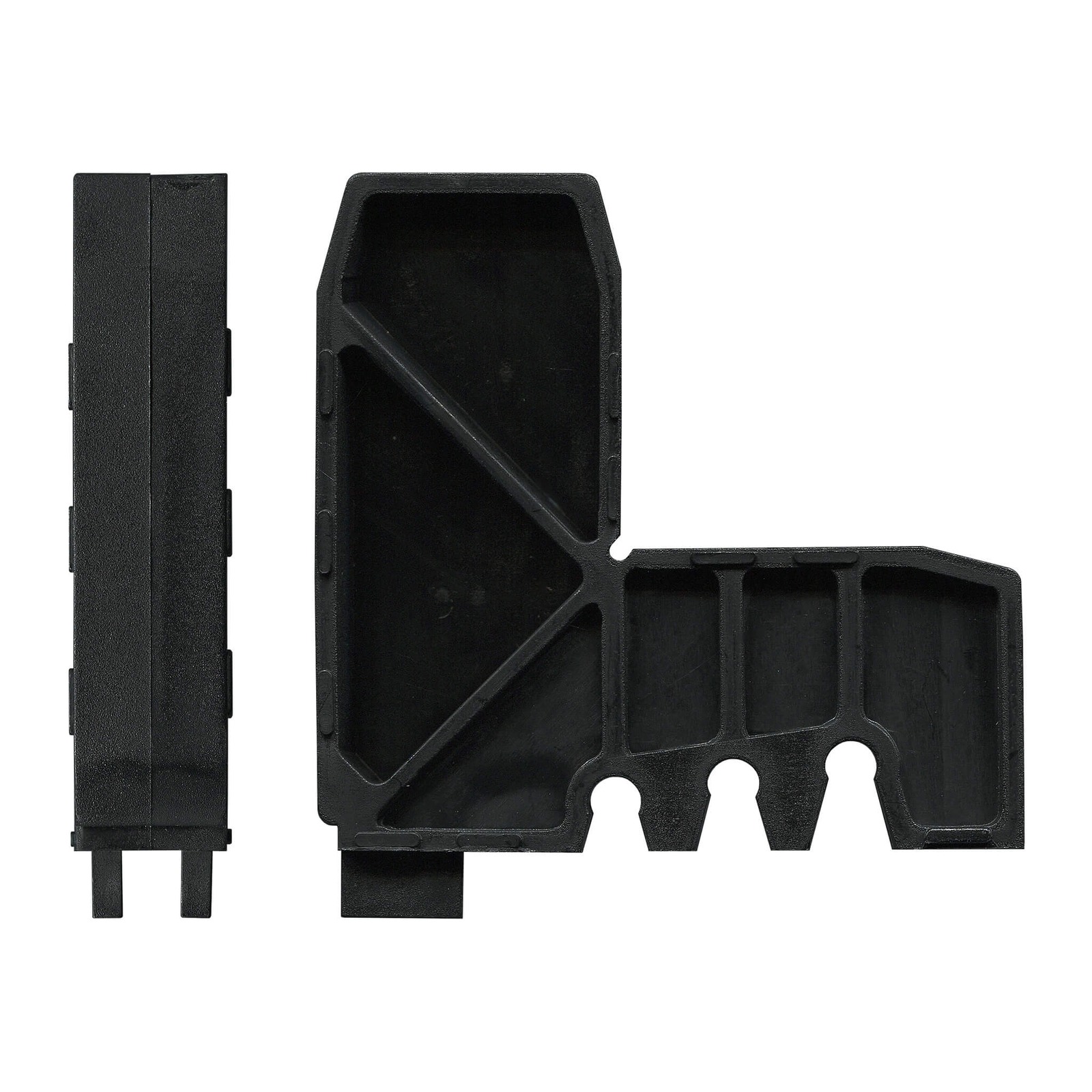

71.6mm Adjustable Sliding Door Carriage – Suits Dowell® Screen Doors

A direct replacement adjustable sliding door carriage for screen doors. Corner stake, roller not included. Suits Dowell®. Our 64.9mm Screen Door Corner Stake (SKU STK65) can be used as the top corner stake.

Key Features

• Adjustable corner stake
• Roller not included

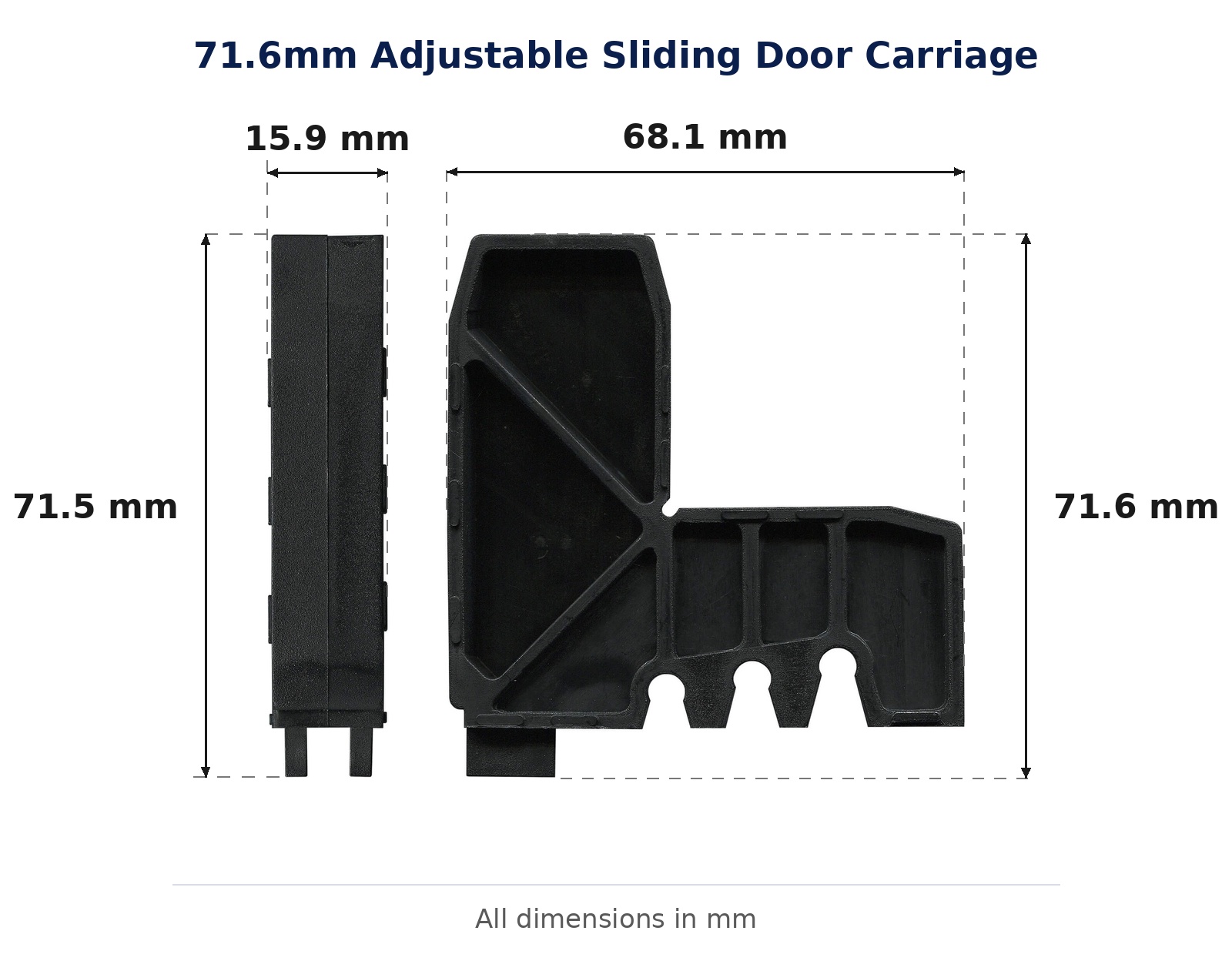

• Overall 68.1 x 71.6mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Dowell® sliding screen door corner stakes.
• Fit is decided by the overall stake size of 68.1 x 71.6mm — measure your old stake over its full length and height, and check your existing roller will transfer across
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: CAR72
• Overall size: 68.1 x 71.6mm
• Roller not included

Installation Tips

• No roller is supplied — transfer your existing roller across, and check it is not already worn flat before you refit it.
• Set the stake square in the door stile before you tighten it. A stake pulled up on an angle will hold the door out of plumb no matter how you adjust it.
• Adjust last to bring the door parallel with the jamb, working from the handle side, then slide it through its full travel before refitting the stops.

Care & Maintenance

• Sweep the track out every few months, more often in coastal or dusty areas — grit in the track is what wears out the roller the stake carries.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

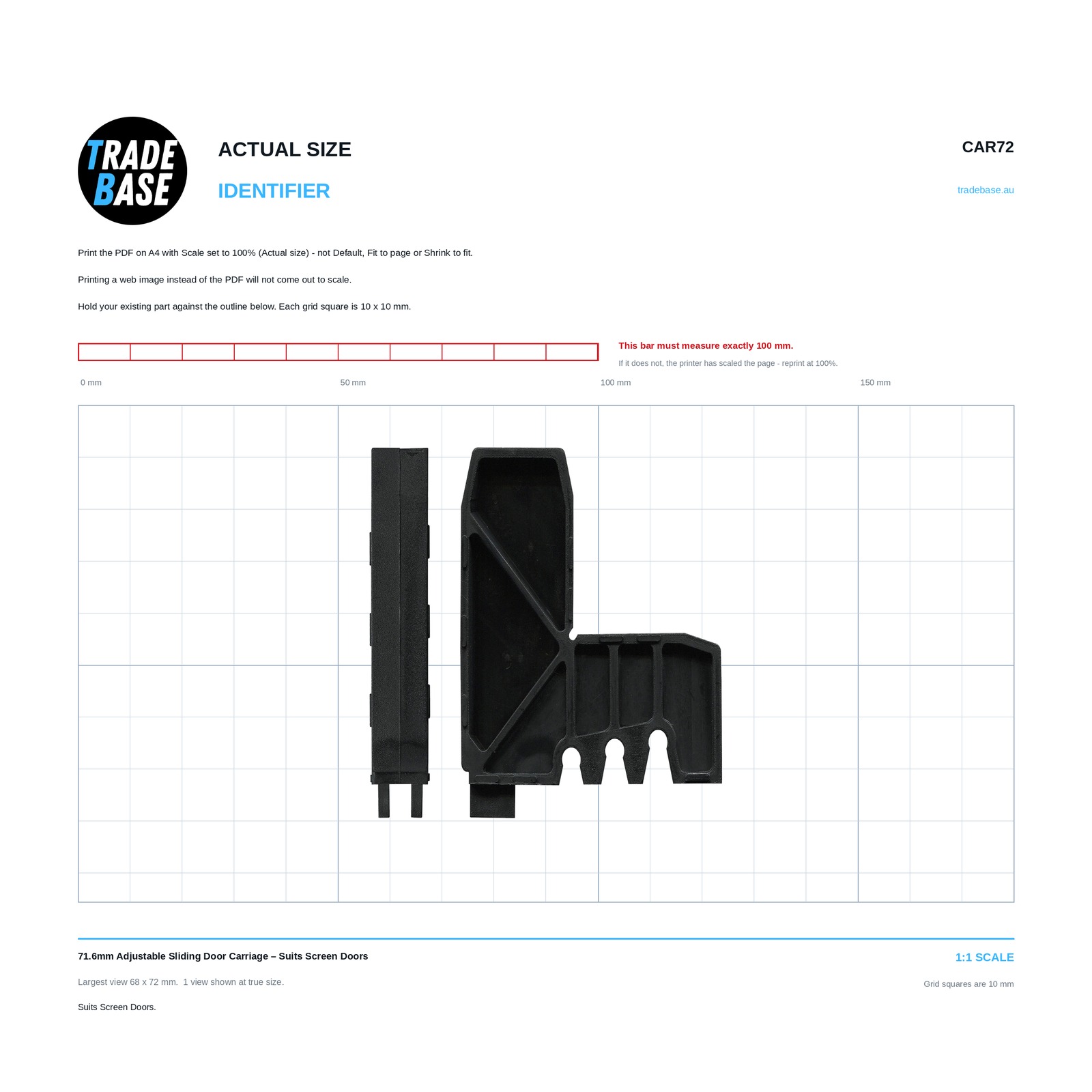

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 68.1 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
