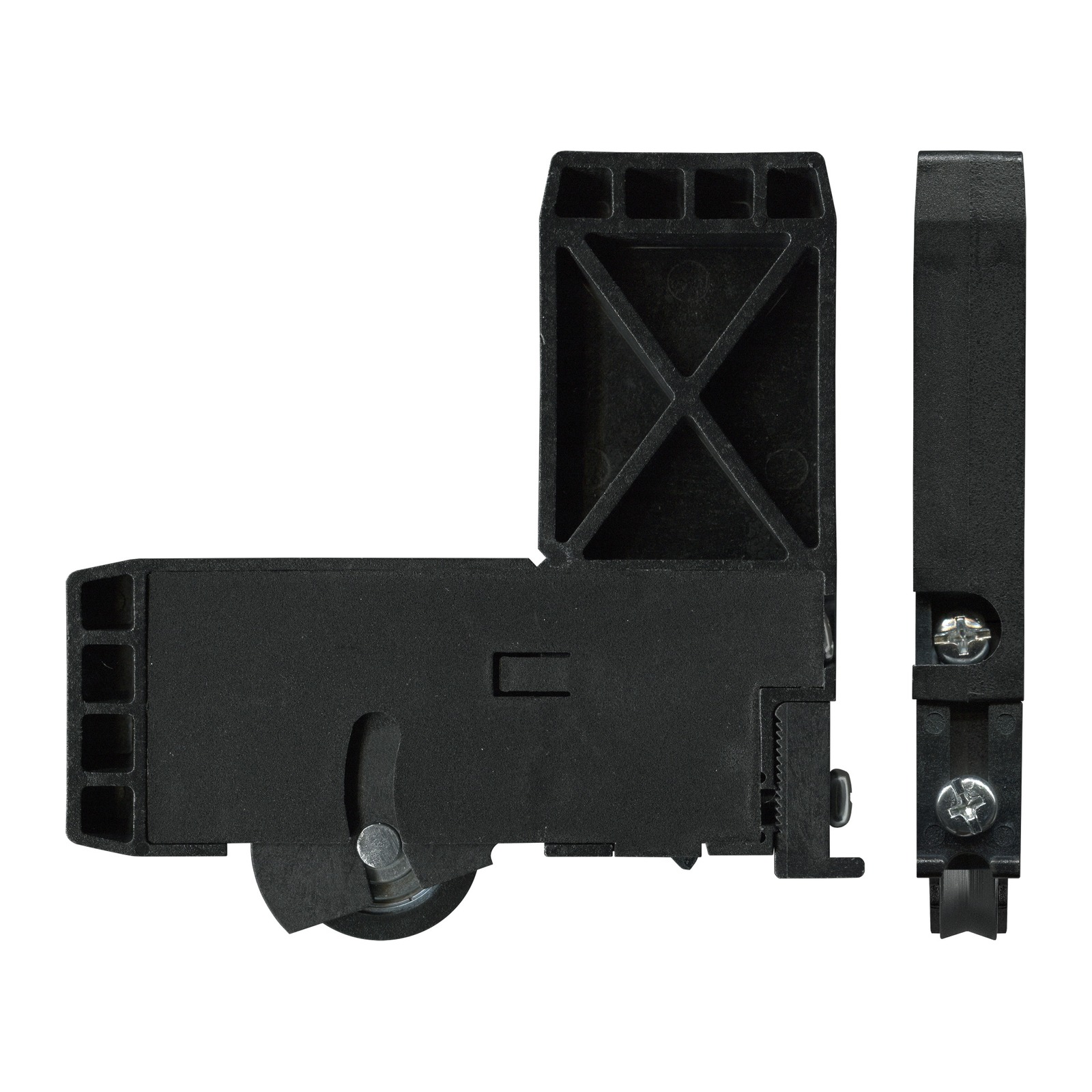

112.9mm Adjustable Screen Door Corner Stake & V-Groove Roller – Replaces Bradnam’s® Rollers

A direct replacement adjustable screen door corner stake and V-groove roller. 16mm x 42mm. Suits Bradnam’s®.

Key Features

• Adjustable corner stake with V-groove roller
• 16mm x 42mm
• Overall 112.9 x 111.6mm
• Australian stock, dispatched within 5 business days

Fits & Replaces

• Direct replacement for Bradnam’s® sliding screen door corner stake and roller assemblies.
• Fit is decided by the overall assembly size of 112.9 x 111.6mm and by the V-groove roller face — a V-groove roller runs on a raised V track, so check your old roller profile before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: CAR113112

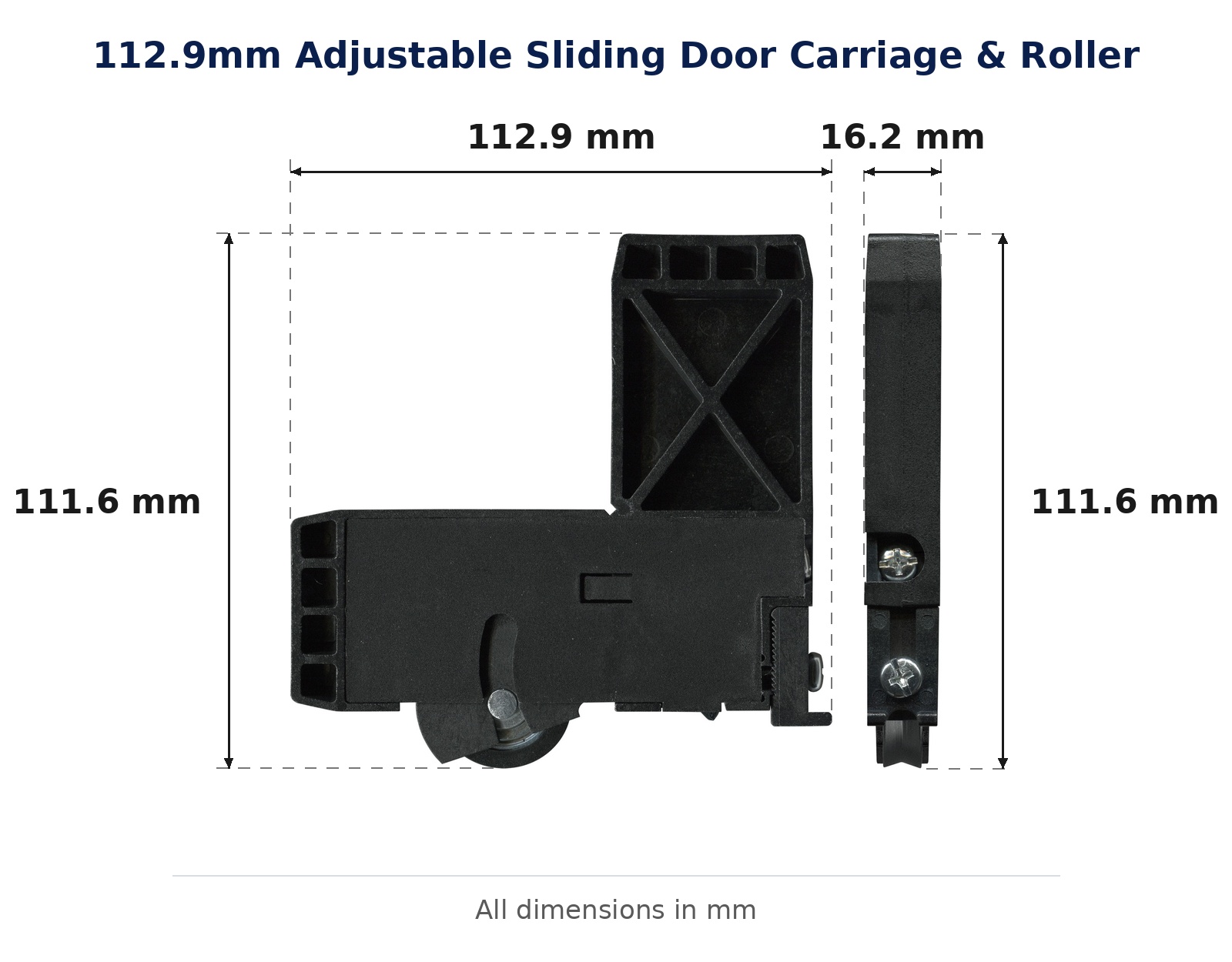

• Overall size: 112.9 x 111.6mm
• 16mm x 42mm

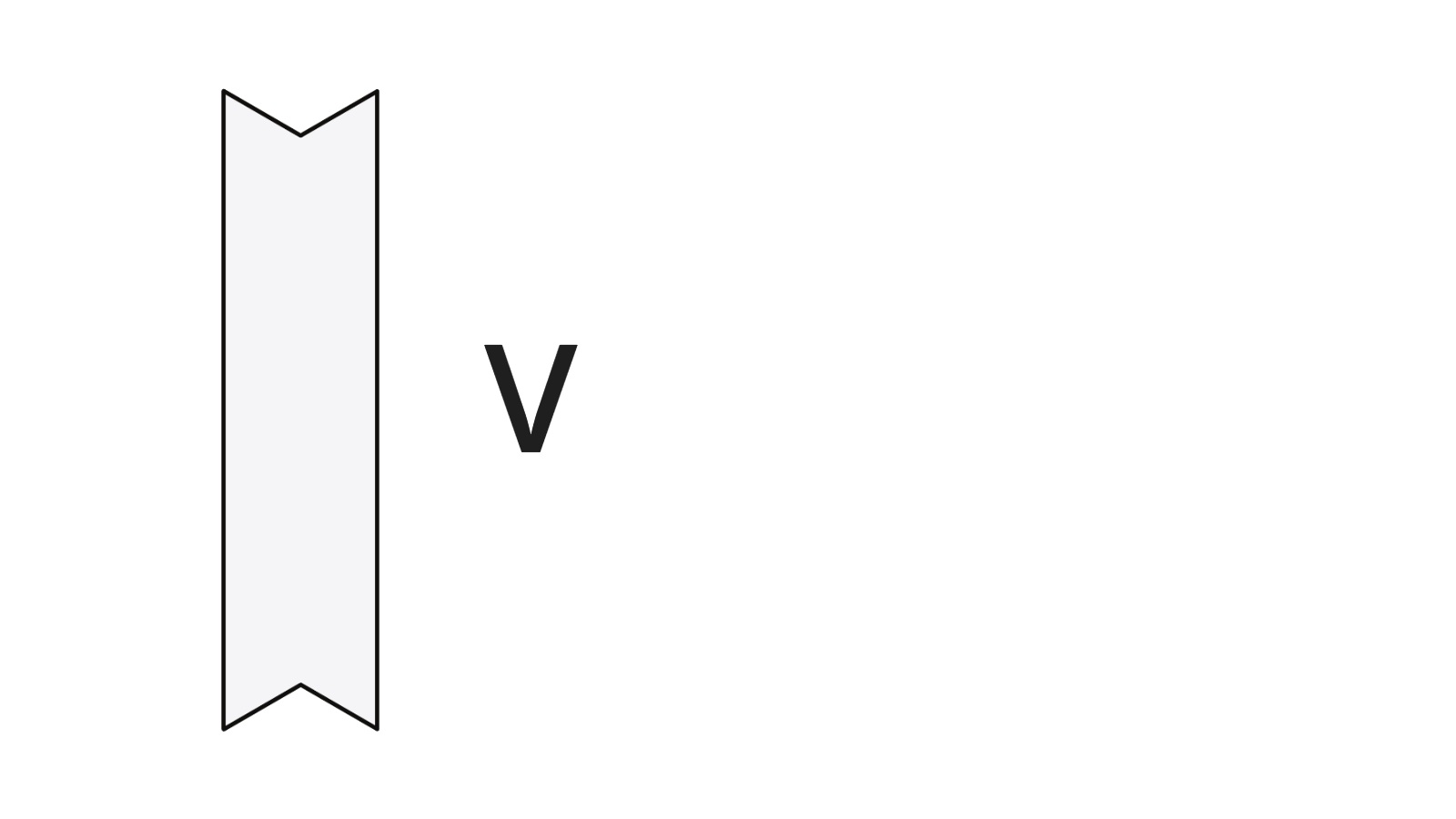

• Roller profile: V-groove

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting the stops.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

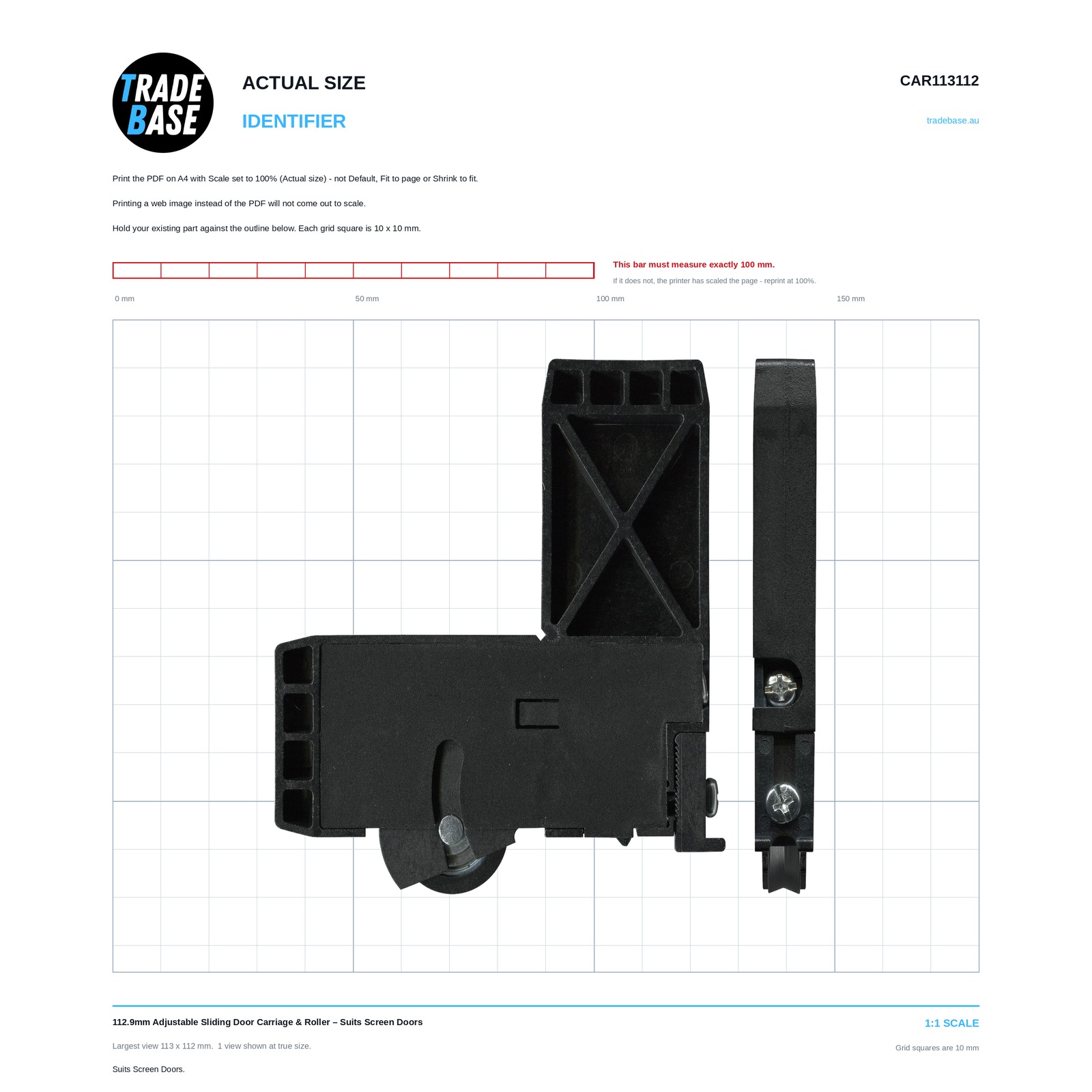

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 112.9 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
