75.1mm Adjustable Sliding Door Top Hanger & Roller – Suits Screen Doors

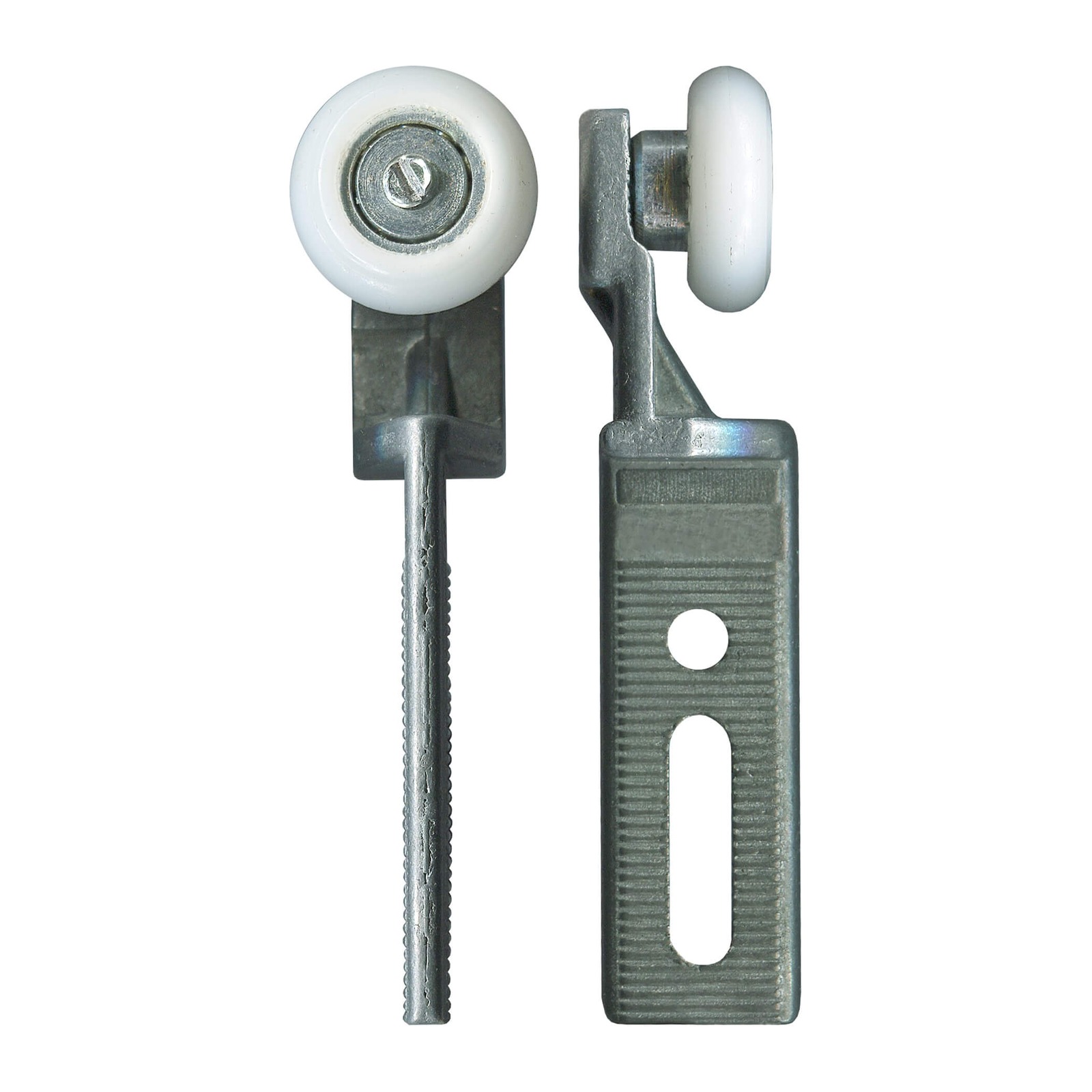

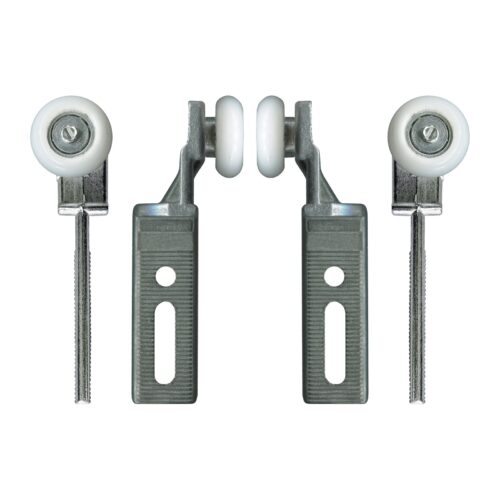

A direct replacement adjustable sliding door top hanger and roller for screen doors. Top. Die-cast hanger with an acetal convex roller on a bearing. Suits Alcan®.

Key Features

• Die-cast hanger
• Acetal convex roller with bearing
• Overall 19.6 x 75.1mm
• Rare part — call for availability
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Alcan® sliding screen door top hangers.
• Fit is decided by the overall hanger size of 19.6 x 75.1mm and by the convex roller face — a convex roller runs in a hollow top track, so check your old roller profile before ordering

Specifications

• TradeBase SKU: HNG75
• Material: Acetal

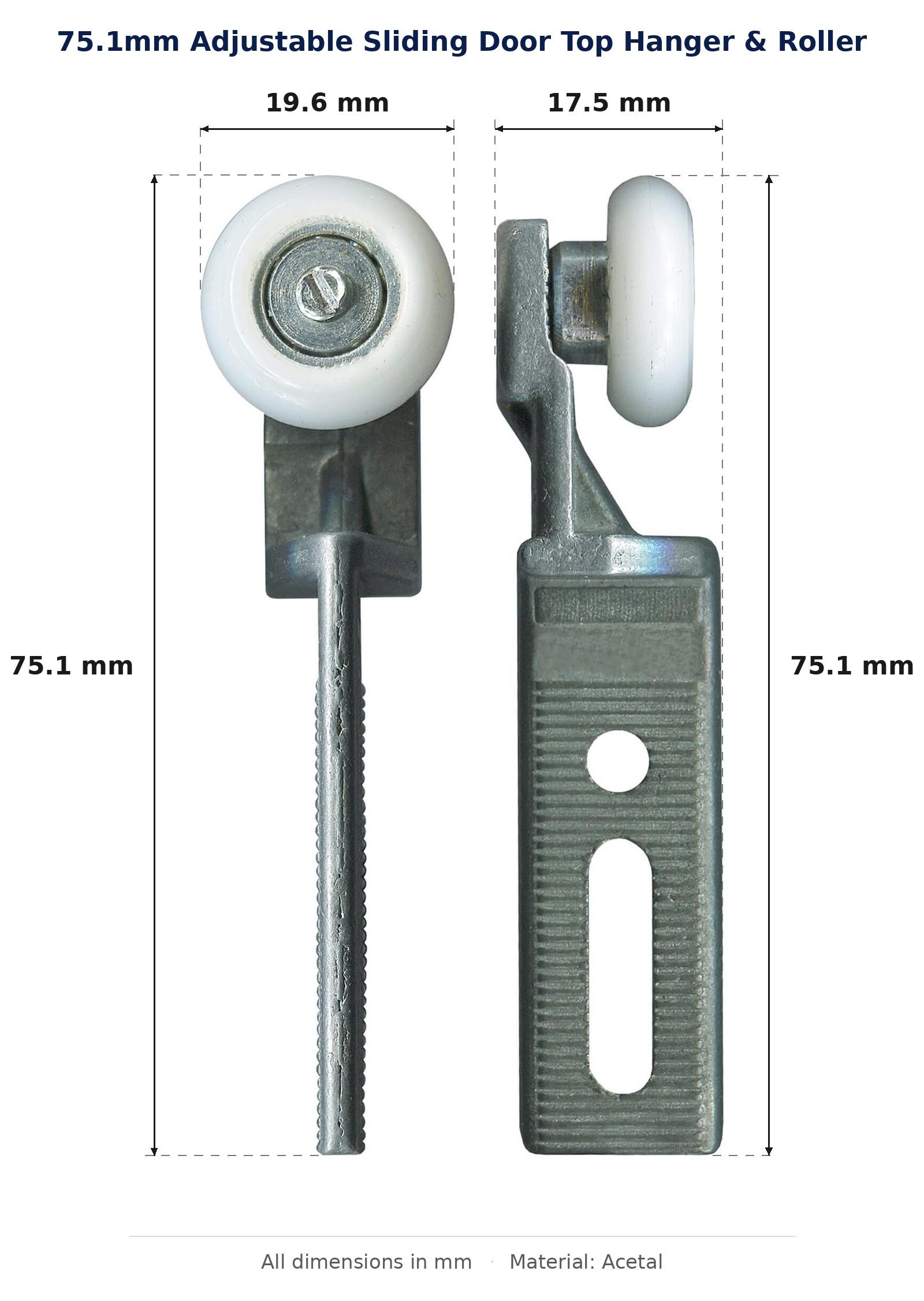

• Overall size: 19.6 x 75.1mm

Installation Tips

• Check the top track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace hangers in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Support the door while both hangers are out, then set them to the same height so the door hangs square.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting the stops.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
