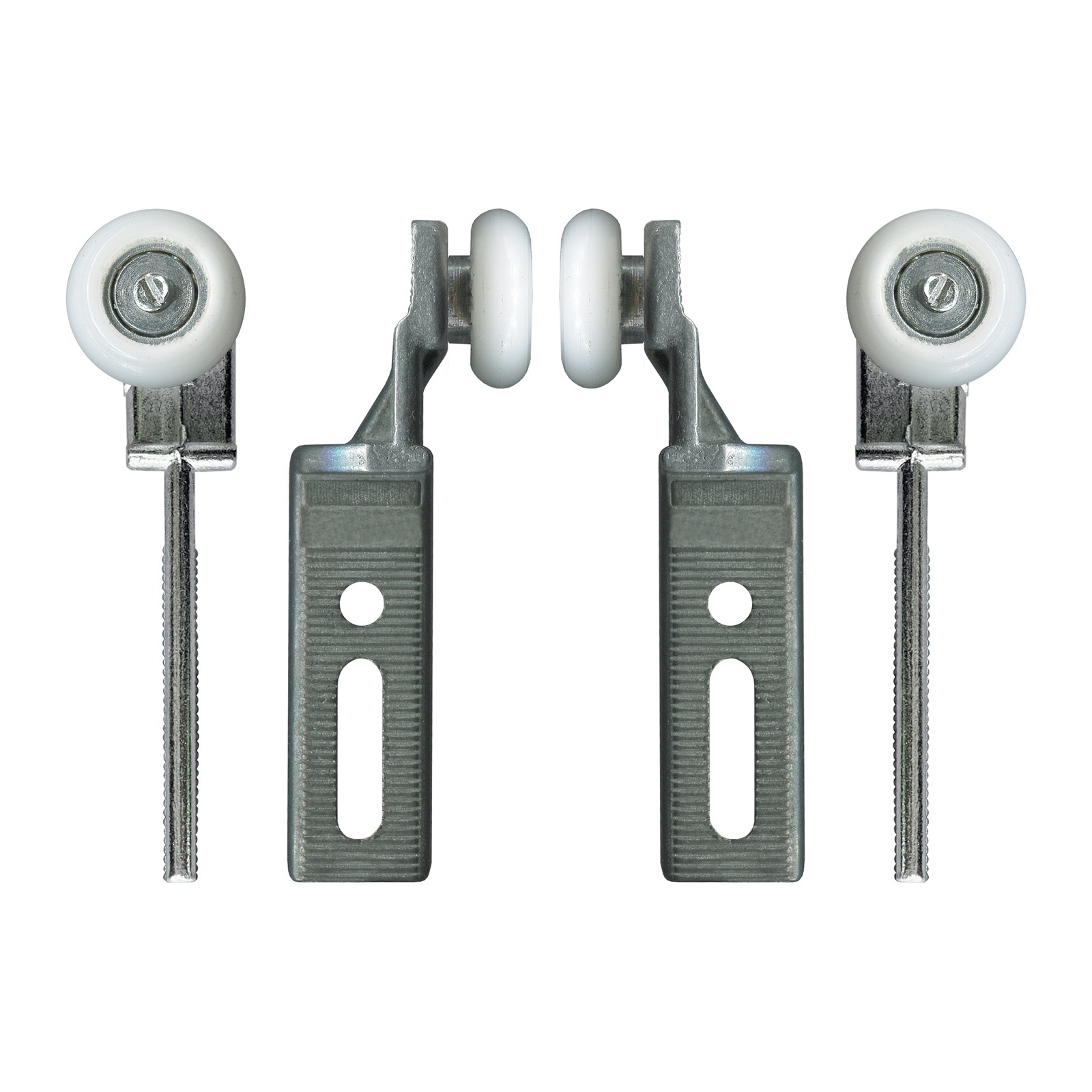

73.1mm Adjustable Sliding Door Top Hanger & Roller – Suits Screen Doors

A direct replacement adjustable sliding door top hanger and roller for screen doors. Fits at the top of the door and is supplied as a left and right pair. Acetal convex roller with bearing. Suits A&L® screen doors. For the matching bottom guide, see our Sliding Door Bottom Guide – Suits A&L® Screen Doors (GDE3542).

Key Features

• Acetal construction
• Acetal convex roller with bearing
• Supplied as a left and right pair
• Overall 26.7 x 73.1mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for A&L® screen door top hangers.
• The 73.1mm overall length, the 26.7mm body width and the convex roller profile decide the fit — measure your old hanger across both dimensions before ordering

Specifications

• TradeBase SKU: HNG73
• Material: Acetal
• Roller profile: convex, on bearing
• Position: top of door
• Supplied: left and right pair
• Overall size: 26.7 x 73.1mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.
