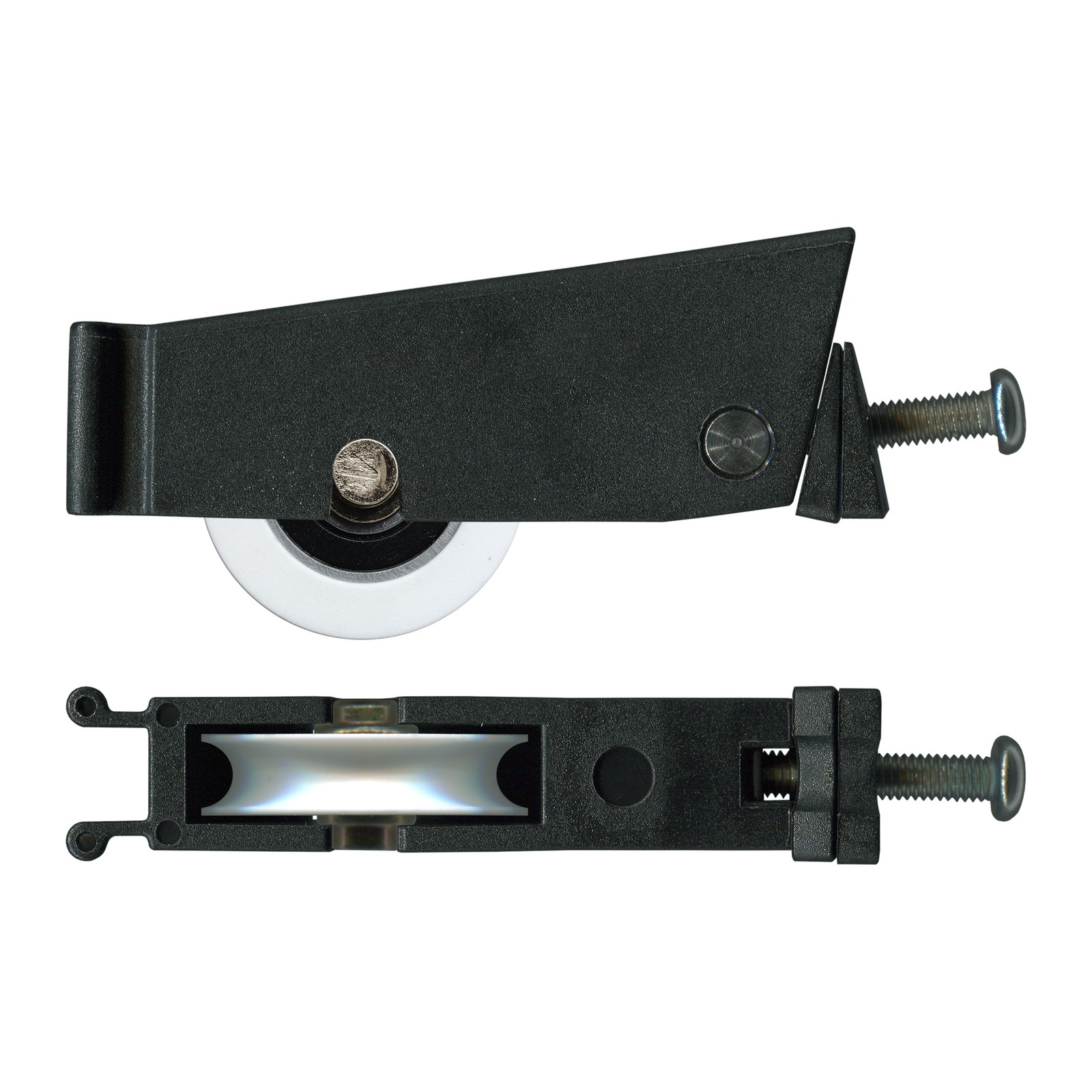

92.7mm Adjustable Sliding Door Carriage & Roller – Suits Dowell® Patio Doors

A direct replacement adjustable sliding door carriage & roller for patio doors. Heavy Duty. Corrosion resistant. Acetal roller with RS bearing. Suits Boral® / Dowell® MK5C and others. A superior version that will replace CARBOR25 and CARBOR25MK.

Key Features

• Acetal construction

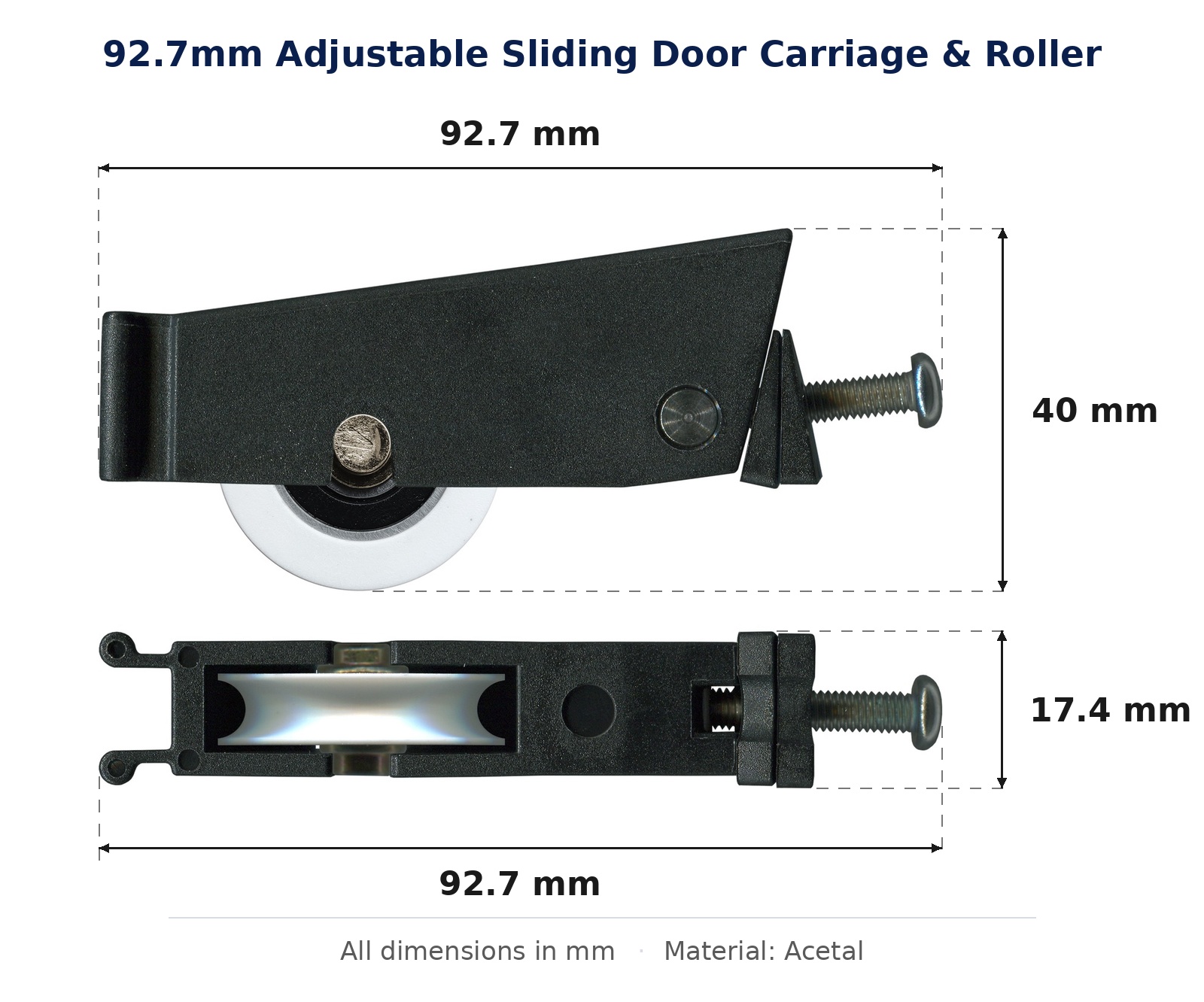

• Overall 92.7 x 40mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for Boral® and Dowell® MK5C patio door carriages, and others of this pattern.
• The fit is decided by the 92.7 x 40mm overall size — measure your old carriage in both directions before ordering.
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: CAR93ACE
• Material: Acetal
• Overall size: 92.7 x 40mm

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

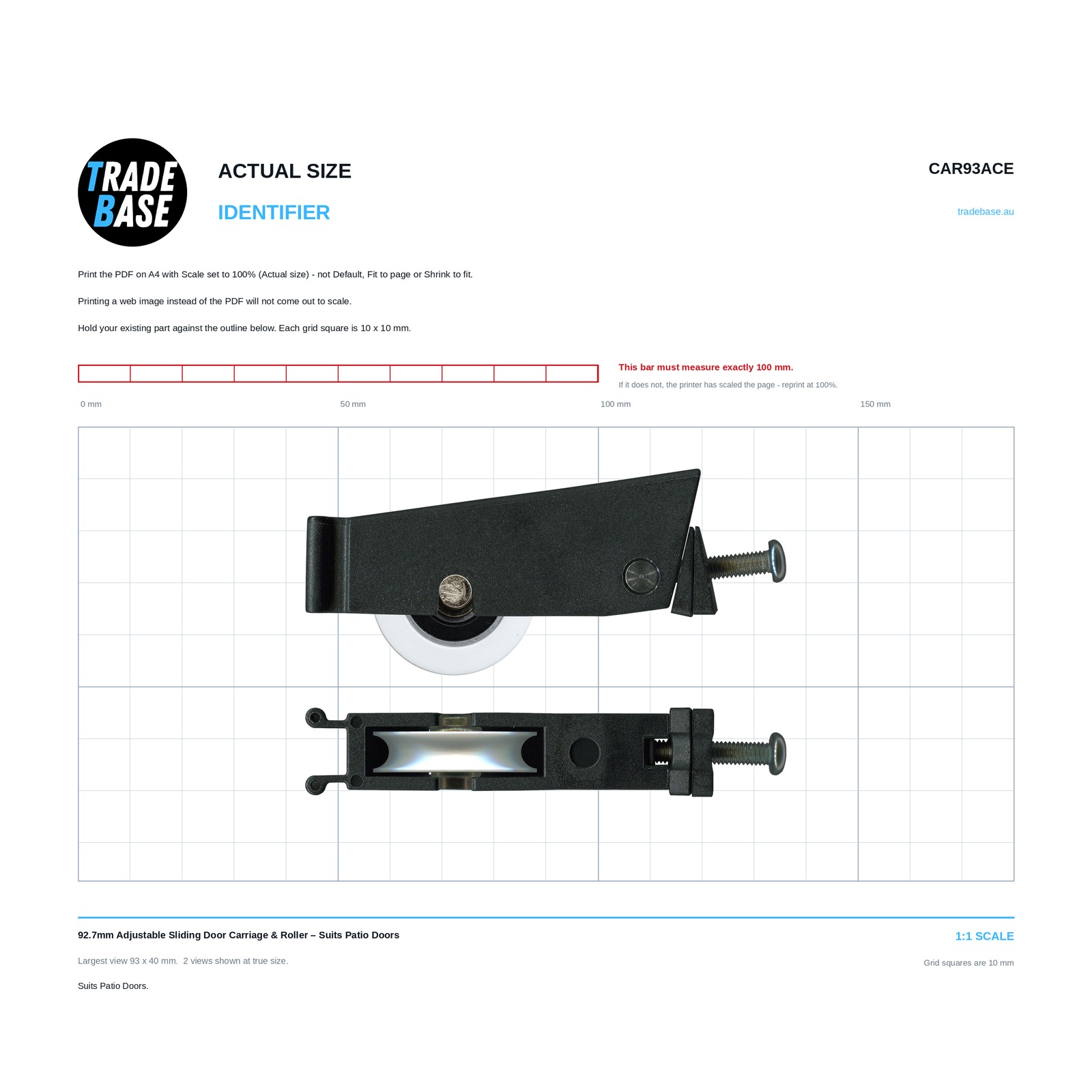

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 92.7 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
