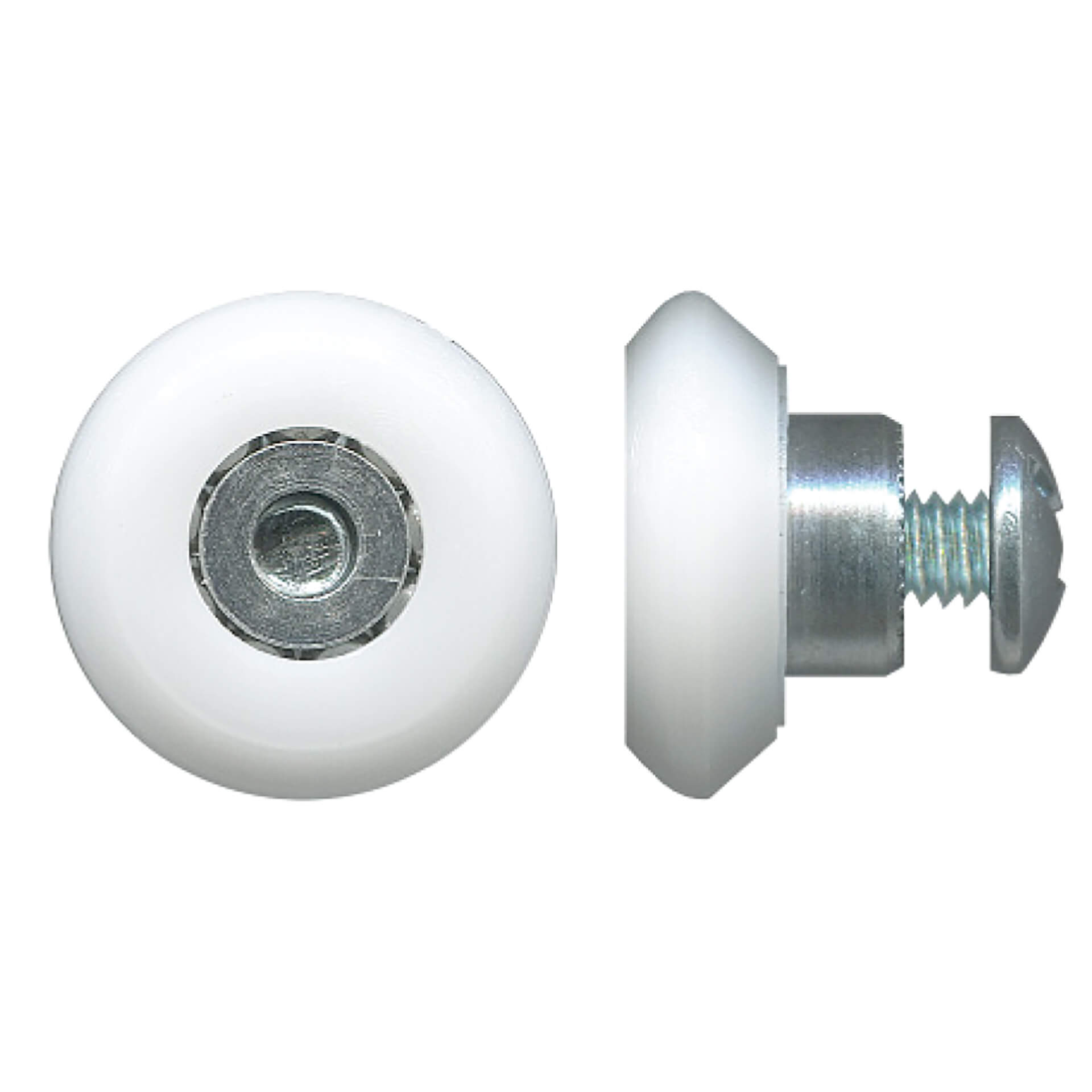

18mm V-Groove Sliding Door Roller – Acetal Screw 8kg

The 18mm V-Groove Sliding Door Roller is a direct replacement wheel for sliding patio, screen, shower and wardrobe doors. It is turned from acetal and rated to 8kg per roller, and the v-groove profile runs on a V-edge or angle track.

Key Features

• V-Groove profile, 18.0mm outside diameter
• Acetal wheel with a 5.6mm bore
• 7.2mm groove width
• 12.3mm overall width
• Rated to 8kg per roller
• Supplied with a fixing screw

Ideal For

• Sliding patio and screen doors
• Shower screens and wardrobe doors
• Replacing worn or seized rollers that drag or jump the track

Pack Contents

• 1 x roller
• 1 x fixing screw

Compatibility

• Fits shower screens and flyscreens

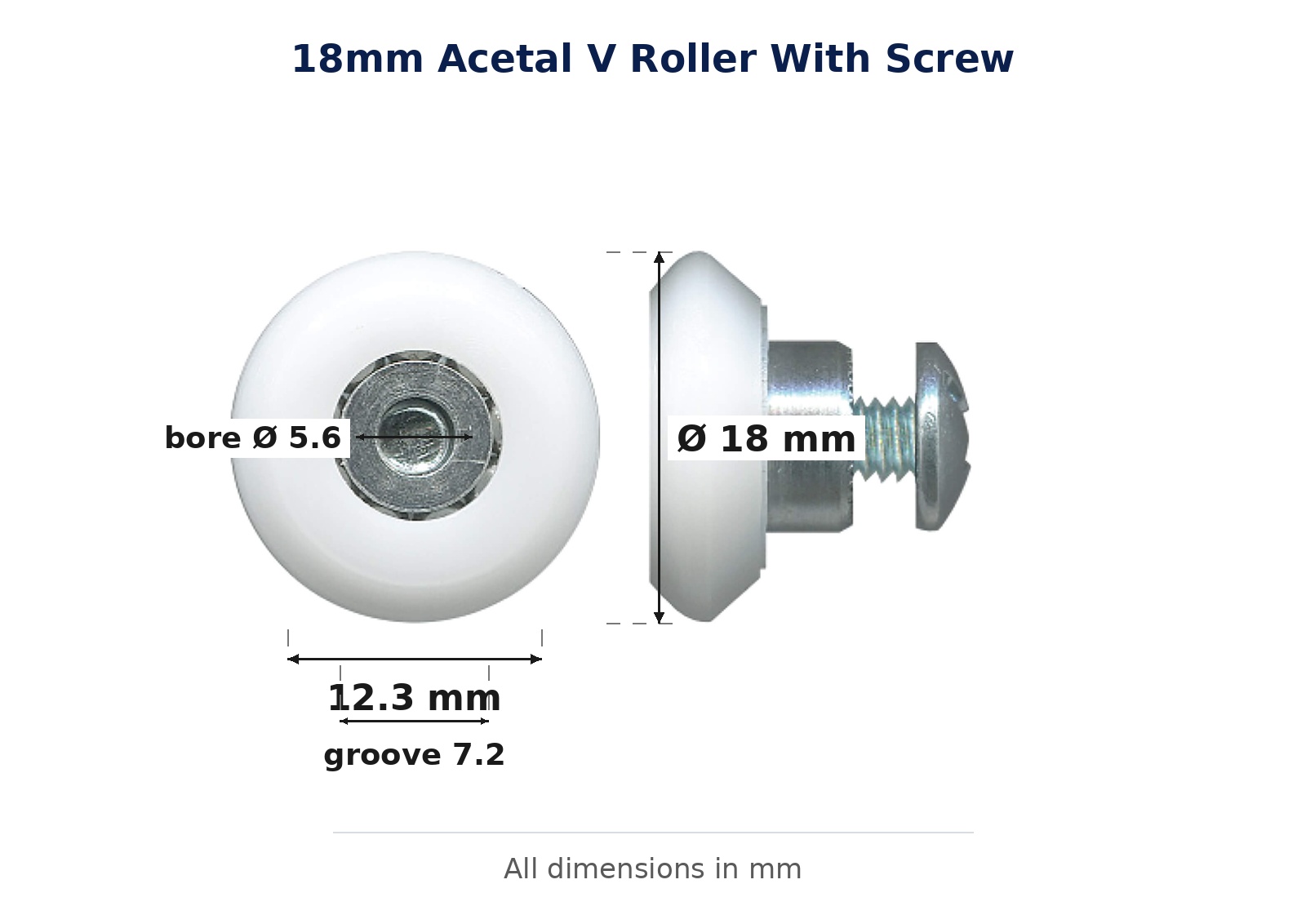

• Check the dimension drawing against your existing part before ordering — sliding door hardware varies between brands and series

Specifications

• TradeBase SKU: ROL18VGR8
• Outside diameter: 18.0 mm
• Overall width: 12.3 mm
• Groove width: 7.2 mm
• Bore diameter: 5.6 mm
• Wheel material: Acetal
• Load rating: 8 kg per roller
• Mounting: Screw

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Measure the old roller before ordering — the replacement has to match on outside diameter and overall width.
• Match the tread profile and the axle as well. Flat, concave, convex and V-groove wheels are not interchangeable, and the bore or screw fixing must suit the existing housing.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.

Warranty

10-year warranty. This warranty is in addition to your rights under the Australian Consumer Law.

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 10.4 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
