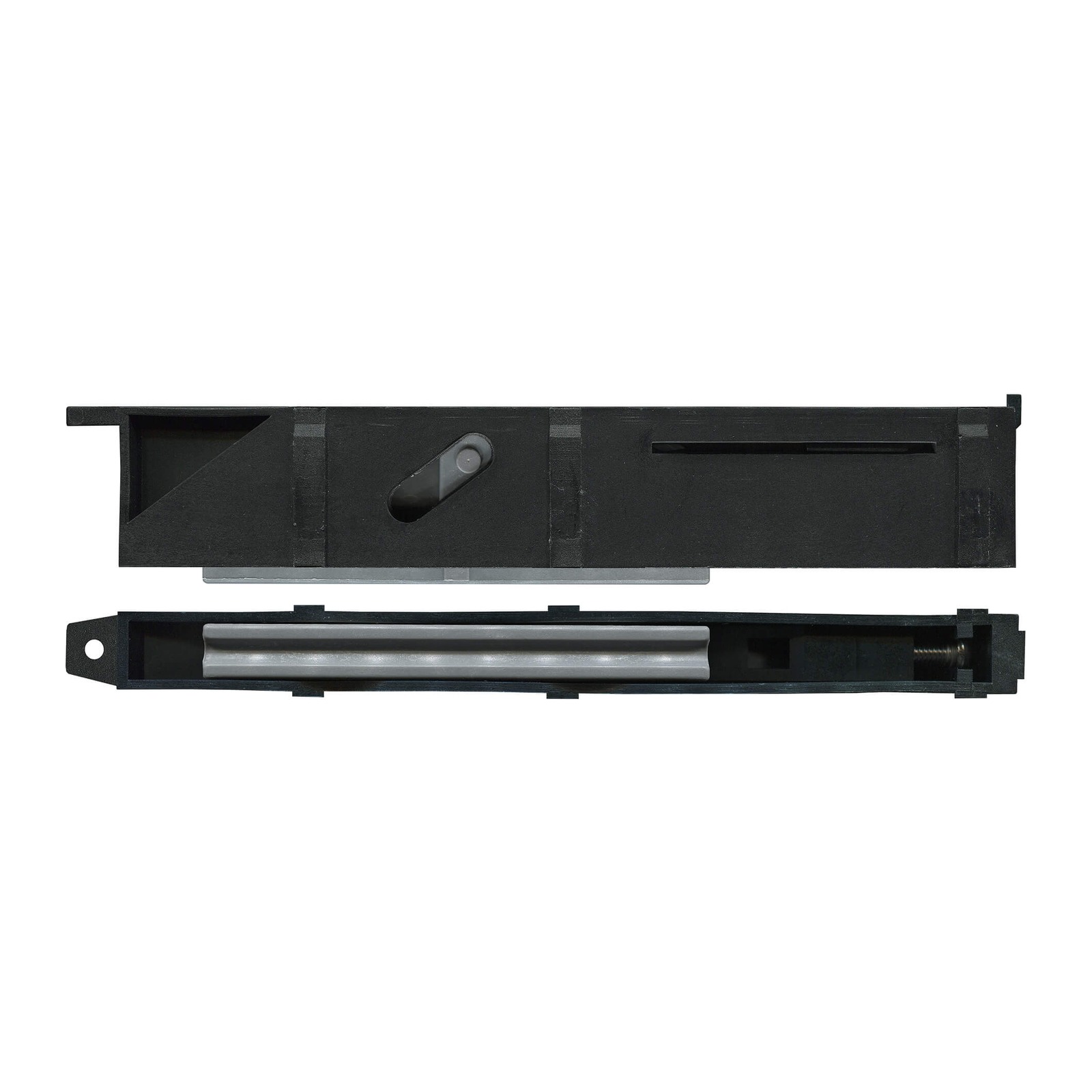

190.5mm Adjustable Sliding Door Carriage & Block – Suits Vantage™, Capral™ & G.James™ Fixed Door Panels

A direct replacement adjustable carriage & block for a fixed door panel. Fixed panel adjuster. 17.5mm wide. Nylon outer and inner. Adjustable block – long. Suits some Alspec, Capral, Ullrich, G.James® and Vantage®.

Key Features

• Nylon construction
• Overall 190.5 x 38mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for some Alspec, Capral, Ullrich, G.James® and Vantage® fixed panel adjusters.
• The fit is decided by the 190.5 x 38mm overall size and the 17.5mm body width — measure your old block across both before ordering.
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: CAR190NYL
• Material: Nylon
• Overall size: 190.5 x 38mm

Installation Tips

• Support the fixed panel before you pull the old block out — the panel will drop as soon as the adjuster is released.
• Clear the channel of grit and old sealant so the nylon outer seats flat along its full length.
• Wind the inner block up evenly at both ends to bring the panel plumb, then check the interlock closes cleanly against the sliding panel before you tighten off.

Care & Maintenance

• Re-check the adjustment after the first season — a fixed panel that has settled will show up as a gap at the interlock.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

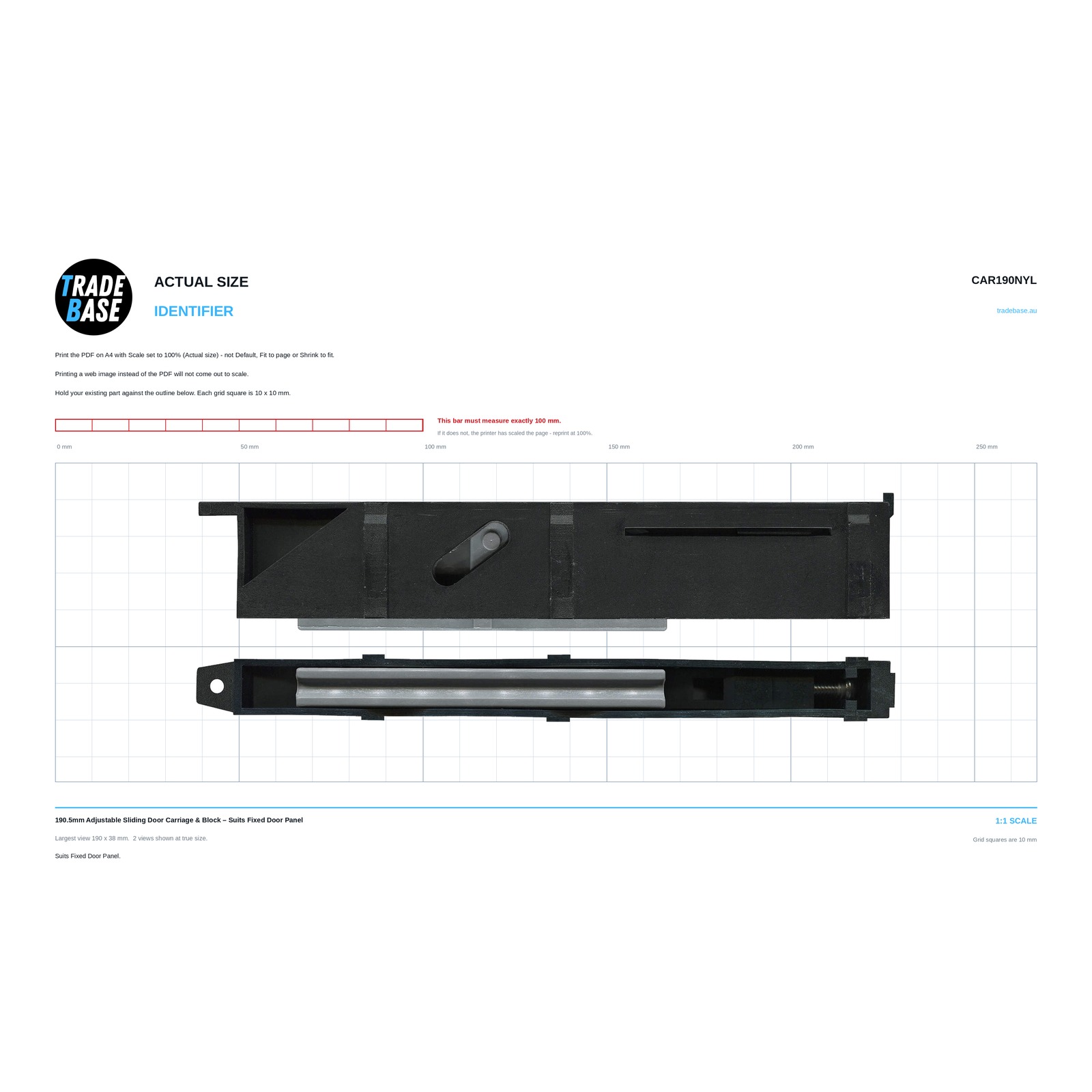

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 190.5 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
