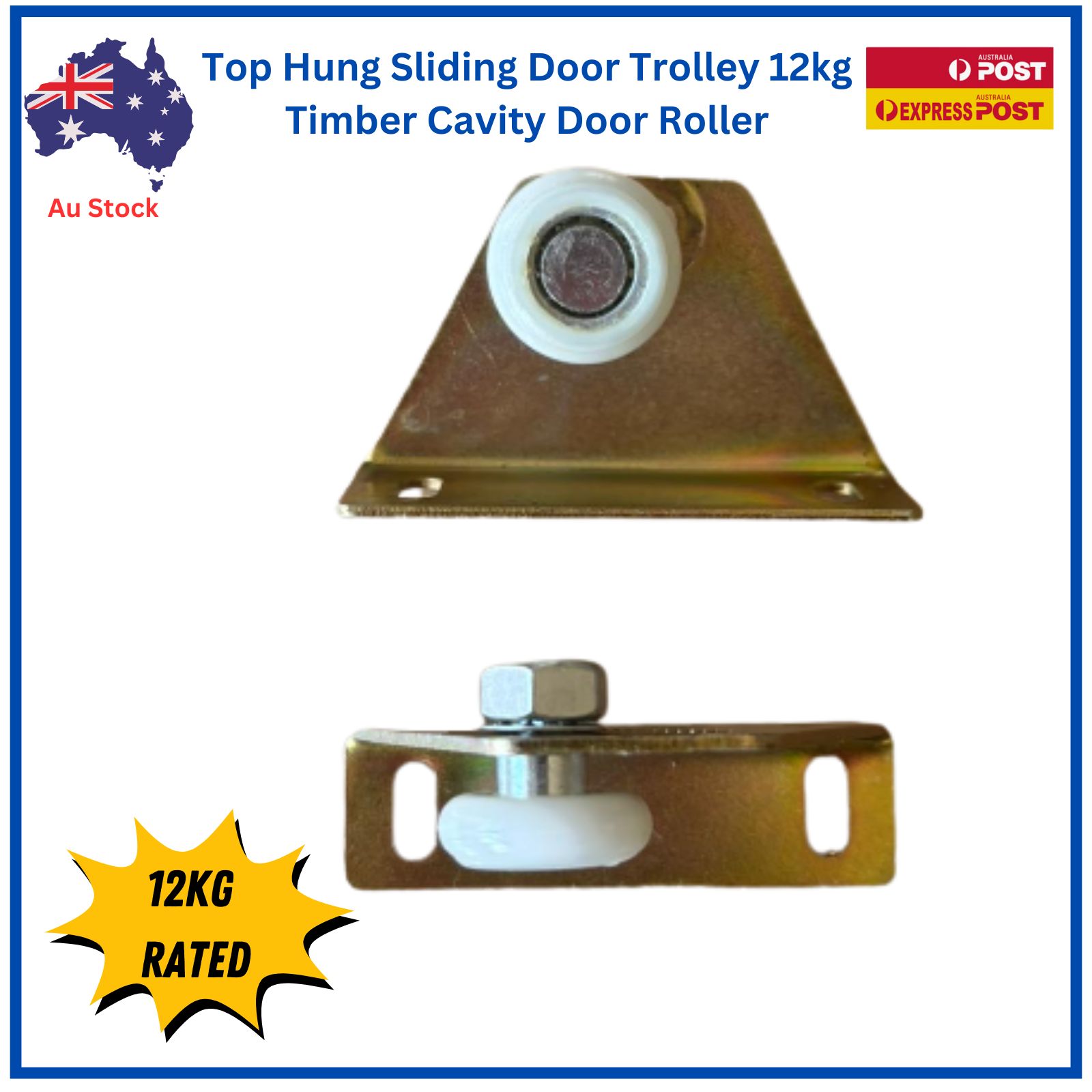

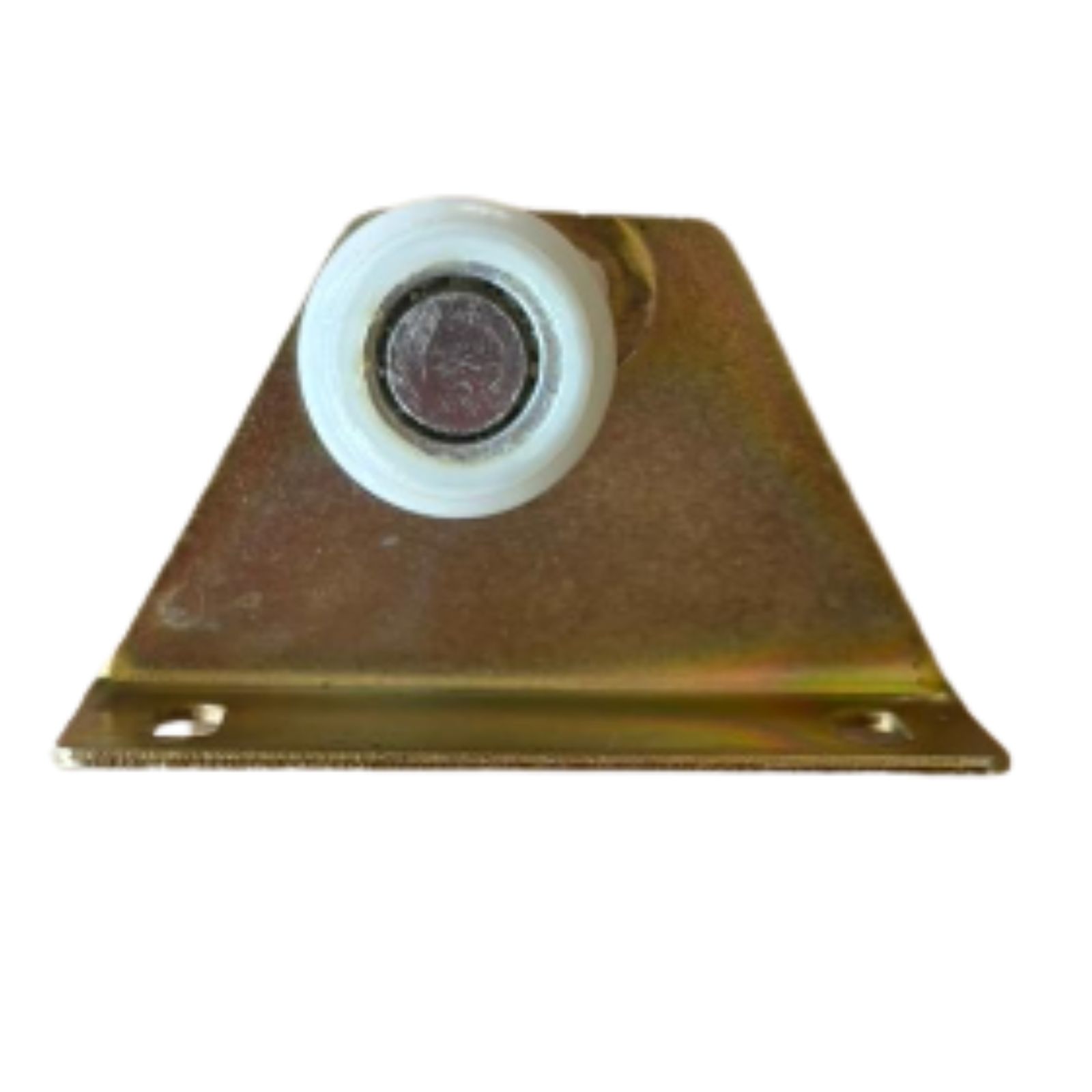

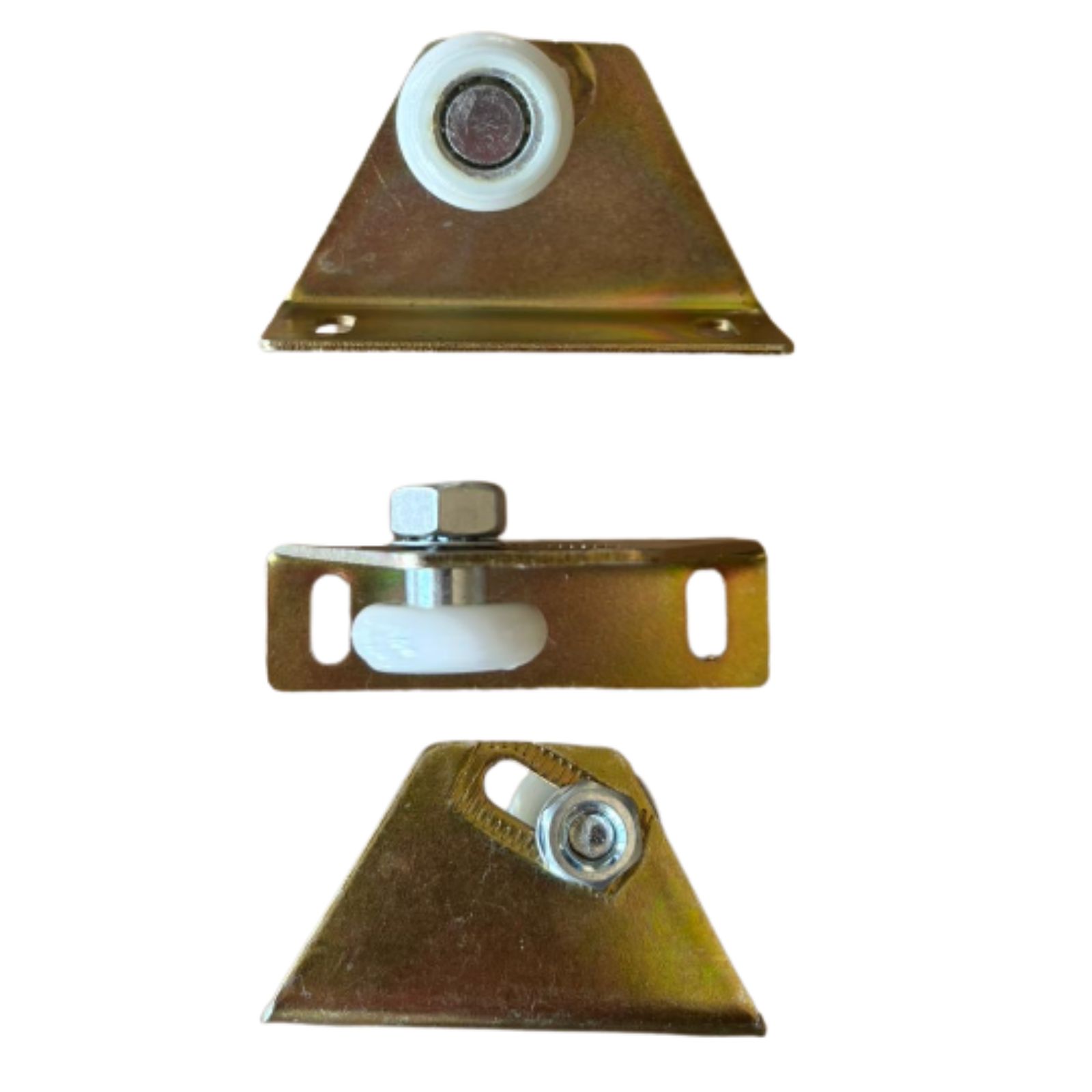

Top Hung Sliding Door Trolley Steel 12kg

This adjustable top hung sliding door trolley is designed for smooth, reliable operation in timber cavity and top hung wooden sliding door applications.

Manufactured with a zinc-plated steel carriage and a replaceable acetal roller, it provides low friction movement and long service life. The slotted mounting holes allow for easy height adjustment, making installation and alignment straightforward.

Suitable for repairs, replacements, or new installations where a compact, adjustable trolley is required.

Key Features
• Top hung sliding door trolley assembly
• Adjustable steel carriage
• Replaceable acetal roller
• Smooth, quiet operation
• Corrosion-resistant plated steel
• Ideal for timber sliding and cavity doors

Load Rating
• 12kg per trolley

Typical Applications
• Timber cavity sliding doors
• Top hung wooden doors
• Light internal sliding doors
• Replacement door roller assemblies

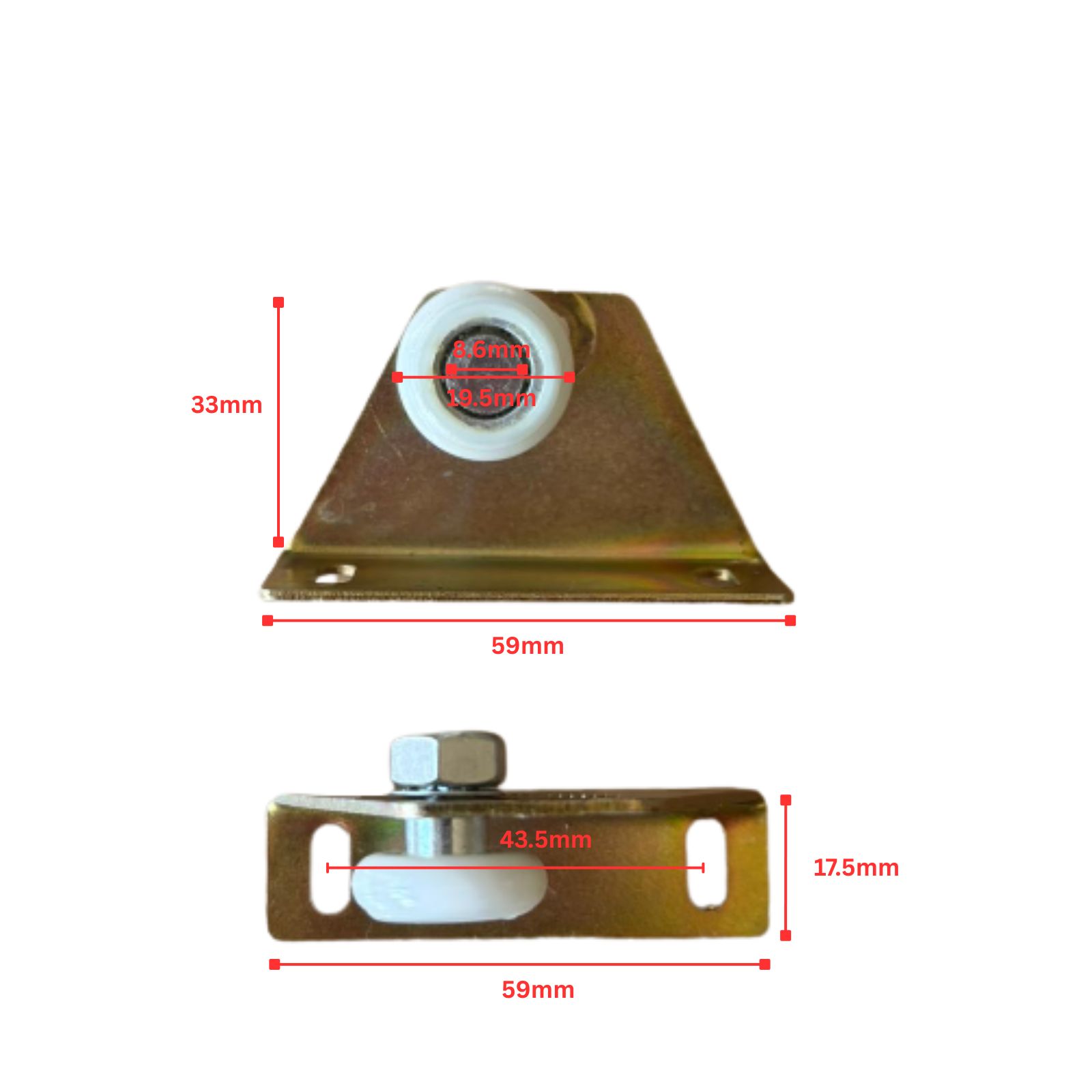

✅ Specifications

• TradeBase SKU: CRCAV12
• Door Type: Top hung sliding doors
• Material: Zinc-plated steel trolley
• Roller Material: Acetal (nylon)
• Adjustment: Slotted mounting holes
• Load Rating: 12kg
• Mounting: Screw-fixed (fasteners not included)

✅ What’s Included

• 1 × Adjustable top hung steel trolley with acetal roller

Installation Tips

• Check the track before you fit. File any burrs or flat spots smooth — a damaged track will chew out a new roller within weeks.
• Clean all grit and old grease out of the track. Grit is what kills a roller, not load.
• Replace carriages in pairs. A new roller running against a worn one carries uneven load and both wear out early.
• Fit the rear carriage first, then set the front carriage to get your clearance.
• Adjust last to bring the door parallel with the jamb, working from the handle side.
• Slide the door through its full travel before refitting stops or screens.

Care & Maintenance

• Use a dry lubricant only — silicone or dry PTFE. Oil and grease hold dust and grind the roller.
• Sweep the track out every few months, more often in coastal or dusty areas.
