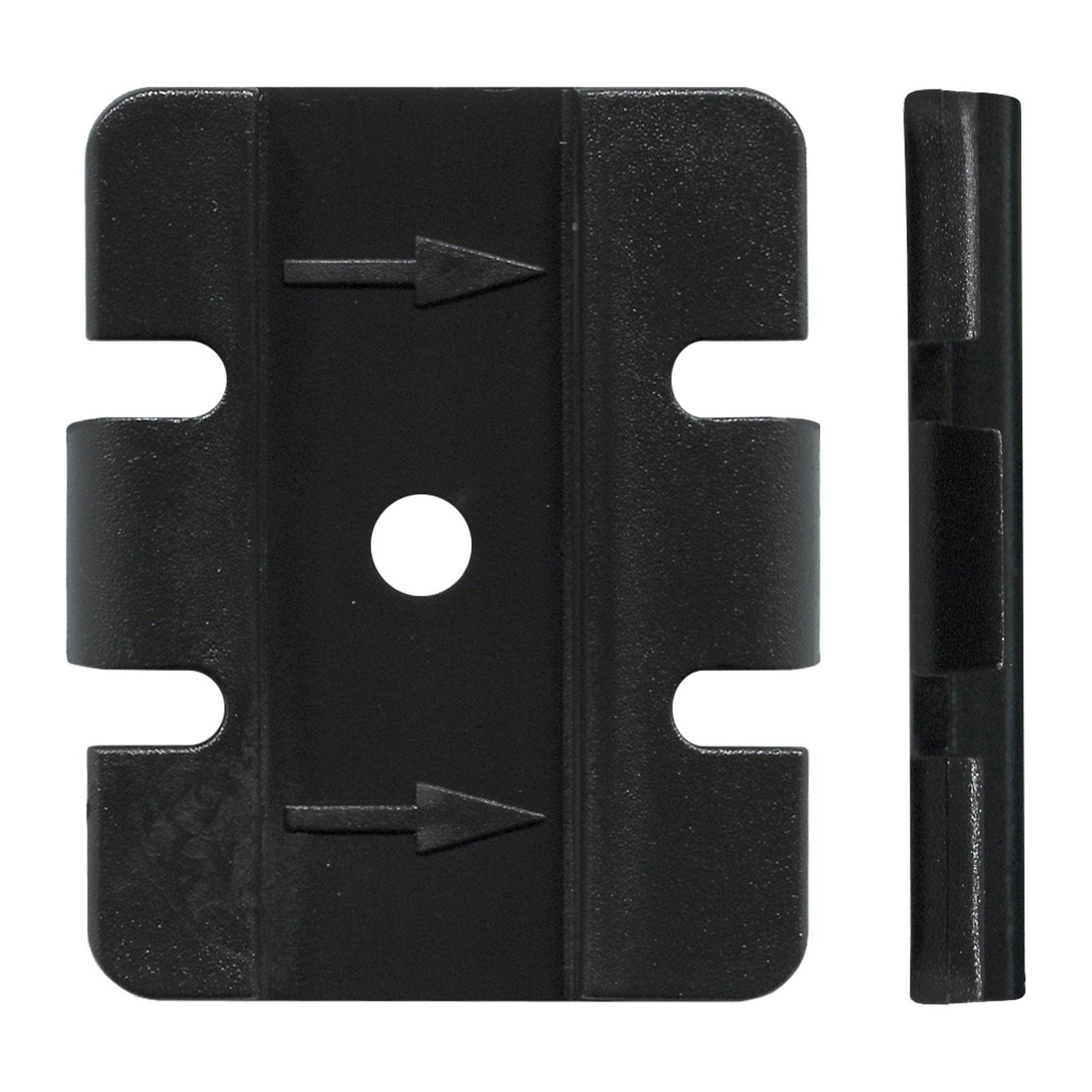

36.4mm Sliding Door Guide – Suits G.James™ Screen Doors

A direct replacement sliding screen door top guide. Suits G.James®.

Key Features

• Top guide

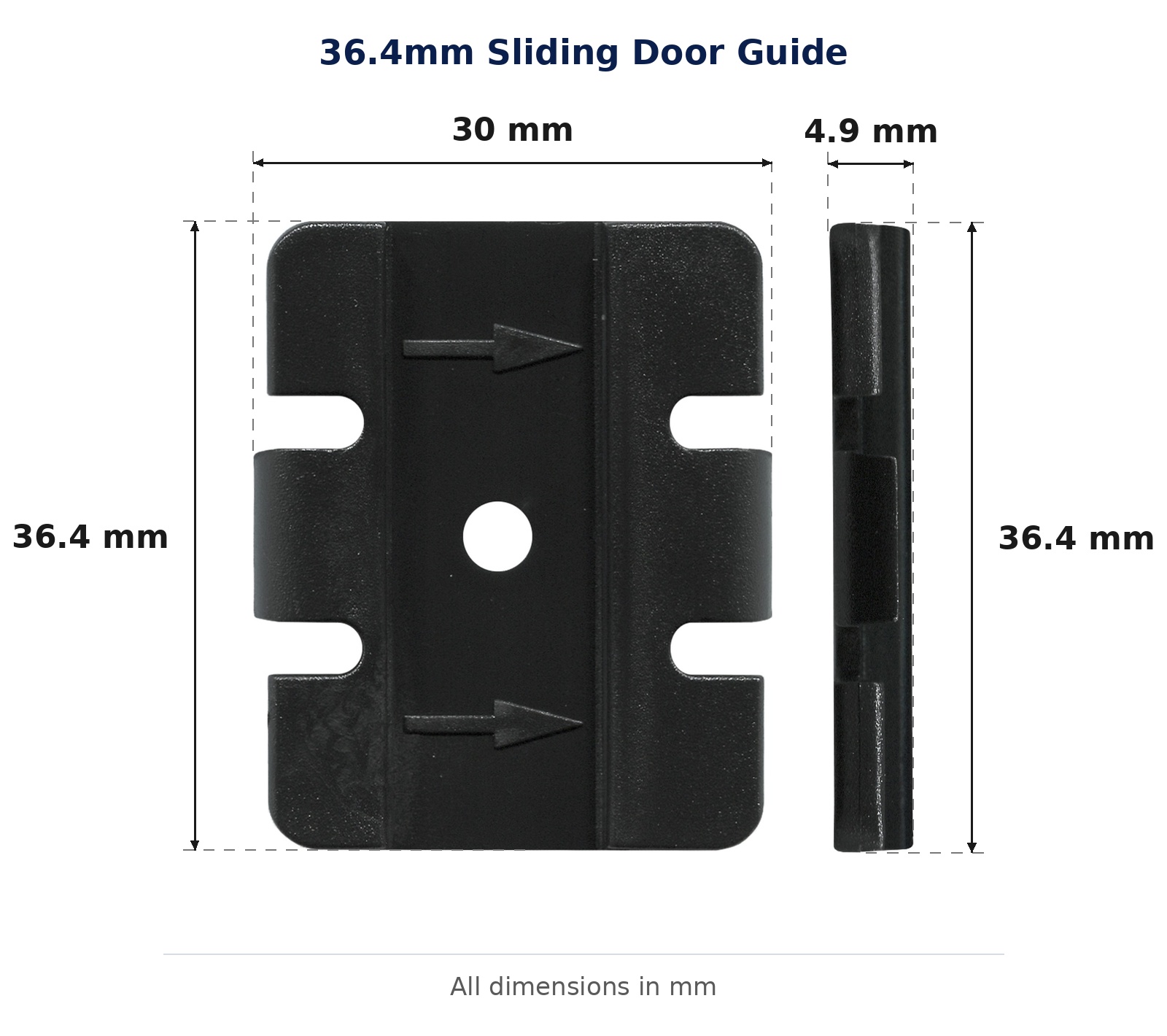

• Overall 30 x 36.4mm
• Australian stock, dispatched within 1 business day

Fits & Replaces

• Direct replacement for G.James® sliding screen door top guides.
• Fit is decided by the overall guide size of 30 x 36.4mm — measure your old guide over its full length and width before ordering
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: GDE36
• Overall size: 30 x 36.4mm

Installation Tips

• Note which way the old guide sits before you take it out — a top guide goes in one way only.
• Clean the top track out before refitting. Grit packed in the channel makes the door jam and wears the guide flat.
• Slide the door through its full travel once the guide is in, before refitting the stops.

Care & Maintenance

• Sweep the track out every few months, more often in coastal or dusty areas. Keep the guide dry — grease only holds grit against it.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

Check the fit before you buy

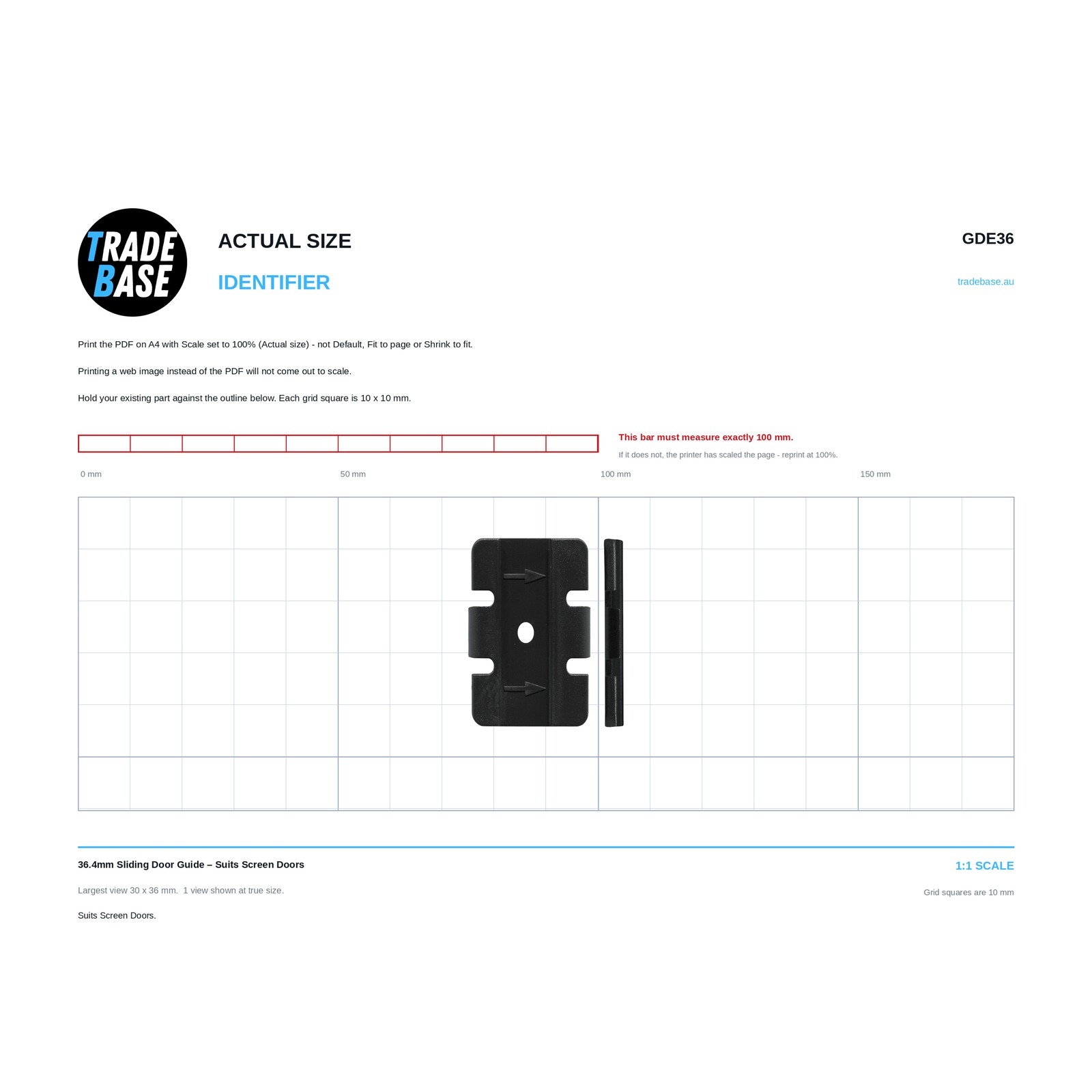

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 30 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
