57.8mm Sliding Door Stop – Suits Sliding Doors

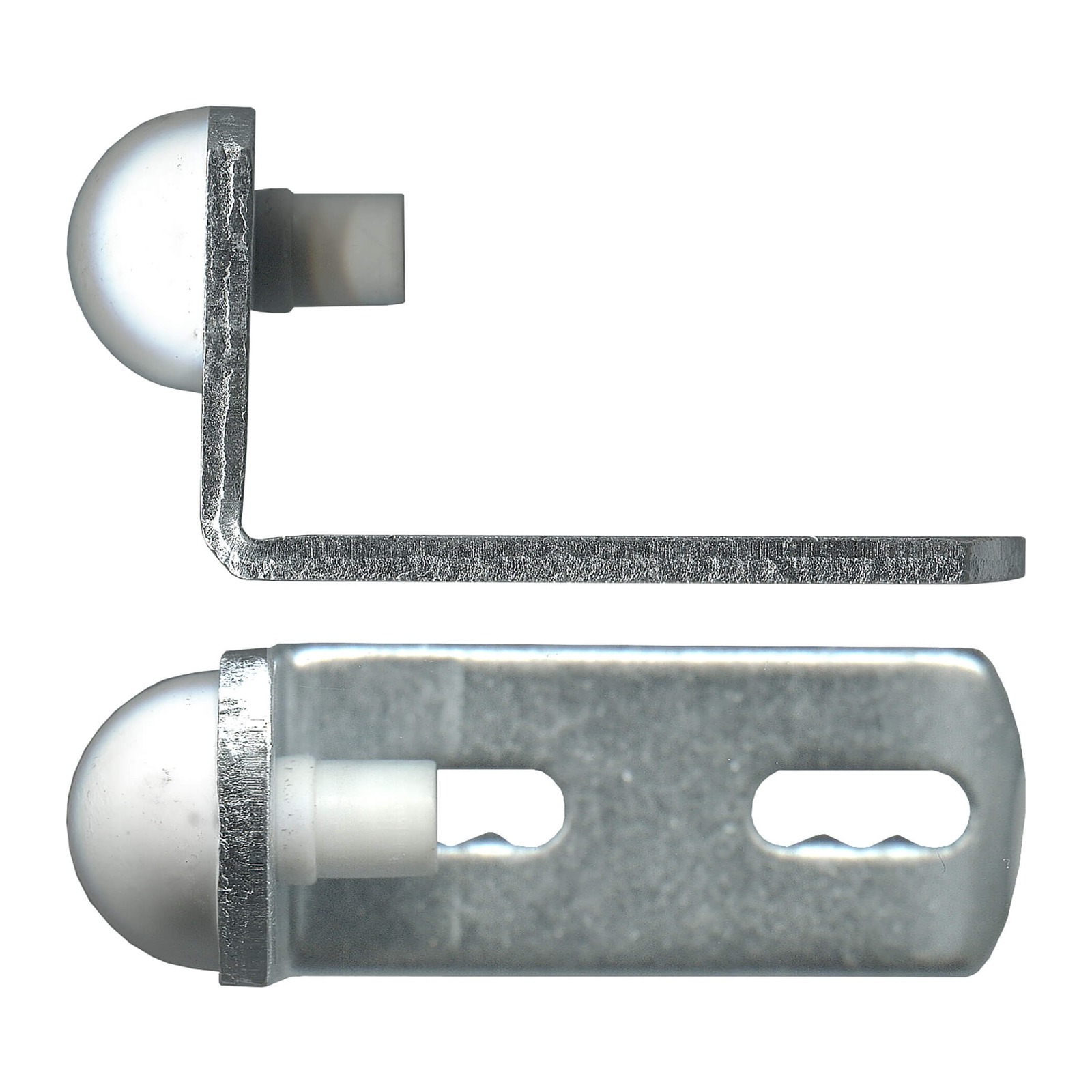

A direct replacement sliding door stop for sliding doors. Metal with rubber stopper.

Key Features

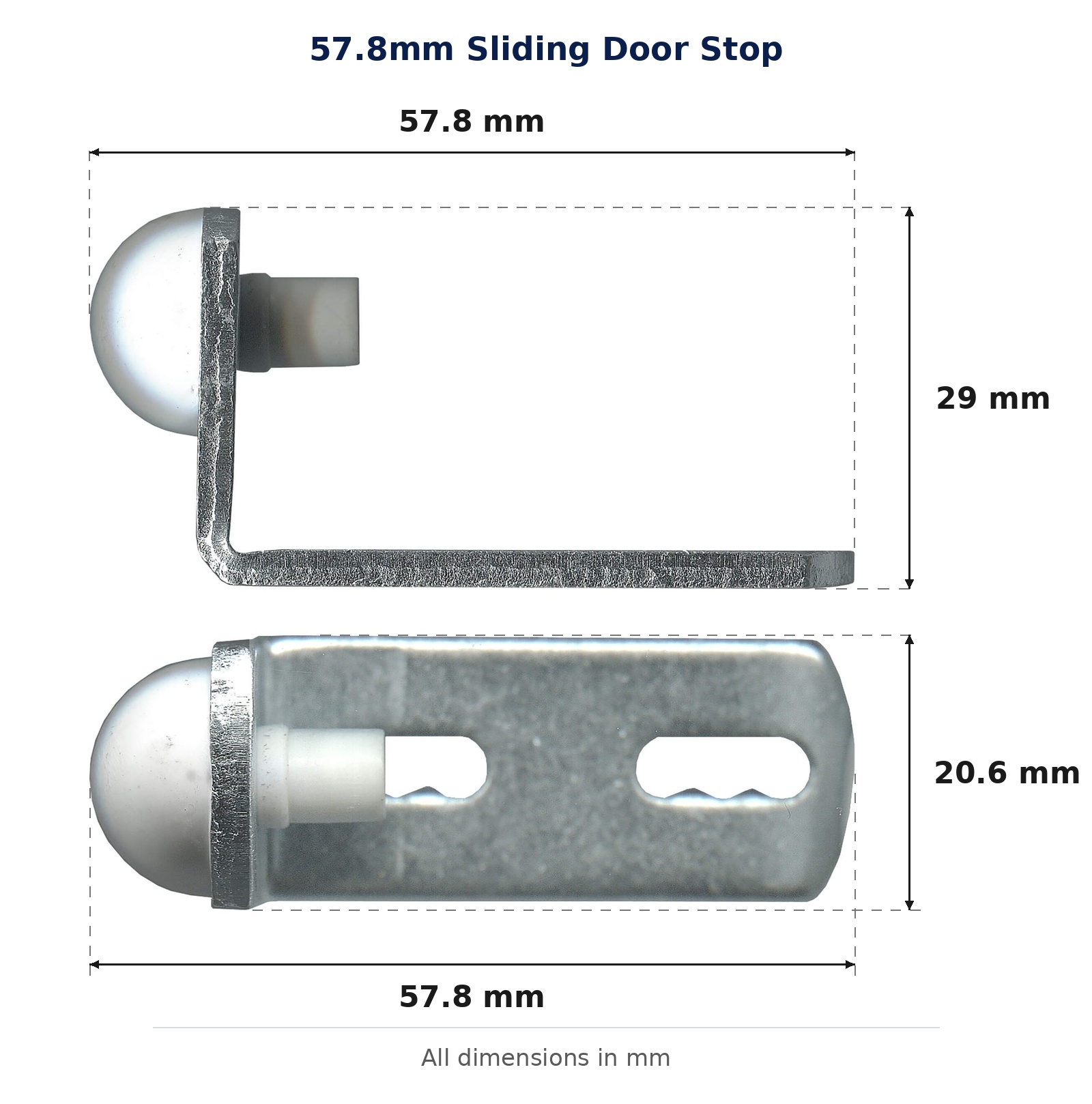

• Overall 57.8 x 29mm
• Australian stock, dispatched within 5 business days

Fits & Replaces

• Direct replacement for most Australian aluminium sliding door stops of this pattern.
• The fit is decided by the 57.8 x 29mm overall size and the width of your track — measure both before ordering.
• Print the Actual Size Identifier below and lay your old part straight onto it — that confirms the fit in seconds

Specifications

• TradeBase SKU: STP58
• Overall size: 57.8 x 29mm

Installation Tips

• Set the stop with the door held at the open position you want, allowing clearance before the door reaches the frame.
• Fix into solid material in the track or jamb. A stop that pulls out under load is worse than no stop at all.
• Check the rubber stopper meets the door squarely — a stopper hit on the edge will tear out early.

Care & Maintenance

• Check the fixings every few months and replace the stop once the rubber has perished or split.

Warranty

Covered by our 12-month warranty and your rights under the Australian Consumer Law.

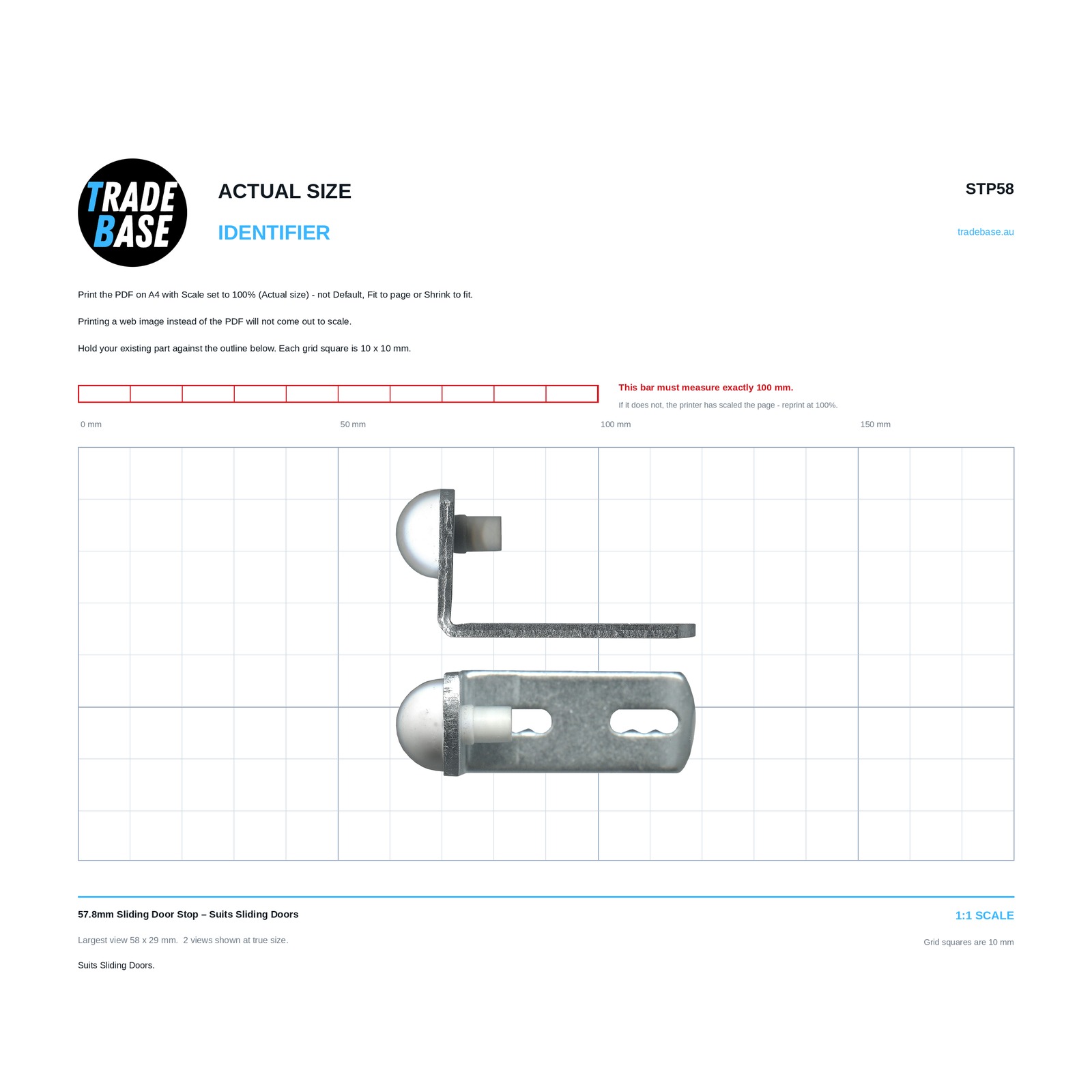

Check the fit before you buy

Download the TradeBase Actual Size Identifier (PDF) and print it on A4 at 100% / Actual size — not Fit to page. The part is reproduced at true 1:1 scale on a 10 mm grid and measures 57.8 mm overall. Lay your existing part straight onto the page to confirm it matches. A calibration bar on the sheet lets you check the printer has not scaled the page.
